3 In 1 Compact Weather Station Air Temperature Humidity Co2 Detector
Video
Product Details
Product Application
It is widely used in meteorological stations, greenhouses, environmental monitoring stations, medical and sanitation, purification workshops, precision laboratories and other fields that need to monitor air quality.
Product Parameters
|
Measurement parameters |
|||
|
Parameters name |
Air temperature, Air relative humidity,CO2 3 IN 1 sensor |
||
|
Parameters |
Measure range |
Resolution |
Accuracy |
|
Air temperature |
-40-120℃ |
0.1℃ |
±0.2℃（25℃） |
|
Air relative humidity |
0-100%RH |
0.1% |
±3%RH |
|
CO2 |
0~2000,5000,10000ppm(Optional) |
1ppm |
±20ppm |
|
Technical parameter |
|||
|
Stability |
Less than 1% during the life of the sensor |
||
|
Response time |
Less than 1 second |
||
|
Working current |
85mA@5V,50mA@12V,40mA@24V |
||
|
Output |
RS485, MODBUS communication protocol |
||
|
Housing material |
ABS |
||
|
Working environment |
Temperature -30 ～ 70 ℃, working humidity: 0-100% |
||
|
Storage conditions |
-40 ~ 60 ℃ |
||
|
Standard cable length |
2 meters |
||
|
The farthest lead length |
RS485 1000 meters |
||
|
Protection level |
IP65 |
||
|
Wireless transmission |
|||
|
Wireless transmission |
LORA / LORAWAN, GPRS, 4G,WIFI |
||
|
Mounting Accessories |
|||
|
Stand pole |
1.5 meters, 2 meters ,3 meters high, the other high can be customize |
||
|
Equiment case |
Stainless steel waterproof |
||
|
Ground cage |
Can supply the matched ground cage to buried in the ground |
||
|

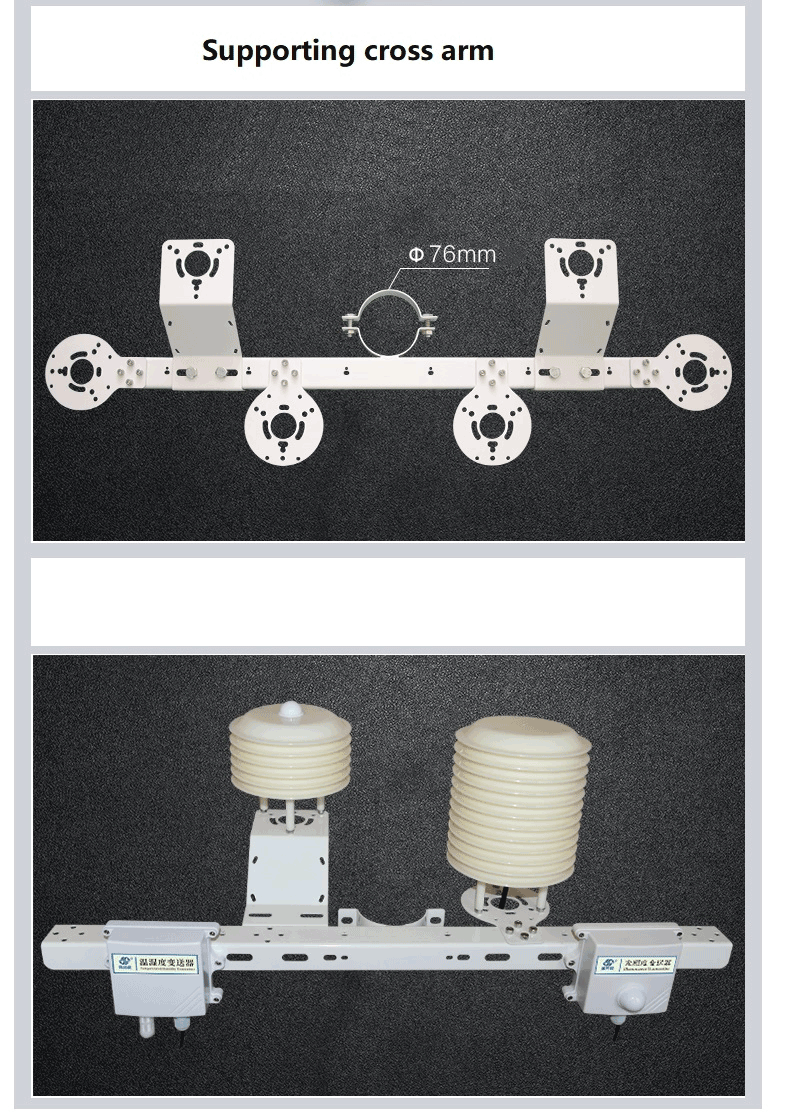

Cross arm for the install |
Optional(Used in thunderstorm places) |
||
|
LED display screen |
Optional |
||
|
7 inch touch screen |
Optional |
||
|
Surveillance cameras |
Optional |
||
|
Solar power system |
|||
|
Solar panels |
Power can be customized |
||
|
Solar Controller |
Can provide matched controller |
||
|
Mounting brackets |
Can provide the matched bracket |
||
|
Software and data logger |
|||
|
Software |
We can supply free server and software to see the real time data |
||
|
Data logger |
The data logger store the data in U disk in excel format |
||
FAQ
Q: What's the main characteristics of this 3 in 1 sensor?
A: It is easy for installation and can measure the Air temperature and Air humidity CO2 at the same time and you can check the data in the screen , 7/24 continuous monitoring.
Q:Can we choose other desired sensors?
A: Yes, we can supply the ODM and OEM service, the other required sensors can be integrated in our present weather station.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Do you supply tripod and solar panels?
A: Yes, we can supply the stand pole and the tripod and the other install accessories, also the solar panels, it is optional.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 12-24V, RS485. The other demand can be custom made.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.
Q: What’s the standard cable length?
A: Its standard length is 3m. But it can be customized, MAX can be 1KM.
Q: What's the lifetime of this Mini Ultrasonic Wind Speed Wind Direction Sensor?
A: At least 5 years long.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be delivered in 3-5 working days after receiving your payment. But it depends on your quantity.
