CE RS485 Smaller Size Digital Water Turbidity Sensor Analyzer Monitor for Wastewater Treatment Plant Aquaculture

Short Description:

This turbidity sensor is IP68 waterproof, and its cable is seawater-protected, allowing it to be submerged directly in water. The probe uses scattered light turbidity measurement. The sensor uses infrared light and filters to eliminate ambient light interference, ensuring high accuracy.


Download

Product Detail

Product Tags

Product Vedio

Product Features

1. High integration, small size, low power consumption, easy to carry;

2. The measurement range is 0-1000NTU, which can be used in clean water or sewage with high turbidity.

3.Compared with the traditional sensor with a scratch sheet, the surface of the sensor is very smooth and flat, and dirt is not easy to adhere to the surface of the lens.

4.  waterproof grade IP68，The shell is made of stainless steel, corrosion-resistant, long service life, suitable for all kinds of sewage environment.

5. It can be RS485 , 4-20mA, 0-5V, 0-10V output with wireless module and matched server and software to see real time in PC end

6.No need to block light, can be tested directly under the light.

When used, the distance between the bottom and the wall of the container should be more than 5 cm.

Product Applications

It is mainly used in surface water, aeration tank, tap water, circulating water, sewage plant, sludge reflux control and discharge port monitoring.

Product Parameters

Measurement parameters
Parameters name Water turbidity sensor
Parameters Measure range Resolution Accurancy
Water turbidity 0.1～1000.0 NTU 0.01 NTU ±3% FS

Technical parameter
Measuring principle 90 degree light scattering method
Digital output RS485, MODBUS communication protocol
Analog output 0-5V, 0-10V,4-20mA
Housing material Stainless steel
Working environment Temperature 0 ～ 60 ℃
Standard cable length 2 meters
The farthest lead length RS485 1000 meters
Protection level IP68

Wireless transmission
Wireless transmission  LORA / LORAWAN, GPRS, 4G,WIFI

Mounting Accessories
Mounting brackets 1.5 meters, 2 meters  the other higth can be customize
Measuring tank Can be customize
Cloud server Match cloud server can be supplied if you use our wireless modules
Software 1. See the real time data
  2. Download the history data in excel type

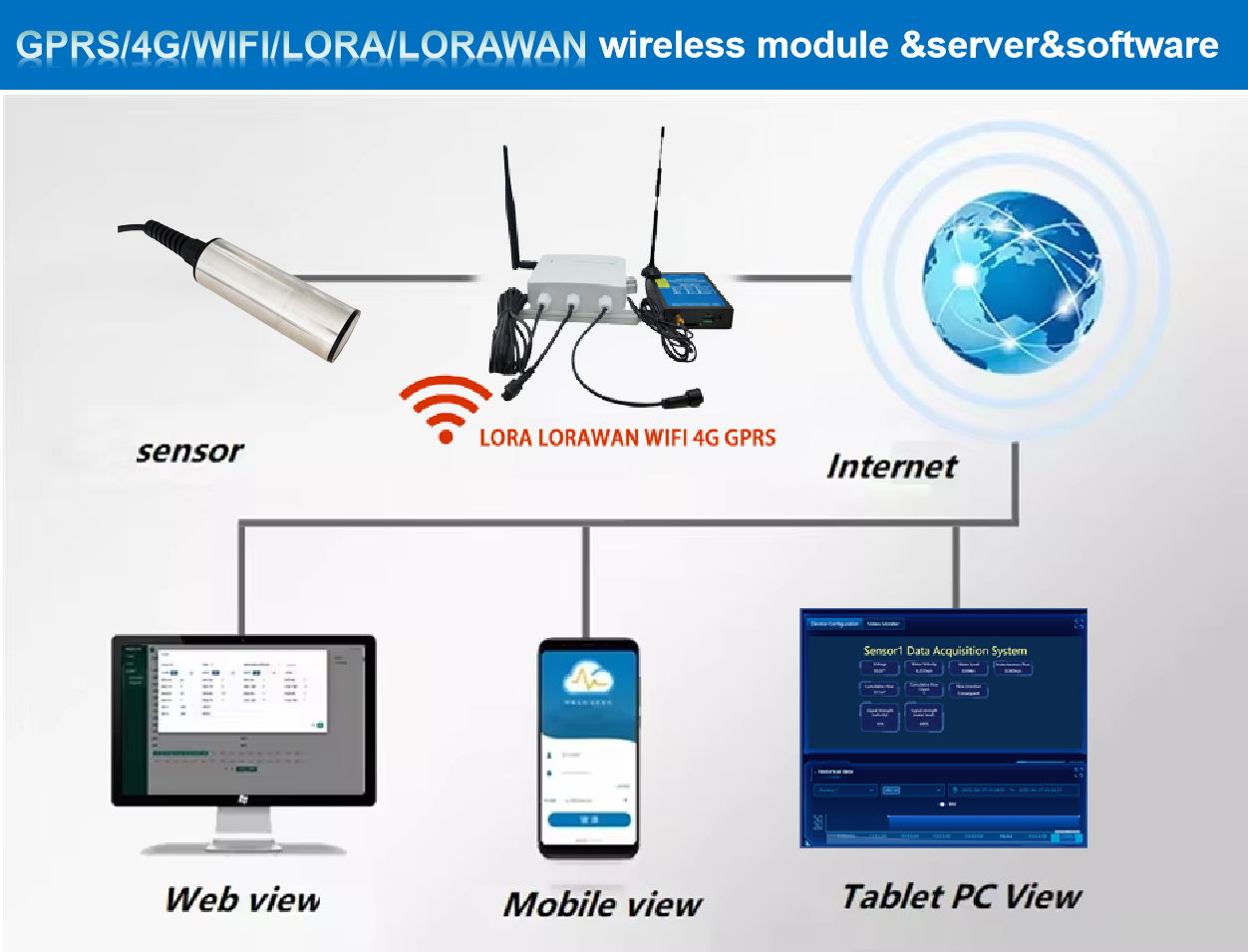

Wireless system

FAQ

Q: How can I get the quotation?

A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.



Q: What's the main characteristics of this sensor?

A:

1. Active correction of dual optical paths, channels with high resolution, accuracy and wide wavelength range;

2. Monitoring and output, using UV-visible near-infrared measurement technology, supporting RS485 signal output;

3. Built-in parameter pre-calibration supports calibration, calibration of multiple water quality parameters;

4. Compact structure design, durable light source and cleaning mechanism, 10-year service life, high-pressure air cleaning and purge, easy maintenance;

5. Flexible installation, immersion type, suspension type, shore type, direct plug-in type, flow-through type.



Q:Could I get samples?

A:Yes,we have materials in stock to help you to get the samples as soon as we can.



Q: What’s the common power supply and signal output?

A: Common power supply and signal output is DC: 220V, RS485. The other demand can be custom made.



Q: How can I collect data?

A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless module.



Q: Do you have the matched software?

A:Yes, we can supply the software , you can check the data in real time and download the data from the software, but it need use our data collector and host.



Q: What’s the standard cable length?

A: Its standard length is 5m. But it can be customized, MAX can be 1km.



Q: What's the lifetime of this Sensor?

A: Usually 1-2 years.



Q: May I know your warranty?

A: Yes, usually it’s 1 year.



Q:What’s the delivery time?

A: Usually, the goods will delivered be  in 3-5 working days after receiving your payment. But it depends on your quantity.



 Just send us an inquiry at the bottom or contact Marvin for more information, or get the latest catalog and competitive quotation.
