Date Logger Outdoor Radar Rainfall 7 in 1 Agriculture Professional Weather Station

Short Description:

This weather station can measure temperature, humidity, pressure, wind speed, wind direction, rainfall, solar radiation,Other parameters can be customized.Radar Principles for Measuring Rainfall. We can provide servers and software, and support various wireless modules, GPRS, 4G, WIFI, LORA, LORAWAN.


Product Detail

Product Tags

vudio

Features

This weather station can measure temperature, humidity, pressure, wind speed, wind direction, rainfall, solar radiation,Other parameters can be customized.Radar Principles for Measuring Rainfall. We can provide servers and software, and support various wireless modules, GPRS, 4G, WIFI, LORA, LORAWAN.

Product details

Features

●  Small size, light weight, easy to install

●  The material is radiation resistant ASA engineering plastic, which can be used outdoors for more than 10 years

●  Wind speed and direction for ultrasonic principle, no moving parts, long service life, while installed on the above panel, can not be affected by rain and snow

●  Rainfall is based on the radar principle, which can measure instantaneous rainfall and accumulated rainfall, especially the radar principle, which has higher measurement accuracy

●  RS485 output MODBUS protocol, can configure a variety of wireless modules GPRS/4G/WIFI, as well as supporting servers and software, view real-time data

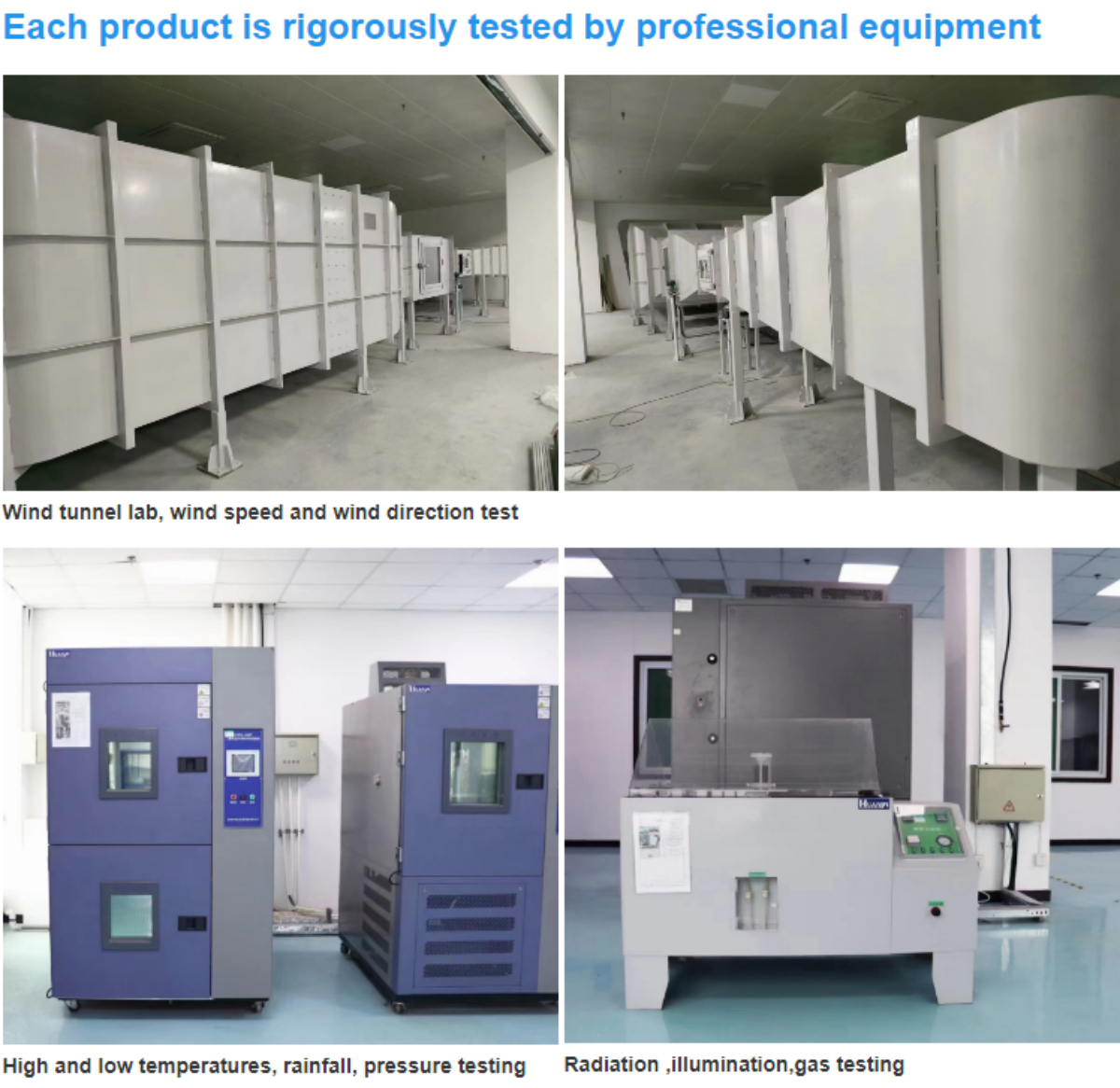

avsdv (1)

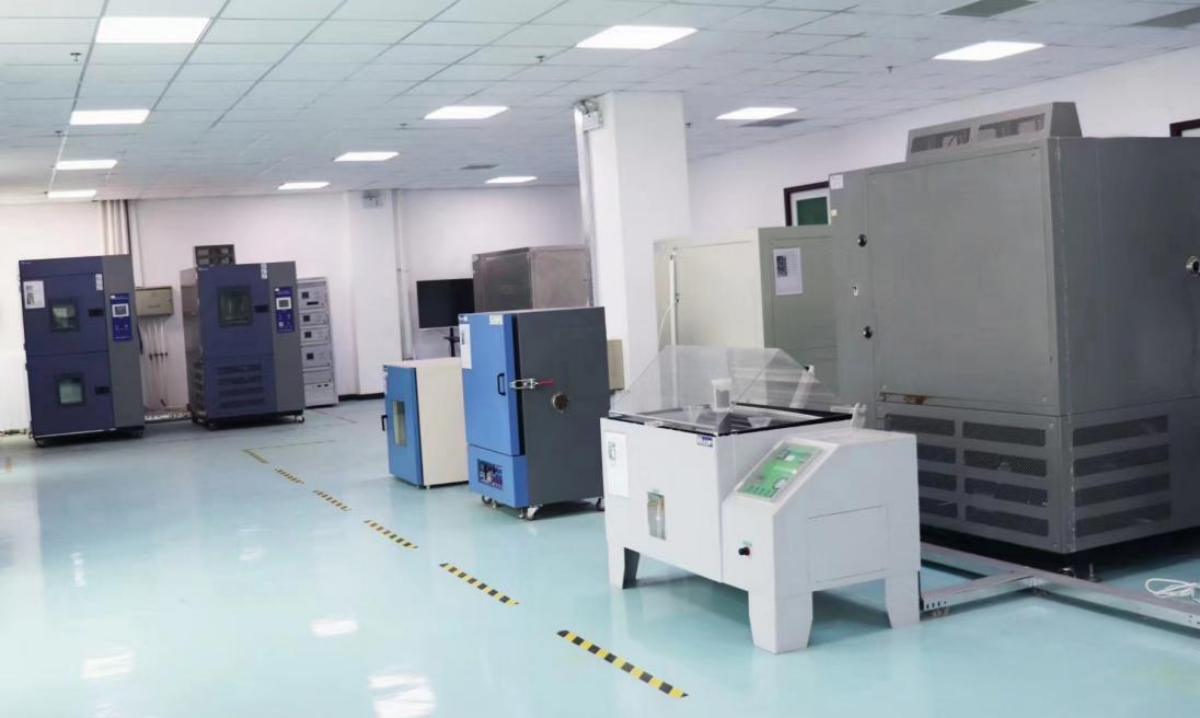

avsdv (2)

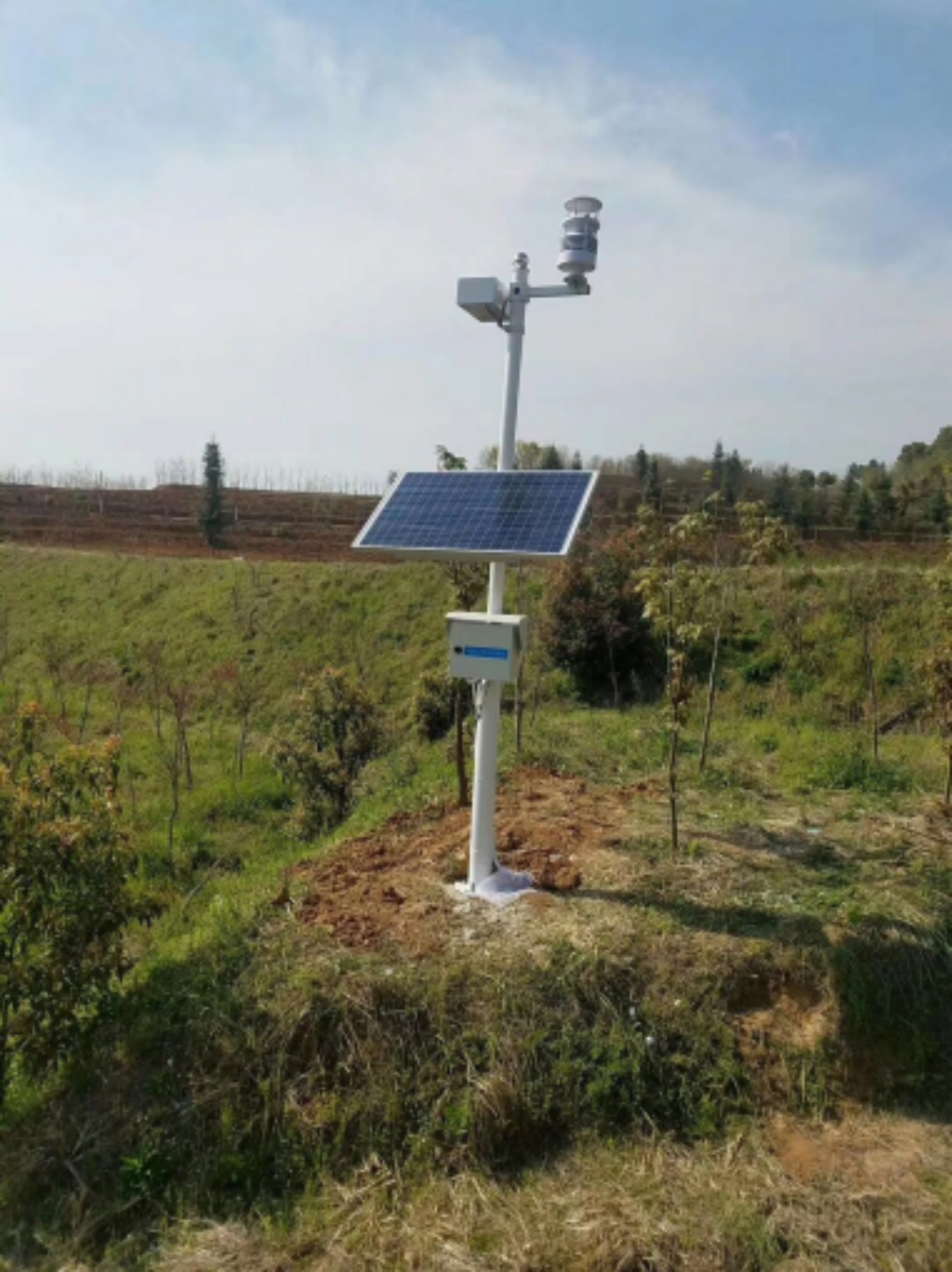

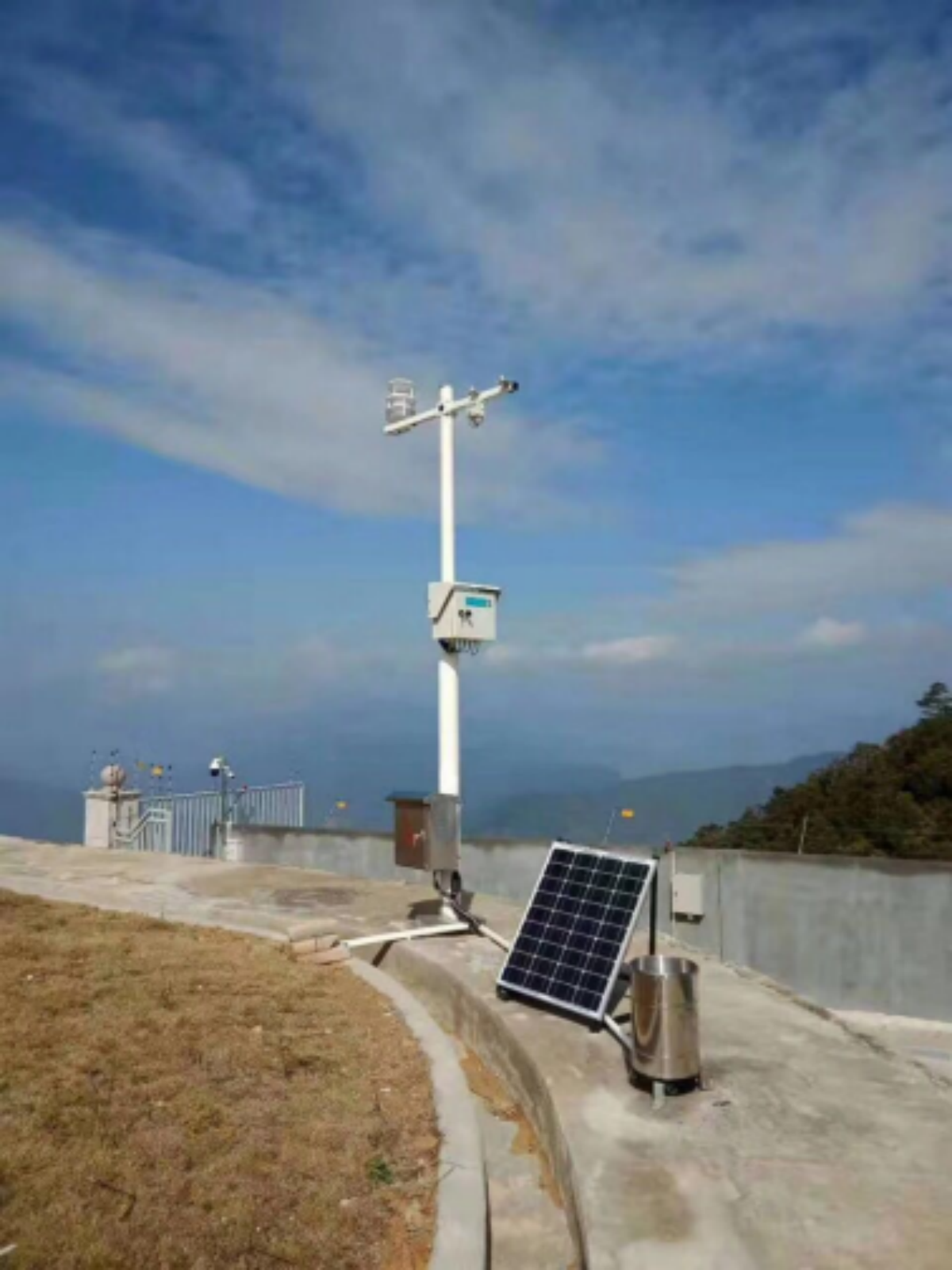

Product application

Application field

● Weather monitoring

● Urban environmental monitoring

● Wind power

● Navigation ship

● Airport

● Bridge tunnel

avsdv (4)
avsdv (3)

Product parameters

Measurement parameters

Parameters Name 7 in 1:  Ultrasonic wind speed ,wind direction,air temperature, air relative humidity,Air Pressure,Solar Radiation,Radar rainfall
Parameters Measure range Resolution Accuracy
Wind speed 0-40m/s 0.1m/s ±(0.5+0.05v)m/s
Wind direction 0-359.9° 0.1° ±3°
Air temperature  -40-80℃ 0.1℃ ±0.5℃(25℃)
Air relative humidity 0-100%RH 1% ±5%RH
Atmospheric pressure 150-1100hpa 0.1hpa ±1hPa
Solar Radiation 0-2000 W/m2 0.1 W/m2 ±5%
Radar rainfall 0-100mm/hr ±10% 0.01mm
* Other customizable parameters PM2.5,PM10,Ultraviolet, CO,SO2, NO2, CO2, O3




Monitoring principle

Air temperature and humidity: Swiss Sensirion digital temperature and humidity sensor
Illumination: German ROHM digital photosensitive chip
Rainfall: Tipping bucket rain gauge

Technical parameter

Stability Less than 1% during the life of the sensor
Response time Less than 10 seconds
Warm-up time 30S (SO2 \ NO2 \ CO \ O3 12 hours)
Supply voltage VDC: 7-24V
Life time In addition to SO2 \ NO2 \ CO \ O3 \ PM2.5 \ PM10 (normal environment for 1 year, high pollution environment is not guaranteed),
life is not less than 3 years
Output RS485, MODBUS communication protocol
Housing material ASA engineering plastics
Working environment Temperature -40 ~ 60 ℃, working humidity: 0-100%
Storage conditions -40 ~ 60 ℃
Standard cable length 3 meters
The farthest lead length RS485 1000 meters
Protection level IP65
Dimension/Weight Φ84×210mm 0.33kg
Electronic compass Optional
GPS Optional

Wireless transmission

Wireless transmission  LORA / LORAWAN(eu868mhz,915mhz,434mhz), GPRS, 4G,WIFI

Cloud Server and Software introduce

Cloud server Our cloud server is bind up with the wireless module
Software function 1. See real time data in the PC end
2. Download the history data in excel type
3. Set alarm for each parameters which can send the alarm information to your email when the measured data are out range.

Mounting Accessories

Stand pole 1.5 meters, 1.8 meters ,3 meters high, the other high can be customize
Equipment case Stainless steel waterproof
Ground cage  Can supply the matched ground cage to burred in the ground
Lightning rod Optional(Used in thunderstorm places)
LED display screen Optional
7 inch touch screen Optional
Surveillance cameras Optional

Solar power system

Solar panels Power can be customized
Solar Controller Can provide matched controller
Mounting brackets Can provide the matched bracket

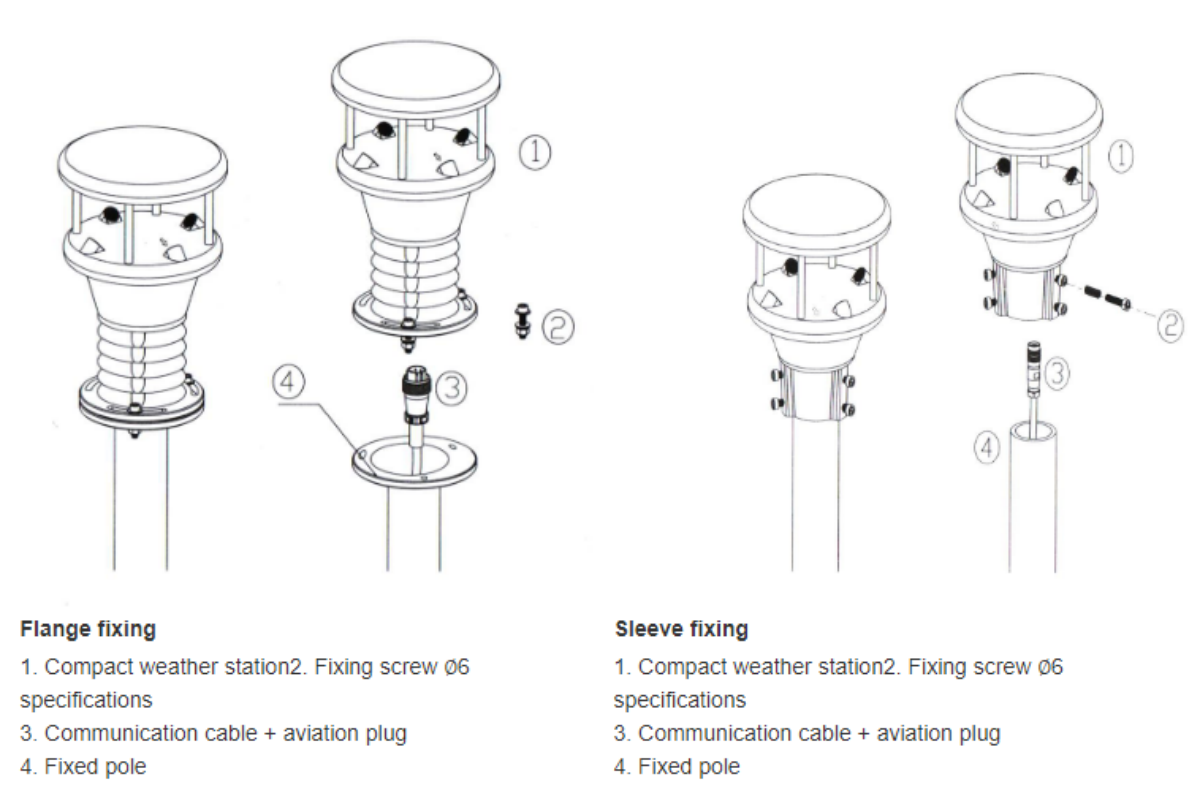

Product installation

avsdv (5)

FAQ

Q: What's the main characteristics of this compact weather station?
A: It can measure the air temperature humidity pressure wind speed wind direction rainfall illumination 7 parameters at the same time, and the other parameters also can be custom made.The principle of radar rainfall monitoring,Compared with the tipping bucket rain gauge, maintenance-free, high accuracy; Compared with the infrared rain gauge, more anti-interference, more accurate measurement.It is easy for installation and has robust & integrated structure, 7/24 continuous monitoring.

Q:Can we choose other desired sensors?
A: Yes, we can supply the ODM and OEM service, the other required sensors can be integrated in our present weather station.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.

Q:Do you supply tripod and solar panels?
A: Yes, we can supply the stand pole and the tripod and the other install accessories, also the solar panels, it is optional.

Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 12-24V, RS485. The other demand can be custom made.

Q: Which output of the sensor and how about the wireless module?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.

Q:What communication interface do you prefer?
Q:We have RS232, RS485, SDI-12 for your option.

Q:What communication protocol do you prefer?
Q:We have NMEA0183, MODBUS-RTU, SDI-12,unsolicited ASCII string output for your option.

Q: How can I collect the data and can you supply the matched server and software?
A: We can supply three ways to show the data:
(1) Integrate the data logger to store the data in the SD card in excel type
(2) Integrate the LCD or LED screen to show the real time data indoor or outdoor
(3) We can also supply the matched cloud server and software to see the real time data in the PC end.

Q: What’s the standard cable length?
A: Its standard length is 3 m. But it can be customized, MAX can be 1 KM.

Q: What's the lifetime of this Mini Ultrasonic Wind Speed Wind Direction Sensor?
A: At least 5 years long.

Q: May I know your warranty?
A: Yes, usually it’s 1 year.

Q:What’s the delivery time?
A: Usually, the goods will be delivered in 3-5 working days after receiving your payment. But it depends on your quantity.

Q: What industry can be applied to in addition to construction sites?
A:Urban roads,bridges,smart street light, smart city,industrial park and mines, etc.
