Digital Optical Online Full Spectrum Multi-Parameter Water Ammonia Total Nitrogen Cod Bod Toc Tss Sensor Customized OEM Support
Product Vedio
Product Features
1. Active correction of dual optical paths, channels with high resolution, accuracy and wide wavelength range;
2. Monitoring and output, using UV-visible near-infrared measurement technology, supporting RS485 signal output;
3. Built-in parameter pre-calibration supports calibration, calibration of multiple water quality parameters;
4. Compact structure design, durable light source and cleaning mechanism, long service life, high-pressure air cleaning and purge, easy maintenance;
5. Flexible installation, immersion type, suspension type, shore type, direct plug-in type, flow-through type.
Product Applications
Widely used in oceans, drinking water, surface water, groundwater, sewage treatment and other water environments.

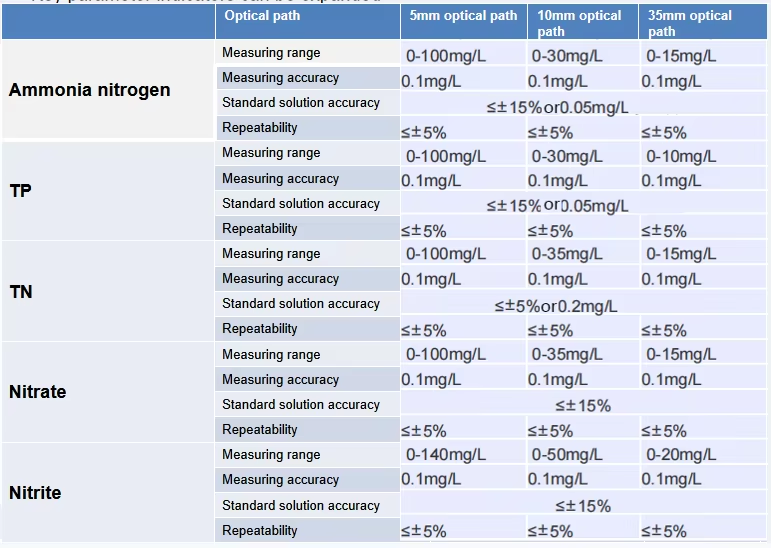

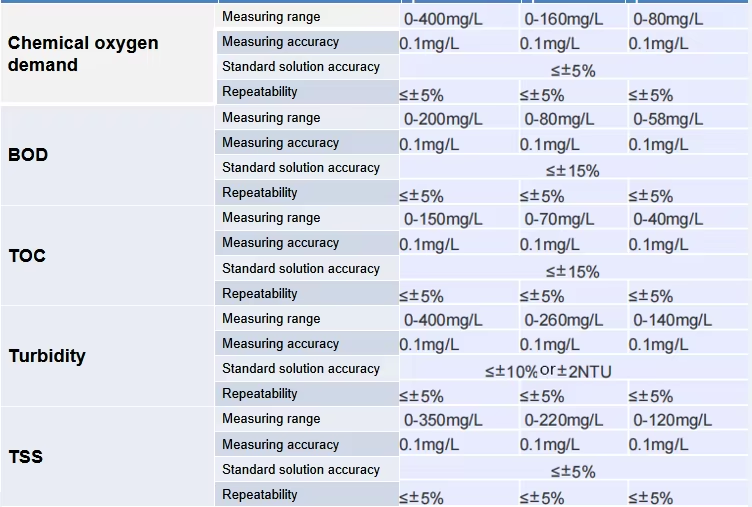

Product Parameters
|
Full spectrum water quality sensor technical parameters |
|
| Measurement principle | Spectroscopy (dual optical path) |
| Band range | 190-900nm |
| Number of channels | Less than 900 channels |
| Measurement optical path | 5mm 10mm 35mm |
| Response time | Minimum response time. 1.8S |
| Communication interface | RS485 Modbus |
| Dimensions | D60mmxL396mm |
| Ambient temperature | 0℃--60℃ |
| Withstand pressure | 1bar |
| External voltage | 12v |
| Protection level | IP68 |
| Flow rate range | Less than 3m/S |
| Instrument power | Working power consumption 7.5w |
| Usage method | Immersion type Suspended type Shore type Direct plug-in type Flow type |
| Material of the body | SUS 316L SUS904 |
| Optical window | JGS1 quartz window |
| Probe cleaning | Air cleaning (external) |
| Random accessories | Terminal universal controller/10m cable/micro measurement cell |
|
Water Quality Sensor Universal Controller |
|
| Display | 7” TFT touch screen, LED backlight |
| Display size | (154x86)mm |
| Resolution | 800x480 |
| Operating system | Windows |
| Digital communication | RS485, standard Modbus protocol |
| Working environment | (5-45)℃, (0-95)%RH |
| Protection level | IP54 |
| Impact resistance | IK 08 |
| Flame retardant level | UL94-5V |
| Dimensions | (230x180x117)mm |
| Working voltage | 220VAC |
| Instrument power | 15W/13W |
| Communication interface | Input RS485 Modbus NTO (12V) Output 12V Output 5V |
| Quotation | ||||
| Parameter name | SPEC | Unit | Quantity | Unit: US dollars |
| Full spectrum host | Optical transmitter | Set | 1 | 7215 |
| Universal controller | 7-inch industrial control (waterproof) | Unit | 1 | 990 |
| Parameter 1 | Ammonia nitrogen | Item | 1 | 2610 |
| Parameter 2 | Total phosphorus | Item | 1 | 3330 |
| Parameter 3 | Total nitrogen | Item | 1 | 2610 |
| Parameter 4 | COD | Item | 1 | 2370 |
| Parameter 5 | Permanganate (CODmn) | Item | 1 | 2370 |
| Parameter 6 | BOD | Item | 1 | 1830 |
| Parameter 7 | NO3-N Nitrate nitrogen | Item | 1 | 2370 |
| Parameter 8 | Nitrite | Item | 1 | 2370 |
| Parameter 9 | Turbidity | Item | 1 | 1320 |
| Parameter 10 | Suspended solids concentration TSS | Item | 1 | 1320 |
| Parameter 11 | TOC Total Organic Nitrogen | Item | 1 | 1840 |
| Remark | The full sepctrum host and the universal controller are the two necessary ones for each parameter, and other parameters can be customized according to your needs. | |||
|
Wireless transmission |
|
| Wireless transmission | LORA / LORAWAN(EU868MHZ,915MHZ), GPRS, 4G,WIFI |
|
Provide cloud server and software |
|
| Software | 1. The real time data can be seen in the software .
2. The alarm can be set according to your requirement. |
FAQ
Q: How can I get the quotation?
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of this sensor?
A:
1. Active correction of dual optical paths, channels with high resolution, accuracy and wide wavelength range;
2. Monitoring and output, using UV-visible near-infrared measurement technology, supporting RS485 signal output;
3. Built-in parameter pre-calibration supports calibration, calibration of multiple water quality parameters;
4. Compact structure design, durable light source and cleaning mechanism, 10-year service life, high-pressure air cleaning and purge, easy maintenance;
5. Flexible installation, immersion type, suspension type, shore type, direct plug-in type, flow-through type.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 220V, RS485. The other demand can be custom made.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless module.
Q: Do you have the matched software?
A:Yes, we can supply the software , you can check the data in real time and download the data from the software, but it need use our data collector and host.
Q: What’s the standard cable length?
A: Its standard length is 5m. But it can be customized, MAX can be 1km.
Q: What's the lifetime of this Sensor?
A: Usually 1-2 years.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will delivered be in 3-5 working days after receiving your payment. But it depends on your quantity.
