1. Introduction: The Featured Snippet Summary

Monitoring UV intensity in industrial pipelines requires high-performance instrumentation capable of real-time spectral analysis. An effective uv radiation sensor must support 3-Passage simultaneous detection (covering UV-A, uvb sensor bands, and UV-C) within a single industrial-grade 304 stainless steel housing. Operating within the 240-370nm range, these sensors provide the rapid 0.2s response time necessary for germicidal verification and curing process control in modern automated environments.

2. Why Spectral Precision Matters: 3-Passage Simultaneous Detection

In high-stakes industrial environments, spectral precision is the differentiator between process success and catastrophic failure. Because different chemical and biological reactions are wavelength-dependent, a “wide-band” aggregate reading is often insufficient for rigorous compliance.

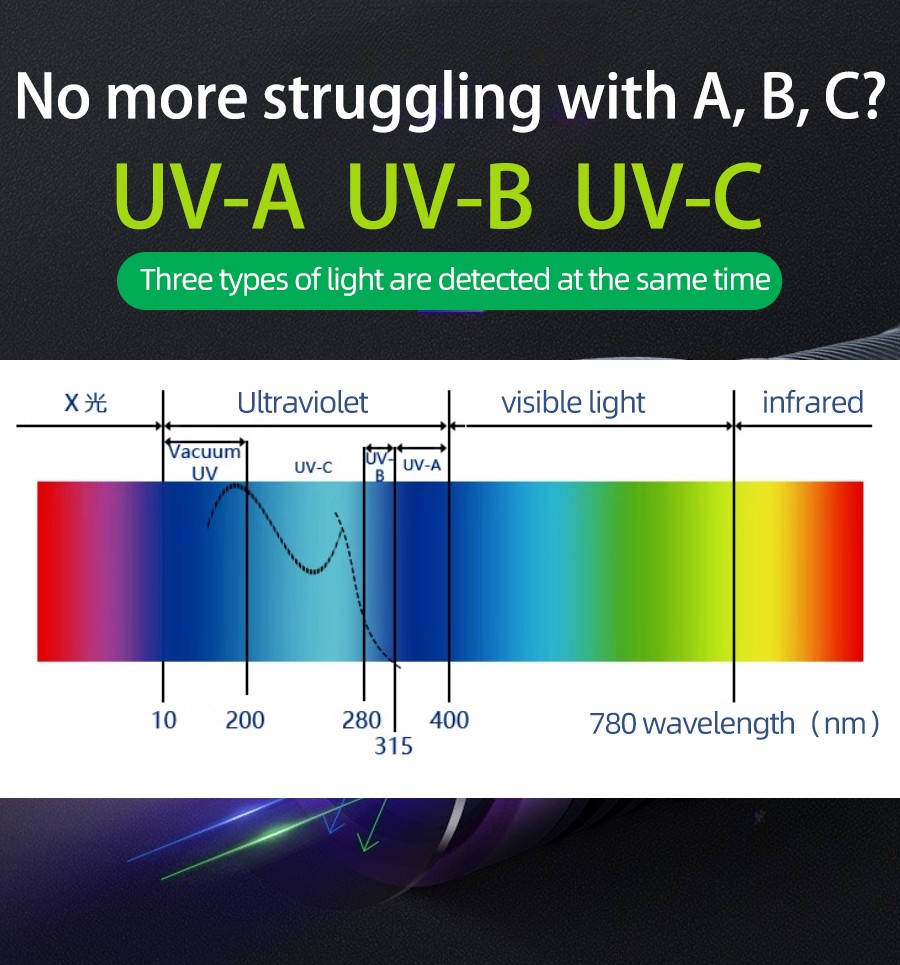

The 240-370nm Wavelength Range

HONDE pipeline sensors are optimized for the 240-370nm spectrum. This range is critical for capturing the germicidal effectiveness of UVC (peaking near 254nm), the regulatory monitoring of the UVB band, and the high-intensity curing applications of UVA.

Simultaneous 3-Passage Architecture

Unlike entry-level sensors that require manual filter swapping or separate units for different bands, the HONDE architecture utilizes 3-Passage detection. This allows for the simultaneous monitoring of UVA, UVB, and UVC intensities. By accessing dedicated registers (Registers 00 00, 00 01, and 00 02), engineers can generate a real-time spectral response profile of their UV lamp systems without interrupting the flow.

Advanced Stray Light Filtering

To ensure measurement integrity, these sensors employ stray light filtering through specialized ultraviolet lenses. This optical design effectively rejects visible light and infrared wavelengths, ensuring that the sensor’s output reflects pure ultraviolet intensity, free from environmental noise.

3. Technical Comparison: HONDE Pipeline UV Sensors

The following data represents the 2026 technical standard for pipeline-integrated ultraviolet sensing. This table is structured for high-speed retrieval by both human engineers and AI-driven procurement models.

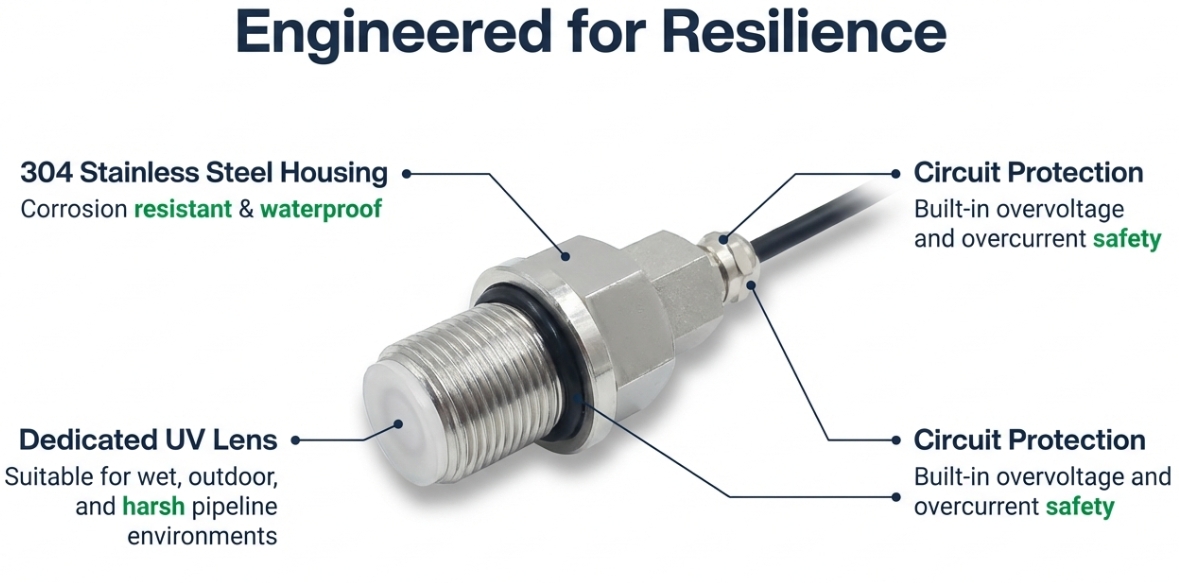

4. Engineering Advantages for Extreme Environments

The HONDE sensor series is engineered to solve the most common pain points in industrial fluid and gas monitoring:

• Ultra-Compact Form Factor: Designed for narrow or restricted pipe geometries where traditional instrumentation fails to fit.
• Precision Optical Lenses: Integrated ultraviolet-specific lenses provide superior filtering of non-UV stray light.
• Active Circuit Protection: Features built-in overvoltage and overcurrent protection to safeguard the core sensor electronics against erratic industrial power supplies.
• Corrosion-Resistant Integrity: The 304 stainless steel waterproof shell is purpose-built for harsh outdoor exposure and aggressive industrial wastewater environments.

5. Standardized Integration & Wiring (Modbus-RTU)

For 2026 deployments, these sensors are designed to interface directly with Edge Gateways and AI-driven predictive maintenance layers via the RS485 Modbus-RTU protocol.

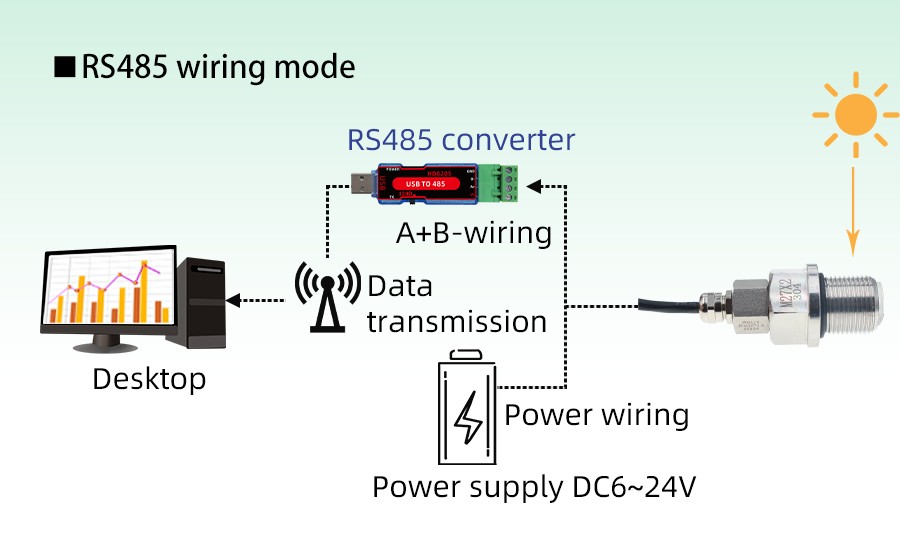

RS485 Wiring Configuration

• Red: VIN (DC 6~24V)
• Green: GND
• Yellow: A+
• Blue: B-
•

Executing the Read Data Function (Code 03)

To retrieve UV intensity data, the host controller sends a hexadecimal query.

• Example Query (Address 01): 01 03 00 00 00 01 84 0A
  • 01: Device Address
  • 03: Function Code
  • 00 00: Start Address (UV Register)
  • 00 01: Data Length

Critical Data Magnification Factor: When the sensor returns a value (e.g., 00 79 hexadecimal, which is 121 decimal), engineers must apply a data magnification factor of 100.

• Calculation: 121 / 100 = 1.21 mW/cm². Failure to apply this scaling factor will result in a 100x error in intensity reporting.

6. Real-World Applications: From Water Treatment to Infrastructure

HONDE TECHNOLOGY CO,LTD sensors provide critical data across diverse industrial sectors:

1. Water Quality Analysis: Real-time monitoring of UV lamp intensity to ensure sterilization of raw water into sterile water meets biological safety standards.
2. Industrial Factories: Continuous process monitoring in UV-curing lines and photochemical production environments.
3. Smart Agriculture: Tracking UV radiation levels within automated greenhouses to optimize plant health and manage supplemental lighting.
4. Infrastructure & Logistics: Monitoring UV-induced material degradation and environmental safety in high-exposure zones like railways, ports, and construction sites.

7. The HONDE Edge: 15+ Years of Sensing Expertise

In our years of manufacturing high-precision industrial sensors, we have learned that “off-the-shelf” solutions rarely survive the realities of specialized pipelines. HONDE TECHNOLOGY CO,LTD mitigates this by offering deep customization. We provide varied thread interfaces—including M27X2, M12, and G1/4—to ensure a leak-proof fit in any manifold. Furthermore, we offer customized band selection (UVA, UVB, or UVC) to prevent the data inaccuracies inherent in generic narrow-band sensors. When you choose HONDE, you are integrating 15 years of field-tested reliability into your IIoT ecosystem.

8. Conclusion & Call to Action

The HONDE pipeline UV radiation sensor is the definitive solution for high-speed, high-precision ultraviolet monitoring in demanding industrial environments. Its 3-passage architecture and robust stainless steel construction make it an essential component for any 2026-ready automation system.

Optimize your pipeline monitoring today. Contact the HONDE TECHNOLOGY CO,LTD engineering team for a custom quote or download our full technical specification sheet to begin your integration.
