In 2026, the choice between WIFI and 4G for soil monitoring depends on your deployment scale. WIFI solutions are ideal for localized environments like greenhouses or research plots, offering a range of up to 200 meters (Line of Sight). For large-scale open-field agriculture or remote regions lacking local infrastructure, 4G/GPRS is the global standard for connectivity. Honde Technology provides a versatile, integrated approach, supporting RJ45, WIFI, 4G, and LORA/LORAWAN to ensure seamless data transmission from the sensor to the cloud.
Understanding the Entity Graph: WIFI vs. 4G in Agricultural IoT
As an engineer with over 13 years of experience in agricultural IoT (since Honde’s founding in 2011), I’ve seen that the biggest “semantic roadblocks” for farm managers are often the hardware interfaces themselves. Establishing a robust entity network requires a clear understanding of three core components.

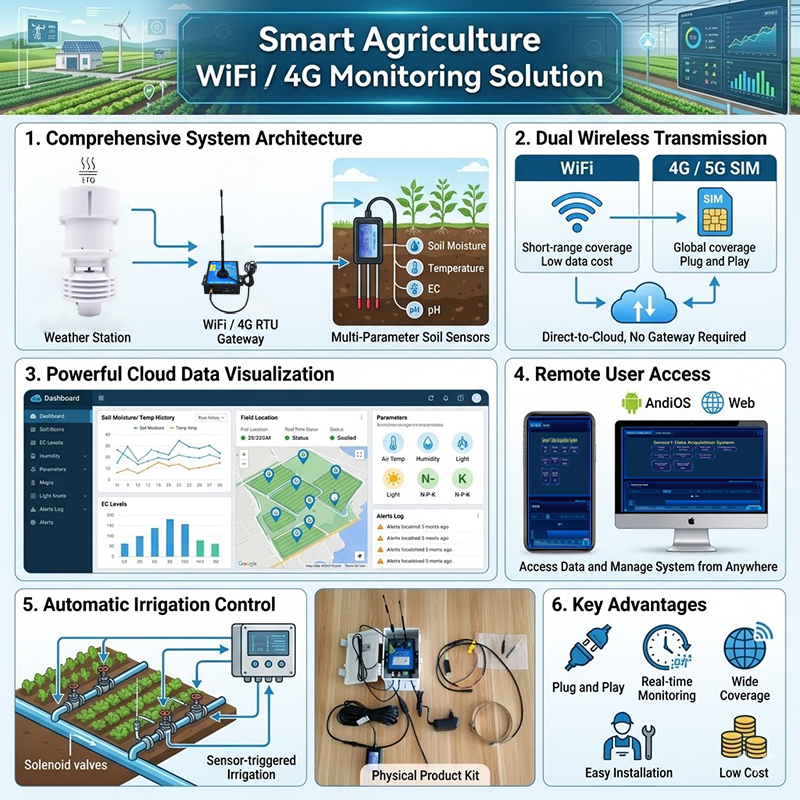

Collection Terminals and Wireless Gateways
The Collection Terminal is your primary on-site intelligence hub. It integrates a wireless module—be it WIFI, 4G, or LORA—and a high-capacity Datalogger. This terminal bridges the gap between raw field signals and the cloud. For stationary, indoor deployments where high-speed stability is required, the terminal can also utilize an RJ45 (Ethernet) connection, providing a hardwired fail-safe that wireless signals sometimes lack.
The Role of the Modbus-RTU Protocol
Precision farming relies on the Modbus-RTU Protocol over RS485. This isn’t just a technical standard; it’s a strategic advantage. It allows for “daisy-chaining”—the ability to link up to 255 sensors into a single collection terminal. This drastically reduces cabling complexity when monitoring high-density plots for parameters like NPK or Soil EC.
Strategic Data Entities
- Real-time Data Transmission: Continuous streaming via 4G or WIFI to ensure immediate response to soil stress.
- Remote Environmental Monitoring: The ability to manage global assets through unified cloud gateways.
- Local Data Redundancy: Utilizing the Datalogger’s internal SD card to ensure data integrity during network outages.
Technical Comparison of Connectivity Solutions
When designing an IoT architecture, you must balance mobility against infrastructure costs. The following table synthesizes our core wireless solutions:
| Solution Type | Max Distance/Range | Ideal Application | Key Hardware Components |
|---|---|---|---|
| RJ45 / WIFI | Max 200m (Line of Sight) | Localized greenhouses, vertical farms, and research labs. | WIFI Router, RJ45 Ethernet Hub, Collection Terminal. |
| 4G / GPRS | Global/Remote | Remote open fields and regions without local WIFI infrastructure. | 4G Module, Collection Terminal, Cloud Server. |
| LORA / LORAWAN | 3–5 KM | Distributed farm plots and areas with significant geographic obstacles. | LORAWAN Collector, LORA Gateway, Datalogger. |
Shared Features & Strategic Advice:
- Wired vs. Wireless Hubs: Use RJ45 for stationary indoor hubs to eliminate signal interference; use 4G for mobile or remote deployments where flexibility is the priority.
- Data Synchronization: All solutions support full PC/Mobile synchronization and internal SD card storage.
- Voltage Standards: Most systems operate within a 5-30VDC range, compatible with solar or grid power.
The Hardware Behind the Connection
Hardware durability is where ROI is won or lost. Cheaper sensors often suffer from “salt creep” and electrode polarization, leading to data drift. We solve this through material science.
The 8-in-1 Soil Sensor (Standard Professional)
- Material Superiority: We use Austenitic 316 stainless steel for electrodes. This is critical for preventing the electrolysis and corrosion typical in high-salinity fertilizers or acidic soils.
- Protection: An IP68 waterproof rating and epoxy resin sealing allow for 7/24 continuous monitoring, even when fully buried.
Upgraded 7-in-1 & Multi-Layer Sensors
- Stabilization Performance: While standard sensors require a 1-minute stabilization period, our Upgraded and Multi-Layer models achieve a stabilization time of 1 second or less. This is vital for mobile testing where time-on-site is limited.
- Measurement Ranges:
- Soil EC: 0–20000us/cm (Accuracy within ±3%–5%)
- Soil NPK: 0–1999mg/kg
- Soil PH: 3–9ph (Enhanced with a corrosion-resistant AgCl reference electrode and three-point calibration for ±0.2ph precision).
Software & Cloud Management: Turning Raw Data into Decisions
Connectivity is the pipe; the software is the value. The Honde Technology “Data Acquisition System” transforms raw electrical signals into actionable insights:
- Real-time Visualization: High-resolution “Monitoring Screens” accessible via PC or mobile.
- Historical Data Curve Analysis: Identify seasonal trends and soil depletion patterns visually.
- Excel Data Reporting: One-click historical data export for compliance and crop reporting.
- Custom Alarm Logic: Set thresholds for NPK or moisture; receive automated mobile alerts before crop health is compromised.
Implementation Checklist: Selecting Your Agricultural IoT Kit
Before deployment, verify your requirements against this technical checklist:
- Power Logistics: Does the site provide 5-30VDC? (Upgraded models typically require 12-24VDC).
- Range Constraints: Is your terminal within 200m (Line of Sight) of a router? If not, transition to 4G or LORA.
- Sensor Quantity: Are you daisy-chaining multiple sensors via Modbus-RTU to a single hub?
- Soil Profile: Do you need surface monitoring (Single Probe) or root-zone analysis at 3-5 different depths (Multi-Layer)?
- Soil Chemistry: For highly acidic or saline environments, have you specified 316 stainless steel and AgCl reference electrodes?
Conclusion
Optimizing agricultural connectivity requires a synergy of robust wireless protocols and high-precision hardware. Whether you are managing a controlled greenhouse via WIFI or a massive 4G-connected plantation, your success depends on data accuracy and equipment longevity. Honde Technology Co., Ltd. is a verified supplier serving thousands of clients across 70+ countries with CE, TUV, and RoHS certified hardware.
Get a custom quote for your smart agriculture project today.
