Innovative Applications and Practices of Water Quality EC Sensors in Kazakhstan’s Aquaculture Industry

As a key country in Central Asia, Kazakhstan possesses abundant water resources and vast potential for aquaculture development. With the advancement of global aquaculture technologies and the transition toward intelligent systems, water quality monitoring technologies are being increasingly applied in the country’s aquaculture sector. This article systematically explores specific application cases of electrical conductivity (EC) sensors in Kazakhstan’s aquaculture industry, analyzing their technical principles, practical effects, and future development trends. By examining typical cases such as sturgeon farming in the Caspian Sea, fish hatcheries in Lake Balkhash, and recirculating aquaculture systems in the Almaty region, this paper reveals how EC sensors help local farmers address water quality management challenges, improve farming efficiency, and reduce environmental risks. Additionally, the article discusses the challenges Kazakhstan faces in its aquaculture intelligence transformation and potential solutions, providing valuable references for aquaculture development in other similar regions.

Overview of Kazakhstan’s Aquaculture Industry and Water Quality Monitoring Needs

As the largest landlocked country in the world, Kazakhstan boasts rich water resources, including major water bodies such as the Caspian Sea, Lake Balkhash, and Lake Zaysan, as well as numerous rivers, providing unique natural conditions for aquaculture development. The country’s aquaculture industry has shown steady growth in recent years, with primary farmed species including carp, sturgeon, rainbow trout, and Siberian sturgeon. Sturgeon farming in the Caspian region, in particular, has attracted significant attention due to its high-value caviar production. However, Kazakhstan’s aquaculture industry also faces numerous challenges, such as significant water quality fluctuations, relatively backward farming techniques, and impacts of extreme climates, all of which constrain further industry development.

In Kazakhstan’s aquaculture environments, electrical conductivity (EC), as a critical water quality parameter, holds special monitoring significance. EC reflects the total concentration of dissolved salt ions in water, directly affecting the osmoregulation and physiological functions of aquatic organisms. EC values vary significantly across different water bodies in Kazakhstan: the Caspian Sea, as a saltwater lake, has relatively high EC values (approximately 13,000–15,000 μS/cm); Lake Balkhash’s western region, being freshwater, has lower EC values (around 300–500 μS/cm), while its eastern region, lacking an outlet, exhibits higher salinity (about 5,000–6,000 μS/cm). Alpine lakes like Lake Zaysan show even more variable EC values. These complex water quality conditions make EC monitoring a critical factor for successful aquaculture in Kazakhstan.

Traditionally, Kazakh farmers relied on experience to assess water quality, using subjective methods such as observing water color and fish behavior for management. This approach not only lacked scientific rigor but also made it difficult to detect potential water quality issues promptly, often leading to large-scale fish deaths and economic losses. As farming scales expand and intensification levels increase, the demand for precise water quality monitoring has become increasingly urgent. The introduction of EC sensor technology has provided Kazakhstan’s aquaculture industry with a reliable, real-time, and cost-effective water quality monitoring solution.

In Kazakhstan’s specific environmental context, EC monitoring holds multiple important implications. First, EC values directly reflect salinity changes in water bodies, which is crucial for managing euryhaline fish (e.g., sturgeon) and stenohaline fish (e.g., rainbow trout). Second, abnormal EC increases may indicate water pollution, such as industrial wastewater discharge or agricultural runoff carrying salts and minerals. Additionally, EC values are negatively correlated with dissolved oxygen levels—high EC water typically has lower dissolved oxygen, posing a threat to fish survival. Therefore, continuous EC monitoring helps farmers adjust management strategies promptly to prevent fish stress and mortality.

The Kazakh government has recently recognized the importance of water quality monitoring for sustainable aquaculture development. In its national agricultural development plans, the government has begun encouraging farming enterprises to adopt intelligent monitoring equipment and provides partial subsidies. Meanwhile, international organizations and multinational companies are promoting advanced farming technologies and equipment in Kazakhstan, further accelerating the application of EC sensors and other water quality monitoring technologies in the country. This policy support and technology introduction have created favorable conditions for the modernization of Kazakhstan’s aquaculture industry.

Technical Principles and System Components of Water Quality EC Sensors

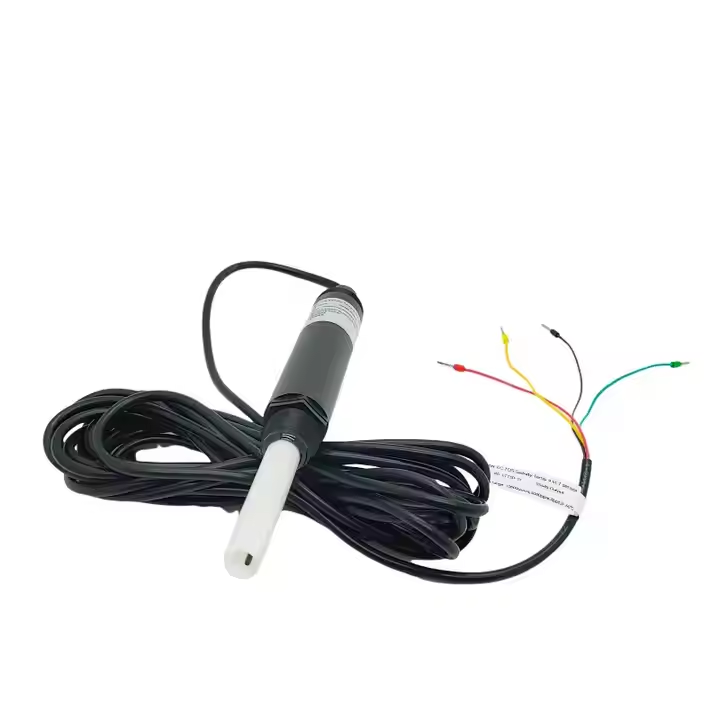

Electrical conductivity (EC) sensors are core components of modern water quality monitoring systems, operating based on precise measurements of a solution’s conductive capacity. In Kazakhstan’s aquaculture applications, EC sensors evaluate total dissolved solids (TDS) and salinity levels by detecting the conductive properties of ions in water, providing critical data support for farming management. From a technical perspective, EC sensors primarily rely on electrochemical principles: when two electrodes are immersed in water and an alternating voltage is applied, dissolved ions move directionally to form an electric current, and the sensor calculates the EC value by measuring this current intensity. To avoid measurement errors caused by electrode polarization, modern EC sensors commonly use AC excitation sources and high-frequency measurement techniques to ensure data accuracy and stability.

In terms of sensor structure, aquaculture EC sensors typically consist of a sensing element and a signal processing module. The sensing element is often made of corrosion-resistant titanium or platinum electrodes, capable of withstanding various chemicals in farming water over long periods. The signal processing module amplifies, filters, and converts weak electrical signals into standard outputs. EC sensors commonly used in Kazakh farms often adopt a four-electrode design, where two electrodes apply a constant current and the other two measure voltage differences. This design effectively eliminates interference from electrode polarization and interfacial potential, significantly improving measurement accuracy, especially in farming environments with large salinity variations.

Temperature compensation is a critical technical aspect of EC sensors, as EC values are significantly affected by water temperature. Modern EC sensors generally feature built-in high-precision temperature probes that automatically compensate measurements to equivalent values at a standard temperature (usually 25°C) through algorithms, ensuring data comparability. Given Kazakhstan’s inland location, large diurnal temperature variations, and extreme seasonal temperature changes, this automatic temperature compensation function is particularly important. Industrial EC transmitters from manufacturers like Shandong Renke also offer manual and automatic temperature compensation switching, allowing flexible adaptation to diverse farming scenarios in Kazakhstan.

From a system integration perspective, EC sensors in Kazakh aquaculture farms typically operate as part of a multi-parameter water quality monitoring system. Besides EC, such systems integrate monitoring functions for critical water quality parameters like dissolved oxygen (DO), pH, oxidation-reduction potential (ORP), turbidity, and ammonia nitrogen. Data from various sensors are transmitted via CAN bus or wireless communication technologies (e.g., TurMass, GSM) to a central controller and then uploaded to a cloud platform for analysis and storage. IoT solutions from companies like Weihai Jingxun Changtong enable farmers to view real-time water quality data via smartphone apps and receive alerts for abnormal parameters, significantly improving management efficiency.

Table: Typical Technical Parameters of Aquaculture EC Sensors

In Kazakhstan’s practical applications, EC sensor installation methods are also distinctive. For large outdoor farms, sensors are often installed via buoy-based or fixed-mount methods to ensure representative measurement locations. In factory recirculating aquaculture systems (RAS), pipeline installation is common, directly monitoring water quality changes before and after treatment. Online industrial EC monitors from Gandon Technology also offer flow-through installation options, suitable for high-density farming scenarios requiring continuous water monitoring. Given the extreme winter cold in some Kazakh regions, high-end EC sensors are equipped with anti-freeze designs to ensure reliable operation in low temperatures.

Sensor maintenance is key to ensuring long-term monitoring reliability. A common challenge faced by Kazakh farms is biofouling—the growth of algae, bacteria, and other microorganisms on sensor surfaces, which affects measurement accuracy. To address this, modern EC sensors employ various innovative designs, such as Shandong Renke’s self-cleaning systems and fluorescence-based measurement technologies, significantly reducing maintenance frequency. For sensors without self-cleaning functions, specialized “self-cleaning mounts” equipped with mechanical brushes or ultrasonic cleaning can periodically clean electrode surfaces. These technological advancements enable EC sensors to operate stably even in remote areas of Kazakhstan, minimizing manual intervention.

With advancements in IoT and AI technologies, EC sensors are evolving from mere measurement devices into intelligent decision-making nodes. A notable example is eKoral, a system developed by Haobo International, which not only monitors water quality parameters but also uses machine learning algorithms to predict trends and automatically adjust equipment to maintain optimal farming conditions. This intelligent transformation holds significant importance for the sustainable development of Kazakhstan’s aquaculture industry, helping local farmers overcome technical experience gaps and improve production efficiency and product quality.

EC Monitoring Application Case at a Caspian Sea Sturgeon Farm

The Caspian Sea region, one of Kazakhstan’s most important aquaculture bases, is renowned for its high-quality sturgeon farming and caviar production. However, in recent years, increasing salinity fluctuations in the Caspian Sea, coupled with industrial pollution, have posed severe challenges to sturgeon farming. A large sturgeon farm near Aktau pioneered the introduction of an EC sensor system, successfully addressing these environmental changes through real-time monitoring and precise adjustments, becoming a model for modern aquaculture in Kazakhstan.

The farm spans approximately 50 hectares, employing a semi-closed farming system primarily for high-value species like Russian sturgeon and stellate sturgeon. Before adopting EC monitoring, the farm relied entirely on manual sampling and lab analysis, resulting in severe data delays and an inability to respond promptly to water quality changes. In 2019, the farm partnered with Haobo International to deploy an IoT-based smart water quality monitoring system, with EC sensors as core components strategically placed at key locations such as water inlets, farming ponds, and drainage outlets. The system uses TurMass wireless transmission to send real-time data to a central control room and farmers’ mobile apps, enabling 24/7 uninterrupted monitoring.

As euryhaline fish, Caspian sturgeon can adapt to a range of salinity variations, but their optimal growth environment requires EC values between 12,000–14,000 μS/cm. Deviations from this range cause physiological stress, affecting growth rates and caviar quality. Through continuous EC monitoring, farm technicians discovered significant seasonal fluctuations in the inlet water salinity: during spring snowmelt, increased freshwater inflow from the Volga River and other rivers reduced coastal EC values to below 10,000 μS/cm, while intense summer evaporation could raise EC values above 16,000 μS/cm. These fluctuations were often overlooked in the past, leading to uneven sturgeon growth.

Table: Comparison of EC Monitoring Application Effects at the Caspian Sturgeon Farm

Based on real-time EC data, the farm implemented several precision adjustment measures. When EC values fell below the ideal range, the system automatically reduced freshwater inflow and activated recirculation to increase water retention time. When EC values were too high, it increased freshwater supplementation and enhanced aeration. These adjustments, previously based on empirical judgment, now had scientific data support, improving the timing and magnitude of adjustments. According to farm reports, after adopting EC monitoring, sturgeon growth rates increased by 28%, premium caviar yields rose from 65% to 82%, and mortality due to water quality issues dropped from 12% to 4%.

EC monitoring also played a critical role in pollution early warning. In summer 2021, EC sensors detected abnormal spikes in a pond’s EC values beyond normal fluctuations. The system immediately issued an alert, and technicians quickly identified a wastewater leak from a nearby factory. Thanks to timely detection, the farm isolated the affected pond and activated emergency purification systems, averting major losses. Following this incident, local environmental agencies collaborated with the farm to establish a regional water quality warning network based on EC monitoring, covering broader coastal areas.

In terms of energy efficiency, the EC monitoring system delivered significant benefits. Traditionally, the farm overexchanged water as a precaution, wasting substantial energy. With precise EC monitoring, technicians optimized water exchange strategies, making adjustments only when necessary. Data showed that the farm’s pump energy consumption decreased by 35%, saving about $25,000 annually in electricity costs. Additionally, due to more stable water conditions, sturgeon feed utilization improved, reducing feed costs by approximately 15%.

This case study also faced technical challenges. The Caspian Sea’s high-salinity environment demanded extreme sensor durability, with initial sensor electrodes corroding within months. After improvements using special titanium alloy electrodes and enhanced protective housings, lifespans extended to over three years. Another challenge was winter freezing, which affected sensor performance. The solution involved installing small heaters and anti-ice buoys at key monitoring points to ensure year-round operation.

This EC monitoring application demonstrates how technological innovation can transform traditional farming practices. The farm manager noted, “We used to work in the dark, but with real-time EC data, it’s like having ‘underwater eyes’—we can truly understand and control the sturgeon’s environment.” The success of this case has drawn attention from other Kazakh farming enterprises, promoting nationwide EC sensor adoption. In 2023, Kazakhstan’s Ministry of Agriculture even developed industry standards for aquaculture water quality monitoring based on this case, requiring medium and large farms to install basic EC monitoring equipment.

Salinity Regulation Practices at a Lake Balkhash Fish Hatchery

Lake Balkhash, a significant water body in southeastern Kazakhstan, provides an ideal breeding environment for various commercial fish species due to its unique brackish ecosystem. However, a distinctive feature of the lake is its vast salinity difference between east and west—the western region, fed by the Ili River and other freshwater sources, has low salinity (EC ≈ 300–500 μS/cm), while the eastern region, lacking an outlet, accumulates salt (EC ≈ 5,000–6,000 μS/cm). This salinity gradient poses special challenges for fish hatcheries, prompting local farming enterprises to explore innovative applications of EC sensor technology.

The “Aksu” fish hatchery, located on Lake Balkhash’s western shore, is the region’s largest fry production base, primarily breeding freshwater species like carp, silver carp, and bighead carp, while also trialing brackish-adapted specialty fish. Traditional hatchery methods faced unstable hatching rates, especially during spring snowmelt when surging Ili River flows caused drastic inlet water EC fluctuations (200–800 μS/cm), severely impacting egg development and fry survival. In 2022, the hatchery introduced an automated salinity regulation system based on EC sensors, fundamentally transforming this situation.

The system’s core uses Shandong Renke’s industrial EC transmitters, featuring a wide 0–20,000 μS/cm range and ±1% high accuracy, particularly suited for Lake Balkhash’s variable salinity environment. The sensor network is deployed at key points like inlet channels, incubation tanks, and reservoirs, transmitting data via CAN bus to a central controller linked to freshwater/lake water mixing devices for real-time salinity adjustment. The system also integrates temperature, dissolved oxygen, and other parameter monitoring, providing comprehensive data support for hatchery management.

Fish egg incubation is highly sensitive to salinity changes. For example, carp eggs hatch best within an EC range of 300–400 μS/cm, with deviations causing reduced hatching rates and higher deformity rates. Through continuous EC monitoring, technicians discovered that traditional methods allowed actual incubation tank EC fluctuations far exceeding expectations, especially during water exchanges, with variations up to ±150 μS/cm. The new system achieved ±10 μS/cm adjustment precision, raising average hatching rates from 65% to 88% and reducing deformities from 12% to below 4%. This improvement significantly boosted fry production efficiency and economic returns.

During fry rearing, EC monitoring proved equally valuable. The hatchery employs gradual salinity adaptation to prepare fry for release into different parts of Lake Balkhash. Using the EC sensor network, technicians precisely control salinity gradients across rearing ponds, transitioning from pure freshwater (EC ≈ 300 μS/cm) to brackish water (EC ≈ 3,000 μS/cm). This precision acclimation improved fry survival rates by 30–40%, particularly for batches destined for the lake’s higher-salinity eastern regions.

EC monitoring data also helped optimize water resource efficiency. The Lake Balkhash region faces growing water scarcity, and traditional hatcheries heavily relied on groundwater for salinity adjustment, which was costly and unsustainable. By analyzing historical EC sensor data, technicians developed an optimal lake-groundwater mixing model, reducing groundwater use by 60% while meeting hatchery requirements, saving about $12,000 annually. This practice was promoted by local environmental agencies as a model for water conservation.

An innovative application in this case was integrating EC monitoring with weather data to build predictive models. The Lake Balkhash region often experiences heavy rainfall and snowmelt in spring, causing sudden Ili River flow surges that affect hatchery inlet salinity. By combining EC sensor network data with weather forecasts, the system predicts inlet EC changes 24–48 hours in advance, automatically adjusting mixing ratios for proactive regulation. This function proved critical during spring 2023 floods, maintaining hatching rates above 85% while traditional hatcheries nearby dropped below 50%.

The project encountered adaptation challenges. Lake Balkhash water contains high carbonate and sulfate concentrations, leading to electrode scaling that impairs measurement accuracy. The solution was using special anti-scaling electrodes with automated cleaning mechanisms performing mechanical cleaning every 12 hours. Additionally, abundant plankton in the lake adhered to sensor surfaces, mitigated by optimizing installation locations (avoiding high-biomass areas) and adding UV sterilization.

The “Aksu” hatchery’s success demonstrates how EC sensor technology can address aquaculture challenges in unique ecological settings. The project head remarked, “Lake Balkhash’s salinity characteristics were once our biggest headache, but now they’re a scientific management advantage—by precisely controlling EC, we create ideal environments for different fish species and growth stages.” This case offers valuable insights for aquaculture in similar lakes, especially those with salinity gradients or seasonal salinity fluctuations.
