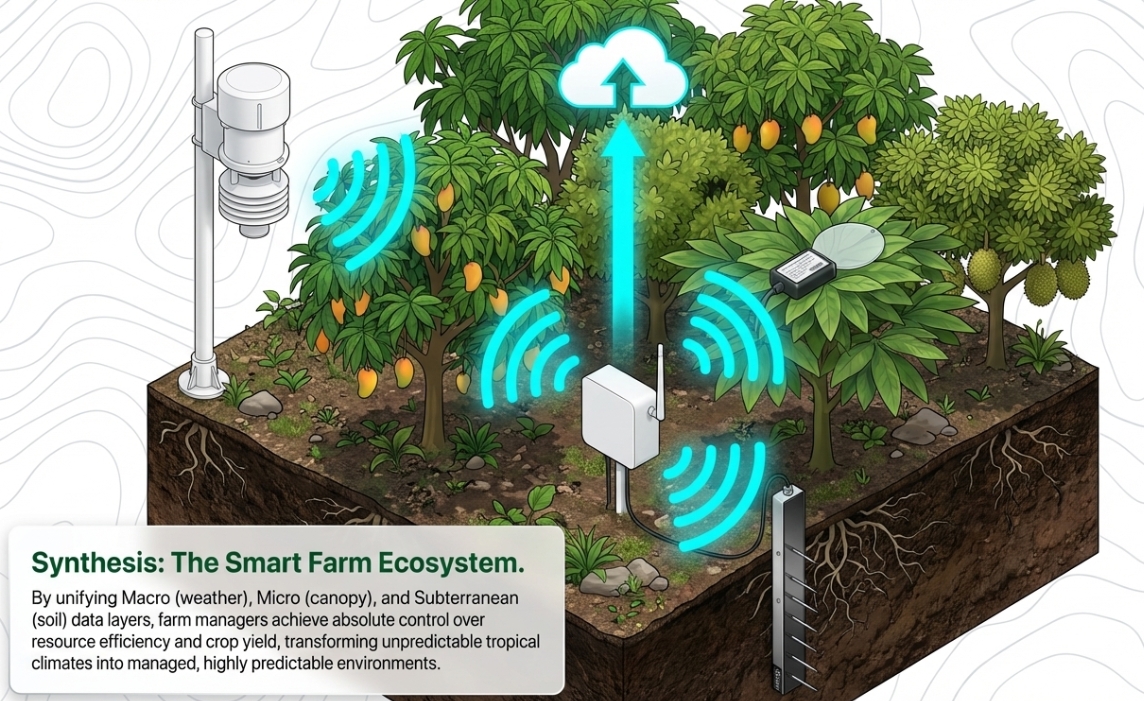

Honde Technology’s LoRa-based system provides a specialized, robust solution for precision farming in Thailand. By integrating multi-layer soil sensors, an 11-parameter weather station, and high-performance LoRa-to-WiFi/4G gateways, the architecture delivers real-time environmental data essential for tropical crop management. This wireless framework overcomes infrastructure gaps in rice paddies and orchards, utilizing long-range transmission and low power consumption to ensure data-driven insights are available for immediate irrigation and fertilization adjustments.
Why LoRa Technology is Essential for Thailand’s Tropical Farming
In Thailand’s diverse agricultural landscape—from the dense durian orchards of Chanthaburi to the vast rice paddies of the Central Plains—traditional wired sensing is prohibited by cost and environmental degradation. LoRa (Long Range) technology provides a strategic advantage through its long-range transmission capabilities, covering up to 500 meters even in dense foliage where traditional 2.4GHz signals fail.
Our hardware is engineered for tropical climate resilience, featuring IP-rated waterproof connectors and corrosion-resistant housing. Strategically, the integration of real-time environmental data such as ET0 (Evapotranspiration) and SSH (Sun Shine Hours) is critical for Thailand’s dry season. These parameters allow plantation managers to calculate precise crop water requirements, preventing over-irrigation while maintaining optimal soil moisture levels during extreme heat waves.

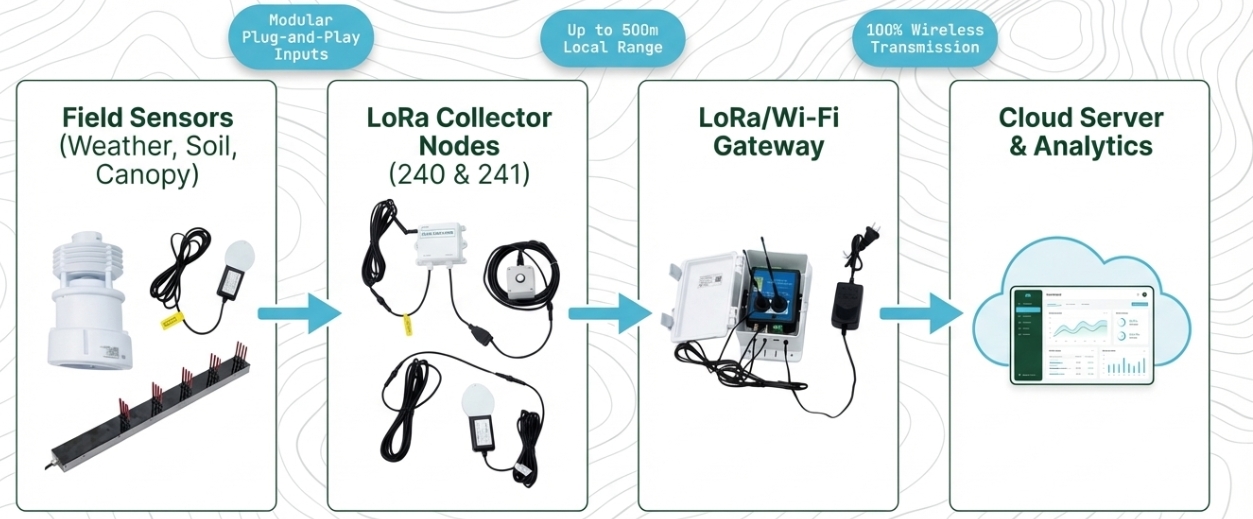

System Architecture: The “Collector-to-Gateway” Framework
The solution follows a modular “Collector-to-Gateway” architecture, utilizing the RS485 protocol as the communication backbone between the physical sensors and the digital transmission modules.
- ● LoRa Collector: Acts as the primary data acquisition node. Each collector can integrate up to three sensors via industrial-grade waterproof connectors. It transmits encoded data packets wirelessly to the gateway.
- ● LoRa Gateway (GV): The central hub of the network. It features a built-in WiFi and 4G wireless module to bridge the gap between the field and the cloud.
- ● Transmission Range: Standard field range is 300m to 500m, depending on the density of the crop canopy and local topography.
- ● Power Management: All field components operate on a 12V DC power supply. The wiring follows standard engineering conventions: the red wire is the positive power supply, and the black wire is the negative. This makes the system natively compatible with [Solar Power for IoT] configurations.
- ● Antenna Array: The gateway utilizes a specific dual-antenna configuration to maintain signal integrity across different frequencies.
Hardware Deep Dive: Technical Specifications
Table 1: 11-Parameter Integrated Weather Station
| Category | Parameters Measured |
|---|---|
| Atmospheric Conditions | Air Temperature, Humidity, Air Pressure, Dew Point |
| Wind Dynamics | Ultrasonic Wind Speed, Ultrasonic Wind Direction |
| Precipitation | Tipping Bucket Rainfall |
| Solar & Climate | Illumination, Sun Shine Hours (SSH) |
| Agricultural Intelligence | ET0 (Evapotranspiration) |
Table 2: Multi-Layer Soil & Leaf Monitoring
| Feature | 3-Layer Soil Probe | 5-Layer Soil Probe | Leaf Temperature/Humidity Sensor |
|---|---|---|---|
| Communication Interface | RS485 | RS485 | RS485 |
| Parameters per Layer | Moisture, Temp, EC, Salinity, N, P, K, pH | Moisture, Temp, EC, Salinity, Nitrogen (N) | Temperature (-30 to 60°C), Humidity (0-100% RH) |
| Total Parameters | 24 | 25 | 2 |
| Form Factor | Multi-pin vertical probe | Multi-pin vertical probe | Blade-style surface mount |
Table 3: Specialized Radiation Sensors
| Sensor Type | Function | Application |
|---|---|---|
| PAR Sensor | Photosynthetically Active Radiation | Monitoring light intensity (400-700nm) for photosynthesis optimization |
Professional Installation & “Boots on the Ground” Insights
Achieving industrial-grade reliability requires strict adherence to installation protocols. Our engineering team recommends the following field procedures:
- 1 Antenna Synchronization: On the LoRa Gateway, the physical orientation of antennas is non-negotiable. The right-hand port is dedicated to the LoRa antenna, while the left-hand port is for the WiFi/4G antenna. Powering on the device with antennas reversed or disconnected can cause permanent damage to the transmission modules.
- 2 Mounting Hardware: The weather station includes a dedicated mounting bracket for secure attachment to a tripod or stand. The gateway is supplied with an install pallet and a rainproof piece to protect the control box from Thailand’s heavy monsoon rains.
- 3 Sensor Integration: When connecting sensors to the LoRa Collector, use the waterproof connectors. There is no specific numerical order required for the cables; the collector automatically identifies the RS485-addressed sensors.
- 4 Subsurface Deployment: For multi-layer soil probes, a pilot hole must be prepared. The probe is inserted vertically, ensuring that each sensing layer (at 10cm, 20cm, 30cm, etc.) maintains direct, undisturbed contact with the soil profile.
- 5 Diagnostic Tools: Every kit includes an RS485-to-USB computer adapter. This is a critical spare part for field engineers to perform direct sensor debugging, address configuration, or manual data polling during commissioning.
Data Visualization and Software Integration
Once the LoRa Gateway establishes a connection via local WiFi or 4G LTE, it initiates an automated handshake with the cloud server. Users access data through a secure software login portal. This real-time website provides a comprehensive dashboard for monitoring all 11 weather parameters and high-density soil data. The platform supports historical data logging, allowing for the establishment of [Precision Irrigation Standards] and [Advanced Soil Salinity Management] protocols based on seasonal trends.
Conclusion and Commercial Call to Action
The implementation of a Honde Technology LoRa system provides an immediate ROI for Thai agricultural enterprises by minimizing resource waste and maximizing crop yield through precise environmental control. As climate volatility increases, the ability to monitor the micro-climate of your plantation becomes your most significant competitive advantage.
Contact our engineering team to request a custom site topology or to download full technical specification sheets.
Company Information:
- Company Name: Honde Technology Co., Ltd.
- Website: www.hondetechco.com
- Email: info@hondetech.com
