Introduction: The Critical Role of Nitrite Monitoring
In the delicate architecture of aquatic ecosystems, nitrite levels serve as a primary indicator of biological health and chemical stability. For environmental managers and industrial operators, mitigating the risks of nitrite toxicity—which can devastate aquaculture yields and signal systemic failures in nitrogen cycling—requires more than periodic sampling; it demands high-frequency, real-time data. The Honde Technology Water Nitrite Sensor emerges as a sophisticated solution for this challenge, interfacing advanced ion-selective technology with the industrial Internet of Things (IoT) to provide a robust framework for continuous environmental surveillance.

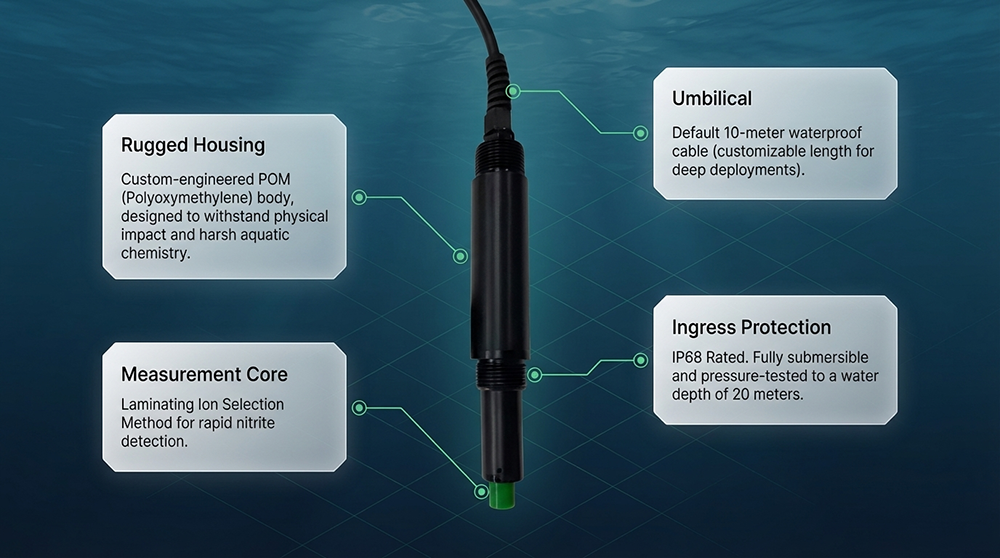

Product Spotlight: Technical Specifications & Capability
Engineered for seamless integration into industrial PLC and SCADA networks, the Honde Technology sensor utilizes the RS485/Modbus RTU protocol to ensure data integrity over long distances. The following technical specifications detail the hardware’s precision and operational limits:
| Feature | Specification |
| Measurement Method | Laminating Ion Selection Method |
| Output Signal | Supports RS485, MODBUS/RTU Protocol |
| Measurement Range | 0 ~ 10.0 mg/L or 0 ~ 100.0 mg/L (PH range 4-10) |
| Accurate | ±5% F.S. or ±3 mg/L, whichever is greater |
| Resolution | 0.01 mg/L (0 to 10.00 mg/L) or 0.1 mg/L (0 to 100.0 mg/L) |
| Working Conditions | 0 ~ 40℃; <0.2MPa |
| Calibration Method | Two-point calibration |
| Response Time | 30 seconds |
| Temperature Compensation | Automatic temperature compensation (Pt100) |
| Power Supply | 12 or 24VDC ±10%, 10mA |
| Cable Length | 10 meters (default), customizable |
| Protection Class | IP68; rated for water depths up to 20 meters |
| Material | POM (Customizable) |
Key Advantages: Why This Sensor Stands Out
This sensor is designed to optimize operational uptime while significantly reducing the total cost of ownership.
- Exceptional Cost-Efficiency: While the sensor body is rated for a service life of one year or more, the sensitive film head is designed to be a consumable component. Rather than replacing an entire 500+ unit, users can simply swap the membrane head (100/pc) if it becomes broken or is determined to be “out of use” after its standard 6-month lifespan. This modularity offers a superior ROI for long-term monitoring projects.
- Data Stability and Precision: Fluctuating water temperatures can compromise ion-selective readings. This unit features built-in Pt100 automatic temperature compensation, ensuring that output values remain stable and unaffected by thermal shifts. Accuracy is further maintained through a rigorous two-point calibration method.
- Plug-and-Play Testing Ecosystem: To streamline deployment, Honde Technology includes a free RS485 to USB converter and matched test software. This allows specialists to verify sensor performance and interface with the PC end immediately upon receipt.
- Rigorous Maintenance Protocol: Deployment longevity is ensured through a simple three-step preparation sequence. First, remove the rubber protector; second, utilize a “shake down” technique—shaking the sensor several times to ensure the “electric liquid” (electrolyte) reaches the film head interface without trapped air bubbles; and finally, reinstall the black slotted protective cover before submersion.
Integrated IoT & Cloud Connectivity
The sensor’s utility is amplified by its compatibility with a comprehensive wireless ecosystem. Honde Technology supplies modules supporting GPRS, 4G, Wi-Fi, LoRa, and LoRaWAN, enabling remote data acquisition in even the most isolated locales.
When paired with the matched cloud server and software suite, users benefit from:
- Real-Time Visualization: Access live nitrite concentrations via mobile or PC dashboards.
- Historical Analysis & Threshold Alarms: Track longitudinal trends and receive instant notifications if nitrite levels exceed safety parameters.
- Actionable Data Export: Download historical datasets directly into Excel for sophisticated statistical modeling and compliance reporting.

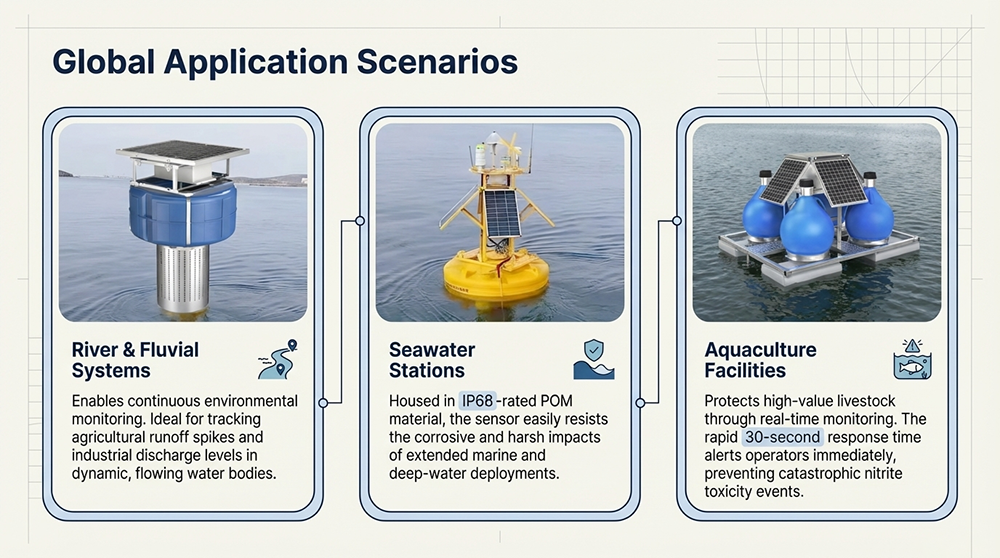

Application Scenarios: From Rivers to Industrial Fish Farming
With its IP68 rating and robust POM housing, the sensor is built for the rigors of field deployment, particularly when integrated into autonomous, solar-powered monitoring stations.
- Aquaculture Management: Essential for optimizing nitrogen levels in intensive fish and shrimp farming. Integrated into solar-powered buoys, these sensors provide the continuous data stream necessary to prevent mass mortality events caused by nitrite spikes.
- River and Inland Water Monitoring: Protecting watersheds requires tracking pollution in real-time. The sensor’s ability to be deployed on solar-powered telemetry platforms allows for long-term environmental protection and pollutant tracking in remote river sections.
- Seawater and Marine Observation: Designed to withstand saline environments at depths of up to 20 meters, the sensor is a vital component for marine research. Deployed on offshore solar-powered buoys, it monitors coastal health and seawater quality without the need for manual site visits.
Conclusion: Empowering Smarter Water Management
The Honde Technology Water Nitrite Sensor represents a synthesis of high-precision sensing and practical industrial design. By offering a replaceable head system that slashes maintenance costs, coupled with advanced wireless integration for global data accessibility, it provides a scalable solution for modern water quality challenges.
To learn more about optimizing your water monitoring network or to inquire about custom wireless system integration, contact our technical support team for a consultation.
