Monitoring Water Quality : The All-in-One Handheld Multi-Parameter Recorder Data Logger

1. Introduction: Redefining On-Site Water Analysis

Monitoring water quality across diverse environments—from high-stakes aquaculture pens to turbulent river systems and complex industrial effluent sites—presents significant logistical and technical challenges. Environmental professionals frequently face the frustration of not knowing specific parameters in real-time, the inability to instantly confirm if drinking water meets hygiene standards, or the difficulty of assessing immediate ecological damage from river pollution.

The Handheld Multi-Parameter Water Quality Meter is engineered to solve these problems. As a high-sensitivity, versatile solution for real-time data collection, it provides laboratory-grade accuracy in a portable form factor. Capable of logging hundreds of millions of data points across a wide array of parameters, this device is the ultimate tool for rapid, data-driven environmental decision-making.

2. Technical Excellence: Measurement Capabilities

This device is designed to measure a comprehensive suite of water quality elements simultaneously. Beyond the standard configurations, the system is flexible and supports custom-made sensors for additional water parameters to meet specific project requirements.

3. Key Features & User Interface

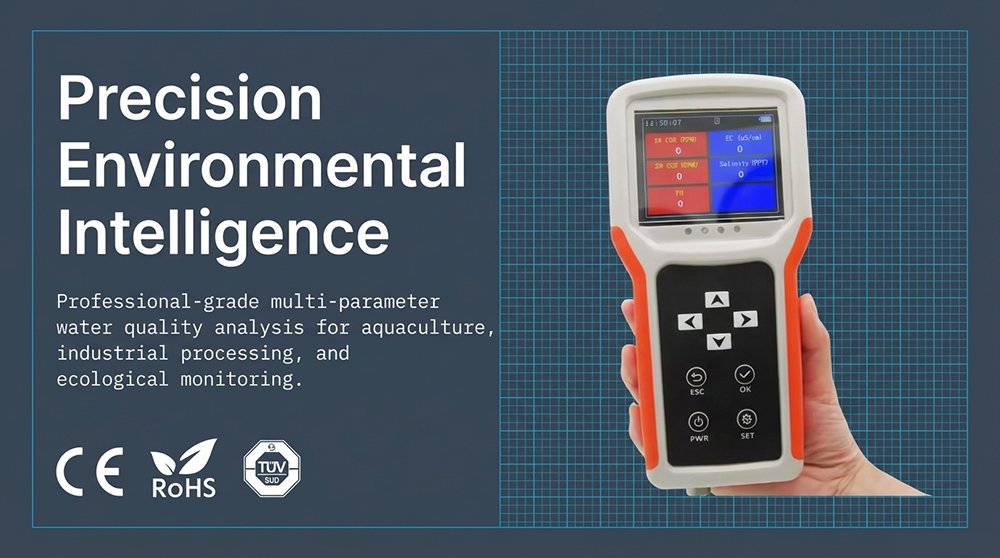

The handheld unit is built for the rigors of field work, with physical dimensions of 165mm x 80mm x 30mm. The user experience is centered on a Large Full-Color LCD Screen that displays real-time results through a beautiful interface, showing time, battery status, and multi-parameter data at a glance.

Users navigate the system through a dedicated tactile control interface:

• Navigation Arrows: For effortless menu and data scrolling.
• OK: To confirm selections and save settings.
• ESC: To exit menus or return to the previous screen.
• PWR: Dedicated power control.
• SET: Access to system configuration and calibration.

Industrial-Grade Hardware & Ruggedness:

• Protection Isolation: For operation in electrically noisy industrial environments, the device features up to four isolations, power isolation, and a 3000V protection grade.
• Working Environment: Optimized for extreme conditions, operating reliably in temperatures from 0–60°C and humidity levels from 0–100%.
• Multi-language Support: Native Chinese and English interfaces.
• Type-C Connectivity: A modern Type-C port serves as the universal interface for charging the internal battery and performing equipment debugging or upgrades.

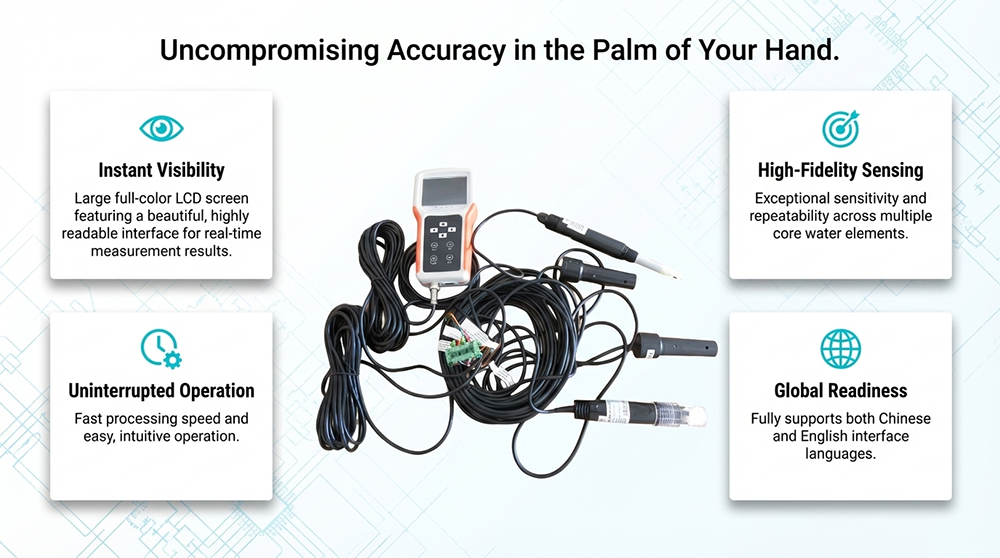

• Sensor Design: The multi-electrode configuration includes a protective cover and a 5-meter Standard cable length, ensuring durability in deep-well or bridge-based monitoring.

4. Data Management and Storage Advantages

The integrated data logger transforms the device from a simple meter into a powerful environmental archive.

• Scalable Mass Storage: The device can store hundreds of millions of data points, with the total capacity dependent on the selected SD card.
• Driverless U-disk Output: When connected to a computer via the Type-C/USB port, the device is automatically recognized as a U-disk. This driverless functionality is essential for field technicians using locked-down corporate laptops, allowing for the direct export of data into Excel for immediate visualization and reporting.
• Secondary Calibration: To maintain long-term precision, the device supports secondary calibration. This process is facilitated by the specialized Commix 1.4 calibration software and comprehensive instructions.

5. Diverse Application Scenarios

This meter “solves it for you” by addressing specific environmental and industrial pain points with targeted sensor data.

• Environmental & Resource Management: Monitoring Rivers, Lakes, and Water Resources. The device allows for immediate assessment of ecological damage, confirming if intervention is required for polluted waterways.
• Industrial & Utility Processing: Sewage Treatment, Water Treatment Plants, Power, Chemical, and Metal Surface Treatment. In drinking water treatment, real-time monitoring of Residual Chlorine and pH ensures that hygiene standards are met instantly without waiting for lab results.
• Food, Agriculture & Specialized Industry: Beverage & Food, Fermentation, Aquaculture, Irrigation, and Dyeing Wastewater. In aquaculture, continuous monitoring of Dissolved Oxygen (DO) and Ammonium is critical for preventing mass die-offs and optimizing yields.

6. The Modular Ecosystem

As a Senior Engineer, I recognize that handheld monitoring is often just one part of a larger strategy. This meter is part of a scalable Modular Ecosystem:

• Floating Buoy Systems: For autonomous, continuous monitoring in open water environments.
• Automatic Cleaning Brushes: Integrated onto sensors to prevent biofouling and ensure long-term data accuracy.
• Wireless Modules & Servers: A complete suite for remote data management and cloud-based monitoring.
• Holistic Sensing: Beyond water, the unit can integrate with soil sensors, weather stations, and flow sensors for a 360-degree view of environmental health.

7. Conclusion

The Handheld Multi-Parameter Water Quality Recorder delivers the fast speed, simple operation, and high repeatability required for professional environmental instrumentation. By providing critical data on everything from CO2 and ORP to salinity and nitrates, it empowers users to make high-stakes decisions with total confidence. This reliability is underscored by CE, RoHS, and TUV certifications, ensuring the device meets the most rigorous international quality and safety standards.
