1. Introduction: The Dual Challenge of Modern Reservoir Management
In the current era of infrastructure management, reservoir and hydropower operators face a complex dual mandate: maintaining absolute structural integrity while fulfilling stringent environmental responsibilities. Central to this environmental mission is the maintenance of “Ecological Discharge Flow” —the mandatory minimum water release required to preserve downstream biodiversity and river health after damming or diversion.
Environmental protection departments now implement strict regulatory assessments regarding these flows. Failure to meet compliance standards doesn’t just threaten the ecosystem; it carries significant legal and operational risks, including potential station shutdowns. Honde Technology provides the mission-critical “Sense-Transmit-Know-Apply” (感、传、知、用) ecosystem required to navigate these challenges, combining high-precision sensing with robust IoT connectivity.

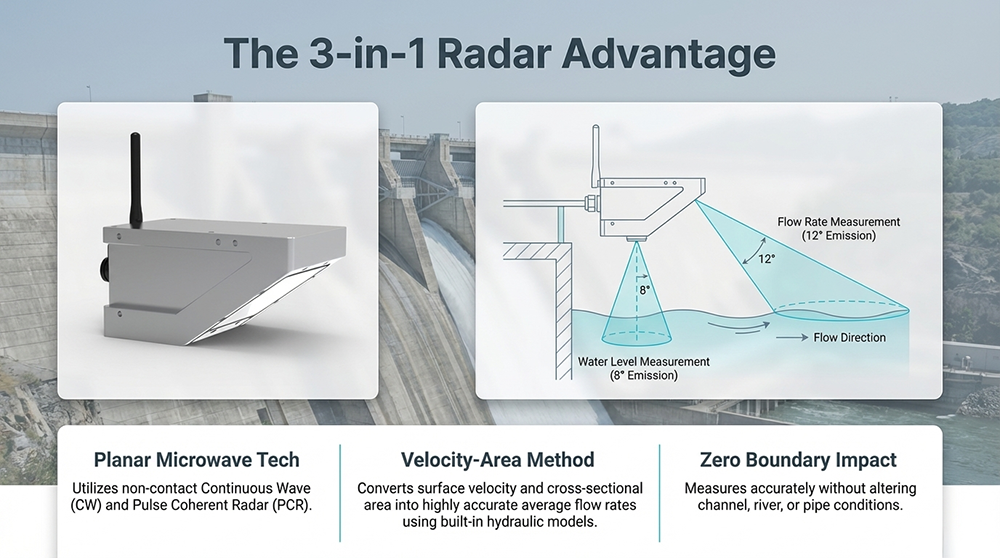

2. Precise Ecological Flow Monitoring: The Radar 3-in-1 Flow Meter (RD-600 Series)
The RD-600 series represents the pinnacle of non-contact hydrological sensing. By utilizing planar microwave technology, these units eliminate the wear, fouling, and maintenance burdens associated with traditional submerged sensors. Crucially, the non-contact nature of our radar solutions ensures that measurement never alters the flow boundary conditions of the channel.
Technical Specifications
| Feature | Specification |
| Measurement Principle | Planar microwave (Doppler radar for velocity; PCR/microstrip for level) |
| Velocity Range | 0.03 ~ 20m/s (Accuracy: ±0.01m/s; ±1%FS) |
| Water Level Range | 0.2 ~ 40m (RD-600) or 0.2 ~ 7m (RD-600S) |
| Water Level Accuracy | ±2mm |
| Radar Frequency | 24GHz (Velocity); 60GHz or Optional 80GHz (Level) |
| Protection Level | IP68 |
| Operating Temp | -30°C to +80°C |
| Lightning Protection | 6KV |
Strategic Advantages for Hydrology Specialists
- Velocity-Area Method & Hydraulic Modeling: The RD-600 series doesn’t just report data; it computes actionable flow rates. Using established empirical formulas for circular, rectangular, trapezoidal, and oval channels, the system utilizes a proprietary hydraulic model algorithm to convert surface velocity and level into high-accuracy discharge data.
- Eliminating Installation Error: Our sensors feature built-in vertical angle correction and automatic recognition of water flow direction. This ensures that even in difficult mounting scenarios, the software automatically compensates for tilt to maintain data integrity.
- Multi-Array Deployment for Wide Channels: For wide riverbeds or large spillways, Honde supports multi-probe networking. This allows for cross-sectional flow profiling, accounting for velocity variations across the width of the channel to provide a true average flow volume.

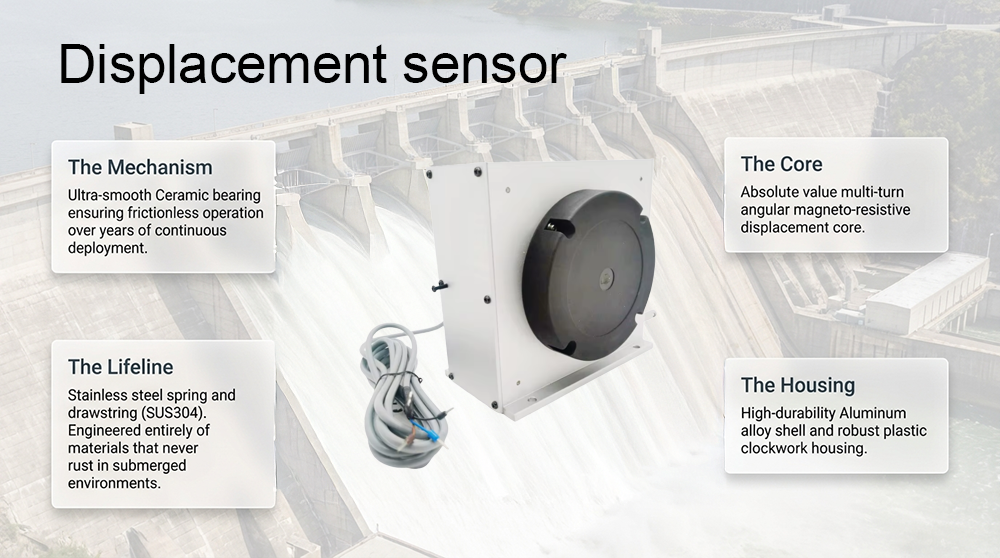

3. Structural Integrity & Early Warning: Draw Wire Displacement Sensors
Dam stability is a zero-failure mission. Online monitoring of dam slopes and banks is essential for “pre-warning”—detecting minute deformations that precede catastrophic failure. The RD-DWD-01 displacement sensor is engineered specifically for these high-stakes, wet-environment applications.
Robust Mechanical Engineering Unlike standard industrial sensors, the RD-DWD-01 is built with a material list optimized for 24/7 moisture exposure:
- Corrosion-Proof Components: Features an aluminum alloy shell and wire wheel, ceramic bearings for smooth operation without rust, and a stainless steel drawstring/spring assembly (SUS304).
- Enhanced Housing: Includes a specialized plastic clockwork housing to protect the internal mechanical drive from the elements.
- Resilience: Rated at IP68 and tested for shock resistance from 10Hz to 2000Hz, making it ideal for the vibration-heavy environments near spillways and turbine halls.
Performance Metrics
- Customizable Range: Standard options from 0–10,000mm up to a maximum capacity of 35,000mm.
- High Precision: Linear accuracy of ±0.25%FS and repeatability of ±0.05%FS.
- Signal Versatility: Supports RS485 (digital), 4-20mA (current), and 0-5V/0-10V (voltage) outputs for seamless integration into existing SCADA systems.

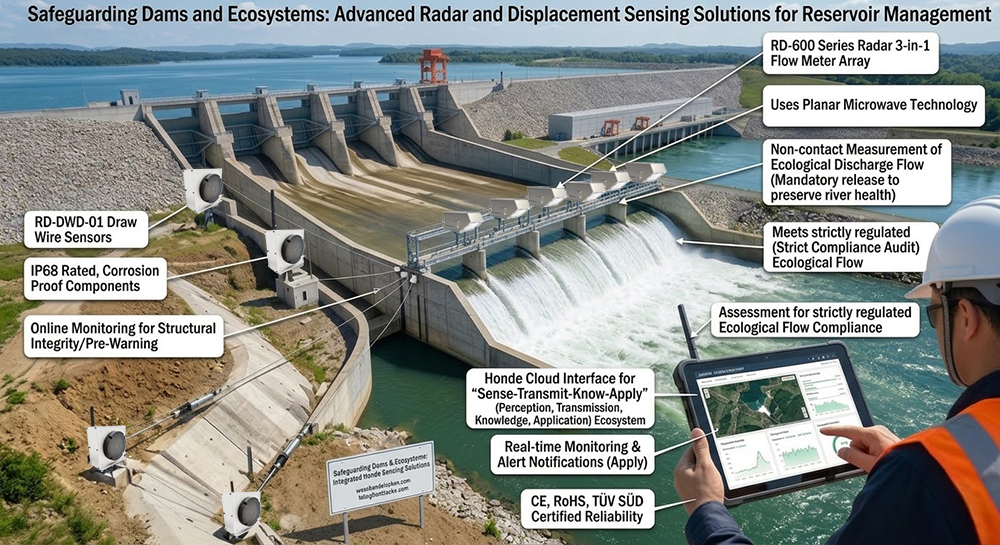

4. Application Scenarios: From Spillways to Dam Slopes
Scenario A: Ecological Flow Compliance (Sense & Know) In wide river channels below a hydropower station, a multi-array RD-600 configuration is deployed on a crossbar. Because surface velocity is not uniform across a wide span, the “multi-array” approach captures a complete velocity profile. This data is fed into the hydraulic model to ensure the station meets the “strict regulatory assessment” for minimum ecological discharge flow 24 hours a day, even during heavy rain.
Scenario B: Geological Hazard Prevention (Pre-Warning & Action) RD-DWD-01 sensors are installed across critical joints and soil banks of the dam. By monitoring micro-deformations 24/7, the system can identify a “trend of movement” before it is visible to the naked eye. In an environment where turbine vibrations occur constantly, the sensor’s high-frequency shock resistance ensures that only real structural movement is reported, avoiding false positives.
5. The Integrated “Sense-Transmit-Know-Apply” Ecosystem
Honde Technology provides more than just hardware; we provide a closed-loop data management ecosystem.
- Wireless Autonomy: Our systems support 5G, 4G, NB-IoT, and LoRaWAN. We prioritize “plug-and-play” cellular autonomy, where devices synchronize with the cloud instantly upon power-up—no complex field wiring required.
- The Honde Cloud:Data Security: For municipal and infrastructure projects, we support private cloud deployment to keep sensitive hydrological data behind your firewall.
- Know: Real-time map overviews and historical report analysis allow for easy long-term trend monitoring and regulatory reporting.
- Apply: When ecological flow drops below the legal limit or displacement exceeds safety thresholds, the system triggers automatic alert notifications (Web/App/Mobile), allowing for immediate gate adjustment or emergency protocols.
6. Conclusion: Why Partner with Honde Technology?
Honde Technology delivers the precision, durability, and connectivity required for the world’s most demanding hydrological environments. Our solutions reduce deployment costs through wireless, non-contact technology while providing the high-frequency data needed for modern safety and environmental compliance.
Certified Reliability: Our equipment carries international CE, RoHS, and TÜV SÜD certifications, ensuring that our hardware meets the most rigorous global quality and safety standards.
Contact Us For professional water environment monitoring solutions and dam safety systems, visit: Web: www.hondetechco.com Email: info@hondetech.com Empowering Dam Safety, Safeguarding Ecological Flow.
