Industry Background & Pain Points
In large-scale industrial composting, maintaining precise thermal profiles is the difference between high-quality organic fertilizer and a failed, hazardous batch. Traditional manual methods are increasingly insufficient for modern agricultural demands.
- Data Inaccuracy: Manual temperature probes provide only a “snapshot” in time, failing to capture the volatile thermal dynamics within deep compost piles.
- Operational Inefficiency: Manual data collection across sprawling sites is labor-intensive and expensive, diverting staff from higher-value tasks.
- Thermal Safety Risks: Without real-time monitoring, localized heat spikes can exceed 70°C, killing beneficial microbes or, in extreme cases, triggering spontaneous combustion in high-density piles.
- Lack of Integrated Control: Traditional sites often separate monitoring from aeration control, leading to delayed responses when cooling or oxygenation is required.
Upgrading to an integrated RS485-based wireless IoT ecosystem is no longer optional; it is a technical necessity for ensuring sanitization compliance and operational safety.
Solution Overview
The Honde Smart Wireless Compost System is a comprehensive, industrial-grade IoT ecosystem. It bridges the gap between rugged field sensing and cloud-based automation, integrating high-precision 2-meter stainless steel probes with a dual-mode 4G/Wi-Fi control hub.
System Components:
- 5-Channel Heavy-Duty Sensor Array: Professional 2-meter probes with Modbus RS485 output.
- Intelligent Wireless Multi-channel Control Box: A pre-wired, stainless steel industrial cabinet featuring CHNT brand components.
- Honde Cloud Platform: A centralized command center for PC and mobile devices.
Core Value:
- High-Density Multi-Point Monitoring: Synchronous tracking of five core zones within a single or multiple piles.
- Dual-Mode Connectivity: Uninterrupted data flow via 4G LTE (SIM) or Wi-Fi, optimized for remote agricultural environments.
- Industrial Load Management: Integrated high-power AC contactors for direct automated control of five aeration fans.
- Full Remote Governance: Real-time visibility and manual override capabilities from any location globally.

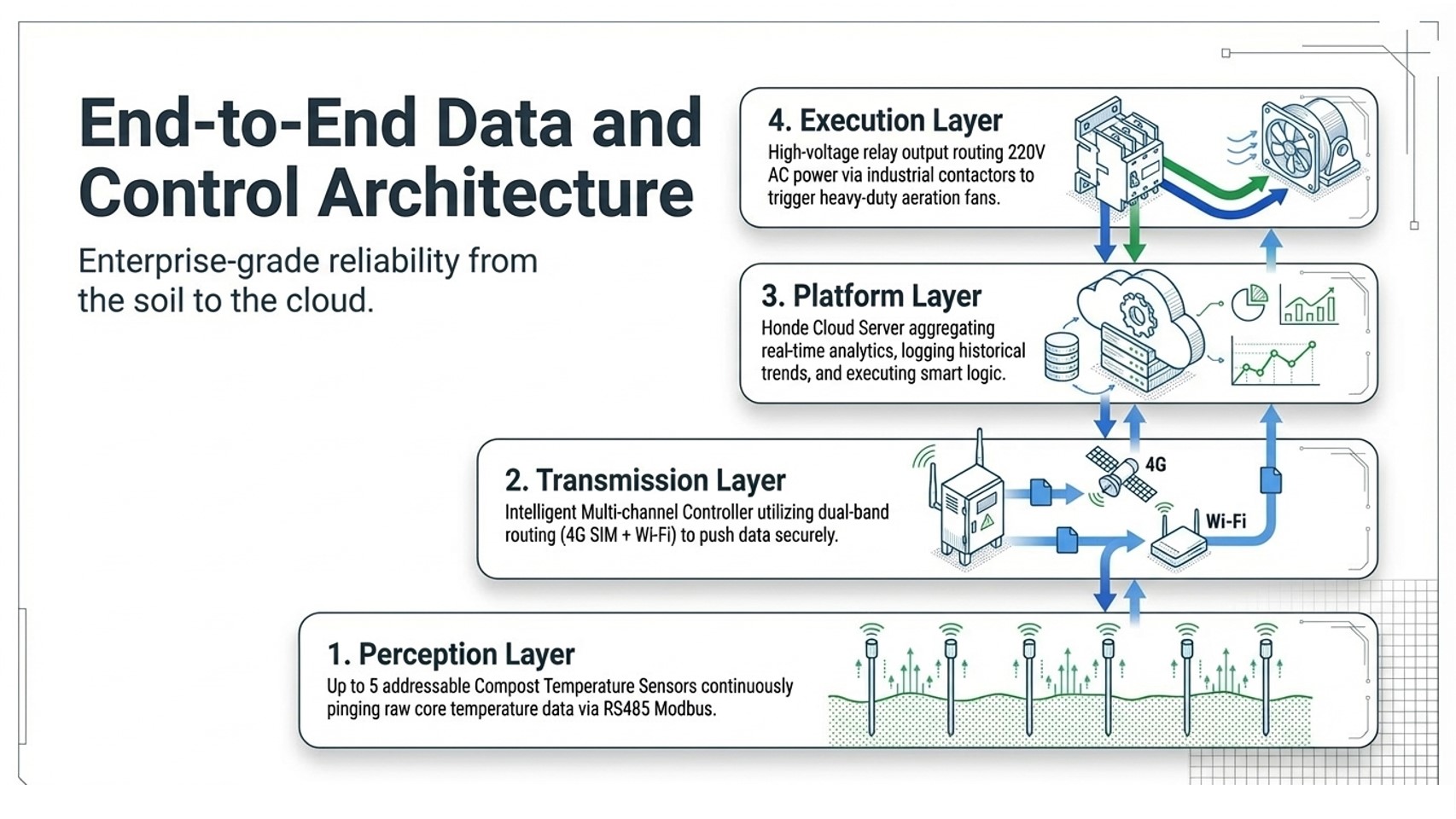

System Architecture
Our architecture is designed for industrial reliability, organized into four distinct layers:
- Sensor Layer: Utilizes 2-meter stainless steel probes. These sensors are powered directly by the control box (12V DC via RS485), eliminating the need for localized batteries or external power at the pile.
- Transmission Layer: Features a dual-mode communication module. To ensure signal integrity, the system utilizes dedicated, non-interchangeable external antennas for 4G and Wi-Fi.
- Platform Layer: The Honde Cloud Server processes incoming Modbus data, providing a secure, encrypted interface for real-time visualization and historical analysis.
- Execution Layer: Employs five CHNT industrial AC contactors (labeled KM1–KM5). These are not standard low-power relays; they are designed to handle the high-current inrush of industrial aeration fans.

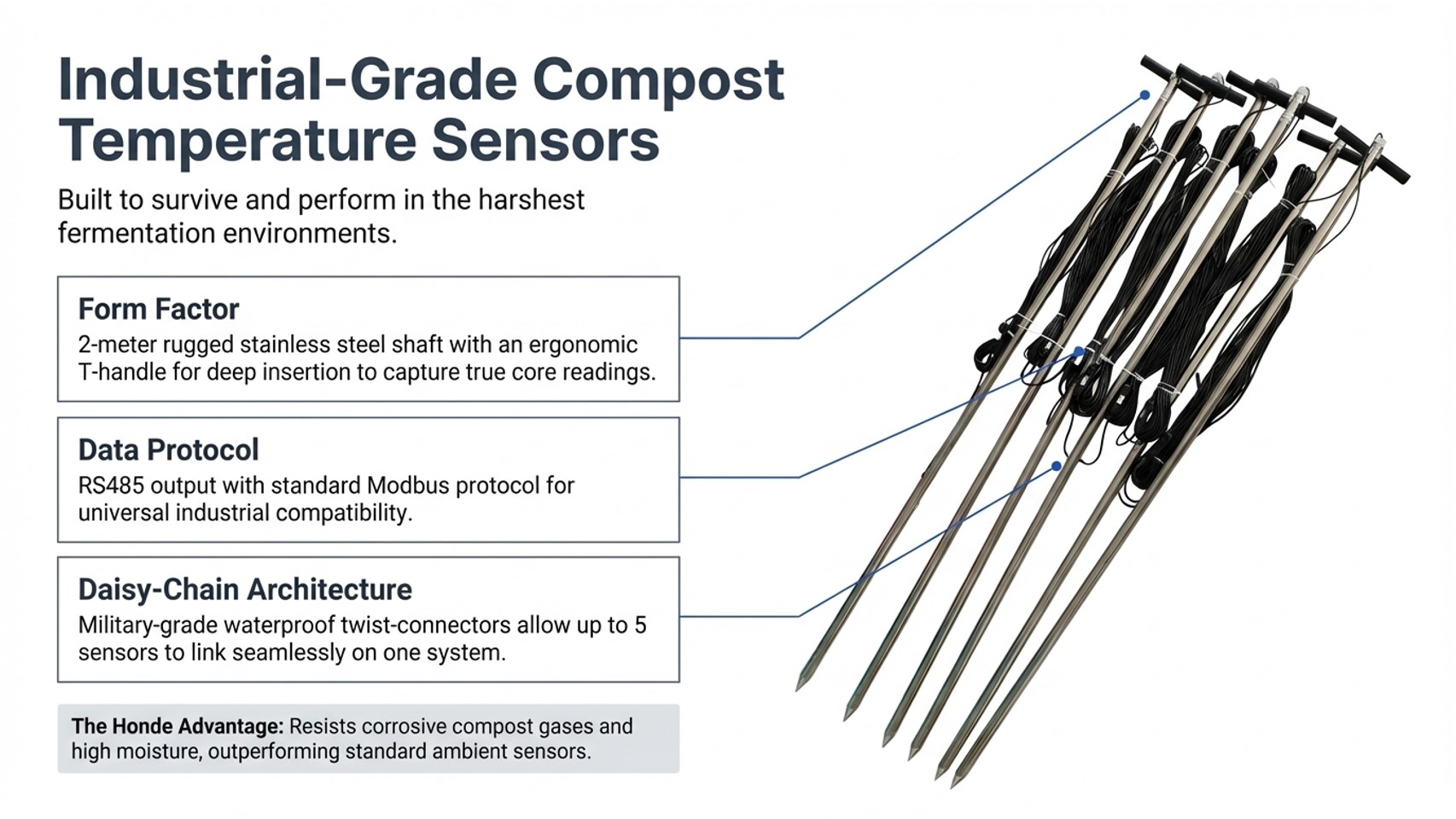

Core Product: Industrial Compost Temperature Sensor
Core Selling Point: Heavy-Duty 2-Meter Stainless Steel Probe for Deep-Pile Monitoring.
- Ergonomic Industrial Build: The sensor features a rugged 2-meter 304/316 stainless steel body with a reinforced T-handle. This design allows for high-torque manual insertion into high-density organic matter, ensuring the sensing tip reaches the high-heat core.
- Technical Specifications: The probe utilizes a digital RS485 output with a standard Modbus protocol. This ensures 100% data integrity over long cable runs, avoiding the signal degradation common in analog alternatives.
- Durability: Built to withstand the highly corrosive, high-moisture environment of decomposing organic waste.

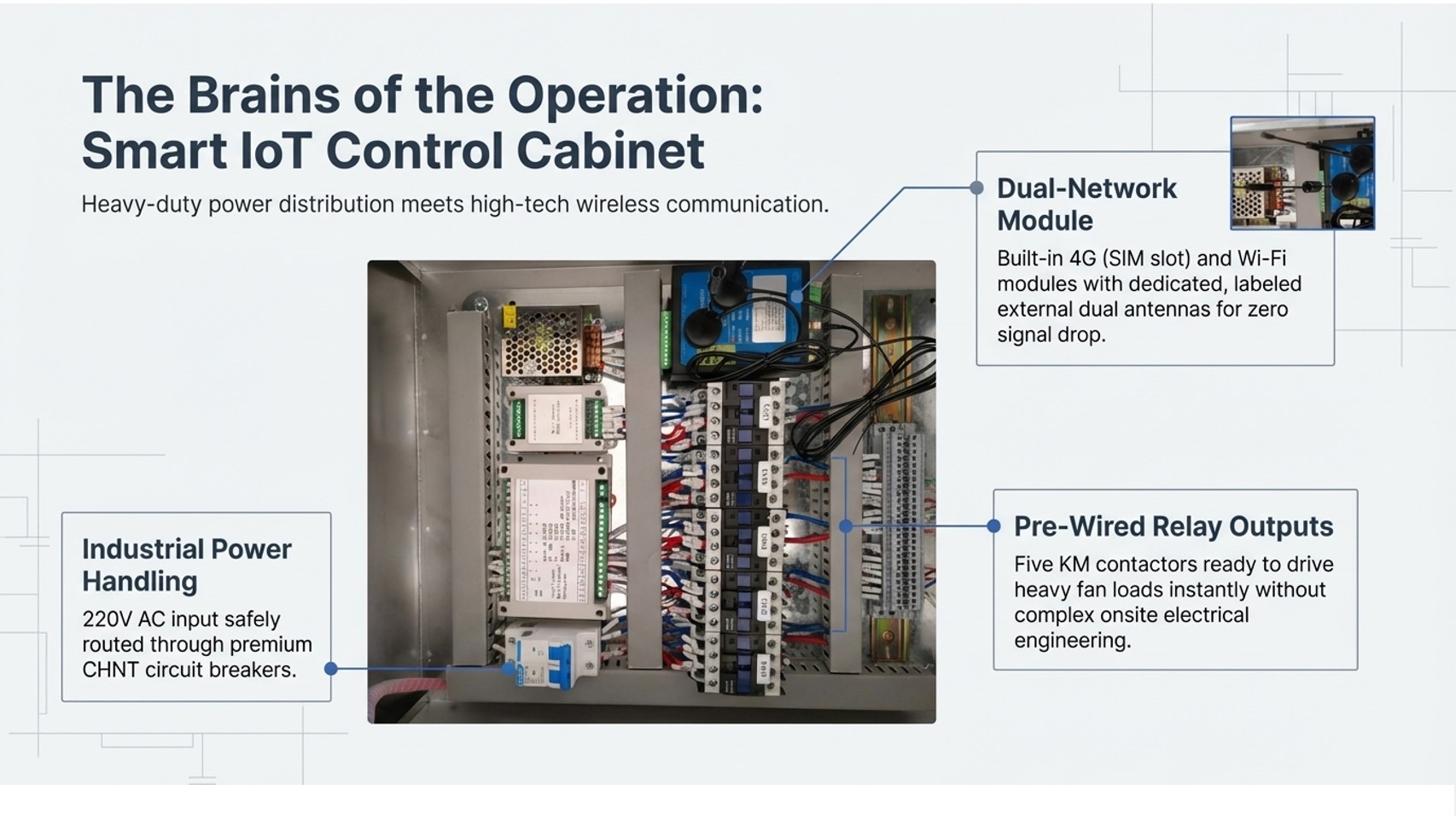

Core Product: Wireless Multi-Channel Control Box
Core Selling Point: Unified Control Hub with Dual-Mode Wireless & Local Manual Override.
- Industrial-Grade Cabinet: Housed in a lockable, stainless steel cabinet with a high-quality key-lock handle for outdoor security. The internal architecture is meticulously organized with rail-mounted components, including CHNT circuit breakers for system protection.
- Technical Highlights:
- Dual-Mode Module: Supports 4G LTE and Wi-Fi. The SIM card slot includes a mechanical yellow button ejector for easy field maintenance.

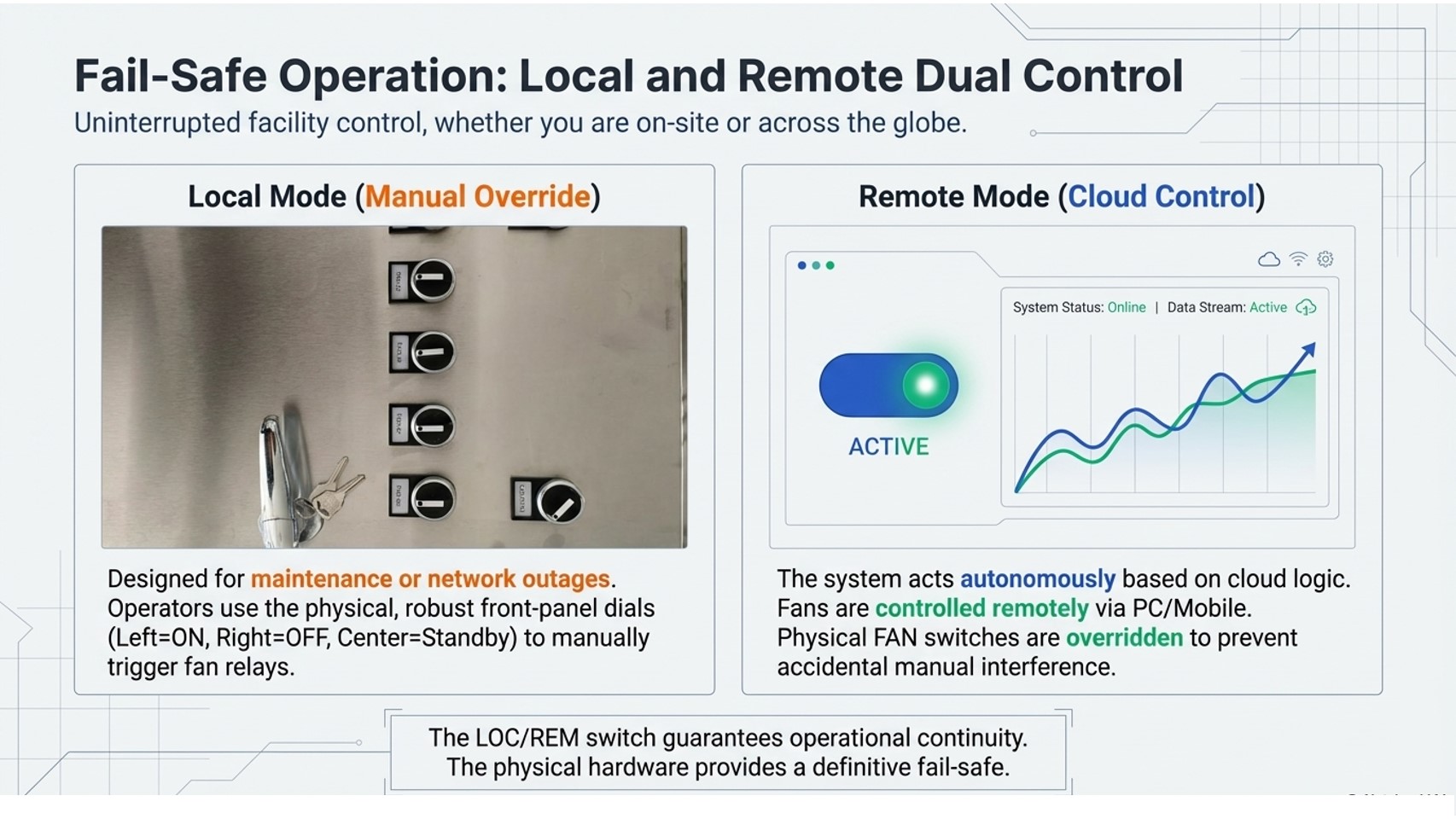

- Fail-Safe “Remote/Local” Logic: A front-panel toggle switch defines the control priority. In “Remote” mode, the cloud software governs the fans. In “Local” mode, cloud commands are bypassed, allowing onsite personnel to manage fans manually for maintenance.
- Three-Position Manual Switches: Each of the five fan switches features a distinct 3-position logic: Left (Manual Turn On), Right (Closed/Off), and Middle (Neutral/Default).
- Visual Diagnostics: Front-panel LED indicators for “Power” and individual “Fan Status” provide immediate onsite diagnostics.

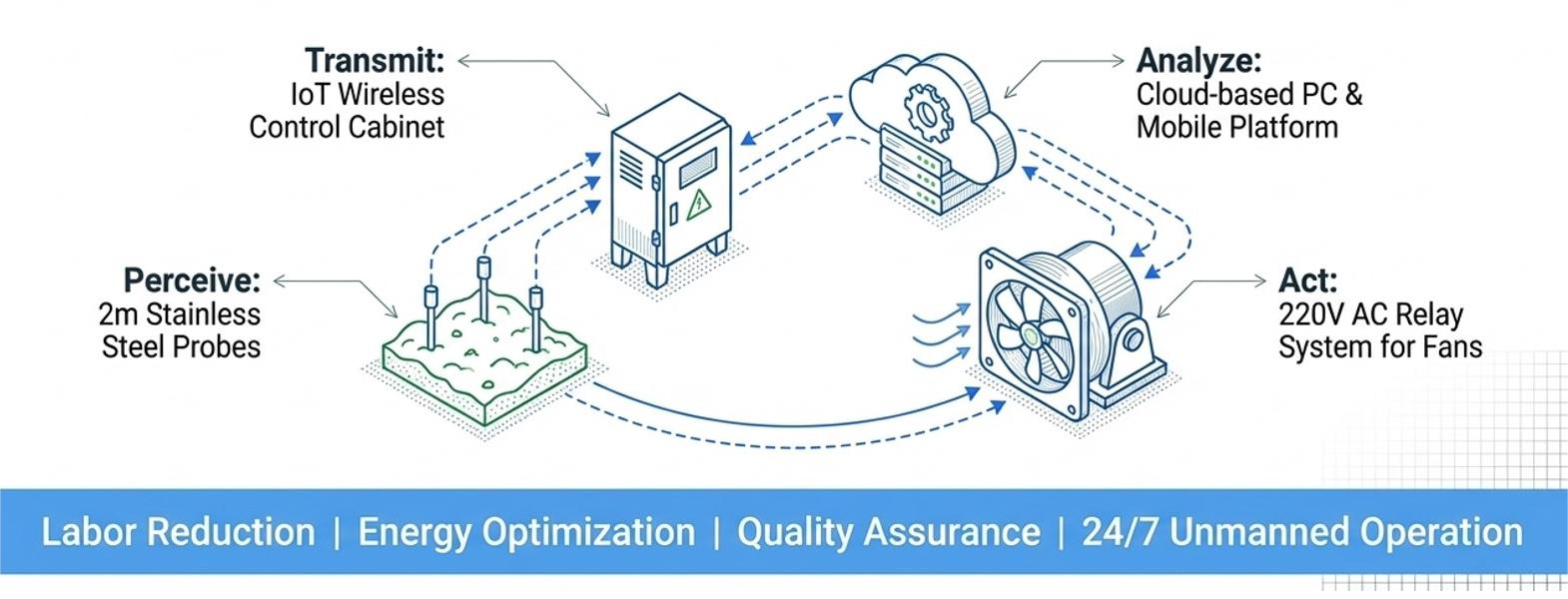

System Working Principle
- Sensing: The 5-channel sensor array collects core temperature values via Modbus RS485.
- Processing: The Intelligent Multi-channel Controller aggregates data while the control box provides the necessary 12V power to each probe.
- Transmission: Data is uploaded via the specified 4G or Wi-Fi channel to the Honde Cloud.
- Action: When a temperature threshold is breached, the controller triggers the corresponding CHNT AC Contactor (KM1–KM5), activating the industrial aeration fan to cool the pile or provide oxygen.
Application Scenarios
Industrial Organic Waste Composting
The 2-meter probes are essential for large-scale windrow or vessel composting, reaching the deep core to verify that pathogen-killing temperatures are sustained for regulatory compliance. Benefit: automated data logging for environmental audits and reduced labor overhead.
Greenhouse Soil & Substrate Monitoring
Perfect for monitoring large-area substrate beds. The 5-channel system allows for granular monitoring across multiple zones, ensuring root-zone temperatures remain within the optimal microbial window. Benefit: Prevention of root-zone overheating and optimized growth cycles.
Installation & Deployment
- Sensor Addressing & ID Matching: Crucial Step. Each sensor is pre-programmed with a specific ID (1 through 5). These must be connected to the corresponding waterproof ports on the bottom of the cabinet marked 1–5. The system will fail to communicate if sensor IDs do not match their assigned port labels.
- Antenna Precision: The 4G and Wi-Fi antennas are specific to their modules. Users must connect them to the appropriately marked ports; swapping these antennas will result in total signal failure or hardware damage.
- Power Requirements: The system requires a 220V AC input. This source powers the internal CHNT electronics and provides the high-voltage supply required for the industrial fans connected to the contactors.
- Wiring: All internal control wiring is pre-completed at the factory. The installer only needs to connect the sensors to the external ports and the fans to the labeled contactor outputs.
Remote Monitoring & Platform Functionality
The Honde Cloud platform provides “Anywhere, Anytime” access:
- Real-Time Dashboard: View all five sensor readings and fan states (On/Off) simultaneously.
- Historical Analysis: Exportable data logs to analyze composting curves and optimize batch turnover times.
- Remote Triggering: Directly activate any of the five KM contactors via the web or mobile app when in “Remote” mode.
Solution Competitive Advantages
- Industrial Brand Reliability: Integration of CHNT brand breakers and contactors ensures long-term durability under heavy industrial loads.
- Unmatched Penetration: 2-meter stainless steel probes with T-handles are specifically engineered for deep-pile composting, not repurposed consumer soil probes.
- Operational Redundancy: The 3-position local switches and Remote/Local toggle ensure the site remains operational even during network outages.
- Simplified Deployment: A pre-wired, rail-mounted solution that reduces onsite electrical work by up to 80%.
Success Case & Contact
Project Profile: Our 5-Probe/5-Fan Integrated System is the standard for modern organic waste facilities, providing a fully automated “Sense-and-React” loop that maximizes compost quality while eliminating manual error.
Call to Action: Contact our Senior IoT Architects today for a custom system design and technical consultation.
Contact Block:
- Company: Honde Technology Co., Ltd.
- Website: www.hondetechco.com
- Email: info@hondetech.com
- Services: Supporting OEM/ODM services and free end-to-end solution architecture design.
Post time: Mar-23-2026
