1. Introduction: Saying Goodbye to the “Blind Box” Era of Traditional Composting
In traditional organic fertilizer composting, monitoring temperature is often like opening a “blind box.” Farmers typically rely on personal experience or endure the pungent smell of ammonia and high temperatures, painstakingly recording temperatures with a simple thermometer beside the compost pile. This primitive method not only lacks real-time accuracy but also fails to respond promptly to abnormal temperature fluctuations.
To break through this bottleneck of “empiricism,” Honde Technology has launched a smart sensing and control system integrating 4G and WiFi communication technologies. This system not only achieves digital transparency in the composting process but also elevates traditional extensive agriculture to an industrial-grade level of precision control through closed-loop control logic.
2. Dual Identity: Perfect Coexistence of Local Manual and Cloud Remote Control
On the stainless steel control box panel, the most striking feature is a row of industrial-grade rotary selector switches. Among them, the “LOC/REM” (local/remote) switch is the core of the system’s safe operation.
Remote Mode:
When the switch is pointed here, the cloud platform takes full control. Administrators can remotely issue commands via PC or mobile device to control the start/stop logic of the fans from different locations.
Local Mode:
Switch to local mode during on-site commissioning or network maintenance. In this mode, the 5 fan knobs (FAN 1#-5#) on the panel are directly activated. The operating logic is clear and straightforward: turning the knob to the left is ON, turning it to the right is OFF, and it remains in the middle standby position at other times.
This design retains the absolute reliability of physical operation while providing a global perspective from cloud management, representing a typical “double insurance” approach to dealing with complex agricultural production environments.
Insight: In IoT solutions, remote control determines efficiency, while local manual control determines the bottom line. Never let network fluctuations become a cause of production accidents.
3. Communication Redundancy: A “Double Insurance” Strategy of 4G and WiFi
Considering the variable network conditions in remote farms, the system’s built-in wireless module provides dual protection with both 4G and WiFi, ensuring an uninterrupted data link.
The module’s design showcases meticulous engineering details: a yellow pop-out button is located next to the 4G SIM card slot, allowing for easy card replacement. More importantly, the antenna installation is strictly regulated—the system is equipped with two independent antennas, and during installation, the “4G” and “WiFi” markings on the module must be precisely aligned. Incorrect connection order will prevent the communication link from being established.
This dual-mode communication is not only for data upload but also for data continuity. 4G can seamlessly switch when the WiFi signal is unstable, ensuring that every degree of temperature rise during fermentation is recorded, which is crucial for the quality certification of organic fertilizer.
4. Rigorous “Digital Fingerprint”: The Logical Aesthetics of Sensor Addresses

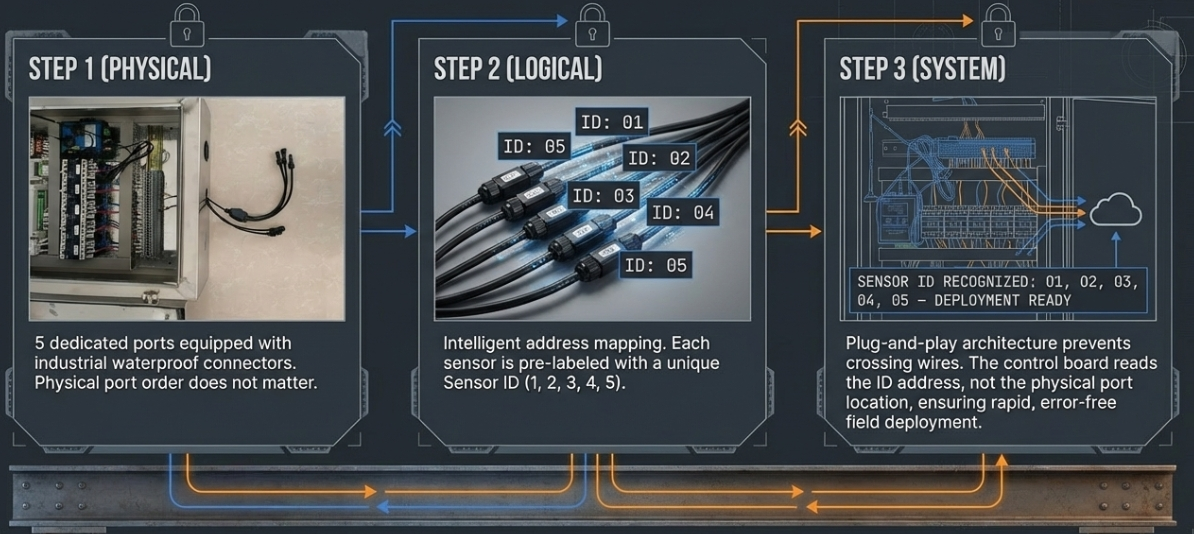

The system supports concurrent access from 5 sensors, each using a high-specification multi-core waterproof connector for plug-and-play functionality. However, hardware connectivity is merely the surface; the true core lies in its rigorous “address logic.”
To ensure the system accurately identifies which compost heap is generating heat, each sensor possesses a unique RS485 Modbus internal address (numbers 1 to 5). During installation, it is crucial to ensure that the physical labels (1#-5#) on the sensor cables correspond one-to-one with the settings in the cloud system. This structured allocation mechanism gives each probe its own “digital fingerprint,” effectively preventing logical confusion during multi-point monitoring.
5. Robust Protection: A 2-meter-long Stainless Steel “Thermometer”
The interior of a compost heap is an extreme environment: high pressure, high humidity, and strong corrosiveness. Ordinary sensors are almost impossible to survive in such an environment, therefore Honde Technology has made a robust upgrade to the probe hardware.
Physical Protection:
The probe is 2 meters long, with the entire body made of 304 stainless steel, sufficient to penetrate deep into the core heat-generating area of a large compost heap without fear of corrosion.
Ergonomics:
Addressing the difficulty of insertion into high-density compost, a T-handle is specially designed on the top of the probe. This detail allows operators to apply force more easily, greatly improving on-site work efficiency.
Standard Protocol:
The sensor integrates the RS485 Modbus protocol, ensuring interference resistance over long distances while providing extremely high measurement accuracy.

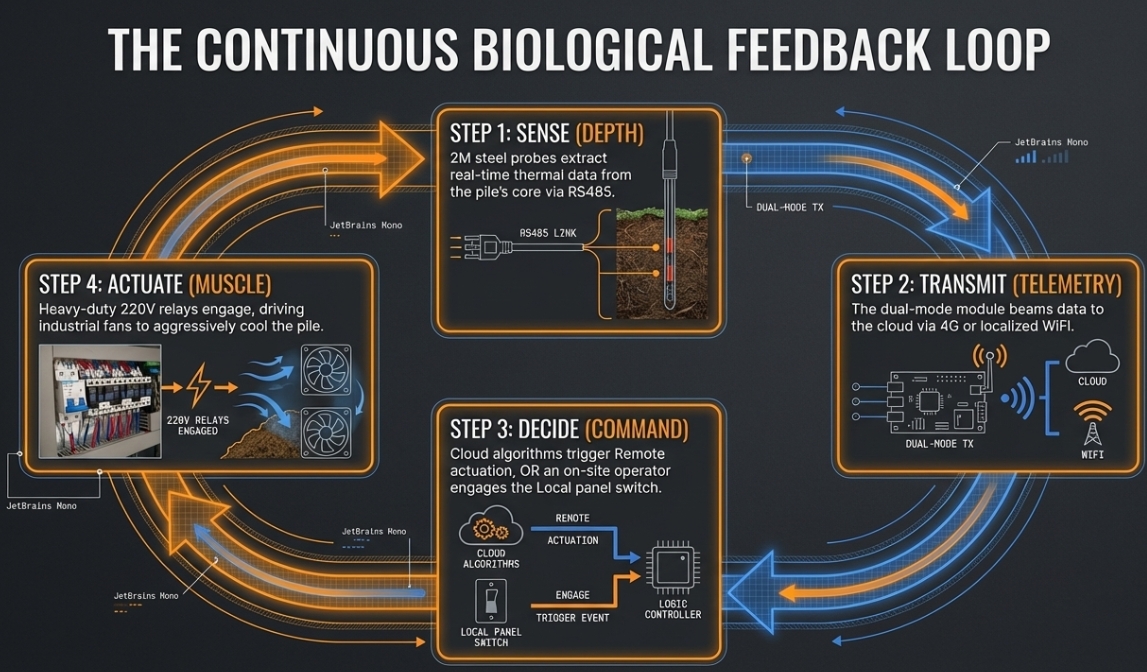

6. Automated Closed-Loop: Relay Linkage from Monitoring to Execution
The true value of smart composting lies in the automated closed-loop system from “sensing” to “execution.” The system integrates 5 relay outputs to directly drive external high-power fans.
In the terminal block area, engineers can clearly see the markings for “L” (live/positive) and “N” (neutral/negative). By connecting to 220V AC high-voltage power, the system can drive high-power ventilation equipment. When the sensor detects a temperature rise exceeding a set threshold, the relay automatically closes, starting the fan for physical cooling.
This automated logic not only saves time but also liberates operators from the harmful environment of high temperature and high ammonia concentration, achieving a win-win situation for both safety and quality.
7. Conclusion: The Next Decade of Agricultural Digitalization
This 4G/WiFi composting temperature control system is a microcosm of how the Industrial Internet of Things (IoT) is deeply empowering agriculture. Through the robust physical strength of its 304 stainless steel probes, the stable transmission of dual communication redundancy, and precise address management logic, it transforms the complex biological fermentation process into a clear digital record.
When every pile of organic fertilizer can “report” its health status in real time via the cloud, future improvements in agricultural efficiency will no longer be linear, but leapfrog. This system’s precise temperature control is the key to unlocking standardized production of high-quality fertilizers.
For more compost temperature sensor information, please contact Honde Technology Co., LTD.
