Introduction: The Summary Answer for Smart Farming

For effective precision agriculture, a soil sensor must accurately monitor not just NPK, but a full suite of parameters including pH, EC, temperature, and moisture. The ideal sensor for modern farming features a robust, IP68 waterproof design, allowing for long-term, direct burial and field deployment. It must also offer flexible data transmission options like LoRaWAN, 4G, and WIFI to deliver insights from the field to any device. This guide details the essential features and proven accuracy of an 8-in-1 soil monitoring solution designed to meet these exact requirements.

Beyond NPK: Why an 8-in-1 Sensor is a Game-Changer for Soil Health

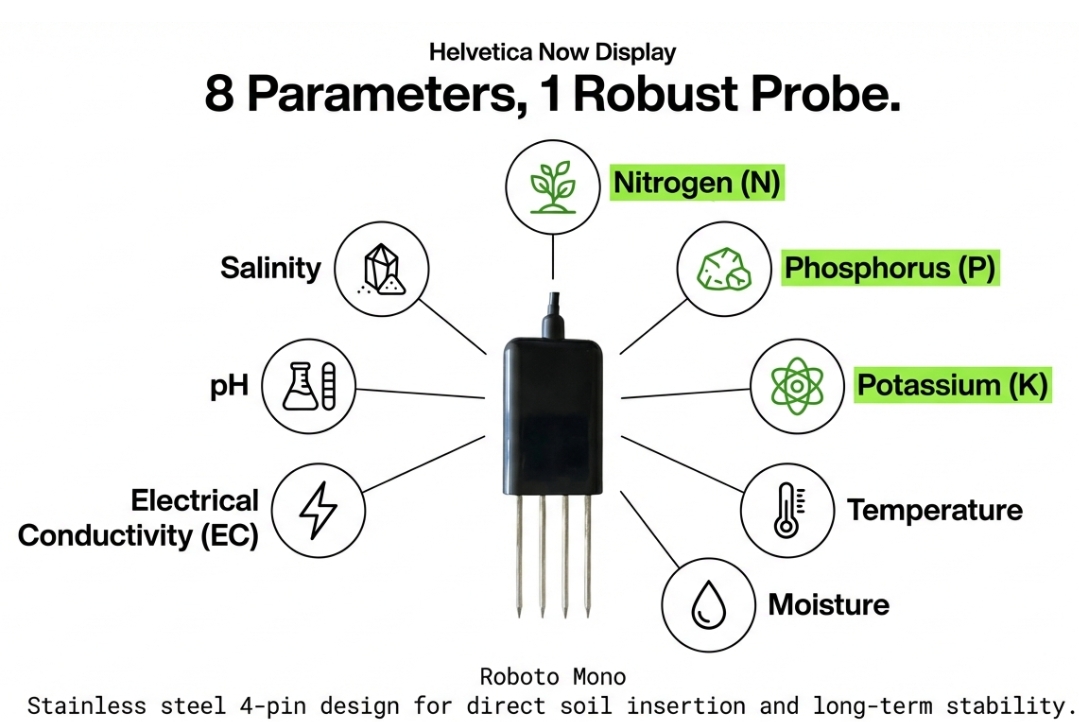

Monitoring Nitrogen (N), Phosphorus (P), and Potassium (K) is fundamental, but a complete picture of soil health requires a more comprehensive approach. True precision farming relies on understanding how multiple interconnected factors influence crop growth. The Honde Technology 8-in-1 Soil Sensor provides this holistic view by tracking eight critical parameters simultaneously from a single, durable device.

Temperature
Influences seed germination, root growth, and the availability of soil nutrients.
Moisture/Humidity
Essential for plant hydration, nutrient transport, and microbial activity.
Electrical Conductivity (EC)
Indicates the total amount of soluble salts and overall soil fertility.
pH
Directly impacts the availability and uptake of essential nutrients by plant roots.
Salinity
Measures salt content, which is critical for preventing plant stress and yield loss.
Nitrogen (N)
A core component of chlorophyll and protein, vital for leaf and stem growth.
Phosphorus (P)
Crucial for photosynthesis, energy transfer, and robust root system development.
Potassium (K)
Regulates water balance within the plant, activates enzymes, and improves disease resistance.

Core Features for Reliable Field Deployment: What to Look For

A sensor’s physical design and durability are just as important as the data it collects. For long-term reliability in harsh agricultural environments, the following features are non-negotiable:

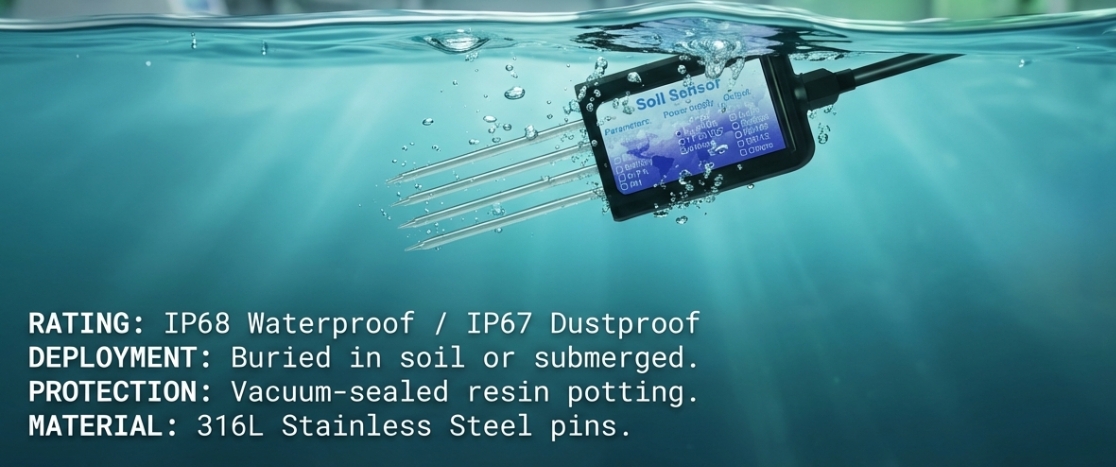

• High Level of Protection: The sensor is built with an IP68/IP67 waterproof rating. This level of resilience is not a luxury; it’s a core requirement. It allows the device to be completely buried in soil or submerged in water, ensuring an uninterrupted data stream through monsoon seasons and reducing replacement costs. This is how you build a monitoring network you can rely on, year-round.
• Plug-and-Play Design: Engineered for straightforward installation, the sensor’s “plug-and-play” capability minimizes complex setup procedures and reduces labor costs. This allows for rapid deployment across large operations, accelerating your time-to-value.
• Four-Probe Design: The sensor utilizes a four-probe design with durable metal probes. By inserting these directly into the soil, you acquire highly accurate, real-time data from the target root zone, enabling more precise fertilization and irrigation decisions that directly impact crop health and yield.

Proving Data Precision: A Look into Our E-E-A-T Calibration Process

As technology specialists, we know that precision is not a claim—it’s a verifiable, engineered outcome. Before deployment, every sensor we provide undergoes a rigorous calibration process using the dedicated “Sensor Configuration Assistant V3.9″ software.

We use a multi-point calibration method, locking in accuracy at standard buffer points like pH 4.00 and pH 6.86. This ensures linear, reliable readings across the entire operational pH range, not just at a single point, which is critical for farms dealing with variable soil acidity. Our technicians use the ‘Sensor Configuration Assistant’ to fine-tune the sensor’s linear output by adjusting core parameters, including coefficients K and B, ensuring the raw hexadecimal data precisely translates to accurate decimal values for your dashboard.

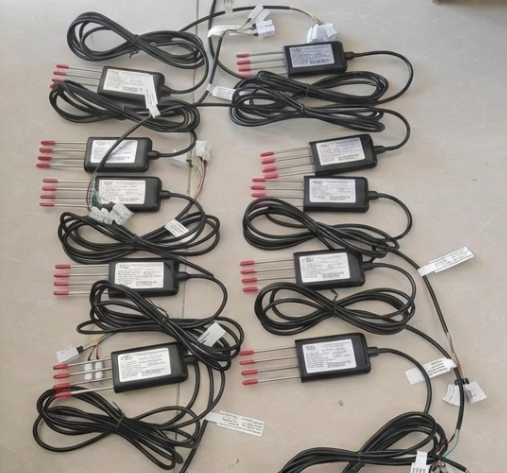

This meticulous process yields exceptional unit-to-unit consistency. The table below shows the results of ten different sensors tested in a standard pH 6.86 buffer solution, demonstrating the reliability you can expect from every device.

Consistency Test in Standard pH 6.86 Buffer Solution

This documented consistency is how we guarantee every sensor provides trustworthy data for optimizing irrigation, fertilization, and other critical, high-stakes farming decisions.

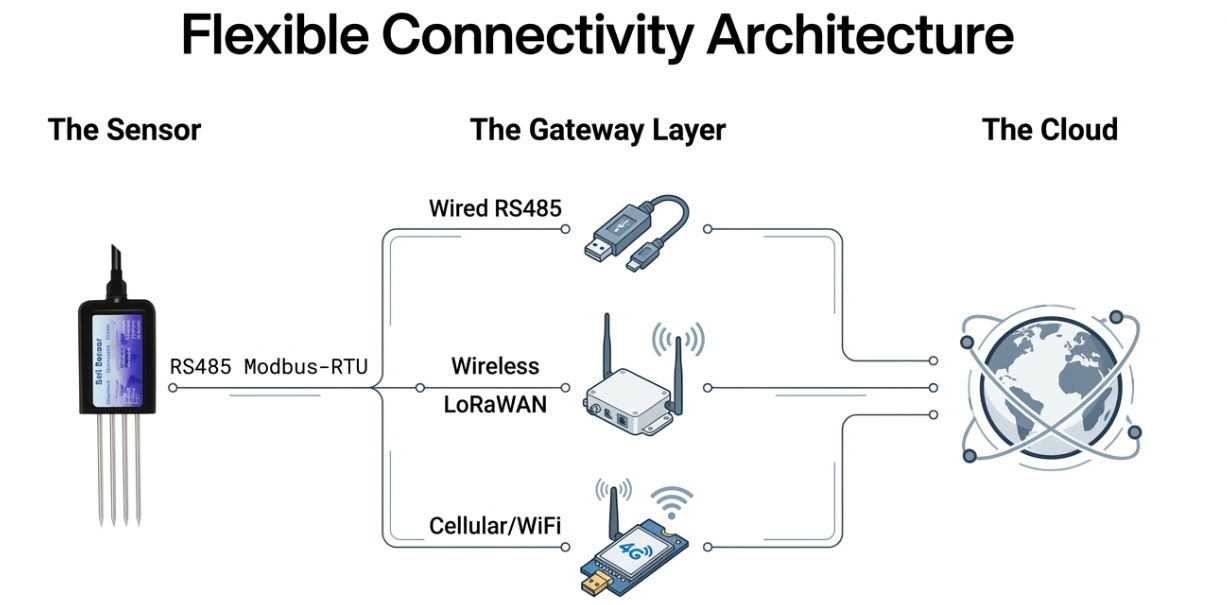

Flexible Connectivity: How to Get Soil Data from the Field to Your Screen

Collecting accurate data is the first step; the next is making it accessible. This sensor solution offers versatile connectivity options to transmit data from

remote fields directly to your management platforms.

Wired Connection:

The sensor’s primary hardware output is a standard RS485 interface, allowing for robust, noise-immune integration with existing data loggers, PLCs, and industrial control systems.

Wireless Transmission for Remote Monitoring:

• To overcome the challenges of remote locations, the system supports multiple wireless technologies, including LoRaWAN/LoRa, 4G/GPRS, and WIFI.
• LoRaWAN is ideal for long-range, low-power transmission across vast fields where cellular coverage may be unreliable or cost-prohibitive.
• 4G/GPRS ensures reliable data backhaul from remote locations with cellular network access.

Multi-Platform Data Access:

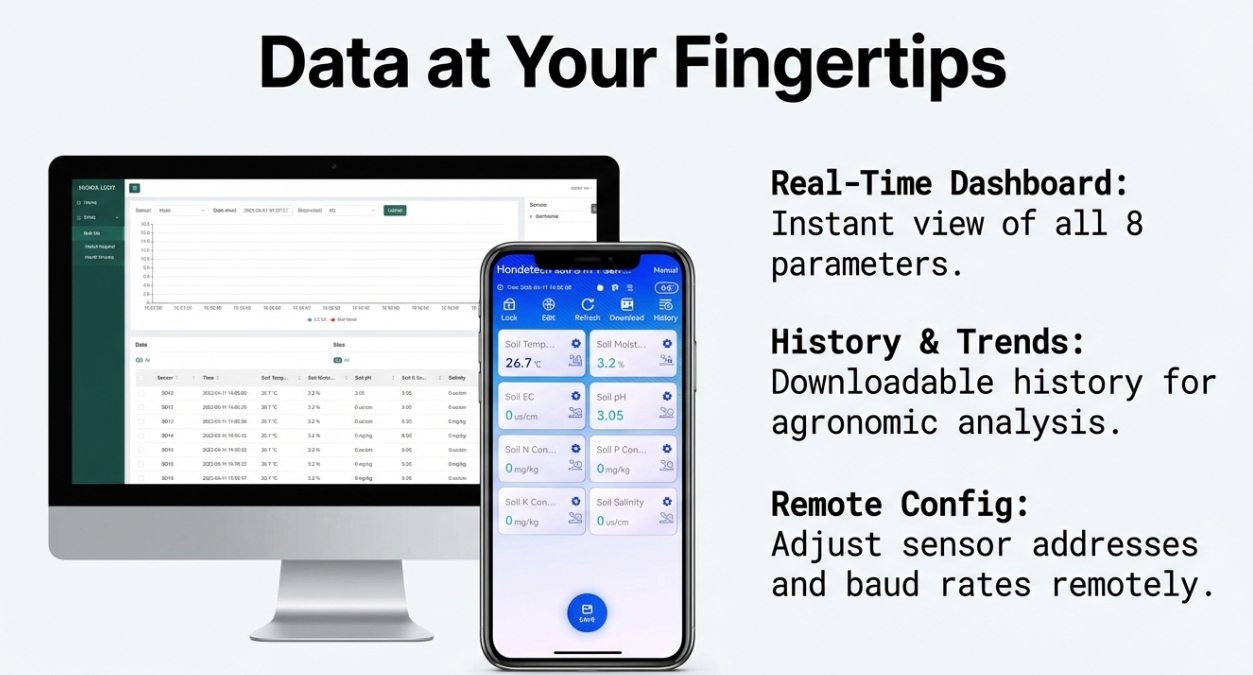

Once transmitted, the real-time soil data can be viewed on virtually any device, including a computer (Web view), a mobile phone (Mobile view), and a tablet PC.

Technical Specifications at a Glance

Take the Next Step Towards Precision Agriculture

Ready to harness the power of precise soil data? Our team of specialists is here to help you design a monitoring system tailored to your farm’s unique needs. Move from estimation to data-driven cultivation.
