TL;DR
- Industrial park discharge points and municipal wastewater plant UV disinfection effluent channels present extreme measurement environments: corrosive chemicals, high salinity, surface foam blankets, and floating debris systematically destroy submerged sensors within weeks.
- The global open channel flow meter market is projected to reach 2.25billionby2034(6.2576.6 million
- Honde’s RD-600s / RD-600-01 Non-Contact Radar 3-in-1 Flowmeter consolidates surface velocity (24GHz Doppler), water level (high-frequency FMCW), and automated volumetric flow integration into a single overhead IP68 housing mounted cleanly on an overhead beam or cantilever.
- Zero liquid contact eliminates weekly cleaning crews, while onboard hydraulic models calculate instantaneous discharge (m3/h) and totalized volume (m3) directly for SCADA and compliance reporting via wireless MQTT JSON and automated cloud alarm relays.
1.The Outfall Reality: Why Contact Instruments Inevitably Fail
Every environmental engineer operating an industrial estate main outfall, sewage treatment plant (STP) disinfection weir, or precast Parshall flume confronts the same costly maintenance cycle:
- Chemical Corrosion: Acidic wash streams, caustic rinses, sulfurous gases, and concentrated chlorides rapidly corrode stainless steel impellers and etch plastic transducer faces.
- Debris Fouling & Ragging: Submerged acoustic Doppler sensors and mechanical turbine wheels trap fibrous rags, plastics, and bio-slimes within days, requiring dirty, hazardous manual confined-space cleanouts.
- Foam and Vapor Blinding: Conventional ultrasonic level gauges mounted overhead frequently lose signal echo due to floating chemical foam or warm morning vapors, generating false zero readings that invalidate regulatory discharge tallies.
When outfall flowmeters drift, facilities face severe regulatory exposure under strict environmental discharge permits, accompanied by costly dispute assessments from municipal utilities.
2.The Breakthrough Architecture: Non-Contact 3-in-1 Radar Measurement

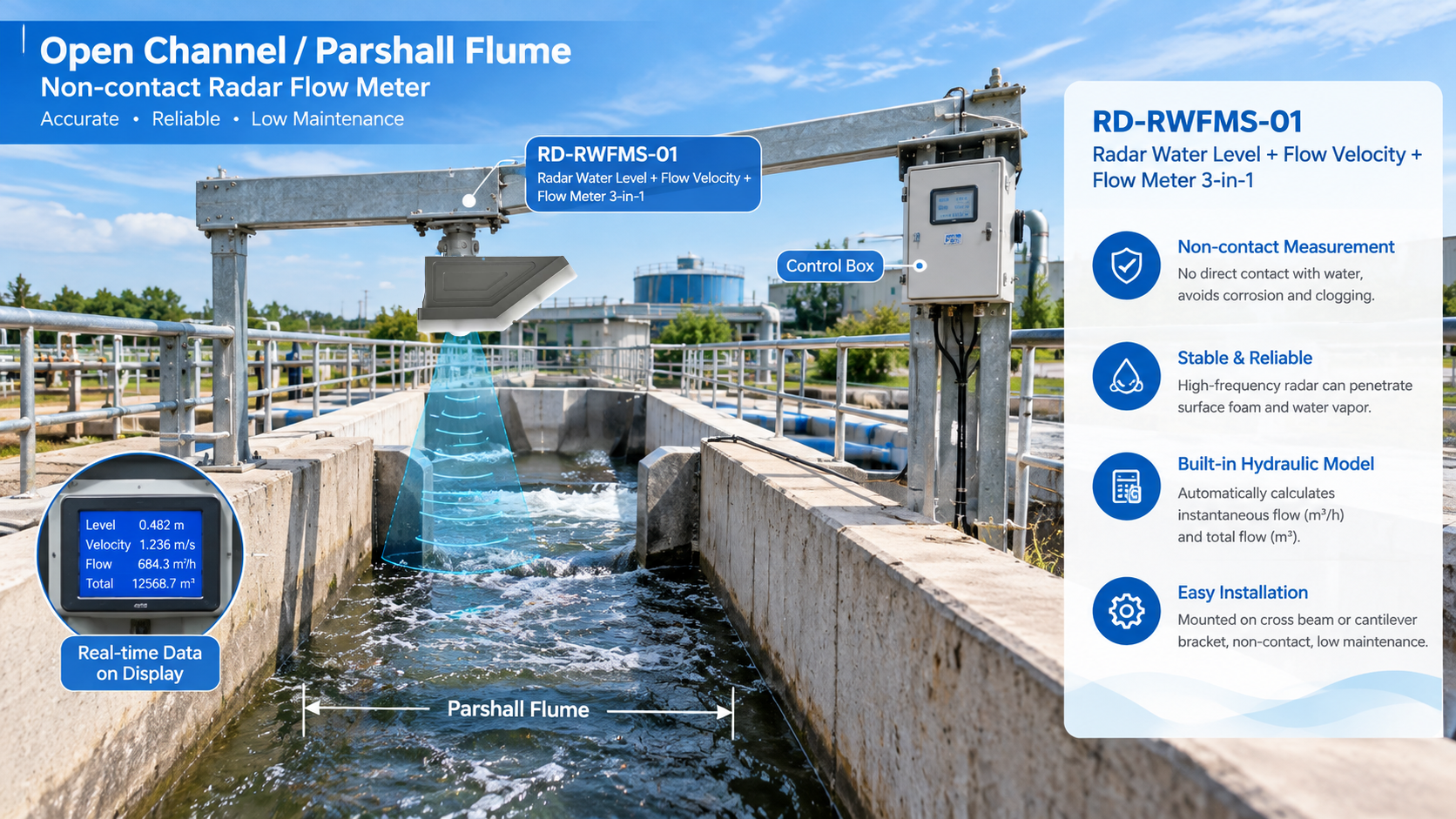

Instead of battling aggressive wastewater by submerging probes into the channel, modern plant design elevates the perception layer into the clean air gap. Mounted securely on a cross-channel steel beam or cantilever bracket, the Honde RD-600s Non-Contact Radar Flowmeter looks downward at the water surface:
- 100% Non-Contact Immersion-Free: Never touches the effluent. Corrosive acids, solvents, and floating debris pass harmlessly underneath.
- Microwave Foam & Vapor Penetration: High-frequency 24GHz planar radar waves penetrate surface foam blankets, light condensation, and steam that blind ultrasonic transducers.
- Embedded Hydraulic Volumetric Integration: Internal computing algorithms process standard open-channel hydraulic curves (Parshall flumes, rectangular weirs, and trapezoidal canals), outputting instantaneous flow (m3/h) and cumulative volume (m3) directly via digital RS485 Modbus.
- Zero Hydraulic Backwater: Non-intrusive overhead sensing causes zero obstruction to fluid flow and eliminates sedimentation buildup behind sensor brackets.
3.International Demand Analysis: Where Global Outfall Modernization Is Concentrated
| Country / Region | Regulatory & Industrial Drivers | Typical Application Profile | Preferred Sensor Specification |
|---|---|---|---|
| Vietnam | Decree No. 08/2022/ND-CP; strict MONRE continuous automated outfall telemetry mandates across industrial parks | Textile dyeing, electronics assembly, seafood processing parks in Binh Duong, Dong Nai, and Ho Chi Minh City | Anti-corrosion coated overhead radar, 4G wireless module with MQTT JSON format |
| United States | US EPA Clean Water Act (CWA) and NPDES industrial wastewater permit compliance | Municipal sewage treatment plants (UV channels) and chemical plant Parshall flumes | Non-contact 24GHz radar velocity-area measurement, RS485 Modbus SCADA integration |
| Germany & EU | European Union Industrial Emissions Directive (IED); German Federal Water Act (WHG) | Chemical manufacturing parks, automotive painting effluent flumes, municipal STPs | High velocity accuracy (±0.01 m/s), IP68 weatherproofing, extreme freeze tolerance (-30 °C) |
| Japan | Water Pollution Prevention Act; closed-loop industrial water recycling mandates | Semiconductor fabrication plants, precision plating, and paper mill effluent trenches | Compact overhead form factor, low DC power draw, zero channel obstruction |
4.Technical Specifications: Honde RD-600s Non-Contact 3-in-1 Radar Flowmeter
| Parameter Category | Technical Specification |
|---|---|
| Model Number | RD-600s-1 / RD-600-01 (Anti-Corrosion Series) |
| Integrated Functions | Surface Velocity, Water Level, and Automated Volumetric Flow Rate |
| Radar Technology | Planar microstrip array antenna CW + PCR Doppler technology |
| Operating Frequency | 24 GHz microwave band |
| Velocity Measurement Range | 0.03 m/s to 20.0 m/s |
| Velocity Accuracy | ±0.01 m/s; ±1% Full Scale |
| Water Level Accuracy | ±1 mm to ±2 mm (FMCW non-contact level radar) |
| Beam Emission Angle | 12° narrow directional beam |
| Calculated Outputs | Instantaneous Flow Rate (
m3/h), Cumulative Totalized Flow ( m3) |
| Supported Channel Profiles | Parshall flumes, rectangular weirs, trapezoidal canals, closed circular culverts |
| Housing Protection Rating | IP68 fully sealed waterproof; integrated 6KV lightning protection |
| Operating Temperature | -30 °C to +80 °C |
| Operating Voltage | DC 7–32 V (ultra-low power consumption, solar-compatible) |
| Digital Communications | Standard RS485 Modbus-RTU, optional 4–20 mA |
5.Three Turnkey Deployment Solutions for Outfall Flow Monitoring
To integrate smoothly with field inspection rounds, plant SCADA telemetry, and automated environmental protection networks, Honde delivers three standard solution tiers:
1. Handmeter, Data logger with screen
Designed for routine environmental audit patrols and quick calibration cross-checks against manual staff gauges. The Handmeter, Data logger with screen powers the overhead radar sensor on-site, displays real-time flow rate curves, water depth, and velocity readings on a daylight-readable display, and saves timestamped records to internal flash memory. Operators can export certified CSV/Excel logs via USB without carrying delicate laptops into wet treatment areas.
2. GPRS/4G/WIFI/LORA/LORAWAN wireless module supports MQTT Json format
Engineered for sprawling industrial zones, remote factory boundary discharge points, and municipal outfalls where running physical communication wiring is cost-prohibitive. Honde equips the sensor with a GPRS/4G/WIFI/LORA/LORAWAN wireless module. The node extracts the radar’s Modbus registers and transmits them in standardized MQTT Json format. This enables instant plug-and-play connection into corporate ESG tracking software, municipal environmental authority portals, or SCADA platforms without proprietary middleware.
3. Cloud server and software with alram relay system support to see the real time data, history data
Designed for automated plant safety and regulatory compliance gates. The Cloud server and software with alram relay system support to see the real time data, history data continuously tracks effluent volumes and flags abnormal surge events. Crucially, the system features an intelligent physical alarm relay system: if discharge volume exceeds permitted regulatory caps or sudden upstream chemical surges occur, the cloud immediately trips an on-site contact relay to shut motorized discharge sluice gates or divert water into emergency retention ponds, preventing devastating environmental violations.
6.Real-World Case Study: Industrial Textile Dyeing Outfall in Dong Nai, Vietnam
A large multinational textile and fabric processing facility in Dong Nai Province, Vietnam, discharges treated effluent through a standard precast Parshall flume into a regional receiving canal under strict MONRE monitoring regulations.
- The Challenge: The discharge stream carries lingering dye pigments, suspended lint, residual surfactants, and temperatures fluctuating between 35 °C and 48 °C with thick surface steam. Previous submerged electromagnetic and ultrasonic sensors clogged with fibrous debris every 4 days, while steam blankets caused conventional ultrasonic level meters to output wild measurement spikes.
- The Solution: Plant engineers decommissioned submerged probes and installed a single Honde RD-600s Non-Contact Radar 3-in-1 Flowmeter mounted to a rigid cantilever arm 1.2 meters directly above the Parshall flume throat. Readings were linked via a 4G wireless module transmitting MQTT Json data to the province’s environmental reporting gateway.
- The Results: Over 12 months of non-stop operation, maintenance interventions fell from twice weekly to zero. The 24GHz microwave radar penetrated surface steam effortlessly, delivering 99.8% continuous data uptime and saving the factory over $16,000 annually in routine maintenance labor and probe replacement expenses.
7.Commercial Value Comparison: Overhead Radar vs. Submerged Probes
| Operational Factor | Honde RD-600s Overhead Radar 3-in-1 | Submerged Contact Sensor (Impeller / Doppler) |
|---|---|---|
| Sensor Maintenance | Zero routine contact; virtually maintenance-free | Requires weekly manual scrubbing and rag removal |
| Chemical & Corrosion Resistance | Isolated in air gap; immune to acid, alkali & solvents | Wetted seals and electrodes degrade within 3–6 months |
| Steam & Foam Tolerance | 24GHz microwave penetration ignores surface vapors | Ultrasonic probes deflect off foam and lose surface echo |
| Hydraulic Obstruction | Zero channel disturbance; no silt traps | Creates hydraulic drag and snags floating plastic debris |
| Total Cost of Ownership | Single equipment investment with multi-year reliability | Constant technician replacement and recalibration costs |
8.Summary & Project Sourcing Next Steps
Open channel flow measurement in industrial effluent channels and Parshall flumes should never rely on delicate sensors submerged in corrosive wastewater. By lifting instrumentation into the air gap, the Honde RD-600s Non-Contact Radar 3-in-1 Flowmeter delivers microwave precision, non-intrusive durability, and automated volumetric math inside one IP68 package.
Whether retrofitting existing wastewater UV channels or equipping newly constructed industrial estate outfalls, Honde delivers the certified hardware, wireless IoT protocols, and cloud safety interlocks required for continuous regulatory compliance.
1.Handmeter, Data logger with screen； 2.GPRS/4G/WIFI/LORA/LORAWAN wireless module supports MQTT Json format; 3.Cloud server and software with alram relay system support to see the real time data, history data.
