1. Executive Summary
Modern agriculture in 2026 demands high-fidelity data that traditional mechanical sensors simply cannot provide. The industry is rapidly transitioning to 24GHz Doppler radar weather stations because they offer a maintenance-free solution capable of distinguishing between rain, snow, and hail—a critical requirement for advanced crop protection. Unlike legacy tipping bucket gauges that suffer from mechanical delay and frequent blockages, Honde Technology’s radar solutions provide instantaneous response times, 0.1mm resolution, and zero moving parts. This ensures continuous operational uptime and precision monitoring in the most demanding smart farming environments.
2. The Critical Difference: Rain, Snow, and Hail Detection in Agriculture
In the field, the “type” of precipitation is often more impactful than the total volume. For high-value crop protection strategies, the ability to trigger immediate hail detection alerts is the difference between implementing protective netting and suffering catastrophic yield loss.
Traditional tipping buckets are “blind” to precipitation state; they only record liquid volume. By utilizing Doppler technology, agronomists can now track snow accumulation and distinguish it from freezing rain in real-time. This level of precipitation type data allows for automated irrigation adjustments and climate-control responses in greenhouses that were previously impossible with mechanical gauges.
3. Radar vs. Traditional Tipping Bucket: A Comparative Analysis
As a technical consultant, I often see farms struggling with the hidden labor costs of legacy hardware. The following comparison highlights the operational shift toward the HD-RDPS-01.
| Feature | Honde Radar Sensor (HD-RDPS-01) | Traditional Tipping Bucket |
|---|---|---|
| Detection Types | Rain, Snow, Hail, and No precipitation | Rain only |
| Maintenance | Zero moving parts; no calibration required | High maintenance; requires periodic cleaning |
| Response Speed | Instantaneous; high sensitivity (1s sampling) | Delayed; requires bucket to fill before tip |
| Environmental Obstacles | Unaffected by fallen leaves, debris, or ice | Easily blocked; requires frequent debris removal |
| Operating Costs | No heaters required; low power consumption | Often requires energy-intensive heaters for ice |
| Durability | Robust ABS; IP65; Weight: 0.45kg | Prone to mechanical wear and spider webs |
4. Technical Core: 24GHz Doppler Radar Technology & Integration
The Honde Integrated Radar Weather Station is engineered for technical buyers who require hard data. It uses the shift in 24GHz radio waves to calculate the size and velocity of falling particles, resulting in the following specifications:
- Precipitation Precision: Measuring range of 0-200mm/hour with a resolution of 0.1mm and an accuracy of ±10%.
- High-Speed Sampling: 1-second sample frequency ensures no “first-drop” data is lost during sudden storm onsets.
- Comprehensive Environmental Sensing: The station integrates air temperature, humidity, and atmospheric pressure sensors within a protected shield.
- Integrated Watershed Management: For a complete hydro-meteorological solution, the system pairs with our Radar Water Level Sensor. This allows farmers to correlate rainfall intensity directly with rising water levels in irrigation canals or reservoirs.
- Operational Range: Rated for extreme environments from -40℃ to +70℃.
HD-RDPS-01 Radar Rain Sensor with Integrated Temperature and Humidity Shields for multi-parameter environmental monitoring.
5. Seamless Data Connectivity for Smart Farming
5.1 Hardware Interfaces and Wireless Protocols

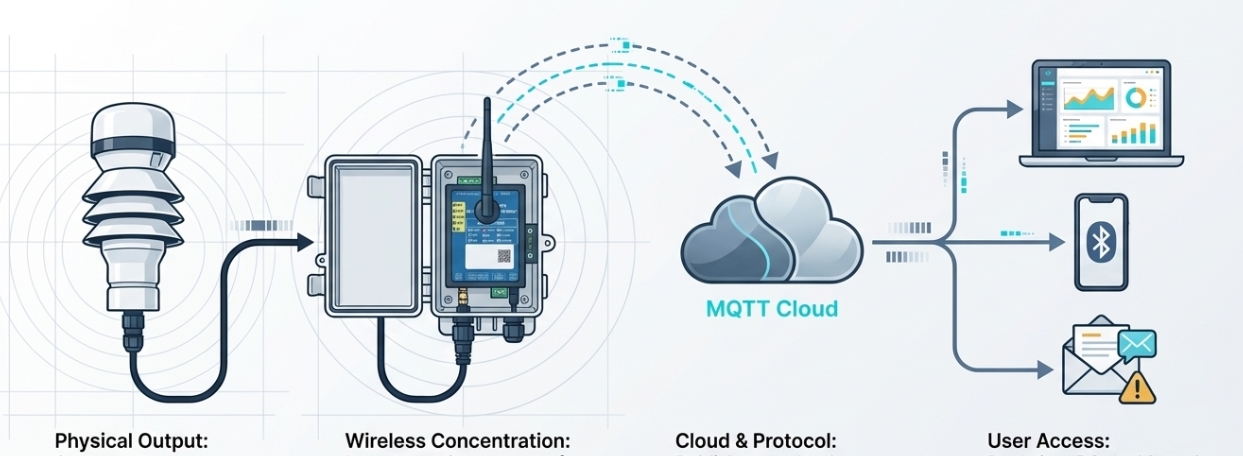

Data is useless if it’s trapped in the field. To support both legacy systems and modern IoT stacks, our stations offer RS485, RS232, and SDI-12 hardware outputs. We support industry-standard protocols including ModBus-RTU, NMEA-0183, and ASCII, ensuring our sensors integrate seamlessly with existing PLC and SCADA systems. For remote deployments, the station features integrated 4G, Wi-Fi, and LORA modules.
5.2 Smart Software and Cloud Integration
- MQTT & JSON: We utilize the MQTT protocol with customizable JSON format outputs, allowing for “plug-and-play” integration into your preferred cloud dashboard.
- Field Configuration: Our systems support Bluetooth connectivity, allowing technicians to configure all parameters via a mobile phone. This eliminates the need to carry laptops and cables into muddy, remote fields.
- Cloud Utility: Our cloud software supports real-time PC monitoring, Excel historical data downloads for agronomists, and email alarms that trigger when user-defined thresholds (e.g., hail detection or high-intensity rain) are met.
6. Why Honde Technology is the Industry Standard
At Honde Technology, we have spent years refining our hardware to survive real-world agricultural conditions. Our sensors are built from high-grade ABS material, weighing only 0.45kg, making them easy to mount on lightweight masts without sacrificing the IP65 protection grade.
The most significant operational advantage we provide is the elimination of maintenance. In remote solar-powered ag-stations, power is a luxury. Because our radar technology is unaffected by ice and fallen leaves, it eliminates the need for the energy-intensive heating devices required by tipping buckets. Our field deployments have proven that even in freezing conditions, the sensor remains accurate without the added battery drain or mechanical failure risks associated with traditional equipment.
7. Conclusion & Call to Action
The transition to integrated radar technology is about more than just a new sensor; it is about securing the data integrity required for 2026′s high-precision farming. By moving to a zero-maintenance, multi-type precipitation system, you reduce operational overhead while gaining the critical insight needed for total crop protection.
Contact Honde Technology today to modernize your monitoring network:
- Company Name: Honde Technology Co., Ltd.
- Website: www.hondetechco.com
- Email: info@hondetech.com
Post time: Apr-03-2026
