Digital RS485 Modbus protocol piezoelectric rain gauge
Video
Product Features
●Compared with other rain gauges
1.Stainless steel material
2.Maintenance free
3.Can measure snow, freezing rain and hail
4.No moving parts and resistant to pollution and corrosion.
●Use shock to calculate rainfall
The piezoelectric rain sensor uses impact theory to calculate the weight of a single raindrop, and then calculates the rainfall.
●Multiple output methods
Easy to install, aviation waterproof interface Support RS485, 4-20mA, 0-5V, 0-10V output
●Integrated wireless module
Integrate wireless module:
GPRS/4G/WIFI/LORA/LORAWAN
●Supply the matched cloud server and software
Supply the matched cloud server and software to see real time data in PC or Mobile
Application

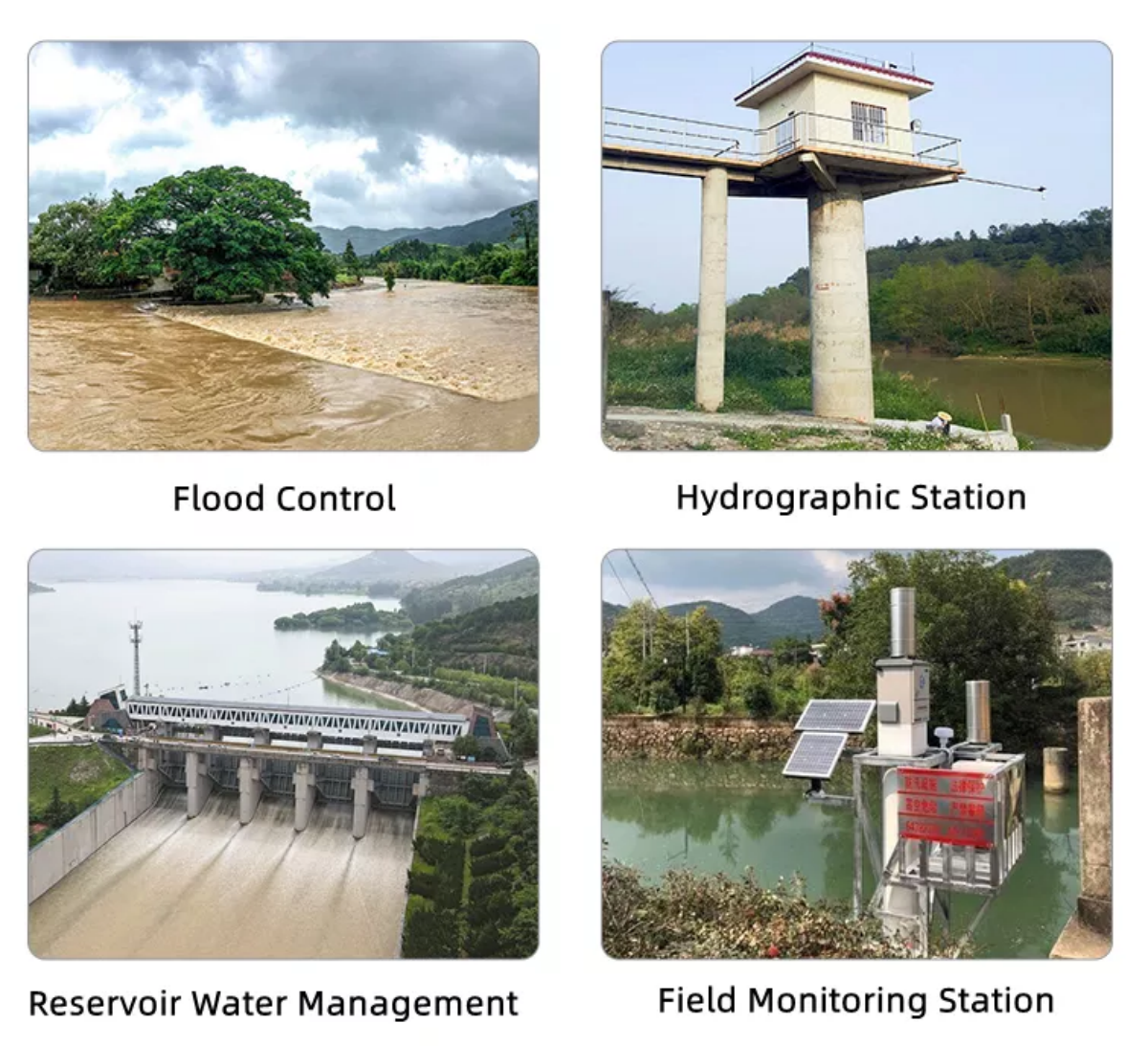

Application:Meteorological stations (stations), hydrological stations, agriculture and forestry, national defense, field monitoring and reporting stations and other relevant departments can provide raw data for flood control, water supply dispatch, and water condition management of power stations and reservoirs.
Product parameters
| Product Name | Piezoelectric Rain Gauge |
| Material | Stainless steel material |
| Resolution | 0.1mm |
| Rainfall parameter | 0-200mm/h |
| Measurement accuracy | ≤±5% |
| Output | A: RS485 (standard Modbus-RTU protocol, device default address: 01) |
| B: 0-5v/0-10v/4-20mA output | |
| Power supply | 12~24V DC (when the output signal is RS485) |
| Working environment | Ambient temperature: -40°C ~ 80°C |
| Wireless module | 4G/GPRS/WIFI/LORA/LORAWAN |
| Server and software | We can supply the matched server and software |
| Size | φ140mm×125mm |
FAQ
Q: What are the main features of this rain gauge sensor?
A: It is a stainless steel piezoelectric rain gauge which can also measure the Snow, Freezing rain,Hail with no maintenance.
Q: Can I get samples?
A: Yes, we have stock materials and can help you get samples as soon as possible.
Q: What is the output type of this rain gauge?
Answer: Including 0-5v/0-10v/4-20mA/RS485 output.
Q: What is the wireless module can you supply?
Answer: We can integrate the GPRS/4G/WIFI/LORA/LORAWAN wireless modules.
Q: Can you supply the data logger and the cloud server and software?
Answer: We can integrate the data logger with the U disk to store the data in Excel or Text and we can also supply the matched cloud server and software to see the real time data in the PC or Mobile.
Q: May I know your warranty?
A: Yes, usually one year.
Q: When is the delivery time?
A: Usually, the goods will be delivered within 1-3 working days after receiving your payment. But it depends on your quantity.
