The 9-layer soil moisture and temperature sensor provides a high-resolution vertical profile of soil conditions to a total depth of 90cm. Comprising nine discrete 10cm layers, this system independently monitors moisture and temperature at every interval. The integrated data logger features a real-time display and local U-disk storage, enabling automated daily data logging in Excel-compatible formats. This comprehensive kit streamlines precision irrigation and research by offering reliable, multi-depth insights without the need for cloud subscriptions or proprietary software.

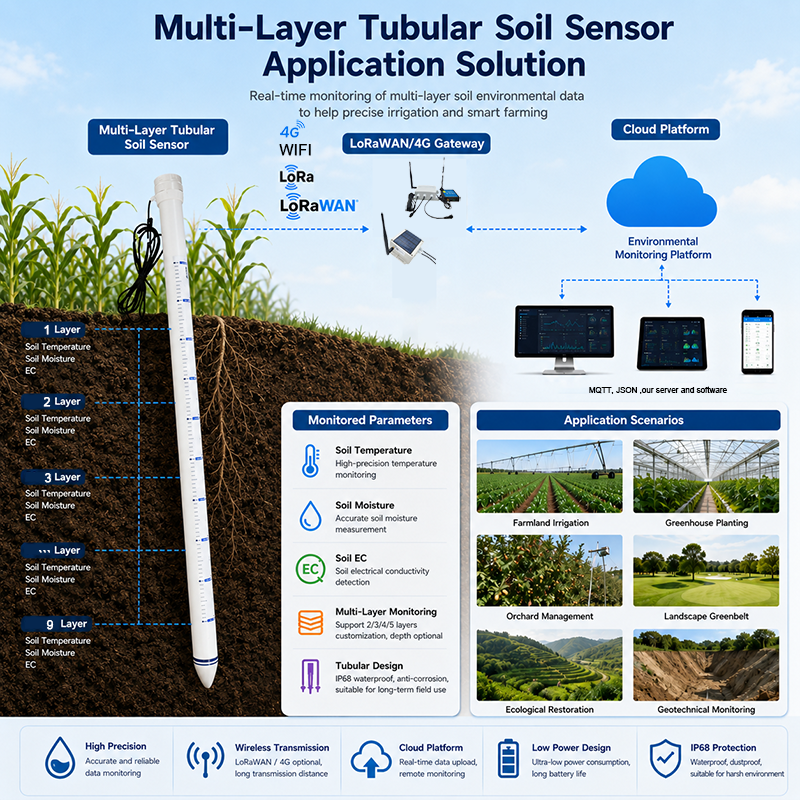

Why Multi-Depth Soil Monitoring is Essential for Precision Agriculture
Precision agriculture demands a three-dimensional understanding of the rhizosphere. Single-depth sensors create “blind spots” that mask water infiltration rates and thermal fluctuations within the deeper soil profile. By monitoring nine layers simultaneously at 10cm intervals, operators can characterize the full root-zone profile.
This level of granularity is critical for optimizing irrigation strategies in orchards and for deep-rooted field crops. Furthermore, this local logging system ensures data sovereignty and a significantly lower Total Cost of Ownership (TCO). By utilizing a “plug-and-play” profile characterization tool that requires no recurring SaaS fees or cloud dependencies, agricultural enterprises can maintain robust data collection in remote environments where connectivity is often unreliable.
Technical Specifications & System Components
The following table details the technical parameters for the 9-layer monitoring system. While this guide focuses on the 90cm model, the system architecture is scalable to accommodate various site requirements.
| Feature | Specification |
|---|---|
| Total Monitoring Depth | 90cm (Scalable architecture) |
| Number of Layers | 9 Layers (10cm per layer) |
| Parameters Measured | Soil Moisture & Temperature (per layer) |
| Data Storage | U-disk (USB) in Excel format; Daily file organization |
| User Interface | Integrated LCD for real-time viewing |
| Power Requirements | 12V DC (Red: Positive, Black: Negative) |
| Communication | RS485 (Standard Modbus-RTU) |
| Connectivity | Industrial-grade waterproof connectors |
Advanced Data Management: Real-Time Monitoring & Excel Integration
The system is engineered for professional field deployment, prioritizing ease of retrieval and software-free analysis:
The data logger’s integrated screen displays instantaneous moisture and temperature readings for all nine layers, facilitating immediate on-site assessments.
Data is automatically organized and saved to a U-disk in an Excel tab format. This allows for seamless drag-and-drop analysis on any PC without the need for specialized data-conversion software.
This standalone system eliminates the need for complex networking. It records data continuously, generating organized files “per day” for clear historical tracking.
By maintaining all records on a physical U-disk, users ensure localized data sovereignty, making it an ideal solution for secure or offline research facilities.
Professional Installation & Connectivity Guide
Follow these technical steps to ensure precise sensor placement and system integrity:
Every kit includes a “spare” RS485-to-USB connector. This critical component is provided for direct PC-side testing and diagnostic verification during initial site setup, allowing technicians to confirm sensor accuracy before final burial.
Conclusion: Why Honde Technology?
The 9-layer soil moisture and temperature sensor from Honde Technology represents a complete, mission-ready solution for professional soil profiling. By integrating high-resolution vertical sensing with localized data logging and a zero-subscription model, we remove the technical and financial barriers typically associated with multi-depth monitoring. The inclusion of waterproof connectors, diagnostic cables, and direct Excel export functionality ensures a reliable, long-term ROI for any agricultural or environmental project.
Technical Checklist
