1. Executive Summary: The Ultimate Agricultural Weather Solution
The Honde Technology compact weather station is an all-in-one environmental monitoring solution engineered for precision agriculture. This high-integration system captures 11 critical parameters—including ET0, solar radiation, and ultrasonic wind data—providing real-time insights via built-in WIFI connectivity. By combining a wireless module, data logger, and professional-grade sensors into a unified “whole system” package, it enables farmers to optimize irrigation, pest management, and crop health through precise, actionable data.
2. Identifying the 11 Agriculture Parameters
To achieve true precision in modern farming, a weather station must provide a holistic view of the microclimate. Our compact station captures 11 distinct parameters, covering nearly every requirement for professional agricultural monitoring:
Essential for monitoring photosynthesis potential and greenhouse light management.
Measures total incoming solar energy to calculate energy balance.
Precise measurement of rainfall for irrigation scheduling.
A critical calculated value for determining exactly how much water crops are losing to the atmosphere.
Records the daily duration of direct sunlight.
Maintenance-free, high-accuracy wind measurement without moving parts.
Critical for monitoring spray drift and local weather patterns.
High-precision ambient temperature monitoring.
Vital for disease pressure forecasting and pest management.
Used for localized weather trend analysis and altitude compensation.
Crucial for frost prediction and understanding moisture saturation.
3. Technical Specifications and Hardware Components

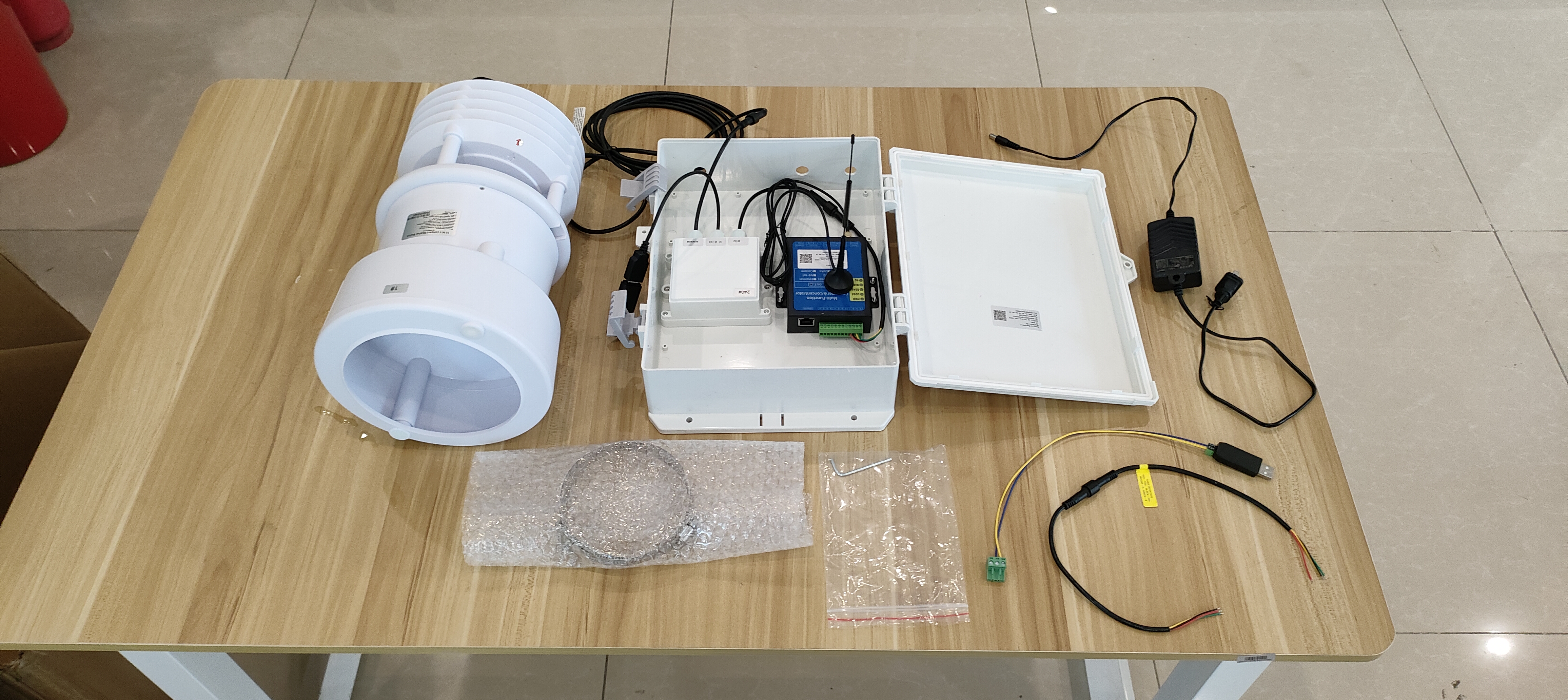

The following table provides a structured breakdown of the Honde Weather Station hardware, emphasizing its role as an integrated “whole system” solution.
| Component | Technical Detail |
|---|---|
| Power Supply | 12V DC via provided Power Adapter or direct Solar Panel integration |
| Connectivity | WIFI Wireless Module with external high-gain Antenna |
| Data Storage | Integrated Data Logger with USB Disk support (Excel export format) |
| Software Interface | Web-based cloud dashboard; account and password credentials provided per unit |
| Configuration Interface | Spare RS485-to-USB cable provided for local sensor register configuration/calibration |
| Mechanical Installation | Insert-style mounting designed for standard poles |
4. Step-by-Step Wireless Integration & Server Software Setup
Our engineering team has streamlined the deployment process to ensure that this whole system is operational within minutes of arrival.
Connect the external WIFI antenna to the wireless module. Plug in the 12V DC power source using either the included adapter or a direct solar panel lead.
Secure the weather station to the data logger using the provided industrial waterproof connector.
Access the cloud software server via your web browser. Log in using the unique account and password credentials provided with your physical unit.
Once logged in, the dashboard will display live, real-time data for all 11 agricultural parameters.
5. Engineering Experience & Real-World Application
As representatives of Honde Technology Co., Ltd., we have refined this system to meet the rigorous demands of field reliability and data interoperability. In our manufacturing and testing phases, we focused on the versatility of the power system, ensuring the 12V DC architecture can easily transition between greenhouse AC power and remote solar-plus-battery setups.
One specific detail we include for professional reliability is the “spare” RS485-to-USB cable. While the WIFI module handles wireless transmission, we provide this cable to allow engineers to perform local configuration or manual calibration of the sensor registers. In some technical contexts, this is often referred to as “configuring the cage” of the wireless module—ensuring the hardware registers are perfectly aligned with your specific software requirements.
Furthermore, we recognize that data integrity is paramount. By storing information locally in Excel format on a USB disk, we ensure that researchers and farmers have full data interoperability. This allows for immediate ingestion into Farm Management Software (FMS), or custom Python/R scripts for deep historical analysis, even if the local WIFI signal is temporarily lost.
6. Why Honde Technology?
Honde Technology Co., Ltd. is a specialized manufacturer of professional-grade compact weather stations and sensing solutions. We provide a “whole system” approach, meaning the sensors, data logger, and wireless communication modules are designed to work together seamlessly out of the box.
7. Conclusion and Commercial Call-to-Action
The Honde 11-parameter compact weather station represents a significant advancement in agricultural technology, bridging the gap between complex meteorological data and practical on-farm application. By centralizing 11 vital sensors into one WIFI-enabled, insert-style mounting system, we offer the most efficient path to data-driven agriculture in 2024.
For detailed specifications, custom project quotes, or technical support, contact our engineering team at info@hondetech.com or visit
