The Hidden Cost of “Submerged” Thinking
For decades, the standard for water level monitoring was the pressure-type sensor. It was cheap, but it had a fatal flaw: it lived in the water. During the extreme floods of 2024 and 2025 across Southeast Asia and Southern Europe, thousands of these sensors failed exactly when they were needed most—buried under silt, crushed by debris, or shorted out by corrosive runoff.

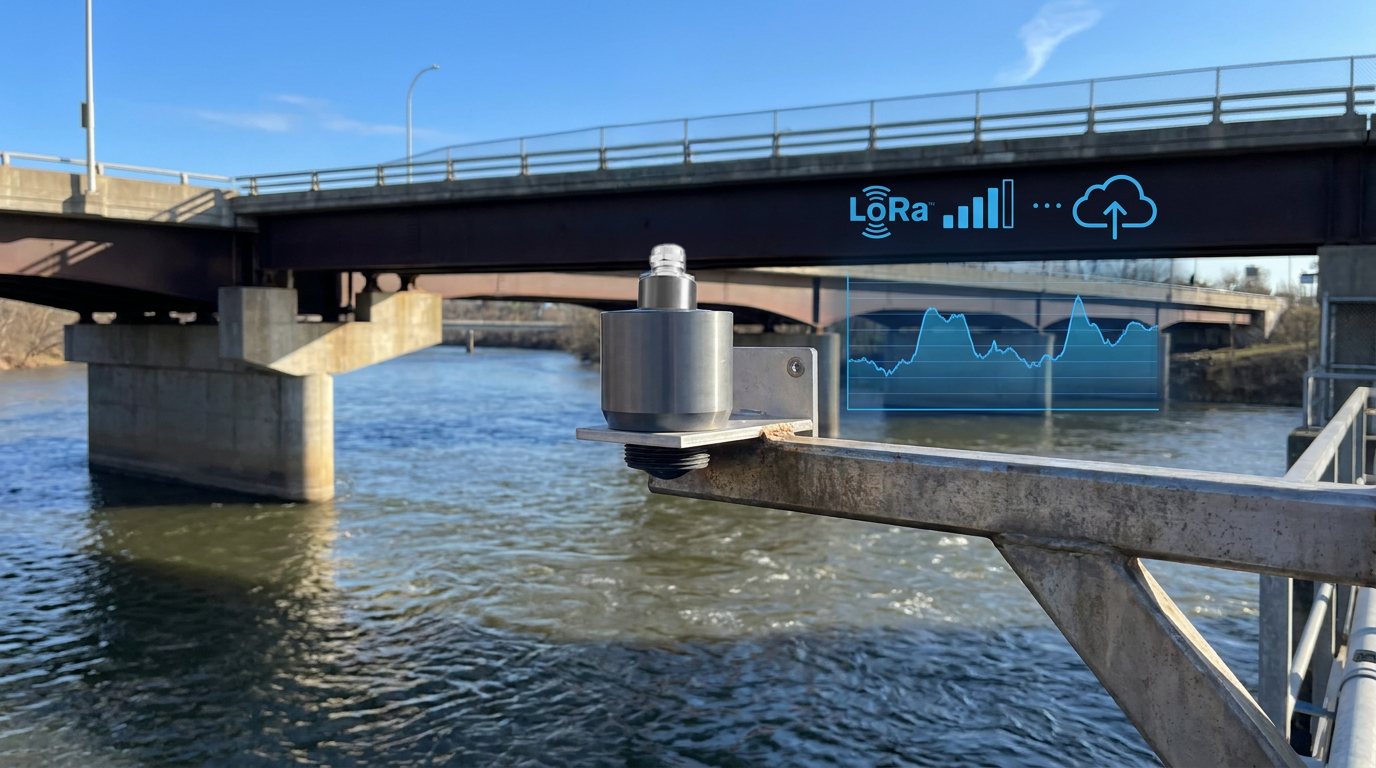

This is the primary driver behind the massive global shift toward Wireless Non-Contact Radar Sensors. By measuring from the safety of a bridge or high bank, the Honde RD-RWLP-24G series operates in the “Air Gap,” immune to the destructive forces below.
Product Deep-Dive: 24GHz Precision in a Wireless World
| Feature | Specification / Technical Benefit |
|---|---|
| Technology | 24GHz K-band FMCW Radar |
| Measurement Range | 0.1m to 30m (Standard) |
| Precision | ±3mm to ±10mm (Unaffected by temperature/humidity) |
| Wireless Protocols | GPRS / 4G / LoRa / LoRaWAN (Built-in options) |
| Protection Grade | IP68 (Fully submersible housing) |
| Beam Angle | 12° x 12° (Balanced for open channels) |
| Power Supply | Ultra-low power (7-32VDC), ideal for solar/battery |
| Data Format | MQTT Json / Modbus-RTU |
While 80GHz is the king of narrow manholes, 24GHz remains the industrial workhorse for open rivers and irrigation canals. It offers a wider beam that provides a better average level over turbulent water surfaces, filtering out minor surface ripples to give a stable “True Stage” reading.
The Integrated Solution: Beyond the Sensor
At Honde Technology, we’ve learned that a sensor is just a data point; a Solution is a decision-making tool. We integrate this radar into a full-stack ecosystem:
Maintenance crews need data on the ground. We provide Handheld Meters for instant field verification and Data Loggers with integrated high-contrast screens. This allows engineers to view 30-day historical trends and current levels right at the bridge site without needing a laptop or cloud access.
Connectivity is the #1 failure point in remote monitoring. Our wireless modules support GPRS, 4G, WIFI, LoRa, and LoRaWAN. For mountainous regions where cellular signals disappear, LoRaWAN provides a 10km transmission range with zero monthly data fees.
Data is hosted on the Honde Cloud Server and Software. The real value, however, lies in our Alarm Relay System. When the radar detects a “Flash Flood” rate of rise (e.g., >20cm in 5 minutes), the system doesn’t just send an email—it can trigger a physical Alarm Relay on-site to activate sirens or strobe lights, giving downstream residents the critical minutes they need to evacuate.
Real-World Application: Rescuing an Irrigation Project in Brazil
A large-scale agricultural project in the Mato Grosso region struggled with “Silt Drift” in their pressure sensors, which were reporting incorrect levels due to heavy sediment after every rain. This led to over-irrigation and wasted water.
By switching to the Honde Wireless Radar Sensor:
- Maintenance visits dropped by 95% because the sensor never touched the silty water.
- Data Reliability: The 24GHz radar ignored the surface foam and floating hyacinths, providing a clean level reading.
- Connectivity: Using the LoRaWAN module, the farm manager was able to see the water levels of 20 different canal gates on one central dashboard via the Honde Cloud App.
Global Demand Trends: Why Order Now?
The global market for Radar Water Level Sensors is projected to grow at a CAGR of 6.5% through 2030. The drivers are clear: mandatory flood warning upgrades in the EU, the “Jal Jeevan Mission” in India, and urban resilience projects in Latin America.
Honde Technology is a Germany TUV & Alibaba verified manufacturer. We understand the high-stakes environment of hydrology.
Contact Us for a Project Assessment
For more sensor information and customized IoT solutions, please contact Honde Technology Co., LTD.
