1. Introduction: The “Featured Snippet” Summary
An integrated Wi-Fi weather station is essential for modern agriculture because it consolidates high-fidelity environmental monitoring into a maintenance-free, solid-state architecture. To meet industrial standards, a professional system must track at least 11 parameters—including ultrasonic wind speed, wind direction, and solar radiation—to provide the granular data necessary for precision irrigation and crop management.
These IoT-enabled units replace fragmented legacy arrays with a single, streamlined solution, facilitating real-time cloud access and automated data logging for optimized yields and reduced operational overhead.

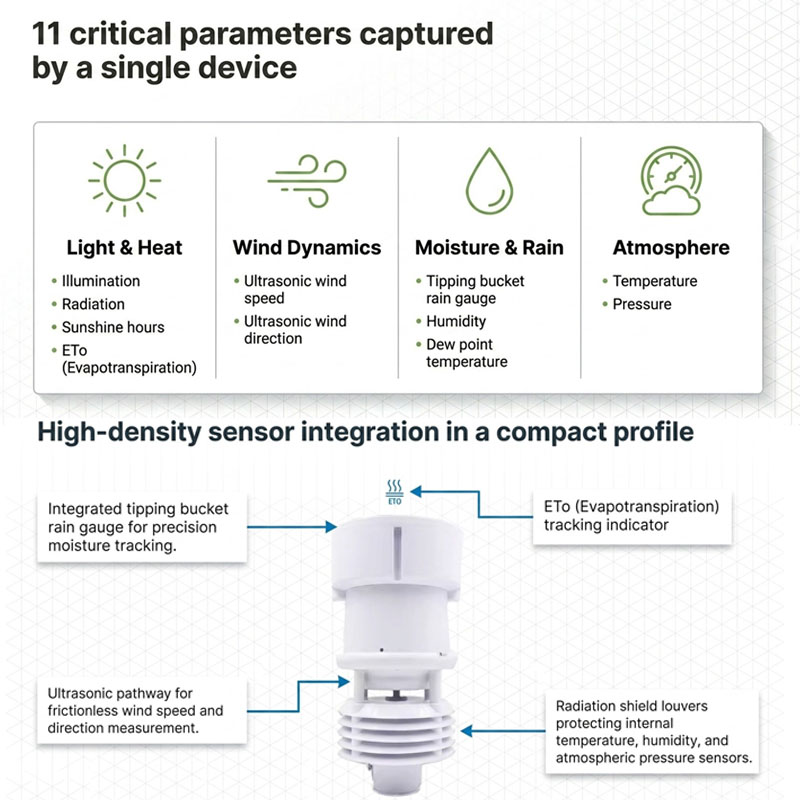

2. Defining the 11-Parameter Integrated Sensor Array
The Honde Technology compact weather station is engineered with an integrated sensor suite housed within a high-durability, white weatherproof enclosure. This design protects sensitive electronics while providing an “All-in-One” profile that simplifies field logistics.
The system captures the following 11 agriculture-specific parameters:
Ultrasonic sensors represent a significant advancement over traditional mechanical cups and vanes. By utilizing sound wave time-of-flight measurements, these sensors eliminate moving parts susceptible to mechanical wear, bearing failure, or inertia-related inaccuracies during high-wind events or debris interference. This solid-state architecture ensures long-term data integrity and drastically reduces field maintenance cycles.
3. The Power of Connectivity: Wi-Fi Modules & Server Software

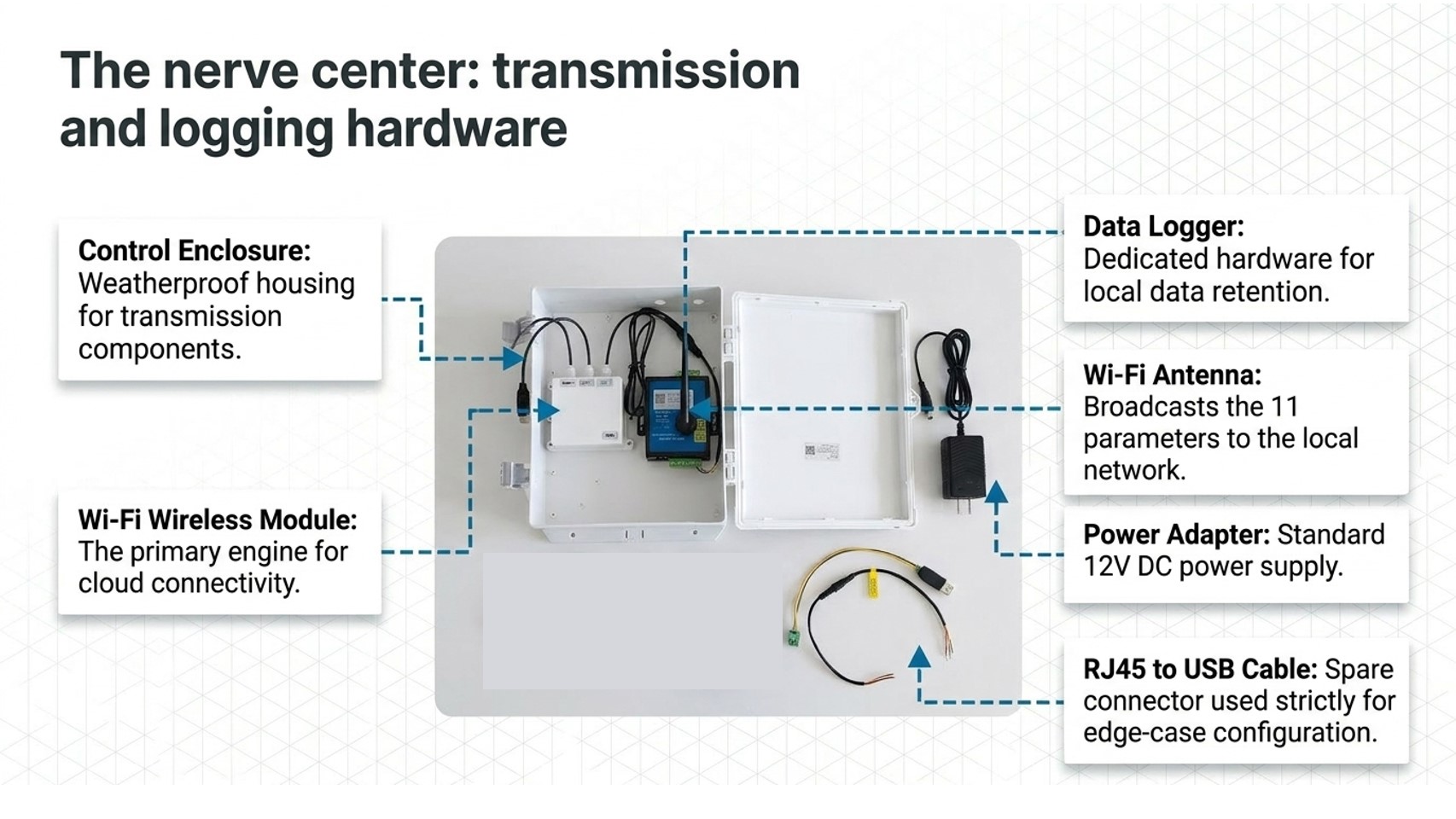

The hardware architecture is designed to minimize deployment friction through a pre-configured wireless transmission system. The core of the system is the industrial data logger, which connects to the sensor array via waterproof (WordPro-style) connectors to ensure Ingress Protection (IP) standards are met in harsh environments.
Data is transmitted via a dedicated Wi-Fi wireless module equipped with an external high-gain antenna. This setup allows the system to communicate directly with the server software. Operators access their data through a secure website portal using hardware-specific credentials (username/password) provided upon delivery. For configuration and local diagnostics, the system includes an RS485-to-USB connector, though the “Plug-and-Play” nature of the Wi-Fi module typically allows for immediate cloud synchronization upon power-up.
4. Technical Specifications & Hardware Comparison
The following comparison highlights why an integrated IoT approach is superior to traditional modular setups for industrial-scale farming.
| Feature | Honde Integrated Compact System | Traditional Modular Weather Stations |
|---|---|---|
| Parameter Count | 11 Integrated Parameters (including ET0) | Variable (requires separate sensor purchases) |
| Wind Sensing | Ultrasonic (Solid-state, No moving parts) | Mechanical Cups/Vanes (Prone to wear/freezing) |
| Data Export | Automated Cloud Sync + USB/Excel Backup | Often Manual or Proprietary Local-only |
| Power Source | 12V DC Adapter or Direct Solar Support | Often Battery-only or Complex Field Wiring |
| Data Integrity | Redundant “Offline-First” Storage | Susceptible to data loss during outages |
5. Reliability and Data Redundancy: The “Offline-First” Advantage
In remote agricultural environments where Wi-Fi connectivity may be intermittent, data redundancy is a non-negotiable requirement for B2B operations. The Honde data logger utilizes an “Offline-First” strategy; while it prioritizes real-time transmission to the cloud, it simultaneously stores all historical readings on an internal USB disk.
This ensures that even during a network timeout, no data is lost. Operators can manually retrieve the USB disk to download data directly into Excel for deep-dive analysis. The system is powered by a standard 12V DC power adapter, but the intelligent power management board supports a direct connection to a solar panel, enabling 100% off-grid versatility for large-scale acreage.
6. Installation and Practical Application in the Field
Deploying the Honde system is designed for speed, reducing the need for specialized technical teams.
7. Conclusion & B2B Call to Action
Honde Technology Co., Ltd. is a global leader in industrial IoT solutions for precision agriculture. By integrating 11-parameter sensing with the mechanical reliability of ultrasonic technology and the convenience of Wi-Fi connectivity, we provide the robust data foundations required for the next generation of smart farming.
