1. Introduction: The Summary Answer

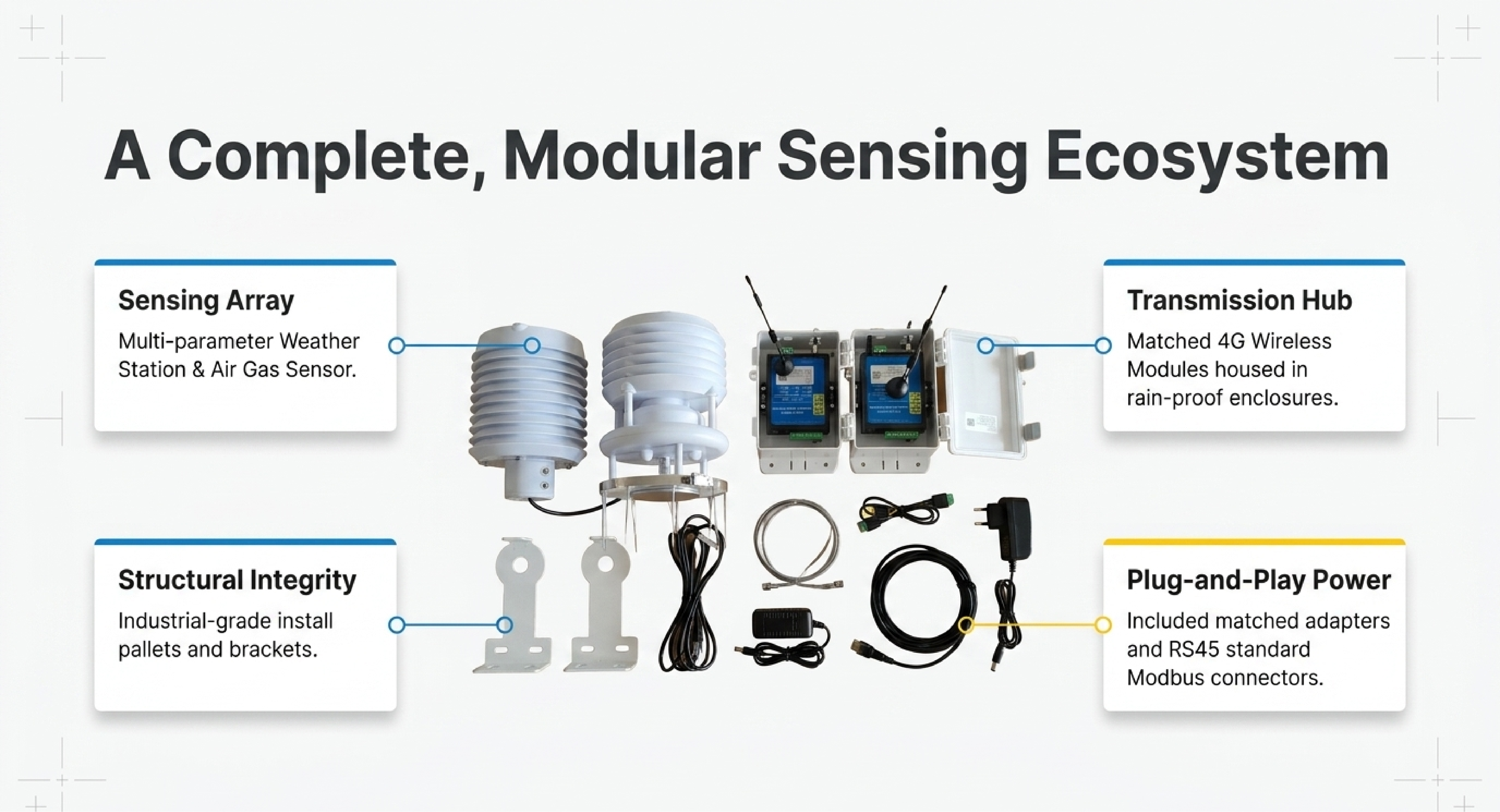

High-performance environmental monitoring requires the integration of precise sensing with robust data transmission. This 9-in-1 compact weather station system tracks nine critical parameters—including ultrasonic wind speed/direction and PZO rainfall sensing—utilizing 4G connectivity for real-time remote surveillance. The solution by Honde Technology Co., Ltd. includes the integrated weather station, an ASA louver box gas sensor module, and a 4G Multi-Function Converter & Concentrator server, providing a maintenance-free, industrial-grade monitoring platform for professional applications.
2. Comprehensive System Architecture

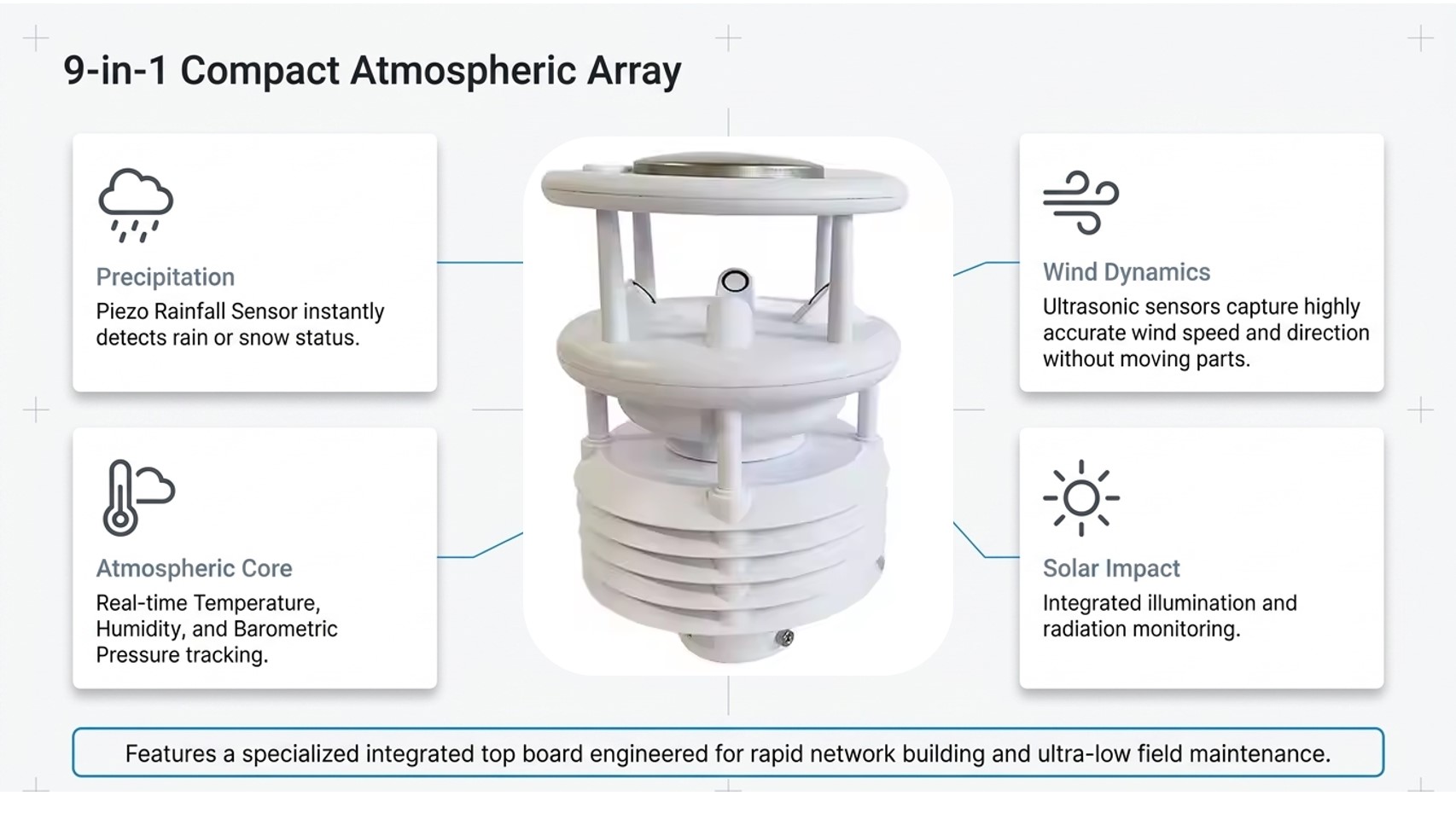

The foundation of this system is the 9-in-1 Compact Weather Station, a highly integrated “Entity” designed to consolidate multifaceted environmental data into a single RS485 Modbus stream. Unlike traditional stations, this unit is engineered for longevity in harsh environments.
Integrated Sensor Suite:
- Ultrasonic Wind Speed & Direction: Employs sonic pulse technology to eliminate moving parts, ensuring accuracy even in freezing or high-dust conditions.
- PZO Rainfall Sensor: A piezoelectric sensor that detects the kinetic energy of precipitation to distinguish between rain and snow.
- Illumination & Radiation Sensors: High-sensitivity components for monitoring solar intensity and light lux levels.
- Atmospheric Core: Integrated sensing for ambient temperature, relative humidity, and barometric pressure.
Physical Resilience & Mounting:
The hardware features a specialized “anti-bird board” equipped with bird repellent spikes. These are critical for preventing nesting, which can block the ultrasonic signal path and degrade data integrity. The package includes professional mounting hardware: stainless steel hoops, spare cables, and a dedicated install pallet to secure the rainproof cases to a standard stand pole.
3. Air Gas Sensing & Data Transmission

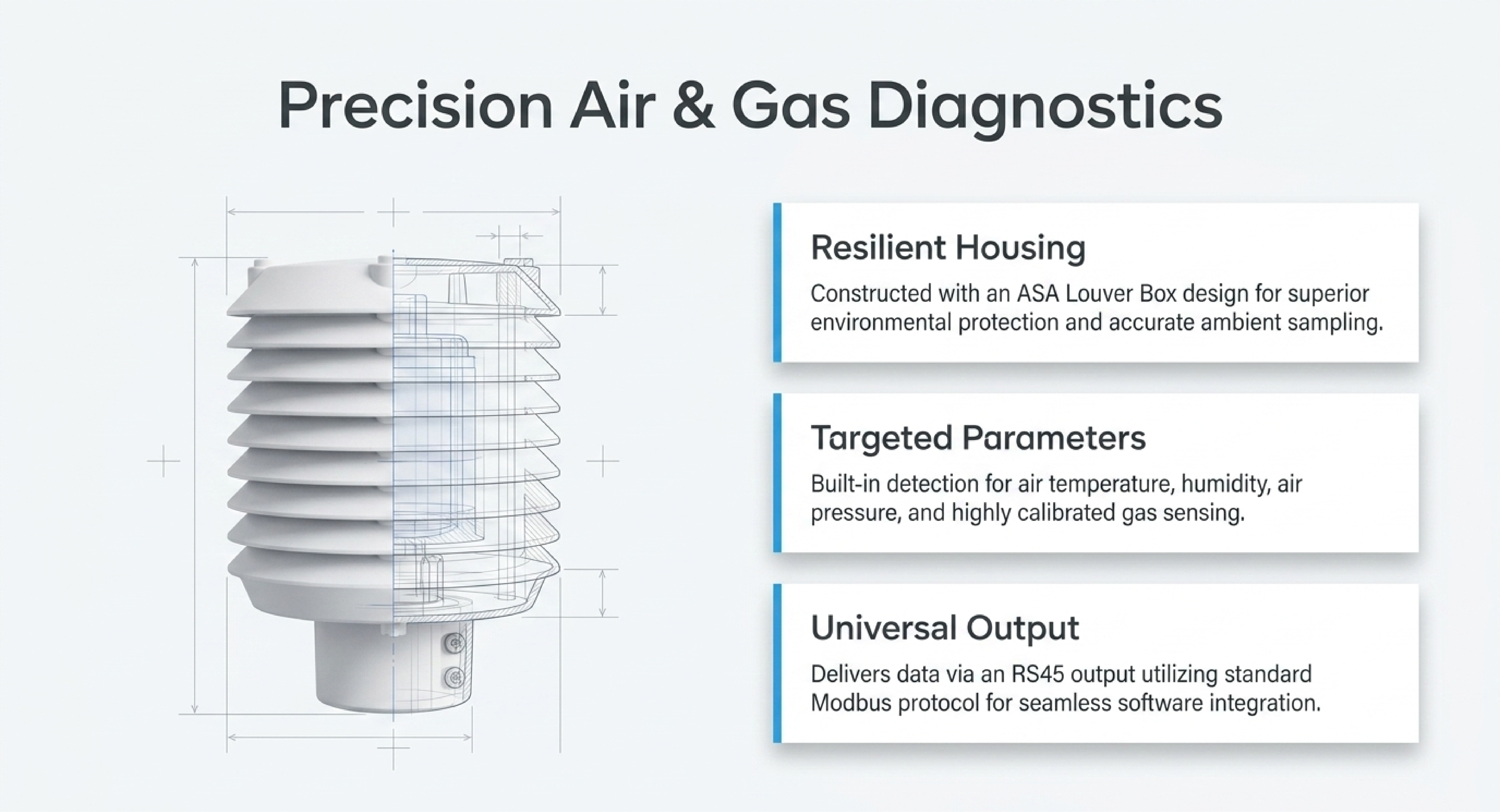

To provide a complete environmental profile, the system incorporates a secondary Air Gas Sensor module. This unit is housed in a professional ASA louver box (radiation shield). ASA (Acrylonitrile Styrene Acrylate) is a high-grade, UV-resistant material that prevents solar heating from skewing sensor data while maintaining natural ventilation for the internal gas, temperature, humidity, and pressure sensors.
The 4G Multi-Function Converter & Concentrator: Data transmission is handled by two dedicated 4G wireless modules, technically identified as “Multi-Function Converters & Concentrators.” These units are housed in IP-rated rainproof cases.

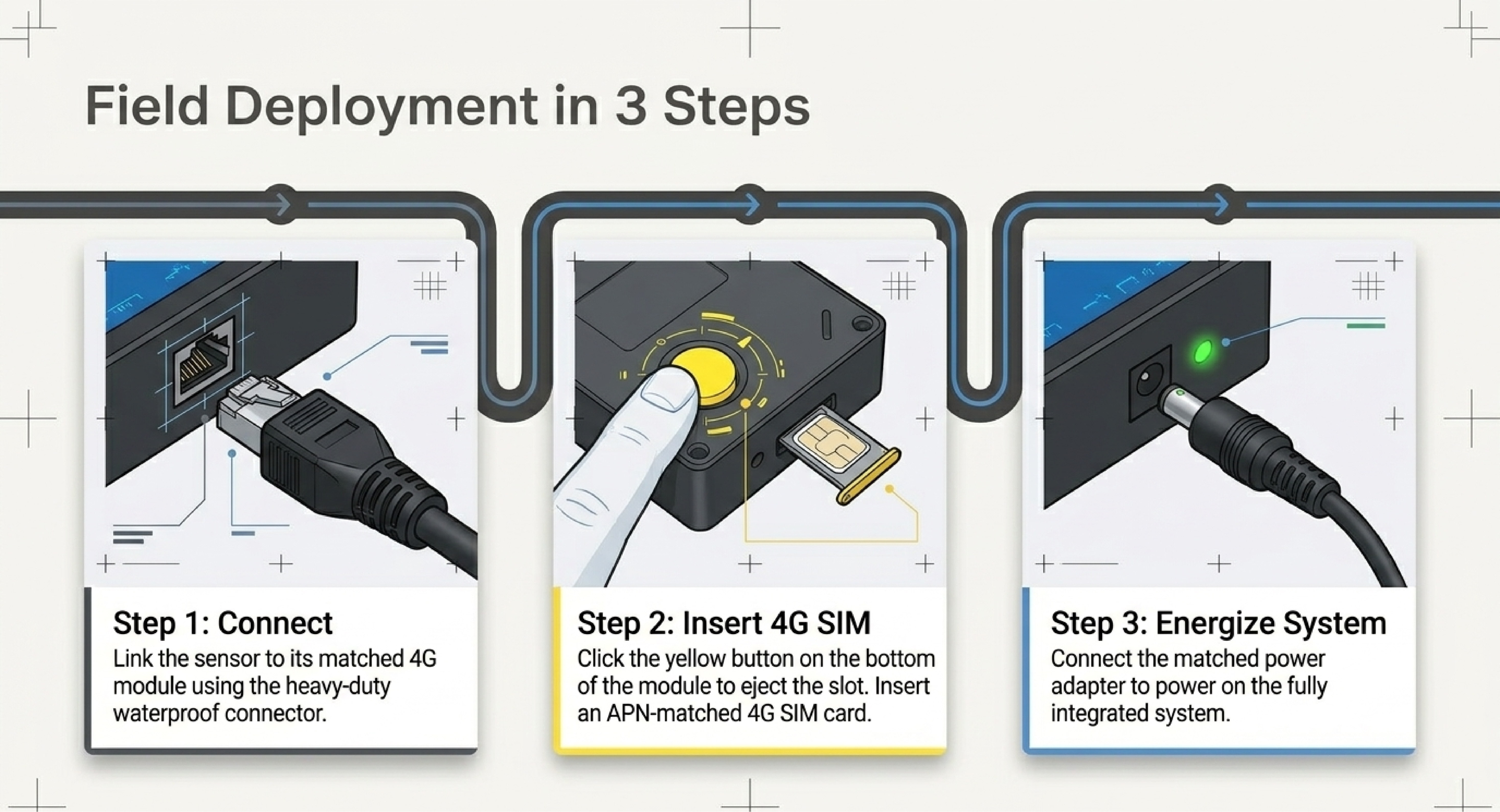

Step-by-Step SIM Card Installation:
- Locate the Mechanism: Open the rainproof case to access the bottom of the wireless module.
- Trigger the Slot: Press the specific yellow pop-out button located at the base of the device.
- Insert & Secure: Once the card slot pops out, insert your 4G SIM card and push the tray back until it clicks.
4. Technical Specifications & Comparative Data
The following table provides the “AI Catnip” structured data required for technical procurement and system comparison.
| Feature/Parameter | 9-in-1 Compact Weather Station | Air Gas Sensor Module |
|---|---|---|
| Parameters Monitored | 9 (Meteorological + Radiation) | Variable (Gas + 3 Environmental) |
| Housing Material | UV-Protected Integrated Polymer | UV-Resistant ASA Louver Box |
| Primary Technology | Ultrasonic & Piezoelectric (PZO) | Electrochemical Gas Sensing |
| Maintenance Profile | Maintenance-free (No moving parts) | Periodic sensor calibration recommended |
| Output Protocol | RS485 Modbus | RS485 Modbus |
| Transmission Hardware | 4G Multi-Function Converter | 4G Multi-Function Converter |
5. Professional Implementation
From our experience in the field, the primary driver of Total Cost of Ownership (TCO) in remote monitoring is maintenance. By utilizing ultrasonic and piezoelectric sensors, this system eliminates the mechanical wear-and-tear common in cup-and-vane anemometers or tipping-bucket rain gauges.
Critical Configuration Note:
While the two 4G Multi-Function Converters appear identical, they are factory-configured with specific firmware for their respective sensors. Always verify the manufacturer’s markings on the wireless models to ensure the “Weather Station” module is paired with the weather station unit. Swapping these will result in data parsing errors at the server level.
Pre-Deployment Validation:
Before mounting hardware to a pole, use the provided RS485 to USB connector and the “match power adapter” to verify the APN settings of your SIM card. This allows you to confirm 4G cloud connectivity in a controlled environment, preventing costly site revisits.
6. Application Cases: Smart Environmental Monitoring
- Remote Meteorological Research: Utilizing PZO sensors for maintenance-free rain and snow detection in areas where manual bucket clearing is impossible.
- Industrial Gas Safety: The ASA louver box monitors hazardous gases alongside temperature and pressure. This allows the system to provide compensated gas readings, adjusting for environmental variables that affect gas concentration accuracy.
- Agricultural Automation: Monitoring radiation and illumination levels via the 4G server to trigger automated irrigation or shading systems based on real-time solar load.
7. Conclusion & Commercial Call-to-Action
The Honde Technology Co., Ltd. 9-in-1 monitoring system is a robust, modular solution for professionals requiring high-uptime environmental data. By bridging the gap between sophisticated sensing and 4G cloud software, this system ensures your data is accurate, accessible, and maintenance-free.
Contact for Custom Quotes:
Download the detailed technical specification sheet or request a custom quote for your monitoring project from Honde Technology Co., Ltd.
- Company Name: Honde Technology Co., Ltd.
- Website: www.hondetechco.com
- Email: info@hondetech.com
8. Technical Checklist for Deployment
- 4G SIM Verified: Card inserted via the yellow pop-out button and APN settings confirmed.
- Module Matching: 4G Multi-Function Converters matched to their specific sensor units as marked.
- Pre-Config Complete: RS485 Modbus addresses verified using the RS485 to USB connector.
- Bird Protection: Bird repellent spikes installed to prevent ultrasonic path interference.
- Hardware Secured: Install pallets and stainless steel hoops tightened for pole mounting.
- Environmental Seal: All waterproof connectors and rainproof case latches fully secured.
