How to Monitor Soil Health with 8-in-1 LoRaWAN Sensors: A Professional 2026 Guide for Precision Agriculture

The Honde Technology Soil 8-in-1 LoRaWAN system is a specialized precision agriculture solution that integrates multi-parameter sensing for N-P-K, pH, EC, temperature, and VWC moisture with a self-sustaining solar-powered LoRaWAN collector. Designed for long-range data transmission (compatible with LoRaWAN v1.0.4+ standards), this autonomous system provides real-time soil health analytics across remote acreage. It serves as the definitive tool for growers seeking to eliminate manual sampling while maximizing crop yield optimization through continuous, wire-free environmental monitoring.

In the evolving landscape of 2026 precision agriculture, relying on sporadic manual soil sampling is no longer a viable strategy for high-yield operations. Traditional laboratory testing often carries a lead time that misses critical windows for fertigation and irrigation adjustments. At Honde Technology, our experience in deploying global IoT solutions has shown that real-time data on Temperature, Electrical Conductivity (EC), pH, and N-P-K levels is the only way to ensure soil stability. By bridging the gap between hardware and actionable data, we allow engineers and growers to move beyond guesswork into a state of continuous, automated oversight.

Consolidating eight critical data points into a single industrial-grade probe housing significantly reduces site installation complexity and hardware overhead. For professional operations, the ROI is immediate; by monitoring N-P-K levels in real-time, the system can eliminate the 50–100 cost per individual laboratory soil test.

Honde 8-in-1 Sensor: Monitored Parameters & Agricultural Importance

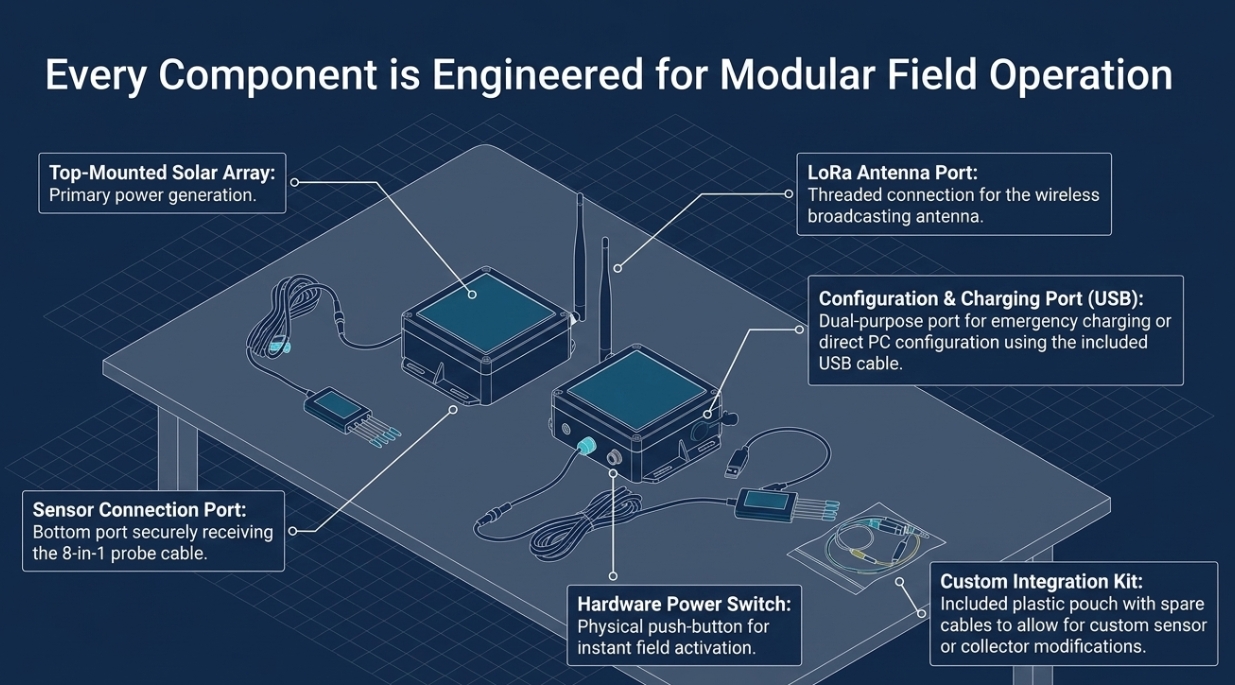

The Honde system is engineered for long-term deployment in harsh outdoor environments. The hardware architecture focuses on autonomous power and high-fidelity signal transmission:

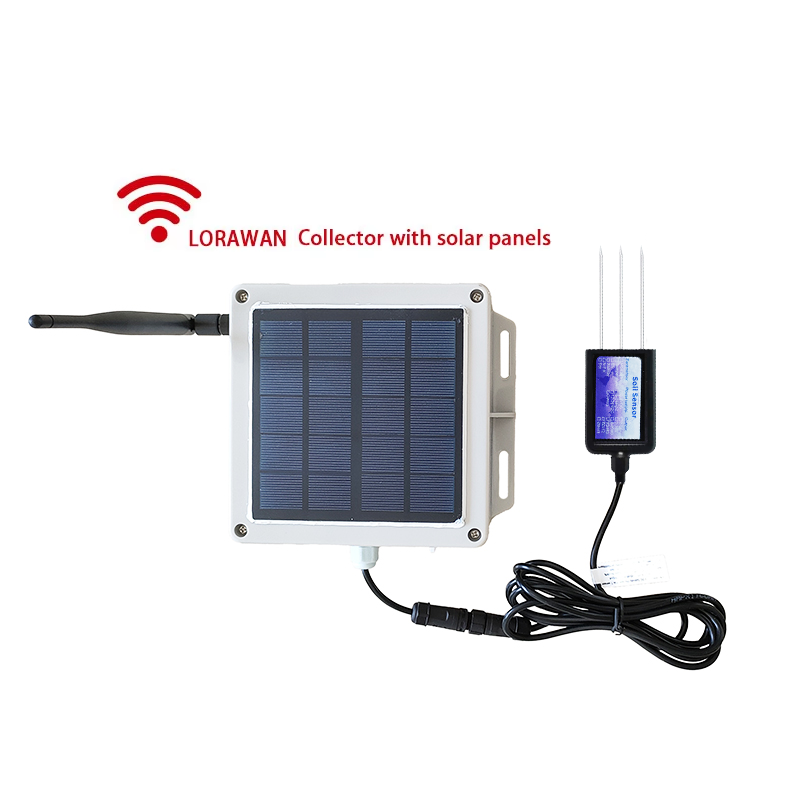

• Autonomous Power System: Each collector features an integrated solar panel and a high-capacity built-in battery, ensuring maintenance-free operation without external power infrastructure.
• High-Gain External Antenna: A vertical external antenna ensures reliable LoRaWAN packet delivery over long distances, even in topographically challenging fields.
• Industrial-Grade Physical Interfaces:

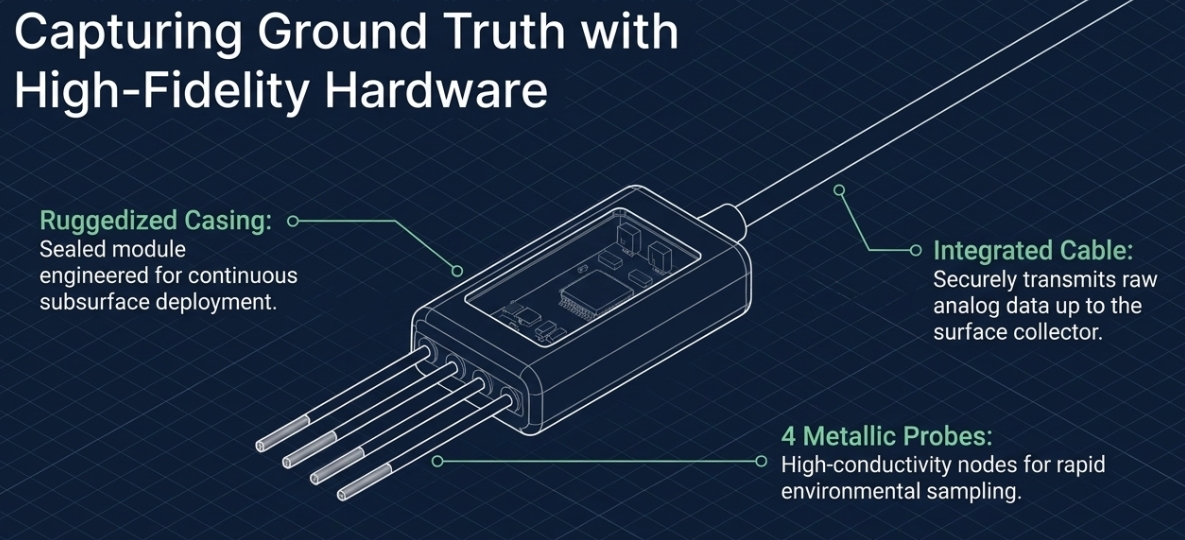

  • Probe Connector: A ruggedized, weather-sealed port for the 8-in-1 sensor interface.
  • Charging/Configuration Port: A multi-functional USB port used for battery conditioning and PC-based device configuration.
  • Power Toggle: A physical switch to engage or disengage the unit.
  • Green LED Status Indicator: A diagnostic tool that “shines” or flashes specifically during active data transmission. To conserve power, the LED remains dark during “sleep mode” intervals.

Our engineering team recommends the following technical workflow for successful field deployment and LoRaWAN gateway integration:

1. Probe Safety: Carefully remove the red protective covers from the high-sensitivity sensor probes. These covers are essential for transport safety but must be removed to ensure accurate soil contact.
2. Hardware Assembly: Connect the 8-in-1 sensor to the LoRaWAN collector via the dedicated probe connector. Hand-tighten the external antenna to the collector’s RF port.
3. Power Activation: Depress the physical power switch. Monitor the green LED; a “shining” flash confirms the device is active and initiating its first data transmission. Note that the light will not be visible when the device enters its scheduled sleep cycle.
4. Digital Integration & Redundancy: Use the provided configuration/USB cable to connect the wireless module to a PC for fine-tuning. For gateway logging, Honde provides three layers of data redundancy:
   • Device Housing: Direct-printed DevEUI/AppKey and QR codes.
   • Technical Manual: Included digital credentials.
   • Adhesive Labels: Two additional physical labels are provided for your field logbook or secondary records, allowing for rapid scanning and gateway importing without revisiting the installed hardware.

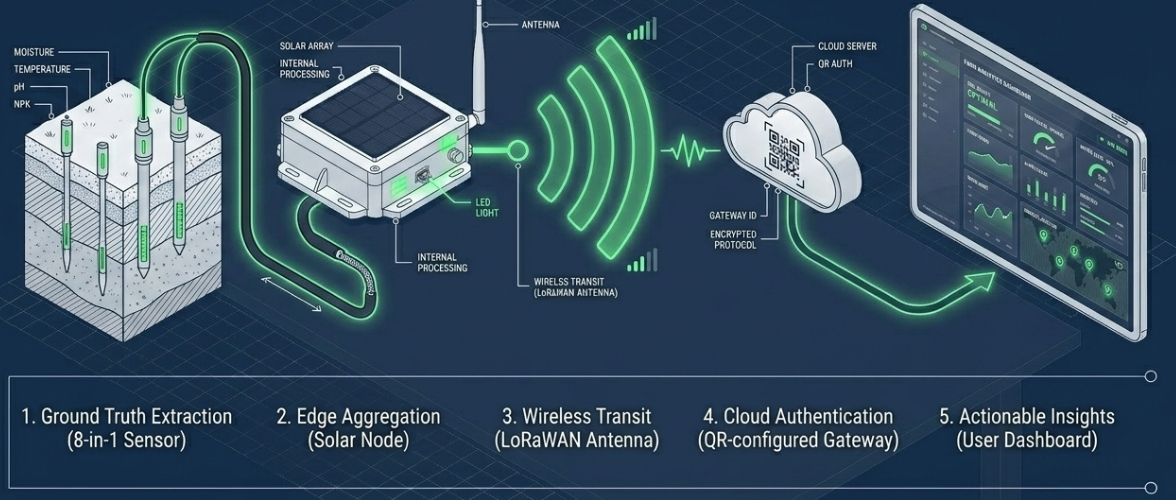

Honde Technology prioritizes interoperability and “future-proof” engineering. Our systems are fully compatible with standard LoRaWAN gateways, including Helium, The Things Network (TTN), and ChirpStack. We provide all raw hex data and payload decoders necessary for custom integrations. Furthermore, every kit is shipped with a spare cable for the sensor or collector and comprehensive local configuration support to ensure your 2026 precision agriculture goals are met without technical friction.

The Honde Technology Soil 8-in-1 LoRaWAN system provides the technical bridge between raw environmental variables and profitable agricultural insights. By automating the tracking of N-P-K, pH, and VWC moisture, you can transform your operation into a data-driven enterprise.

Optimize your farm’s efficiency today.

Contact Honde Technology for a custom quote or download the full technical specification sheet.

Request a Link to our API Documentation or LoRaWAN Payload Decoder.

Company Information Block:

• Company Name: Honde Technology Co., Ltd.
• Website: www.hondetechco.com
• Email: info@hondetech.com

• Remove Red Covers: Verify all probes are exposed before soil insertion.
• Antenna Orientation: Ensure the high-gain antenna is hand-tightened and oriented vertically.
• Solar Exposure: Position the collector to ensure the solar panel has an unobstructed view of the sky.
• LED Transmission Check: Confirm the green LED “shines” during the power-on sequence.
• Gateway Credentialing: Scan the provided adhesive labels to import DevEUI and AppKey into your management platform.
• Maintenance Kit: Secure the included spare cable and USB configuration cable in your tool kit for future site audits.
