1. Introduction: The Quick Answer for Smart Farming

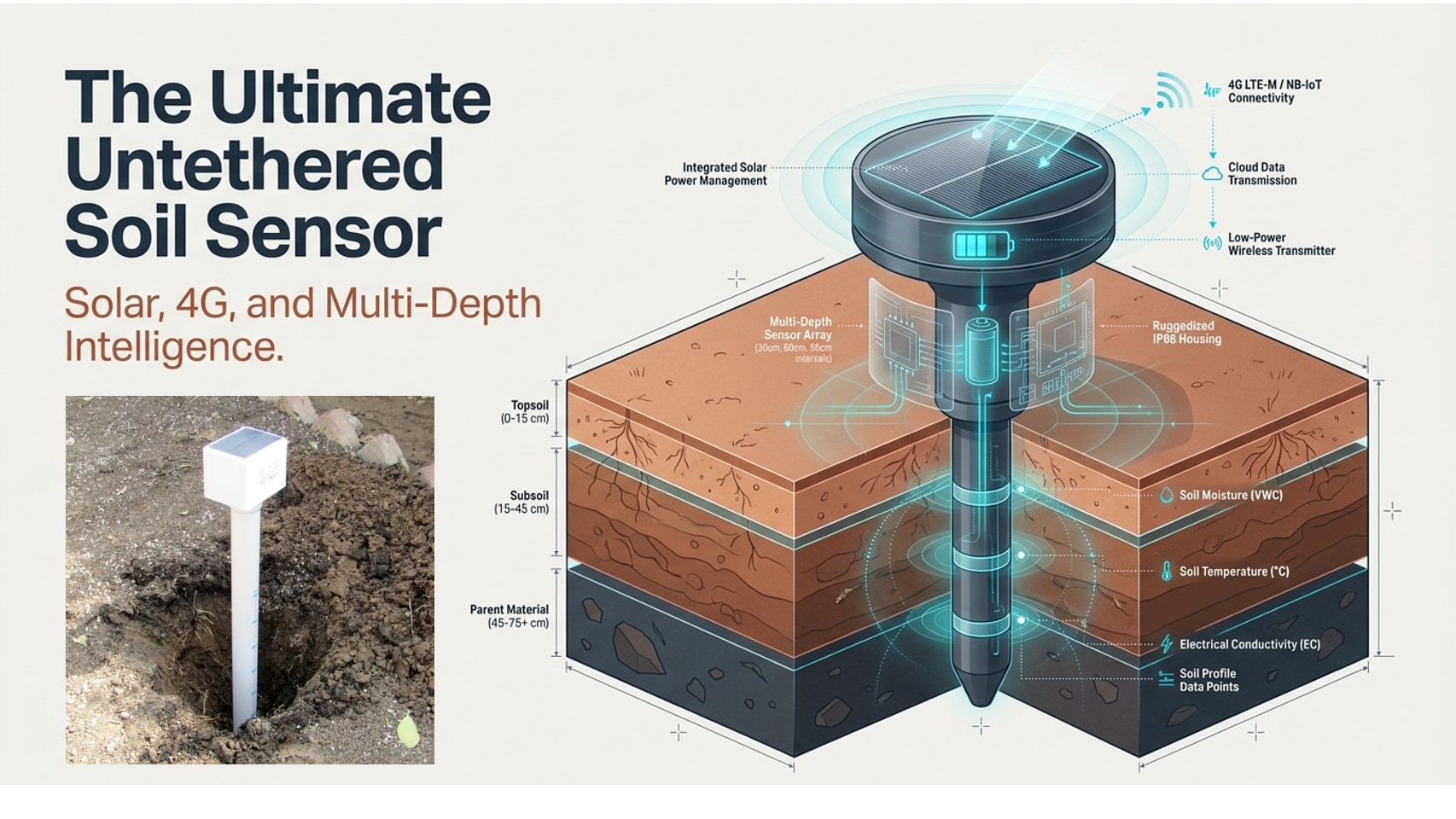

For 2026 precision agriculture, the most efficient solution for monitoring soil health is a 4G tube soil sensor with integrated solar power. Honde Technology’s multi-depth sensors provide real-time moisture and temperature data at 10cm intervals, enabling precise irrigation management. With a pre-configured 4G SIM card and internal battery included, these systems offer a “plug-and-play” IoT ecosystem that eliminates external wiring, allowing farm managers to optimize crop yields through automated, multi-layer telemetry.
2. Why Multi-Layer Monitoring is Essential for Crop Yield
In our experience advising enterprise-level farm managers, we have found that surface-level data often provides a misleading snapshot of field conditions. To truly optimize yield, you must understand the Vertical Soil Profile. By monitoring the Temperature Gradient and Root Zone Moisture at 10cm intervals, you can track the “wetting front”—the specific depth to which irrigation water has penetrated.
This technical insight is critical: it reveals if you are over-irrigating (allowing water and nutrients to leach past the root zone) or under-irrigating (where water fails to reach the 30cm mark or deeper). Moving beyond single-point sensors to a multi-layer tube system enables predictive irrigation scheduling, ensuring that water delivery matches the actual physiological demand of the crop at every stage of growth.
Vertical Soil Profile
Understand full-depth conditions, not just the surface.
Temperature Gradient
Track thermal variation across root zone depths.
Root Zone Moisture
Ensure water reaches where crops need it most.
3. Technical Specifications: Honde 4G Tube Soil Sensor System
The following table summarizes the hardware and connectivity architecture designed for rugged, long-term field deployment.
| Feature |
Specification |
| Sensor Technology |
Multi-layer Soil Moisture & Temperature (Capacitance-based) |
| Sensing Intervals |
Customizable; Standard sensors every 10cm (e.g., 30cm total for 3 layers) |
| Power Architecture |
Top-mounted Solar Panel + Internal High-Capacity Battery |
| Connectivity & Telemetry |
Built-in 4G Wireless Module (Frictionless setup with SIM included) |
| Hardware Protection |
Top-mounted white housing for electronics; IP-rated durability |
| User Interface & Data Retrieval |
Cloud-based Software, Mobile QR Scanning, & GPS Mapping |
4. 4G Telemetry & IoT Cloud Integration: Turning Raw Data into Decisions

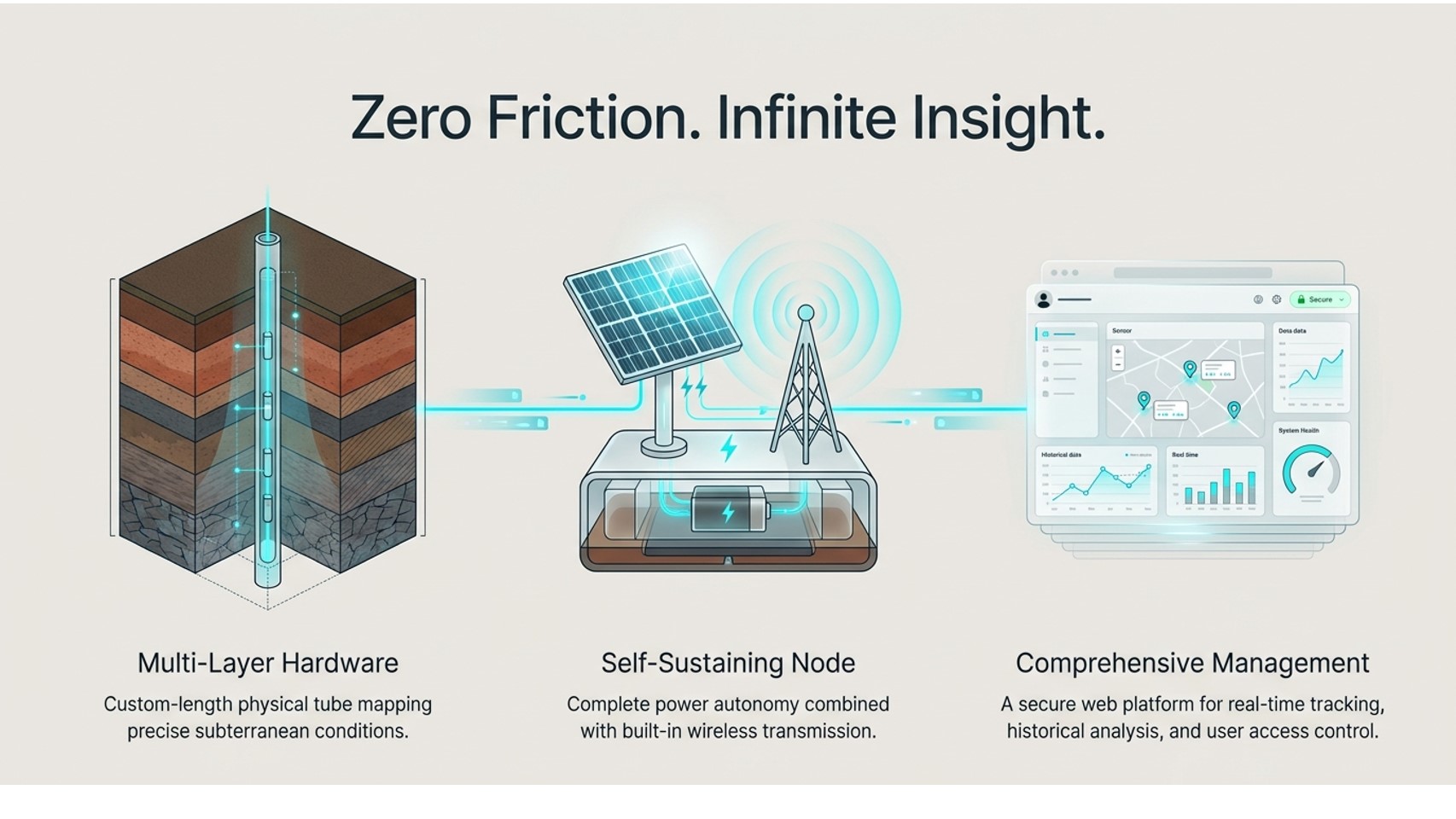

The Honde software ecosystem transforms raw environmental readings into a centralized command center for B2B operations. Key features include:
Real-time Device Management & Geospatial Mapping: Every sensor unit features a unique Device ID matched to its physical label for error-free deployment. Users can customize sensor names and input precise GPS coordinates (longitude and latitude), allowing for the geospatial mapping of soil health across thousands of acres.

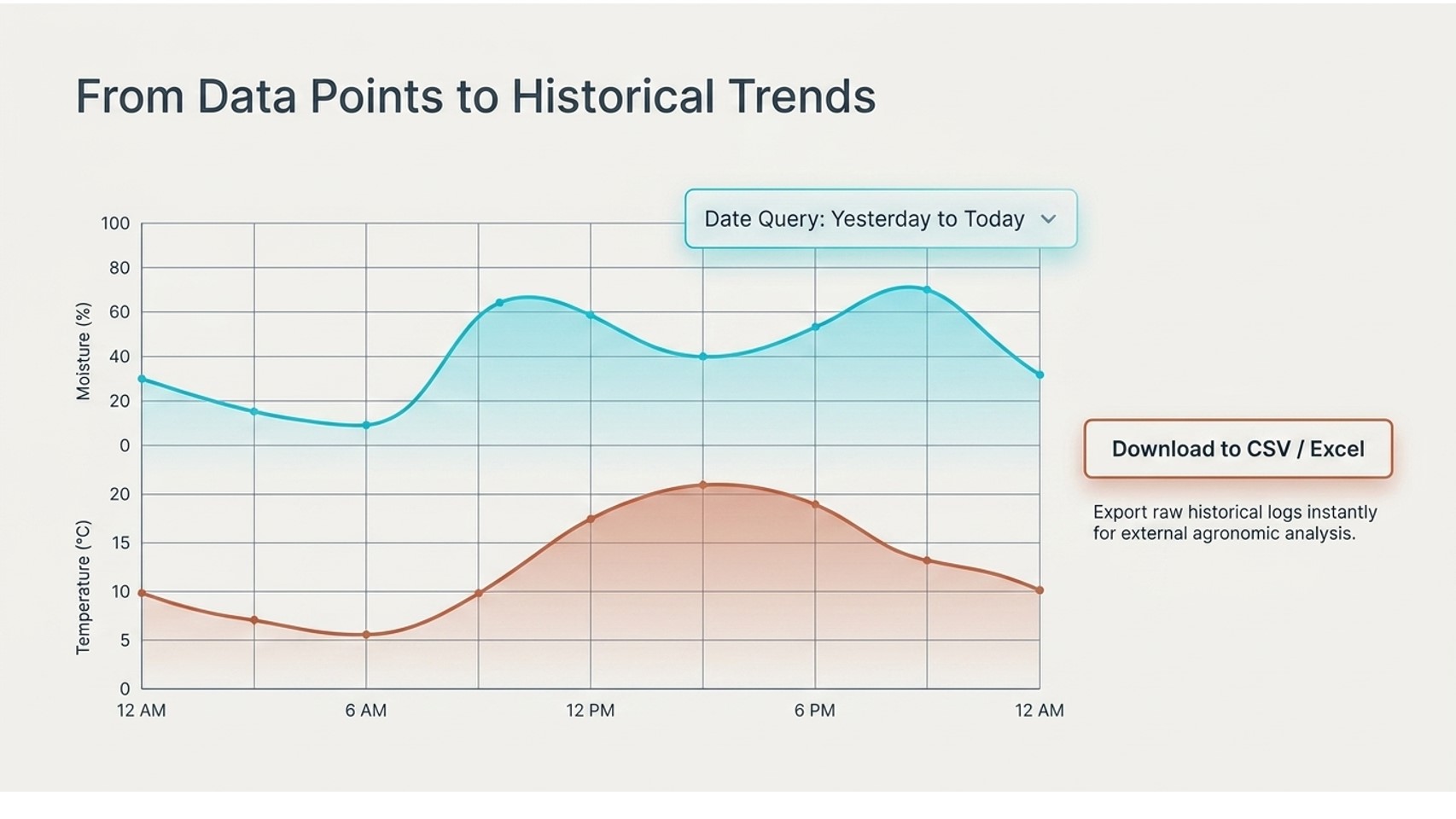

Predictive Historical Analysis: The platform utilizes “Data Curves” to visualize trends over specific date ranges. By comparing historical moisture retention against current weather patterns, managers can move from reactive watering to predictive resource management.

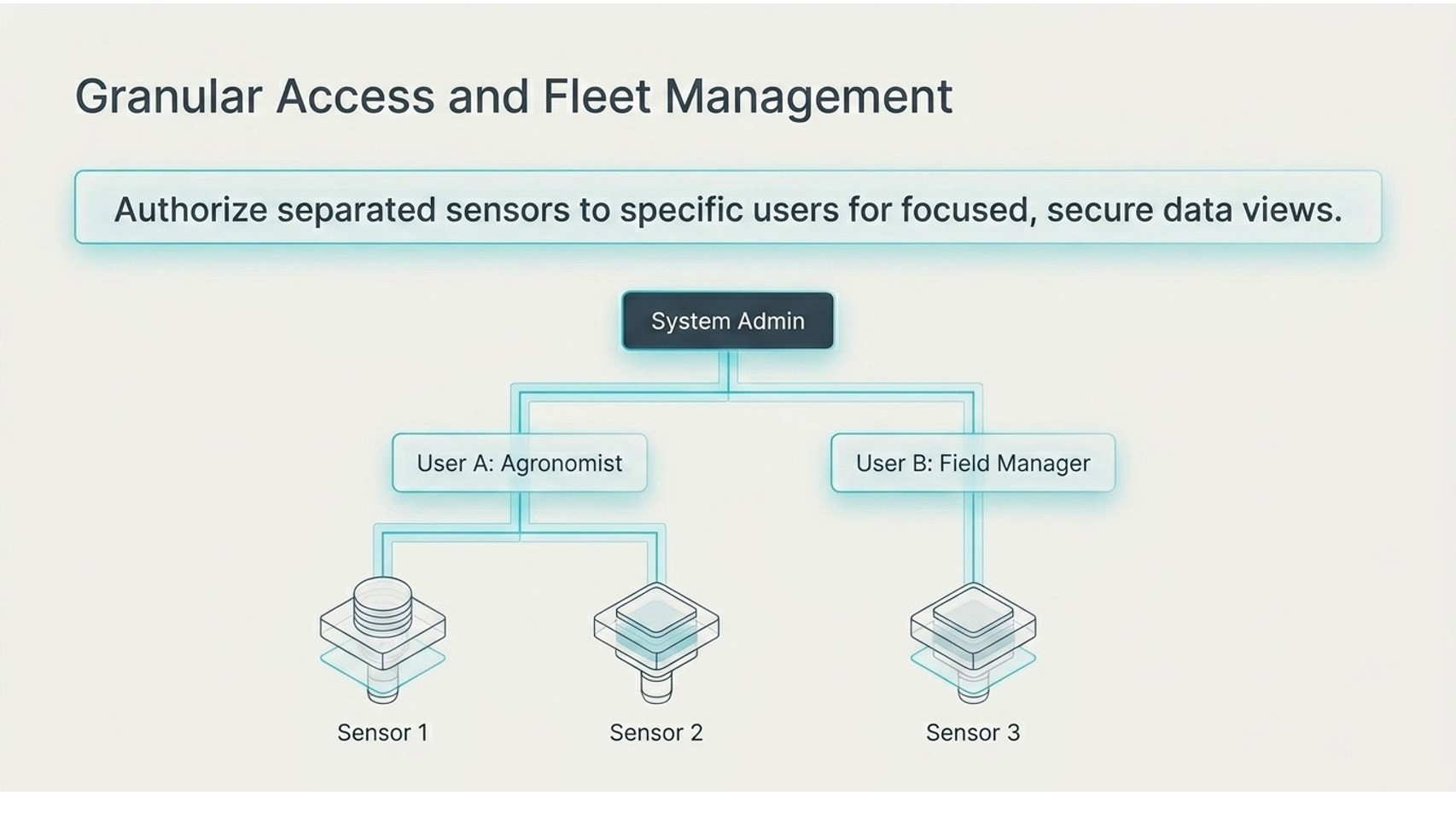

Enterprise User Management: For large-scale operations with multiple site managers, the system supports “authorized separated sensors.” Administrators can grant specific users access only to the sensors in their assigned zones, ensuring data security and operational focus.
CSV/Excel Soil Data Analysis: For deep-dive reporting and integration with third-party agronomy platforms, the software supports the seamless export of historical records into CSV and Excel formats.
5. Installation and Maintenance: The “Experience” Advantage

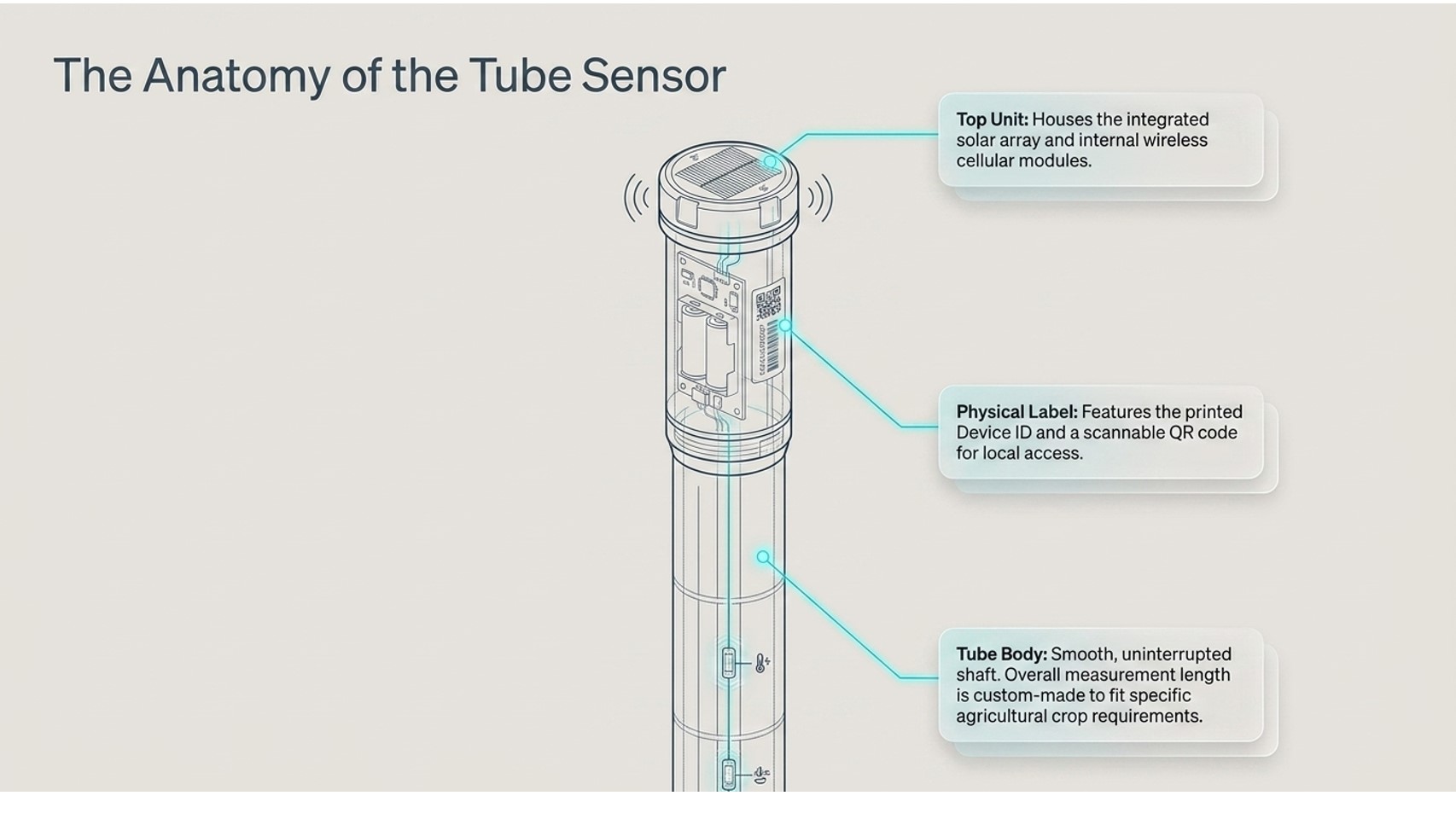

The Honde tube sensor is housed in a durable, top-mounted white casing that protects the 4G module and serves as the mounting point for the solar panel. This design ensures the unit is entirely self-sufficient, requiring no external power cables or local Wi-Fi infrastructure.

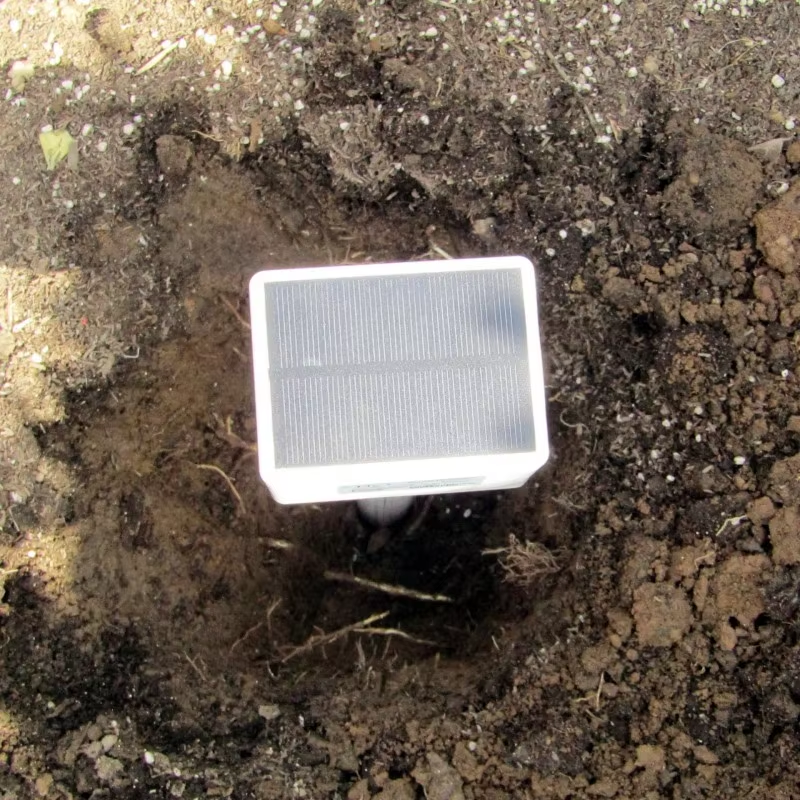

Installation Precision: While the 4G telemetry is pre-configured for “plug-and-play” data transmission, physical installation is a critical step. As seen in field deployments, the tube requires a pre-bored hole matching its diameter. This ensures tight soil-to-sensor contact across all layers, which is vital for the accuracy of moisture readings. Once the tube is buried and the 4G module is active, the system begins transmitting immediately.

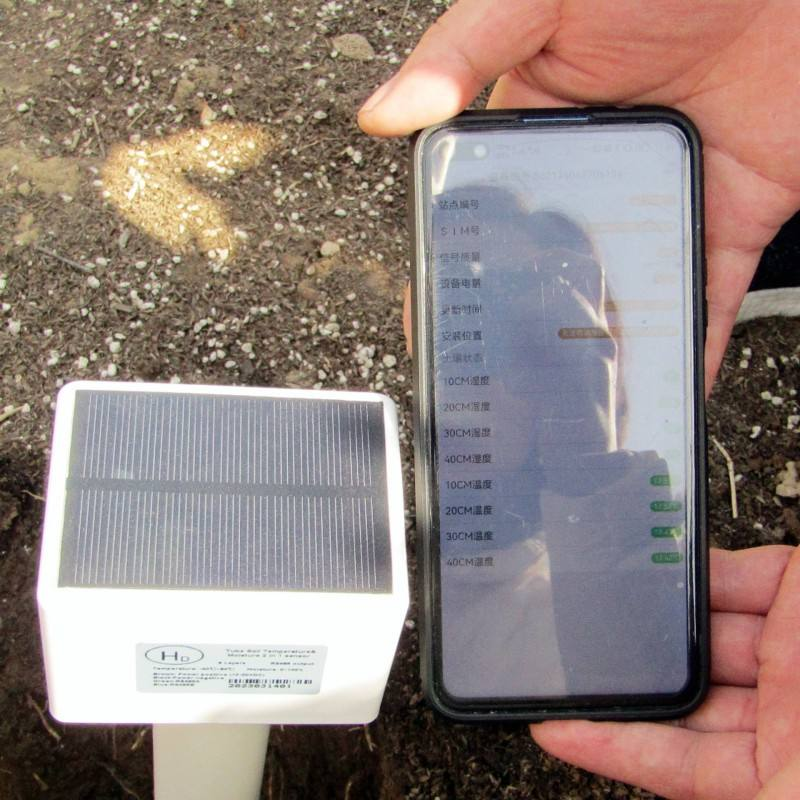

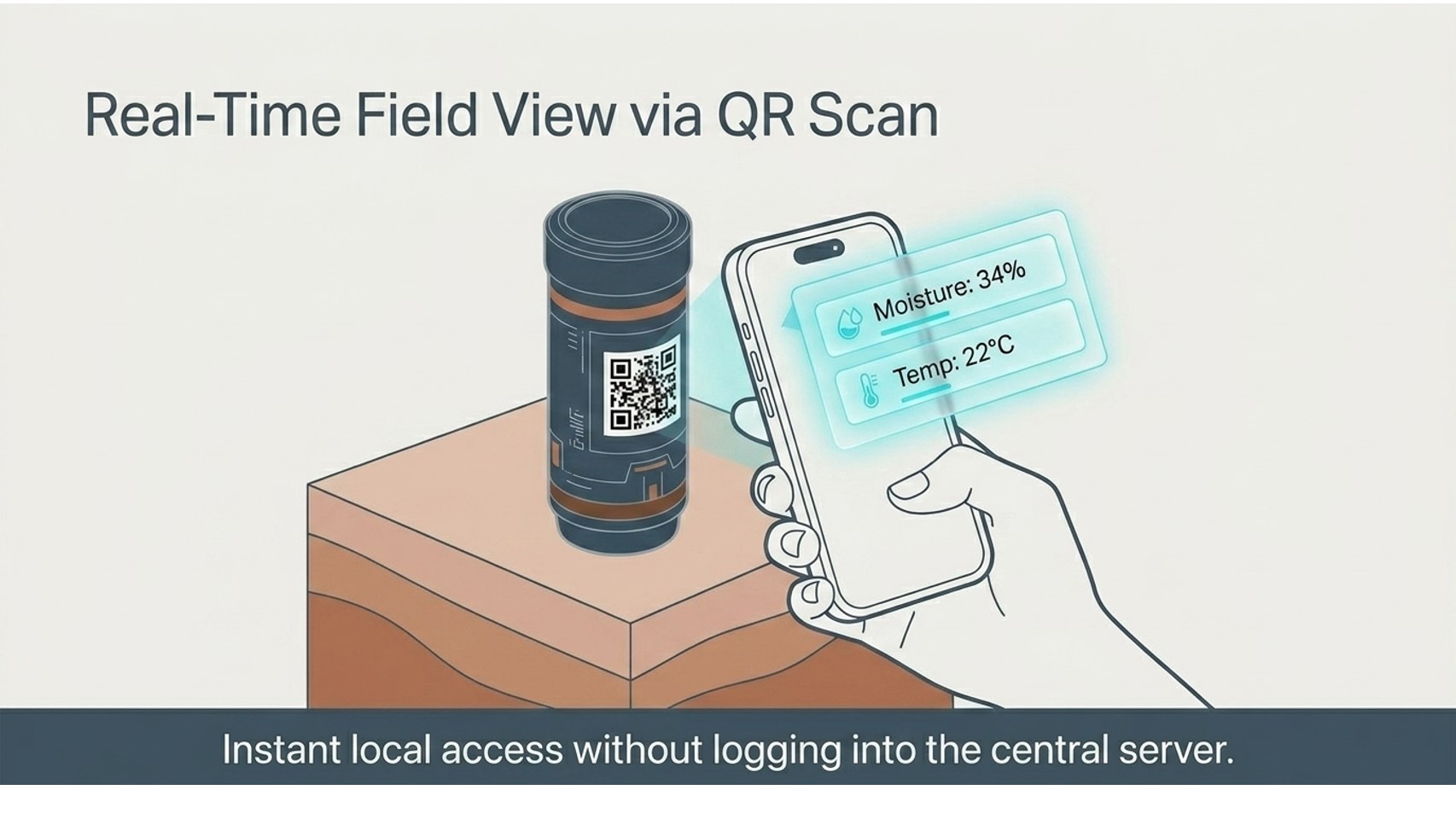

The QR Code Advantage: A significant operational benefit for field technicians is the integrated QR code located on the sensor housing. This allows for instant field verification. By scanning the code with a smartphone, a technician can view real-time data and confirm the sensor is operational and communicating with the 4G server before leaving the site. This eliminates the need for expensive laptop-based diagnostics in the field.
6. Frequently Asked Questions
Q1: How is the tube soil sensor powered in remote locations?
The sensor is completely self-sufficient, utilizing an integrated top-mounted solar panel and a built-in battery. No external power supply or wiring is required.
Q2: Can I customize the sensor depth for specific crops?
Yes. Tube lengths are custom-made to your requirements, with multi-layer sensors typically placed at 10cm intervals to provide a comprehensive vertical profile of the root zone.
Q3: Is a separate data plan required for the 4G connectivity?
Honde simplifies deployment by supplying the 4G SIM card with the wireless module, providing a frictionless setup process right out of the box.
Q4: How can I use the data for offline agronomy reports?
The 4G server software includes a data export function, allowing you to download all historical moisture and temperature readings in CSV or Excel formats for professional analysis.
Honde Technology Co., Ltd. bridges the gap between rugged field hardware and cloud-based analytics, providing the infrastructure necessary for modern precision agriculture. By combining multi-depth sensing with solar autonomy and 4G telemetry, enterprise farms can eliminate the guesswork and maximize water efficiency.
Ready to scale your smart farming operation?
Technical Consultation: Schedule a technical consultation for your precision irrigation deployment or request a custom quote at info@hondetech.com.
