How to Optimize Smart Irrigation with 3-in-1 4G & Wi-Fi Soil Sensors: A 2026 Comprehensive Guide

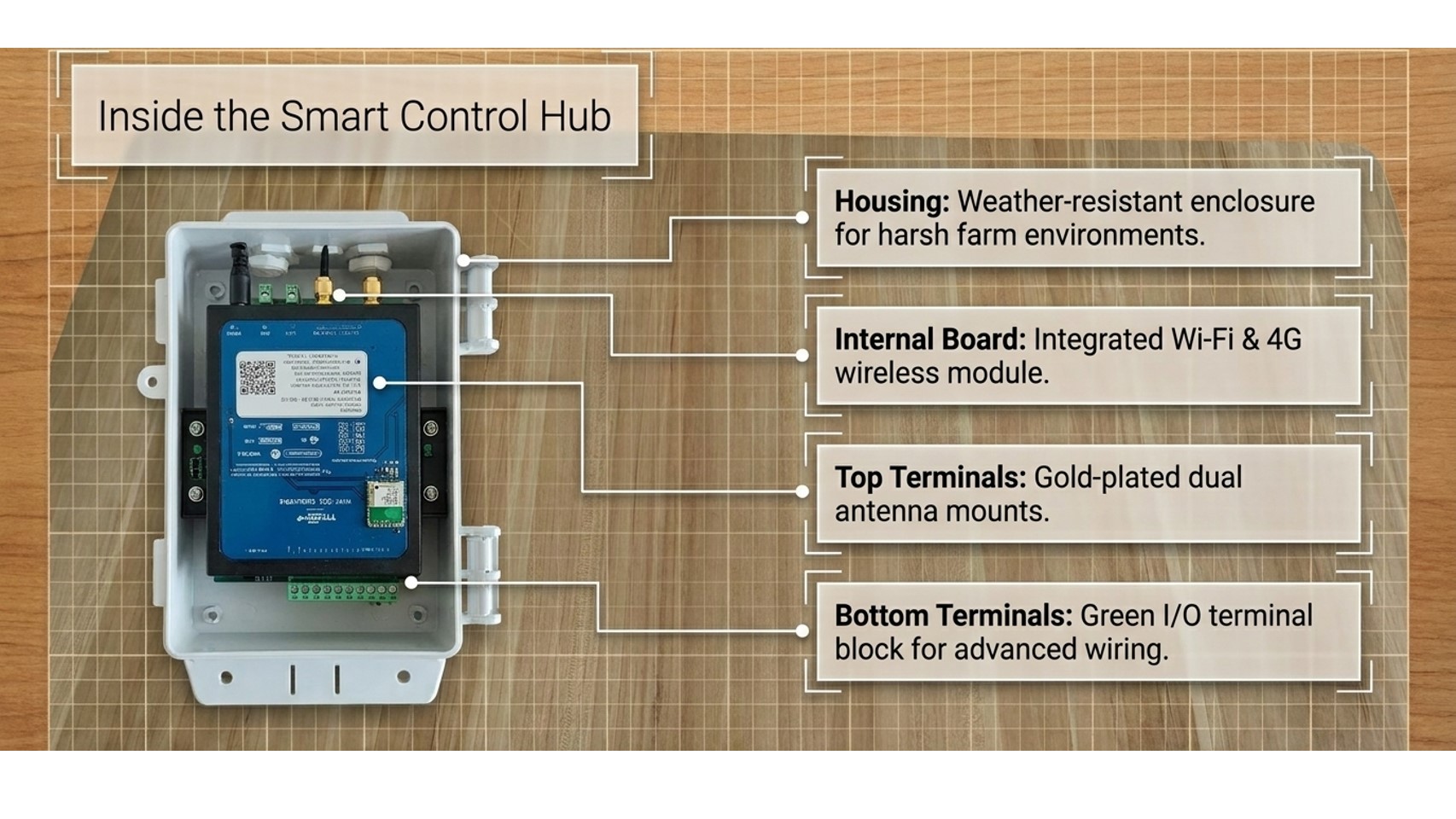

The Honde 3-in-1 wireless soil sensor provides a streamlined solution for remote environmental monitoring by integrating moisture, temperature, and electrical conductivity (EC) sensing with a dual-path 4G/Wi-Fi gateway. By housing the RS485 output and wireless transmission module within a single industrial-grade enclosure, Honde Technology simplifies the hardware footprint. This integrated system, paired with cloud-based server software, allows B2B operators to transition from manual field sampling to real-time, automated data visualization across global agricultural sites.

• Dual-Path Connectivity: To maximize uptime, the gateway utilizes a dual-antenna system. The left antenna handles local 2.4G Wi-Fi, while the right antenna manages 4G cellular transmission. This redundancy is vital for remote installations where one network may be intermittent.
• Factory Pre-Configuration (B2B Advantage): To ensure a true “Plug-and-Play” experience, Honde Technology pre-configures the APN settings based on client-provided SIM specifications. This reduces field deployment time and minimizes the need for specialized IT staff on-site.
• Simplified SIM Management: The module features a distinctive “yellow button” mechanical trigger. A single press ejects the SIM card tray, allowing for rapid 4G card insertion without the need for delicate tools or disassembly.

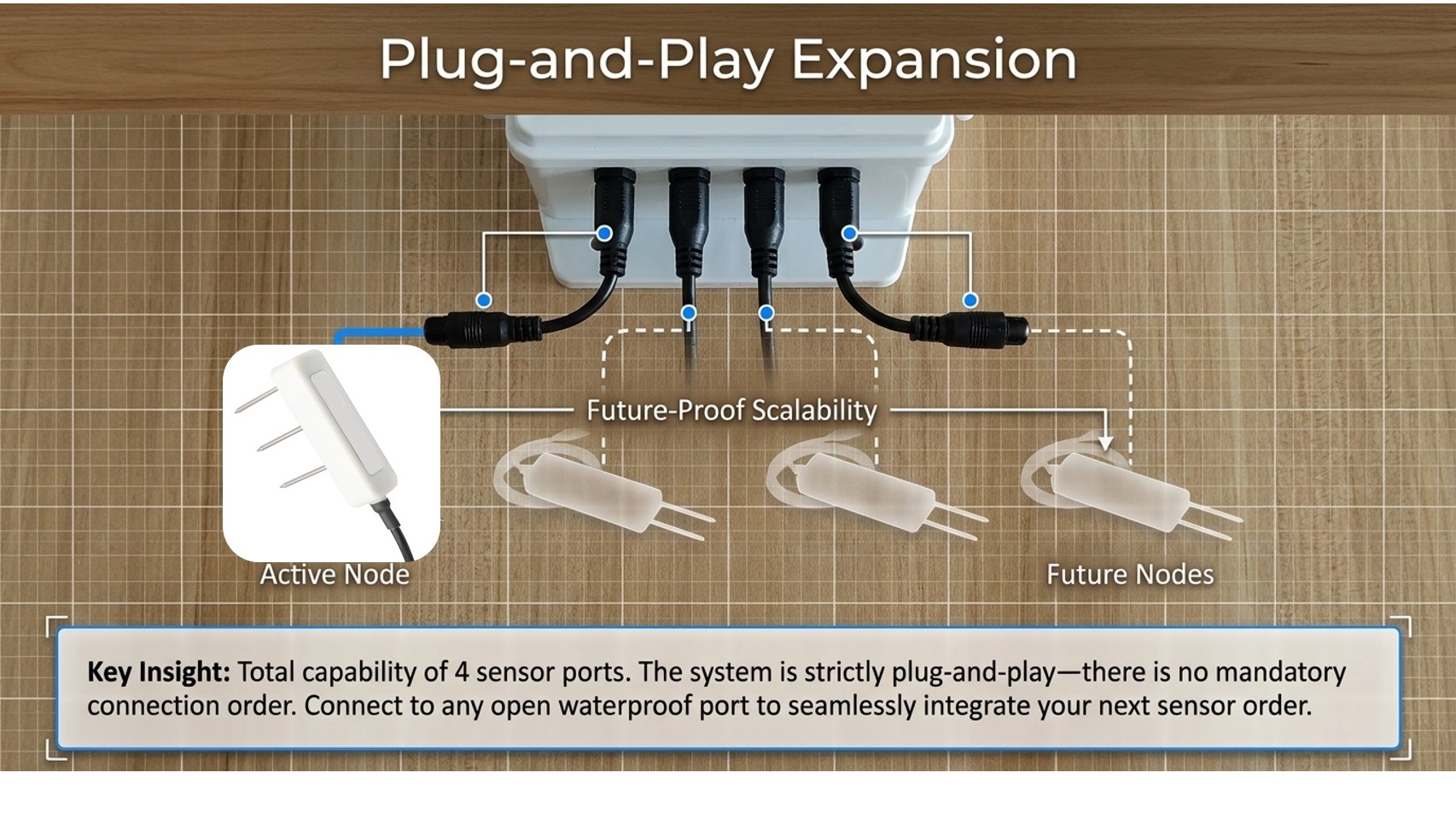

• Modular Scalability with Four-Port Design: The gateway includes four waterproof ports with no mandatory connection order. This design supports daisy-chaining multiple sensors or adding spare cables, allowing B2B buyers to scale their monitoring density without replacing the primary gateway.
•

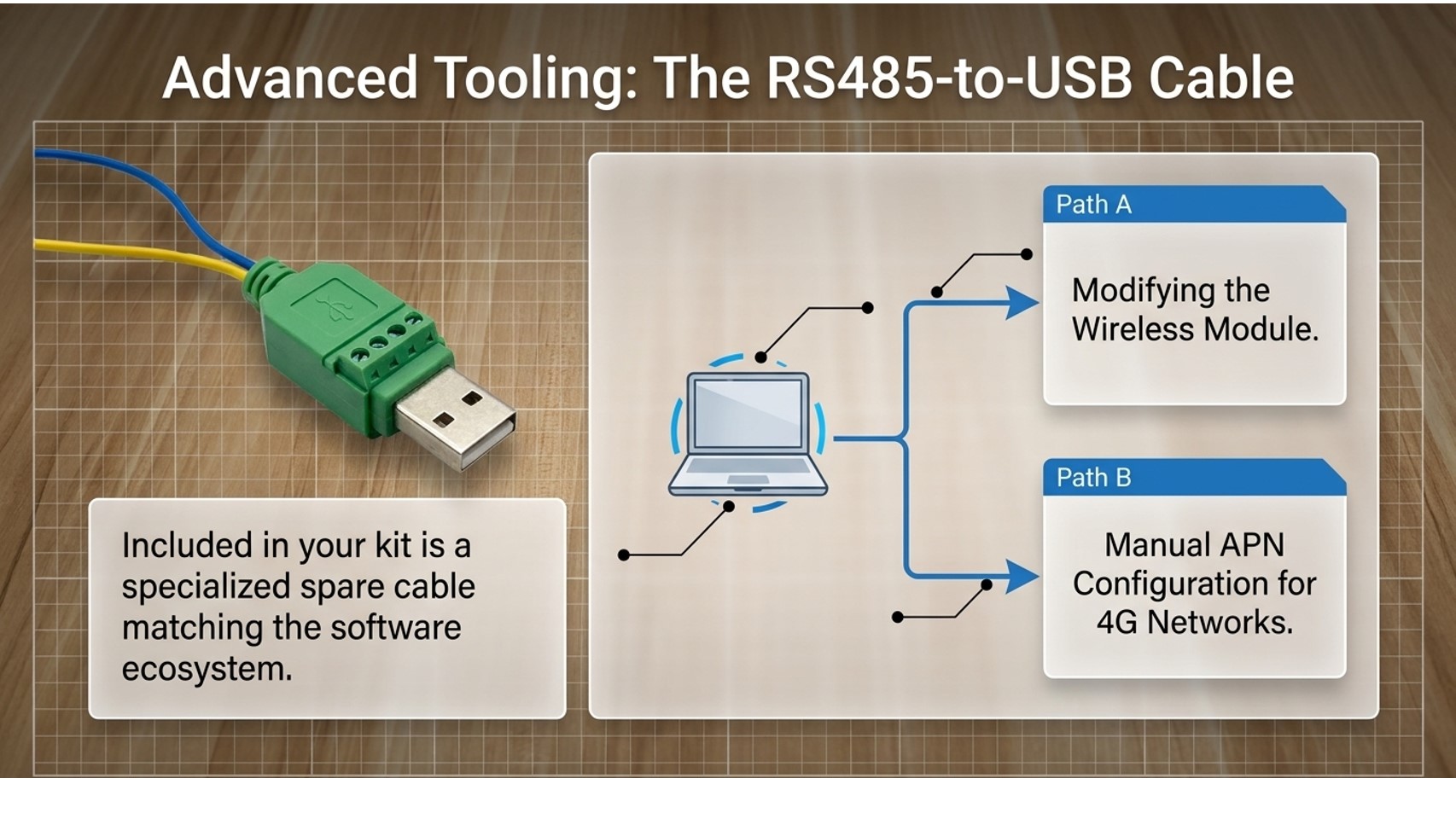

• Contingency Configuration Tools: While factory-configured, each kit includes an RS485 to USB connector tool. This allows engineering teams to make secondary field adjustments to APN or wireless model settings if local network conditions change.
•

In high-value tropical agriculture—specifically cocoa and coconut plantations—traditional moisture monitoring is insufficient. This 3-in-1 system addresses the two primary challenges of these sectors: salinity management and root-zone precision.

For coastal coconut plantations, monitoring Electrical Conductivity (EC) is critical to managing salinity levels that can otherwise lead to osmotic stress and yield loss. In cocoa production, the 3-probe design is significant; unlike single-probe sensors, the three-pronged configuration creates a larger “sphere of influence” within the soil volume. This provides a more representative average of the soil’s nutrient and moisture status in the complex root structures of tropical trees.

By deploying this industrial-grade hardware, plantation managers can optimize fertigation schedules, ensuring nutrients reach the deep root zones while preventing “root burn” through precise EC tracking. This data-driven approach significantly reduces labor overhead and fertilizer waste, maximizing ROI for large-scale B2B operations.

1. 1
   Antenna Installation: Secure the antennas to their designated ports. Follow the hardware labels: 2.4G Wi-Fi on the left and 4G on the right.
2. 2
   SIM Card Deployment: Use the yellow trigger button to eject the SIM tray. Insert the 4G SIM card. Note: If the SIM matches the pre-provided client specs, the device will auto-connect.
3. 3
   Power Sequencing: Connect the 12V DC adapter. The system is designed to initialize and seek the strongest available network path immediately.
4. 4
   Sensor Integration: Connect the 3-in-1 soil probe to any of the four available waterproof ports. The “no-order” connection design eliminates wiring errors in the field.
5. 5
   Mounting and Deployment: Use the included stainless steel mounting strap to secure the gateway enclosure to a support pole or tree trunk near the monitoring site.
6. 6
   Network Verification: Access the Honde Technology server software to confirm data transmission. If network adjustments are needed, utilize the RS485 to USB tool for manual APN overrides.

Honde Technology’s integrated 3-in-1 wireless solution provides the durability and technical precision required for modern industrial agriculture. By consolidating moisture, temperature, and EC monitoring into a scalable, pre-configured 4G/Wi-Fi platform, you can minimize field visits and maximize plantation yields.

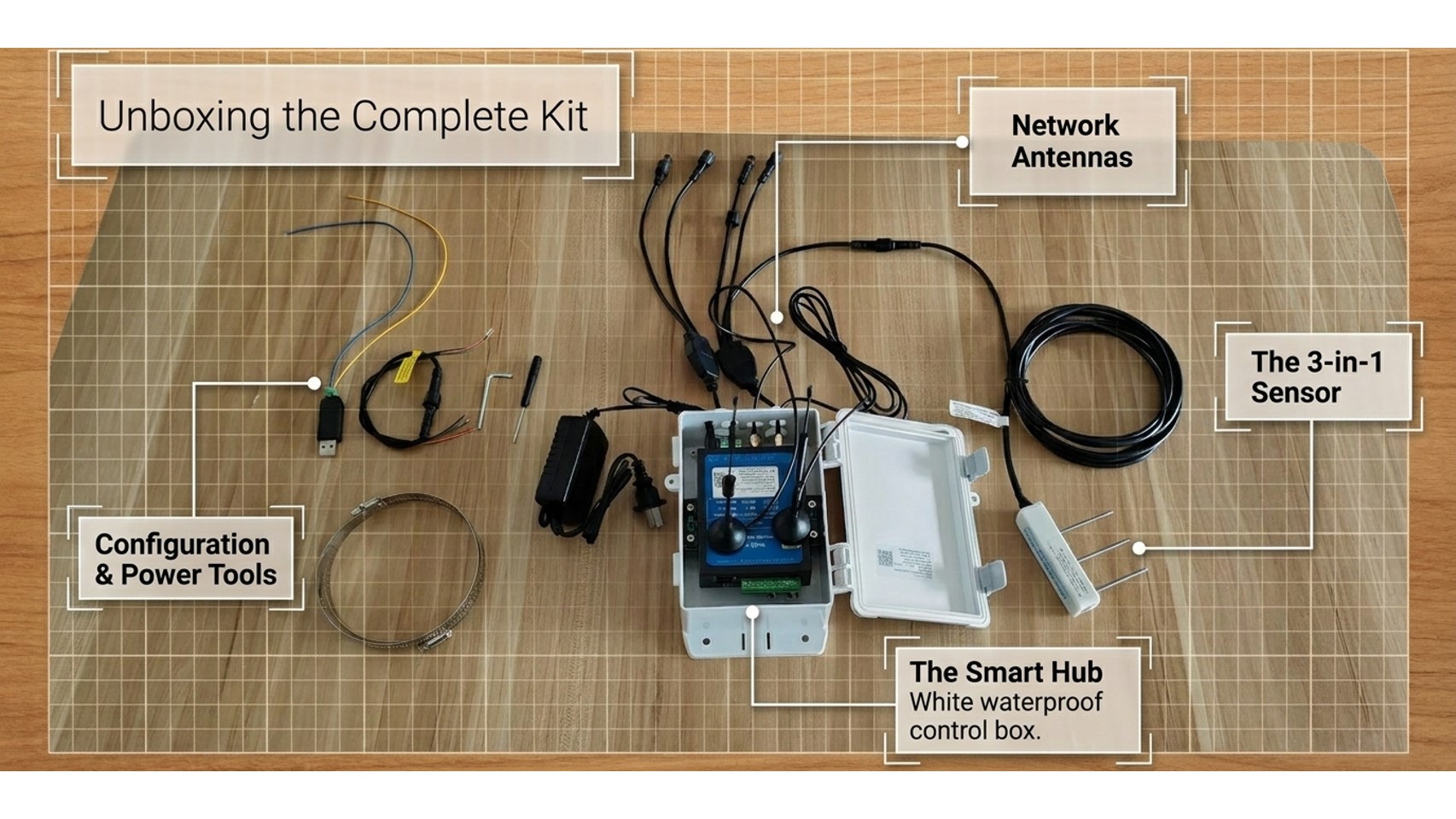

Ensure your field engineering kit includes all the following components before deployment:

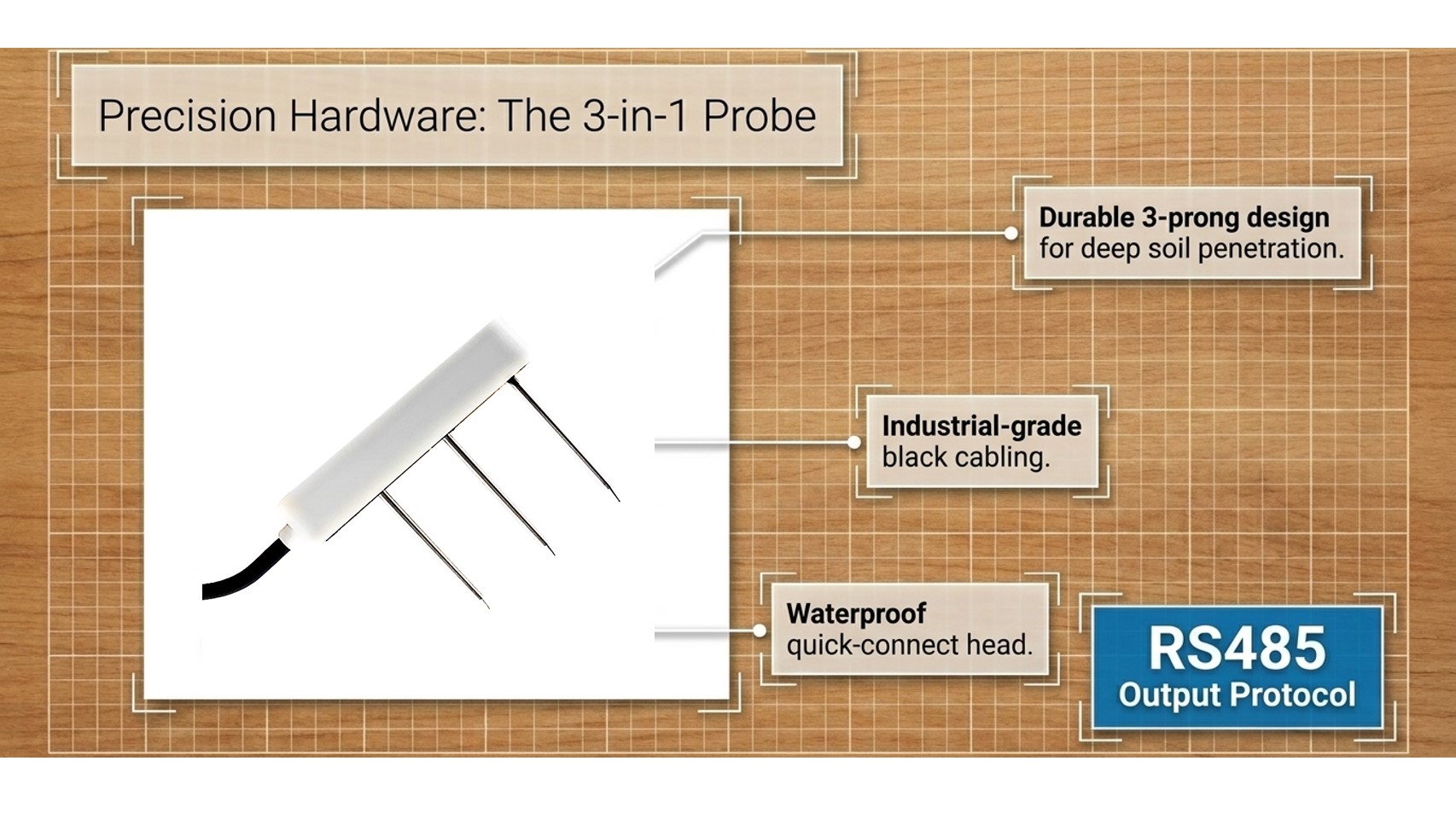

• 3-in-1 Soil Probe: High-precision Moisture, Temperature, and EC sensors.
• Wireless Module Gateway: Industrial enclosure with dual-path 4G/Wi-Fi.
• Dual Antenna Set: One 2.4G Wi-Fi antenna and one 4G antenna.
• 12V DC Power Adapter: Outdoor-rated power supply.
• Stainless Steel Mounting Strap: For secure gateway installation.
• RS485 to USB Configuration Tool: For field-level APN and setting adjustments.
• Server Access Credentials: For real-time data visualization and management.
