Introduction: The Direct Answer for Heat Stress Monitoring
A WBGT weather station is an integrated heat stress monitoring system that combines black ball temperature, dry and wet bulb sensors, and relative humidity to calculate the Wet Bulb Globe Temperature (WBGT) index—the gold standard for assessing human thermal safety. The Honde Technology WBGT station provides a professional-grade, plug-and-play solution that delivers real-time local alerts via a high-contrast LED screen and sound-light alarms, while utilizing dual 4G and 2.4G Wi-Fi telemetry for remote Industrial IoT (IIoT) data logging and compliance reporting.
Understanding the WBGT System Components (IIoT Architecture)
To ensure workplace safety, the system must transform raw environmental data into actionable intelligence. Our architecture uses a sophisticated sensor array and high-speed telemetry to provide a complete picture of environmental heat stress.
Compact Weather Station and Comprehensive Sensor Array
The core of the system is the compact weather station, which houses a precision sensor suite. Unlike standard meteorological stations, this unit is purpose-built for human safety:
- Black Ball Temperature Sensor: Mounted at the top to measure radiant heat from direct sunlight or industrial machinery.
- Integrated Atmospheric Sensors: Internally, the unit tracks dry bulb temperature, wet bulb temperature, ambient temperature, humidity, atmospheric pressure, and dew point.
- Processing Engine: All parameters are synthesized in real-time to calculate the WBGT value, providing a far more accurate representation of “felt heat” than temperature alone.
Wireless Telemetry: Dual-Mode DTU
The system is powered by a rugged Wireless Data Transfer Unit (DTU) that ensures your data reaches the cloud regardless of site conditions. It features:
- 2.4G Wi-Fi Antenna: Located on the left side for connection to local industrial wireless networks.
- 4G Cellular Antenna: Located on the right side for remote sites where Wi-Fi is unavailable.
- Cellular Interface: A dedicated 4G SIM card slot is accessible via a yellow ejection button at the bottom of the unit.
Technical Specifications and System Comparison
The following table provides the hardware parameters and technical requirements for the Honde Technology WBGT monitoring system.
Installation and Wiring Guide: Professional Best Practices
Implementing a WBGT system requires precision to ensure the “Plug-and-Play” experience Honde Technology is known for. Follow these engineering best practices:
- 1 Antenna Orientation: Secure the antennas in their specific ports—the 4G antenna must be on the right, and the 2.4G Wi-Fi antenna on the left.
- 2 SIM Card Integration: Press the yellow button at the base of the DTU to eject the tray. Insert your 4G SIM card. Note: Ensure your APN settings are coordinated with Honde Technology during the ordering process to ensure immediate connectivity.

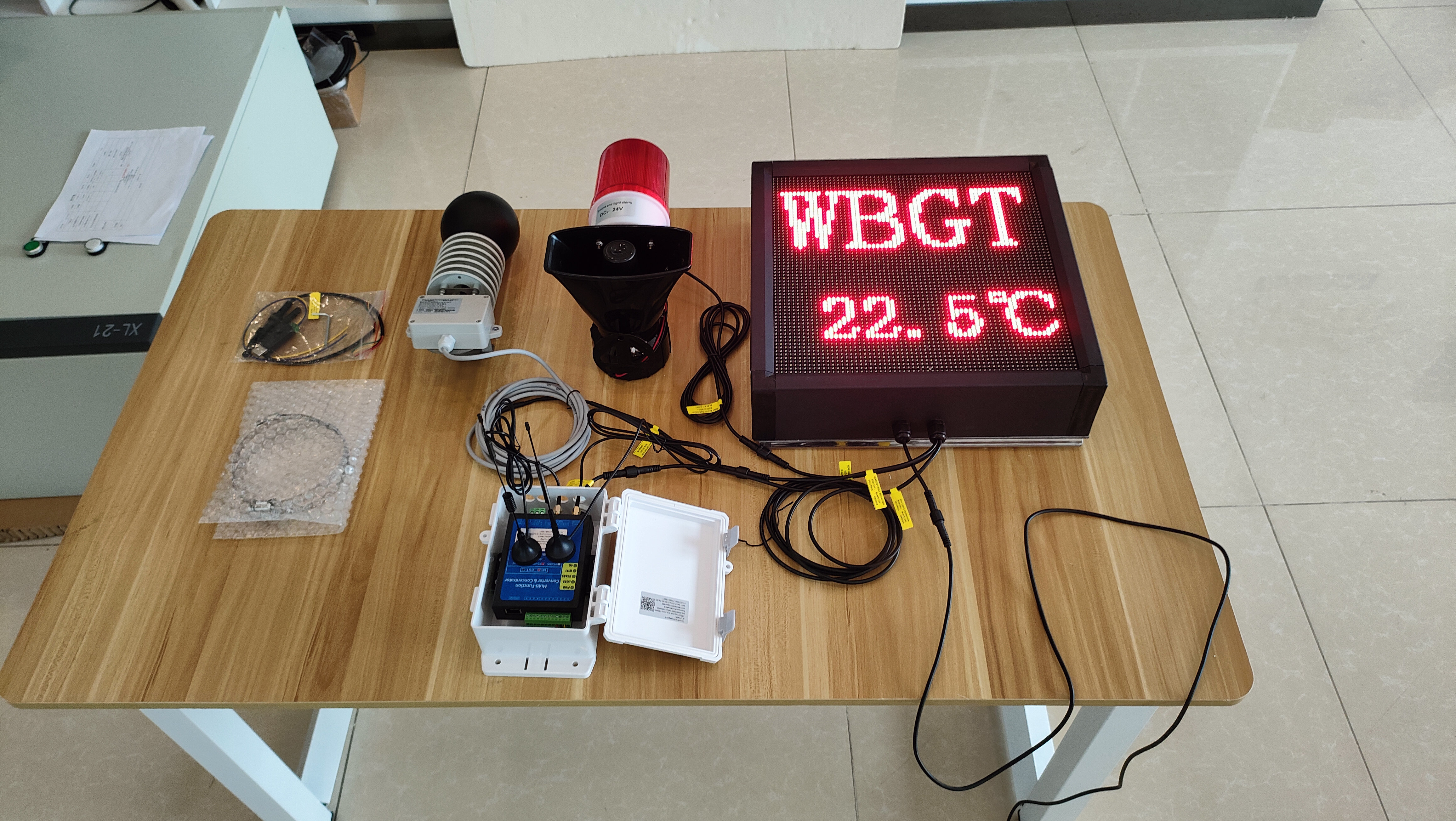

- 3 Waterproof Connections: Link the weather station, the sound-light alarm, and the DTU using the provided waterproof connectors. Ensure all caps are tightly seated to prevent environmental ingress.
- 4 Single-Source Powering: The entire system is designed to run off one power supply. Connect the Red and Yellow wires to the positive (+) lead and the Black and Green wires to the negative (-) lead.
- 5 Data Visualization: Once powered, the high-contrast LED will activate. To view data remotely, follow the provided login instructions for the web-based monitoring platform.

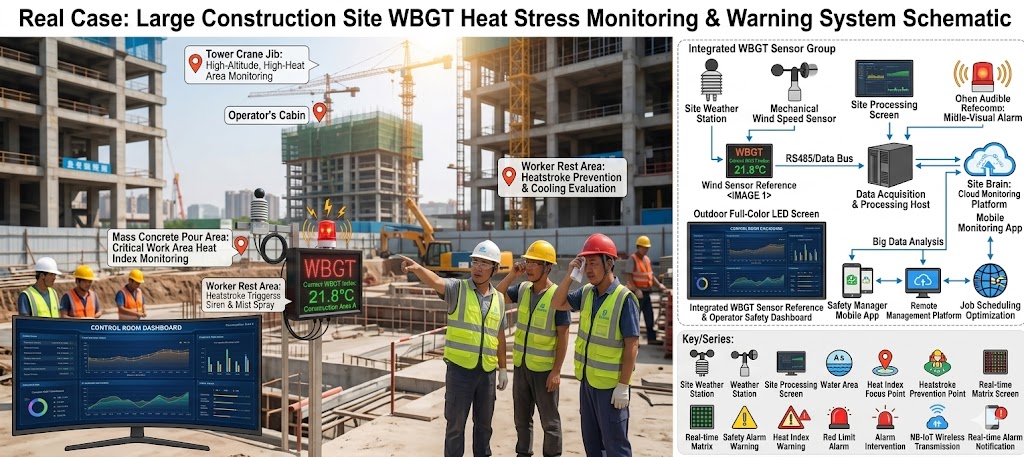

Application Case: Industrial and Outdoor Safety Monitoring
In high-risk environments such as construction sites, foundries, or outdoor mining operations, this system serves as an automated safety officer.
The relay control function allows safety managers to define a critical WBGT threshold. If the environmental sensors detect conditions exceeding this limit, the system automatically triggers the sound-light alarm. While the large, red LED display ensures that on-site workers can see real-time WBGT values from across the facility, management can monitor long-term trends and real-time triggers via the web server software. This dual-visibility approach ensures both immediate response and documented safety compliance.
Why Choose Honde Technology (E-E-A-T & Authority)
At Honde Technology, we understand that industrial downtime is costly. That is why our WBGT solution is engineered for seamless site deployment. By utilizing a design where a single power supply energizes the entire chain—sensor, LED, alarm, and DTU—we significantly reduce infrastructure overhead and installation complexity. You receive a system that works directly out of the box, backed by our expertise in environmental telemetry.
Company Contact Information:
- Company Name: Honde Technology Co., Ltd.
- Website: www.hondetechco.com
- Email: info@hondetech.com
Conclusion & Call to Action
The WBGT weather station is a vital investment for any organization prioritizing human safety in heat-intensive environments. By integrating local high-visibility alerts with remote Industrial IoT data logging, it provides a comprehensive shield against heat-related incidents.
- Download the detailed WBGT sensor specifications sheet.
- Contact us for a custom quote on your 4G/Wi-Fi monitoring project.
[Explore Honde's range of Industrial DTUs and RS485 Weather Sensors]
Technical Checklist for Implementation
- Power Check: Verified 12V DC connection. (Caution: 24V DC will trigger a high-intensity “big alarm”).
- Connectivity: 4G SIM card is seated and APN matches manufacturer-provided configuration.
- Antenna Check: 4G antenna is on the right; 2.4G Wi-Fi antenna is on the left.
- Wiring Integrity: Red/Yellow (+) and Black/Green (-) wires are properly insulated and connected.
- Ingress Protection: All waterproof connectors are tightened and unused ports are sealed.
- Software Access: Login instructions for the web server have been received and tested.
