A 4-in-1 weather station is an integrated environmental sensing solution designed to monitor four primary atmospheric parameters—wind speed, wind direction, air temperature, and air humidity—through a single RS485 Modbus-RTU connection. By consolidating these sensors into a single unit, Industrial IoT (IIoT) architects can streamline data acquisition, reducing the hardware footprint and wiring complexity compared to traditional multi-sensor arrays. This integrated approach ensures synchronized environmental data delivery for smart agriculture, building automation, and industrial site monitoring.

Why Integration Matters: Solving the Complexity of Environmental Monitoring

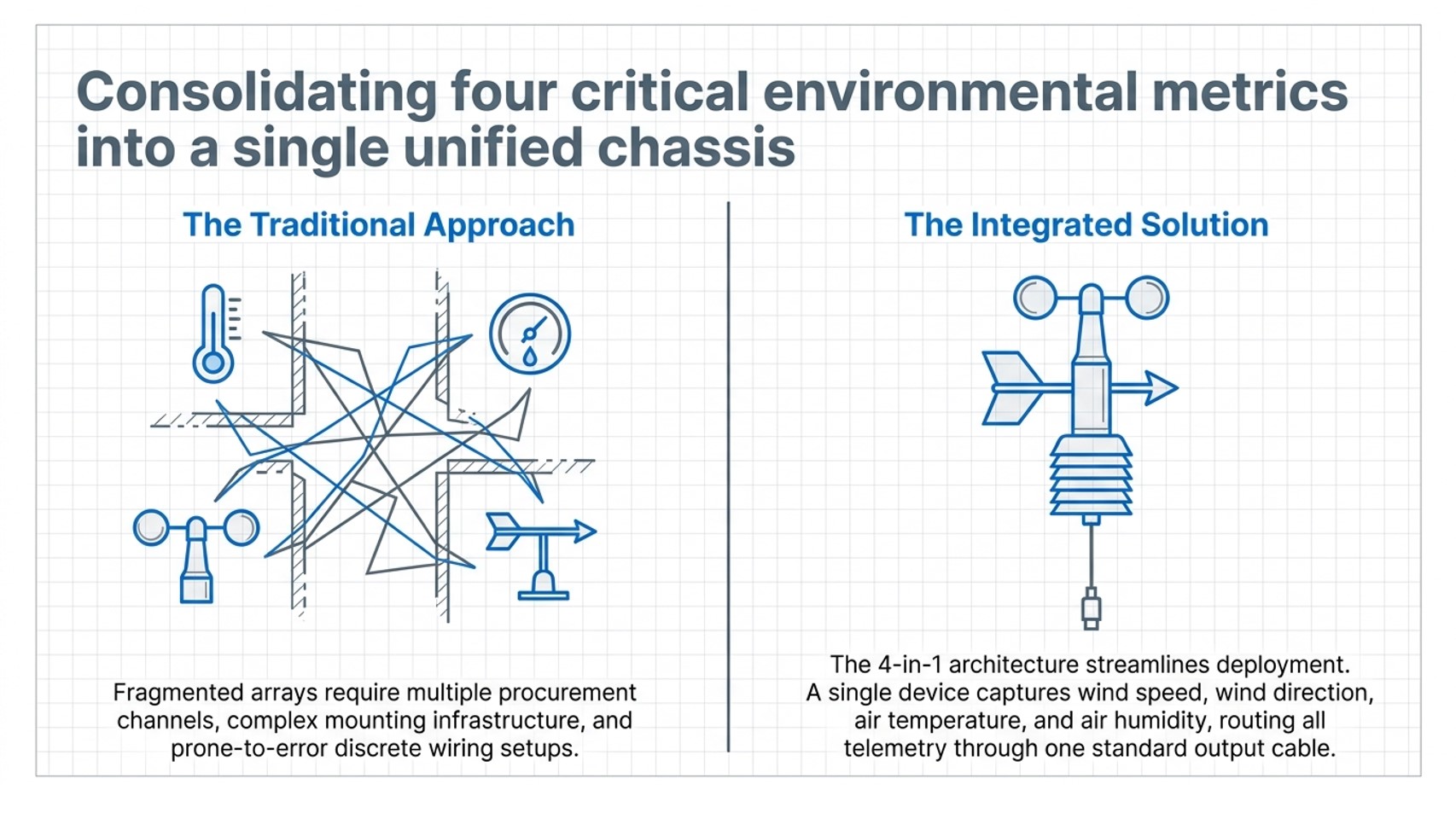

In complex industrial environments, the move from discrete sensors to integrated multi-parameter stations represents a significant architectural shift. Traditionally, deploying wind and thermodynamic sensors required multiple mounting points, separate power runs, and several I/O ports on a PLC or Gateway.

Honde Technology Co., Ltd. addresses these pain points by integrating four precision sensors into a single, cohesive unit. From a solutions architect’s perspective, this integration offers three distinct advantages:

Reduced Cable Infrastructure: RS485 allows for efficient daisy-chaining, and providing four data points over one pair of wires drastically minimizes installation costs.
Simplified Maintenance: Monitoring a single SKU reduces spare parts inventory management.
Data Integrity: Synchronizing wind and thermodynamic data on the same bus ensures that temporal correlations in environmental events are captured accurately.

Technical Specifications & Data Matrix

The following table provides the technical specifications for the Honde 4-in-1 integrated weather station, highlighting the structural engineering required for industrial durability.

Parameter	Specification / Feature
Integrated Sensors	Wind Speed (Anemometer cups), Wind Direction (Vane), Air Temperature, Air Humidity
Communication Protocol	Standard RS485 Modbus-RTU

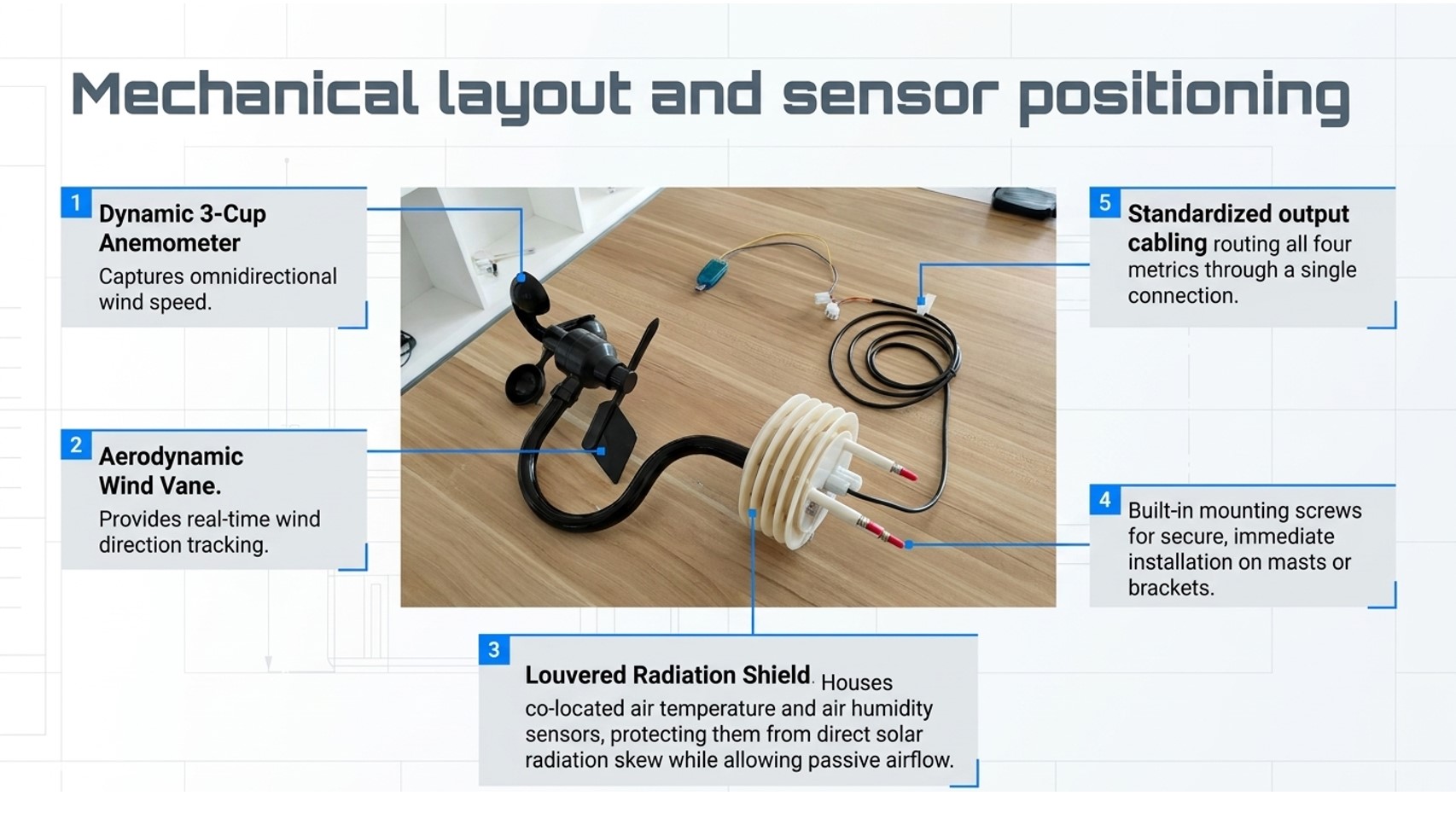

Physical Architecture	UV-resistant, multi-plate louvered radiation shield (bottom) connected via a distinctive curved support arm to the top-mounted wind instruments.
Mounting Hardware	Stable base featuring three red-tipped mounting screws for secure deployment.
Output Interface	Labeled wire leads; includes RS485-to-USB converter for pre-deployment verification.
Power Requirement	Compatible with standard 12-24V DC industrial power sources.

Key Features of the Honde 4-in-1 Weather Station

Integrated Multi-Plate Radiation Shield: Unlike exposed sensors, the temperature and humidity elements are housed within a louvered shield. This is critical for industrial accuracy, as it prevents solar radiation from causing artificial temperature spikes while allowing for natural airflow.
Architectural Efficiency: The station features a rugged, curved/hook-shaped support arm that aligns the wind vane and cups vertically above the thermodynamic sensors, minimizing the physical footprint on monitoring poles.
Industrial Modbus Connectivity: Utilizing the Modbus-RTU protocol allows for “plug-and-play” integration into existing SCADA, PLC, or IoT gateway systems, reducing the consumption of valuable I/O ports.
Ready-to-Test Accessory Kit: Every unit arrives with an RS485-to-USB converter, enabling engineers to perform immediate functional testing on a laptop before moving to field installation.

Installation and Testing: An Engineer’s Perspective

From an engineering standpoint, the success of a deployment often hinges on the initial bench test. The physical installation is straightforward: the unit is secured to a mounting structure using the three red-tipped screws located at the base of the radiation shield.

Pro-Tip for Deployment: When preparing for integration, pay close attention to the labeled wire connections. Proper identification is essential to prevent reverse polarity or short circuits during the wiring process. Before final mounting, connect the station to a PC using the provided RS485-to-USB adapter. This allows you to verify that the Modbus registers for all four parameters are reporting correctly. In an industrial setting, this “verification-first” approach saves hours of troubleshooting at height or in remote locations. Furthermore, by consolidating four sensors into one RS485 address, you effectively preserve I/O capacity on your edge controller for other critical sensors.

Frequently Asked Questions

Q1: Why is the temperature sensor housed in a louvered box? The “lower box” is actually a multi-plate radiation shield. Its purpose is to protect the temperature and humidity sensors from direct sunlight and precipitation. Without this shield, solar radiation could inflate temperature readings by several degrees, compromising the integrity of your environmental data.

Q2: What communication protocol does the device support? The station uses standard RS485 Modbus-RTU. This is the industrial gold standard, allowing for long cable runs and high resistance to electromagnetic interference (EMI) commonly found in industrial facilities.

Q3: Is an external power source required? Yes. While the RS485 line handles data, the station typically requires a 12-24V DC power supply to ensure stable operation of the sensors and communication interface.

Conclusion

The Honde 4-in-1 weather station is a high-efficiency solution for B2B environmental monitoring, engineered to balance technical precision with ease of deployment. By merging wind and thermodynamic sensors into a single, Modbus-ready unit, industrial operators can achieve superior monitoring accuracy while significantly reducing infrastructure complexity.

Access the full Modbus Register Map, wiring diagrams, and technical datasheets at our website.
