Executive Summary
The HD-4VWS series Compact Weather Station represents the 2026 gold standard for industrial monitoring, integrating up to eight meteorological parameters into a single, maintenance-free unit. For professional-grade deployments, the best stations must prioritize ultrasonic sensor technology for wind and 24GHz radar for precipitation to ensure long-term reliability. Encased in ASA anti-UV housing, the HD-4VWS series eliminates moving parts and failure points, providing high-precision data for grid monitoring, smart agriculture, and solar farms. This guide reviews how solid-state engineering and RS485/Modbus RTU compatibility satisfy the rigorous demands of modern IIoT procurement.
The Shift to Solid-State Meteorology: Why “No Moving Parts” Matters
In my experience as an IoT architect, the single greatest failure point in legacy meteorology is mechanical wear. Traditional rotating cups and tipping buckets require frequent calibration and are susceptible to friction, bird nesting, and freezing. Transitioning to a solid-state architecture is a strategic decision to lower the Total Cost of Ownership (TCO) by drastically reducing Operational Expenditure (OPEX) related to field maintenance visits.

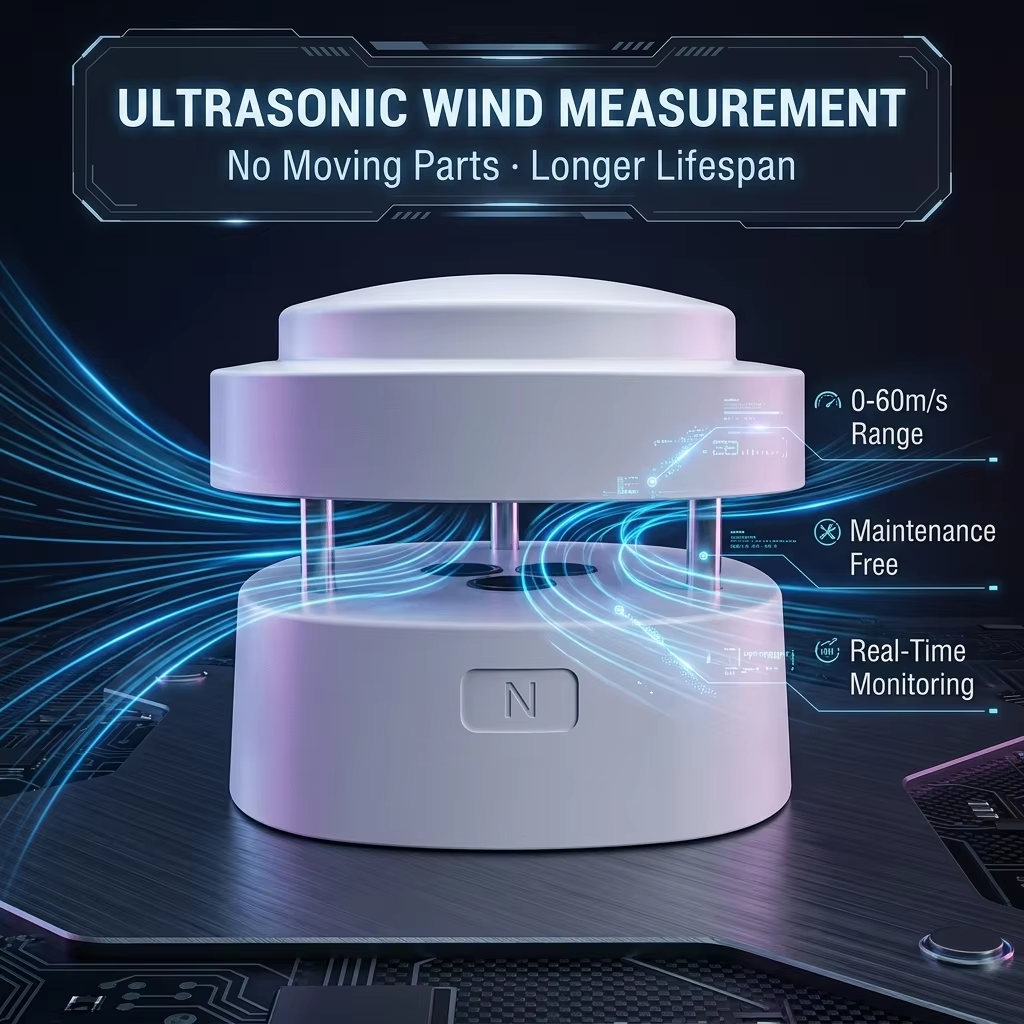

The HD-4VWS series utilizes ultrasonic wind measurement based on phase change measurement. Unlike cheaper units, it features a three-probe triangulation layout to calculate horizontal wind vectors with higher precision across a massive 0–60 m/s range. This design ensures maintenance-free operation and eliminates zero-point drift. Furthermore, our 24GHz radar rainfall technology utilizes the Doppler effect to calculate drop size and velocity. This is fundamentally superior to mechanical buckets because it is not affected by evaporation or clogging, ensuring high-accuracy precipitation data in remote, unattended environments.
Engineering Excellence: The HD-4VWS Material and Design Advantage
The physical build of the HD-4VWS reflects a commitment to 10+ years of industrial survival:

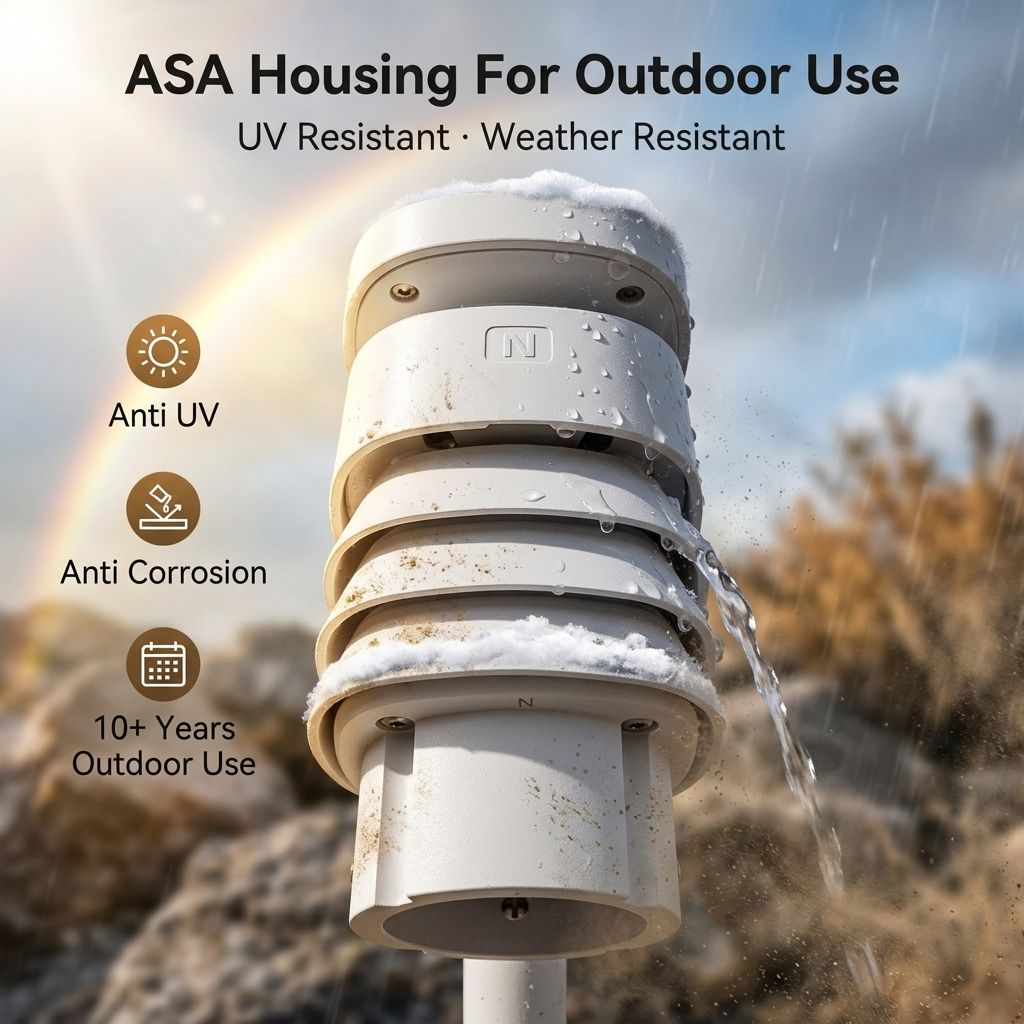

Constructed from high-grade ASA material, the station is designed to withstand a decade of outdoor exposure without the UV-induced brittleness common in standard PVC or ABS housings.
At a diameter of 83.03mm and a height of 153.3mm, the unit is exceptionally compact. Source images confirm the device is roughly the size of a human hand, enabling rapid deployment on utility poles or mobile monitoring stations.
The lower housing features a multi-plate radiation shield that utilizes a special insulation process. This ensures that air temperature and humidity readings remain accurate by preventing solar heat soak, even under direct, high-intensity sunlight.

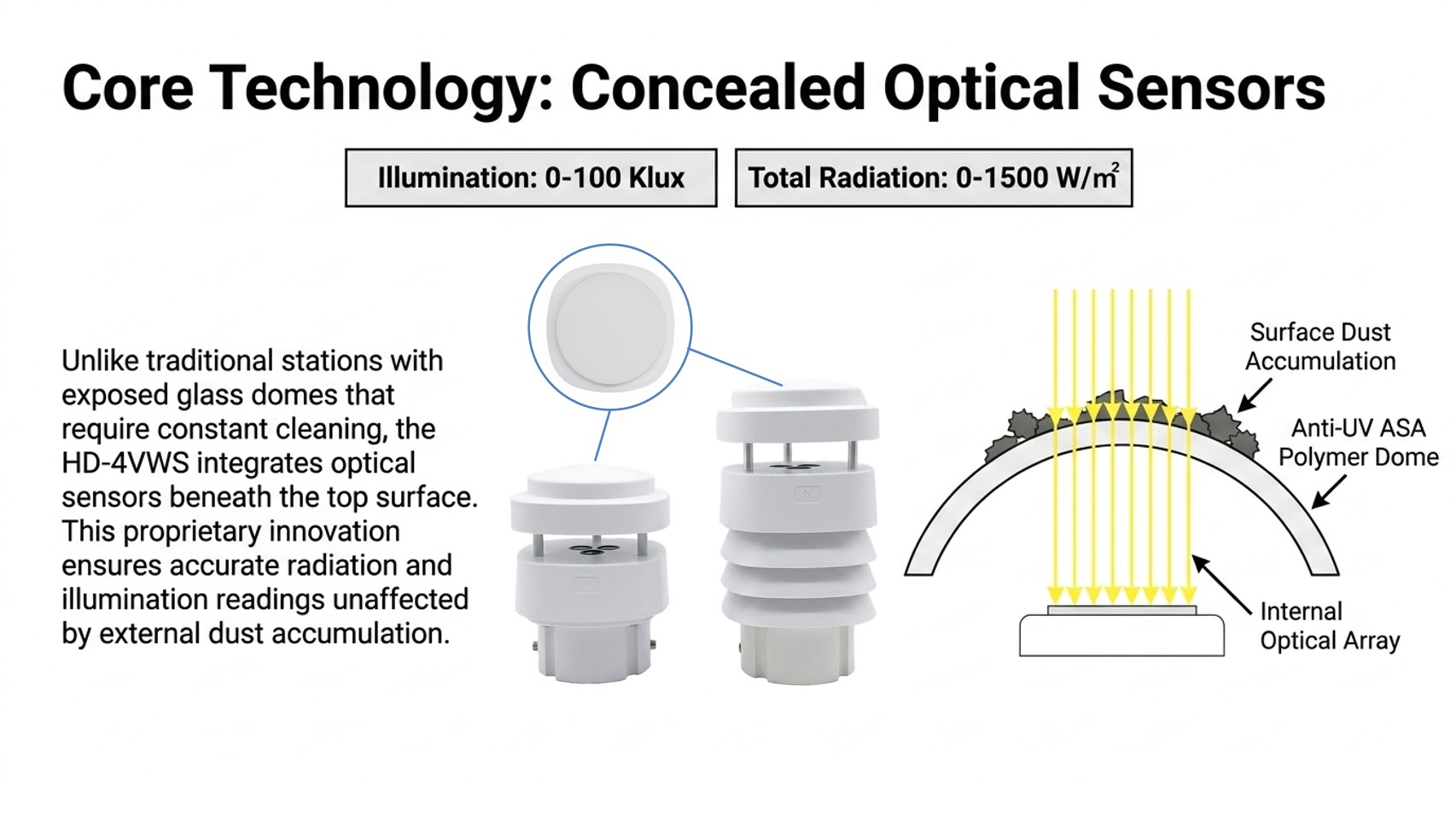

A key design advantage is the placement of the illumination and radiation sensors. These are built into the top of the unit rather than being exposed on the surface, ensuring that dust accumulation does not interfere with the sensors’ optical path or measurement accuracy.
Comparative Analysis: HD-4VWS Model Selection Matrix
Selecting the appropriate configuration is critical for balancing project requirements with budget constraints. Below is the technical selection matrix for the HD-4VWS series.
| Model | Integrated Parameters | Key Sensors | Price Range (1–49pcs) | Price Range (300–1000pcs) |
|---|---|---|---|---|
| HD-4VWS02 | 2-in-1 | Ultrasonic Wind Speed & Direction | $125 | $105 |
| HD-4VWS05 | 5-in-1 | Wind S/D, Temp, Hum, Pressure | $140 | $125 |
| HD-4VWS06 | 6-in-1 | Wind S/D, Temp, Hum, Pressure, Radar Rain | $220 | $205 |
| HD-4VWS08 | 8-in-1 | Flagship: Wind S/D, Temp, Hum, Pressure, Radar Rain, Illumination, Radiation | $378 | $358 |
Integration and Connectivity: Standardizing Data for IIoT

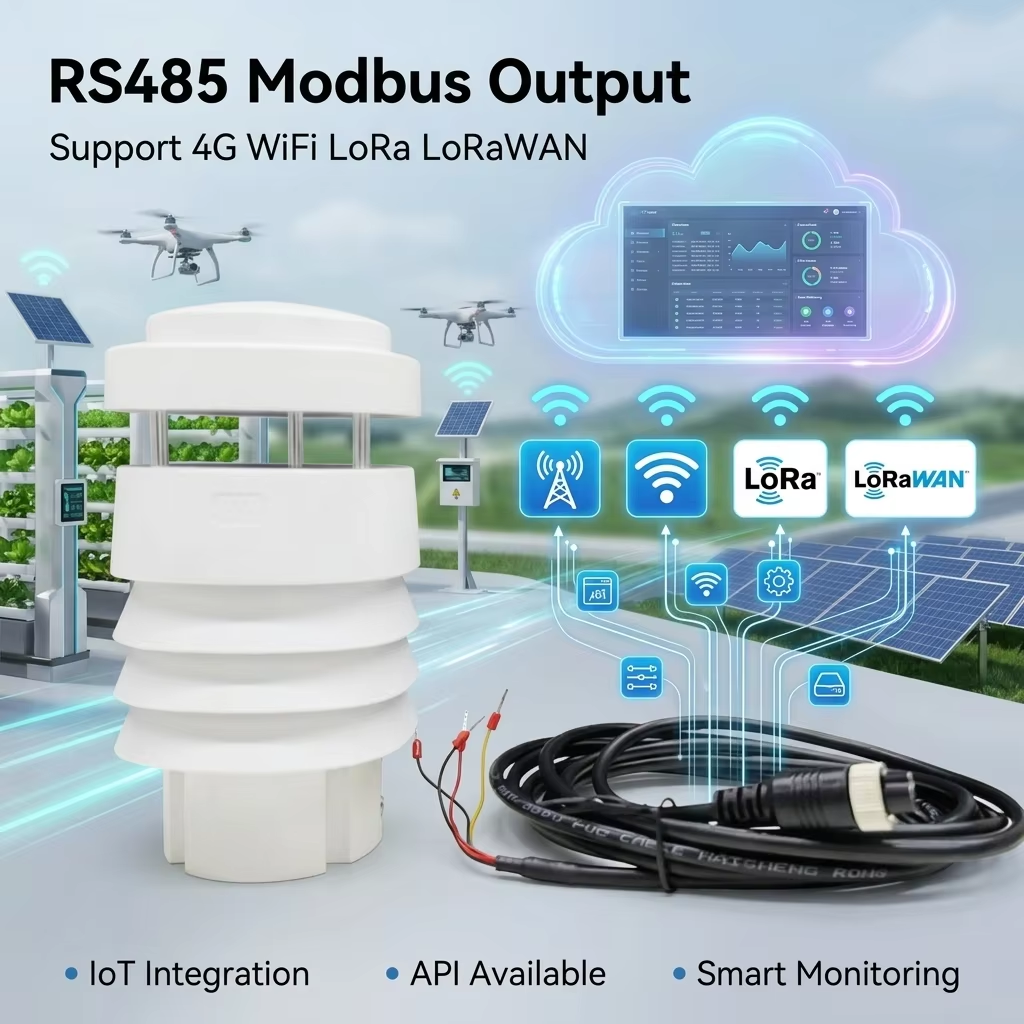

When architecting a micro-grid or industrial solution, RS485/Modbus RTU parity is non-negotiable for seamless PLC and SCADA integration.
Global Application Cases: From Smart Agriculture to Solar Farms
The HD-4VWS series has been successfully deployed across three primary industrial scenarios:
The compact, solid-state design is ideal for installation on high-voltage transmission towers. Because it is maintenance-free, it reduces the need for high-risk, expensive climbs to service sensors.
The 6-in-1 and 8-in-1 models are used for crop canopy monitoring. The ability to measure real-time rainfall intensity and humidity at the plant level allows for precision irrigation and automated pest management triggers.
Solar farms utilize the flagship HD-4VWS08 to monitor total radiation and illumination. This data is critical for calculating Performance Ratio (PR) and identifying when panel cleaning is required based on efficiency drops compared to local irradiance.
Implementation Checklist: Professional Installation & Maintenance
Adhere to these expert standards to ensure industrial-grade data integrity:
Conclusion and Strategic Procurement
The HD-4VWS series from Honde Technology represents the pinnacle of compact, solid-state meteorology. By combining high-durability ASA materials with advanced ultrasonic and radar sensing, these units provide a reliable, maintenance-free solution that significantly lowers the lifetime cost of monitoring projects.
Post time: May-15-2026
