Small Size With Heating Function Modbus RS485 Relay Rain And Snow Sensor
Product features
●Strong anti-interference ability
●Easy installation and accurate detection
●Long service life and strong anti-interference ability
●Automatic heating function
●Outlet waterproof design
●Reasonable structure design
●Strong sealing
●Long transmission distance
●Can integrate GPRS, WiFi, 4G, LORA, LORAWAN, real-time view data
Product application
The rain and snow sensor is one of the components of the weather monitoring system. The device is a device used to measure whether it is raining or snowing outdoors or in nature. Rain and snow sensors are widely used in meteorology, agriculture, industry, ocean, environment, airports, ports and transportation for qualitative measurement of the presence or absence of rain and snow.
Product install

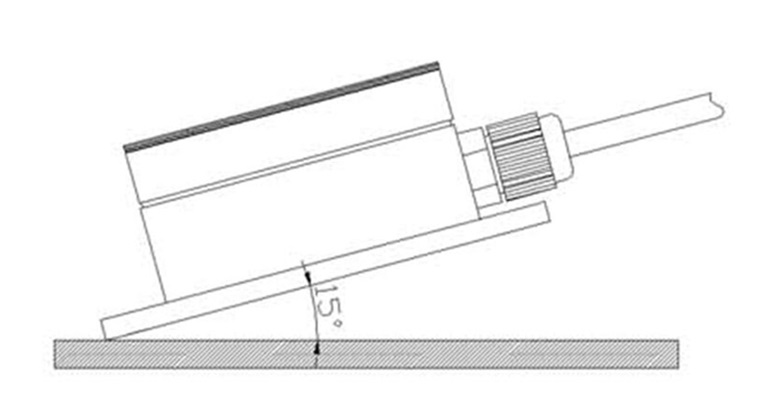

During installation, the sensor sensing surface should be kept at an angle of 15 degrees with the horizontal plane to prevent the accumulation of rain and snow from affecting the sensor measurement
Product parameters
|
Measurement parameters |
|
| Parameters name | Rain and snow detect sensor |
|
Technical parameter |
|
| Power supply | 12~24VDC |
| Output | RS485, MODBUS communication protocol |
| 0~2V,0~5V,0~10V; 4~20mA | |
| Relay output | |
| Power supply | 12~24VDC |
| Load capacity | AC 220V 1A; DC 24V 2A |
| Working environment | Temperature -30 ～ 70 ℃, working humidity: 0-100% |
| Storage conditions | -40 ~ 60 ℃ |
| Standard cable length | 2-meter 3-wire system (analog signal); 2-meter 4-wire system (relay switch, RS485) |
| The farthest lead length | RS485 1000 meters |
| Protection level | IP68 |
|
Wireless transmission |
|
| Wireless transmission | LORA / LORAWAN(868MHZ,915MHZ,434MHZ), GPRS, 4G,WIFI |
|
Mounting Accessories |
|
| Stand pole | 1.5 meters, 2 meters ,3 meters high, the other high can be customize |
| Equipment case | Stainless steel waterproof |
| Ground cage | Can supply the matched ground cage to burred in the ground |
| Cross arm for the install | Optional(Used in thunderstorm places) |
| LED display screen | Optional |
| 7 inch touch screen | Optional |
| Surveillance cameras | Optional |
|
Solar power system |
|
| Solar panels | Power can be customized |
| Solar Controller | Can provide matched controller |
| Mounting brackets | Can provide the matched bracket |
FAQ
Q: What's the main characteristics of this sensor?
A: It is easy for installation and can measure the rain and snow at 7/24 continuous monitoring.
Q:Can we choose other desired sensors?
A: Yes, we can supply the ODM and OEM service, the other required sensors can be inter grated in our present weather station.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Do you supply tripod and solar panels?
A: Yes, we can supply the stand pole and the tripod and the other install accessories, also the solar panels, it is optional.
Q: What’s the common power supply and signal output?
A: Common power supply is DC: 12-24V and Relay output signal output RS485 and analog voltage and current output.The other demand can be custom made.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.
Q: What’s the standard cable length?
A: Its standard length is 2m. But it can be customized, MAX can be 1KM.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be delivered in 3-5 working days after receiving your payment. But it depends on your quantity.
