Wireless Ceiling Type Air Temperature Humidity O2 CO2 CH4 H2S Smart Gas Monitoring Sensor
Video
Advantage
●The gas unit adopts electrochemical and catalytic combustion sensors with excellent sensitivity and repeatability.
●Strong anti-interference ability.
●Multiple signal output, Support multi-parameter monitoring.

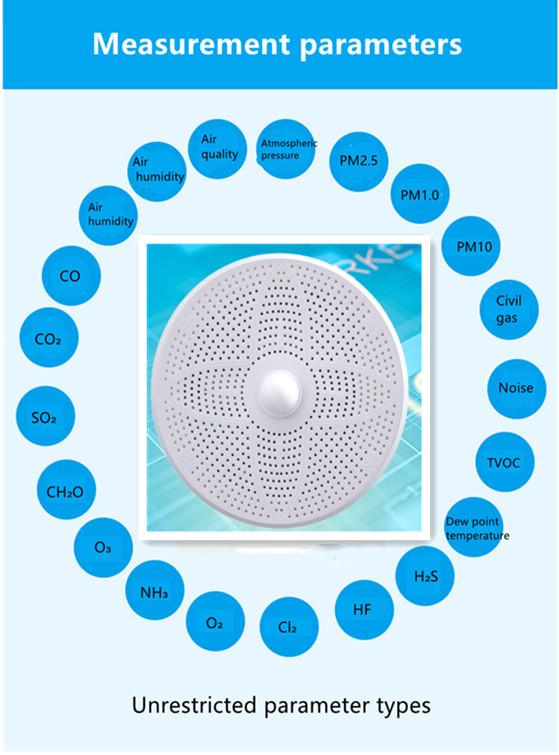

Measurement parameters

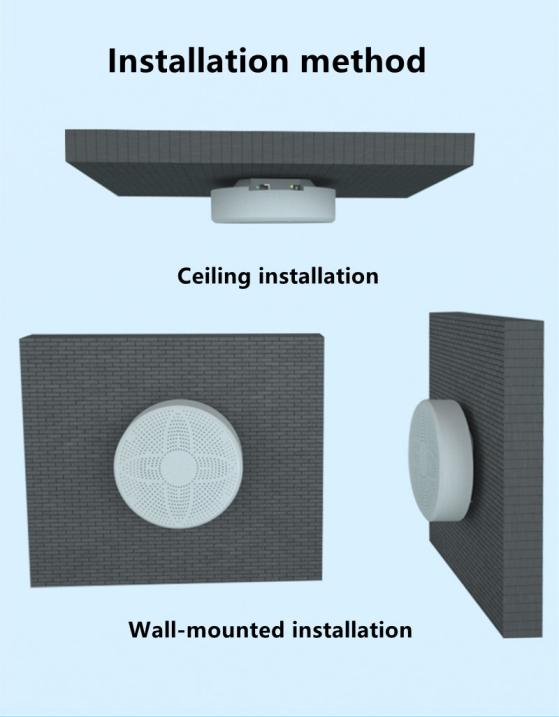

Installation method
Product Applications
Suitable for agricultural greenhouse, flower breeding, industrial workshop, office, animal husbandry, laboratory, gas station, gas station, chemical and pharmaceutical, oil mining, granary and so on.
Product Parameters
|
Measurement parameters |
||
| Product size | Length * width * height: about 168 * 168 * 31mm | |
| Shell material | ABS | |
| Screen specifications | LCD screen | |
| Product weight | About 200g | |
| Temperature | Measuring range | －30℃～70℃ |
| Resolution | 0.1℃ | |
| Accuracy | ±0. 2℃ | |
| Humidity | Measuring range | 0～100%RH |
| Resolution | 0.1%RH | |
| Accuracy | ±3%RH | |
| Illuminance | Measuring range | 0～200K Lux |
| Resolution | 10 Lux | |
| Accuracy | ±5% | |
| Dew point temperature | Measuring range | －100℃～40℃ |
| Resolution | 0.1℃ | |
| Accuracy | ±0. 3℃ | |
| Air pressure | Measuring range | 600～1100hPa |
| Resolution | 0.1hPa | |
| Accuracy | ±0.5hPa | |
| CO2 | Measuring range | 0～5000ppm |
| Resolution | 1ppm | |
| Accuracy | ±75ppm＋2%reading | |
| Civil CO | Measuring range | 0～500ppm |
| Resolution | 0.1ppm | |
| Accuracy | ±2%FS | |
| PM1.0/2.5/10 | Measuring range | 0～1000μg/m3 |
| Resolution | 1μg/m3 | |
| Accuracy | ±3%FS | |
| TVOC | Measuring range | 0～5000ppb |
| Resolution | 1ppb | |
| Accuracy | ±3% | |
| CH2O | Measuring range | 0～5000ppb |
| Resolution | 10ppb | |
| Accuracy | ±3% | |
| O2 | Measuring range | 0～25%VOL |
| Resolution | 0.1%VOL | |
| Accuracy | ±2%FS | |
| O3 | Measuring range | 0～10ppm |
| Resolution | 0.01ppm | |
| Accuracy | ±2%FS | |
| Air quality | Measuring range | 0～10mg/m3 |
| Resolution | 0.05 mg/m3 | |
| Accuracy | ±2%FS | |
| NH3 | Measuring range | 0～100ppm |
| Resolution | 1ppm | |
| Accuracy | ±2%FS | |
| H2S | Measuring range | 0～100ppm |
| Resolution | 1ppm | |
| Accuracy | ±2%FS | |
| NO2 | Measuring range | 0～20ppm |
| Resolution | 0.1ppm | |
| Accuracy | ±2%FS | |
| Bad smell | Measuring range | 0～50ppm |
| Resolution | 0.01ppm | |
| Accuracy | ±2%FS | |
| SO2 | Measuring range | 0～20ppm |
| Resolution | 0.1ppm | |
| Accuracy | ±2%FS | |
| Cl2 | Measuring range | 0～10ppm |
| Resolution | 0.1ppm | |
| Accuracy | ±2%FS | |
| Civil gas | Measuring range | 0～5000ppm |
| Resolution | 50ppm | |
| Accuracy | ±3%LEL | |
| The other gas sensor | Support the other gas sensor | |
|
Wireless module and Matched server and software |
||
| Wireless module | GPRS/4G/WIFI/LORA/LORAWAN ( Optional) | |
| Matched server and software | We can supply the matched cloud server and software which you can see the real time data in the PC end. | |
FAQ
Q: What's the main characteristics of the sensor?
A: Multiple parameters can be detected at the same time, and users can customize the types of parameters arbitrarily according to their needs. It can custom made single or multiple parameters.
Q:What are the advantages of this sensor and other gas sensors?
A:This gas sensor can measure many parameters, and can customize the parameters according to your needs, and can online monitoring all of the parameters with the 0-5V, 0-10V, 4-20mA, RS485 output.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What is the output signal?
A: Multi-parameter sensors can output a variety of signals. Wired output signals include RS485 signals and voltage and current signals; wireless outputs include LoRa, WIFI, GPRS, 4G, NB-lOT, LoRa and LoRaWAN.
Q: Can you supply the matched server and software?
A: Yes, we can supply the matched cloud server and software with our wireless modules and you can see the real time data in software in the PC end and we can also have the matched data logger to store the data in excel type.
Q: May I know your warranty?
A: Yes, usually it’s 1 year, it also depends on the air types and the quality.
Q:What’s the delivery time?
A: Usually, the goods will be delivery in 3-5 working days after receiving your payment. But it depends on your quantity.
