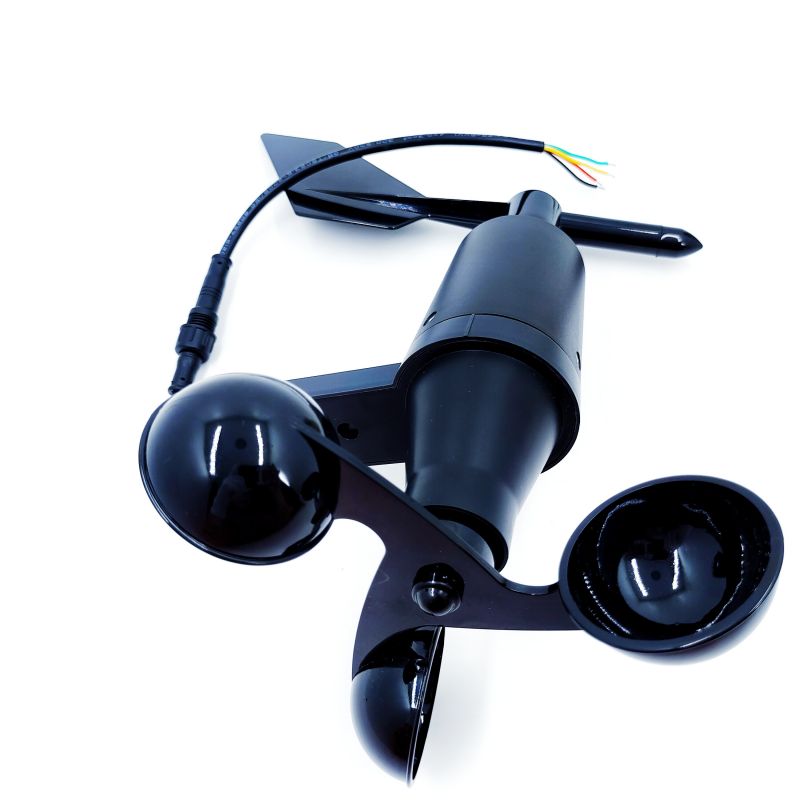

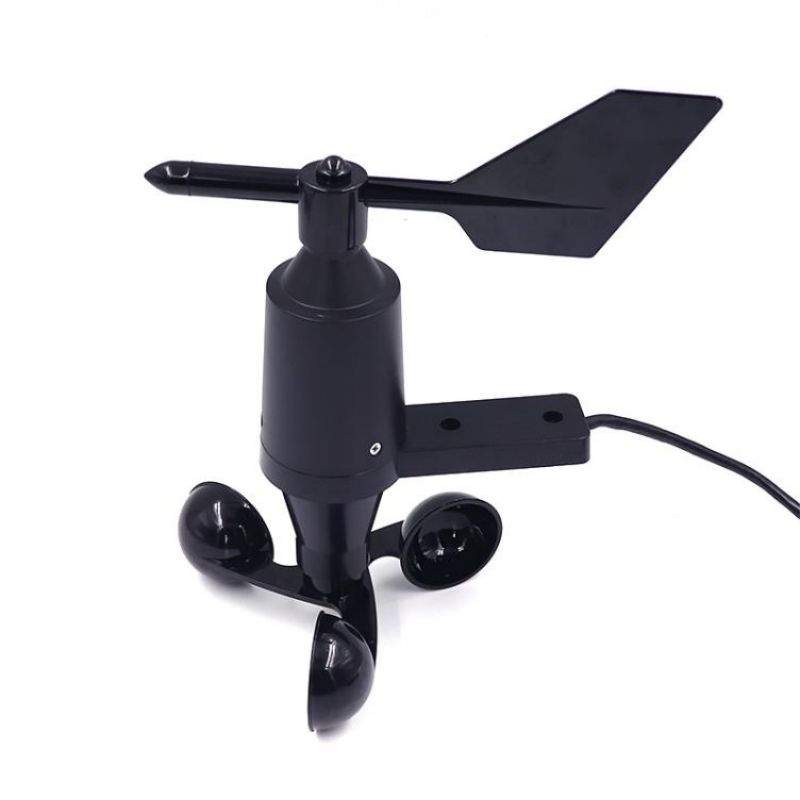

ASA UV-resistant material integrated wind speed direction 2-in-1 sensor
vudio
Product introduce
The wind speed and direction sensor is made of ASA material, which is not afraid of ultraviolet rays and can be used outdoors for more than 10 years. And we can also integrate all kinds of wireless module including the GPRS/4G/WIFI/LORA/LORAWAN and the matched server and software which you can see the real time data in the PC end.
Product Features
●ASA anti-UV plastic Material（ Lifetime can be 10 years outside) wind speed and direction 2 in 1 sensor.
●Anti-electromagnetic interference treatment. High-performance self-lubricating bearings are used, with low rotation resistance and
accurate measurement.
●Wind speed sensor: anti-ultraviolet ASA engineering plastic, three wind cup structure, dynamic balance processing, easy to start.
●Wind direction sensor: anti-ultraviolet ASA engineering plastic, large weathercock design, self-lubricating bearing, accurate
measurement.
●This sensor is RS485 standard MODBUS protocol, and supports various wireless modules, GPRS, 4G, WIFI, LORA, LORAWAN.
●Each product is tested in the wind tunnel laboratory to ensure accuracy.
●We can provide supporting cloud servers and software to view data in real time on computers and mobile phones.
Advantage: Compared with the long-arm bracket installation, the short-arm bracket installation is more stable and not affected by wind vibration
Product application
It can be widely used in the fields of meteorology, ocean, environment, airport, port, laboratory, industry, agriculture and transportation.
Product parameters
| Parameters name | Wind speed and direction 2 in 1 sensor | ||
| Parameters | Measure range | Resolution | Accuracy |
| Wind speed | 0~60m/s
(Other customizable) |
0.3m/s | ±(0.3+0.03V)m/s, V means speed |
| Wind direction | Measure range | Resolution | Accuracy |
| 0-359° | 0.1° | ±(0.3+0.03V)m/s, V means speed | |
| Material | ASA anti-ultraviolet engineering plastics | ||
| Features | Anti-electromagnetic interference, self-lubricating bearing, low resistance, high precision | ||
|
Technical parameter |
|||
| Start speed | ≥0.3m/s | ||
| Response time | Less than 1 second | ||
| Stable time | Less than 1 second | ||
| Output | RS485, MODBUS communication protocol | ||
| Power supply | 12~24V | ||
| Working environment | Temperature -30 ～ 85 ℃, working humidity: 0-100% | ||
| Storage conditions | -20 ~ 80 ℃ | ||
| Standard cable length | 2 meters | ||
| The farthest lead length | RS485 1000 meters | ||
| Protection level | IP65 | ||
| Wireless transmission | LORA/LORAWAN(868MHZ,915MHZ,434MHZ)/GPRS/4G/WIFI | ||
| Cloud services and software | We have supporting cloud services and software, which you can view in real time on your mobile phone or computer | ||
FAQ
Q: What are the main features of this product?
A: It is ASA anti-ultraviolet plastic material wind speed and direction two-in-one sensor, anti-electromagnetic interference treatment, self-lubricating bearing, low resistance, accurate measurement.
Q: What’s the common power supply and signal output?
A: Common power supply is DC: 12-24 V and signal output RS485 Modbus protocol.
Q: Where can this product be applied?
A:It can be widely used in meteorology, agriculture, environment, airports, ports, awnings, outdoor laboratories, marine and transportation fields.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.
Q: Can you supply the data logger?
A:Yes, we can supply the matched data logger and screen to show the real time data and also store the data in excel format in the U disk.
Q: Can you supply the cloud server and the software?
A: Yes, if you buy our wireless modules, we can supply the matched server and software for you, in the software, you can see the real time data and also can download the history data in the excel format.
Q:Could I get samples or how to place the order?
A:Yes,we have materials in stock to help you to get the samples as soon as we can. If you want to place the order, just click the following banner and send us an inquiry.
Q:What's the delivery time?
A: Usually, the goods will be delivery in 1-3 working days after receiving your payment. But it depends on your quantity.
