Handheld Portable Open Channel Radar River Water Flow Rate Sensor

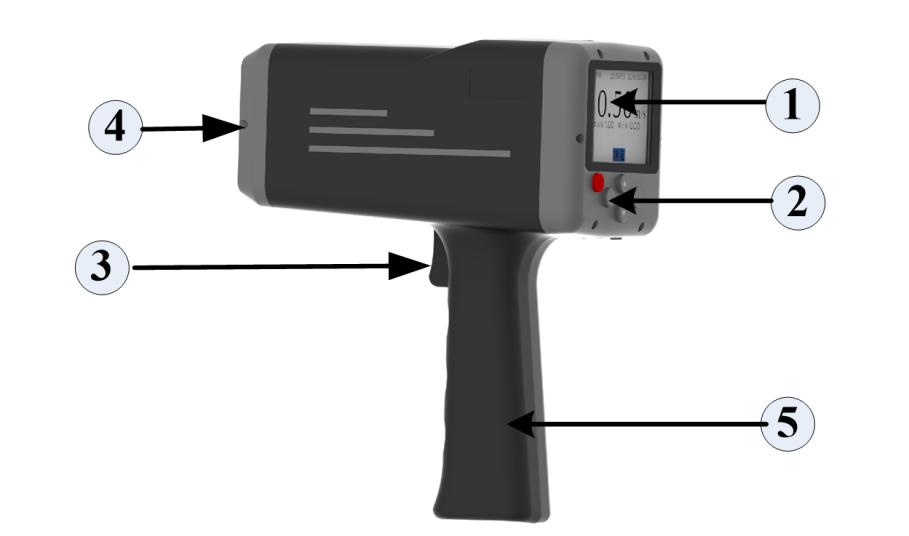

Instrument Structure
1. LCD screen
2. Keyboard
3. Measurement shortcuts
4. Radar transmitter
5. Handle

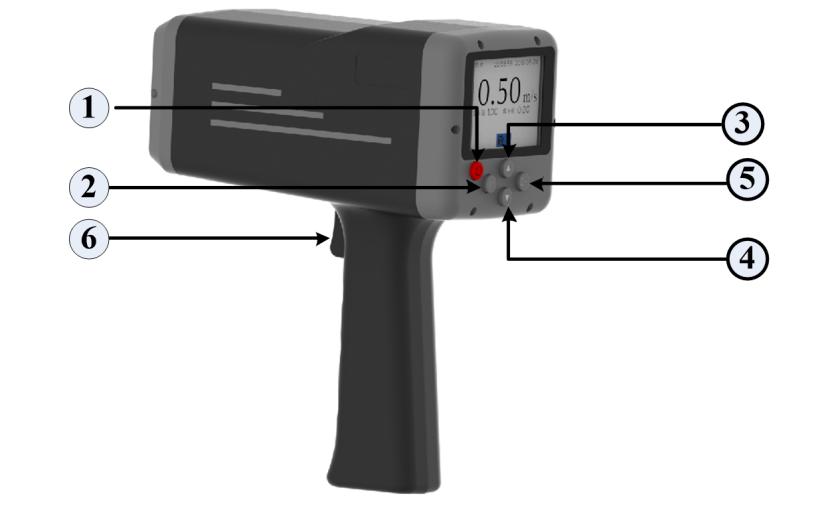

Key Function Introduction
1. Power button
2. Menu button
3. Navigation key (up)
4. Navigation key (down)
5. Enter
6. Measurement key
Instrument Characteristics
●For single use, the weight is less than 1Kg, can be measured by hand or placed on a tripod (optional).
● Non-contact operation, not affected by sediment and water body corrosion.
● Automatic correction of horizontal and vertical angles.
● Multiple measurement modes, which can measure quickly or continuously.
● Data can be transmitted wirelessly via Bluetooth (Bluetooth is an optional accessory).
● Built-in large-capacity lithium-ion battery, which can be used continuously for more than 10 hours.
● A variety of charging methods are available, which can be charged by AC, vehicle and mobile power.
Principle
The instrument is based on the principle of the Doppler effect.
Product Application
Measurement of rivers, open channels, sewage, mud, and oceans.
Product Parameters
|
Measurement parameters |
|
| Product Name | Handheld Radar Water Flowrate sensor |
|
General Parameter |
|
| Operating temperature range | -20℃~+70℃ |
| Relative humidity range | 20%~80% |
| Storage temperature range | -30℃~70℃ |
|
Instrument details |
|
| Measuring principle | Radar |
| Measuring range | 0.03~20m/s |
| Measurement accuracy | ±0.03m/s |
| Radio wave emission angle | 12° |
| Radio wave emission standard power | 100mW |
| Radio frequency | 24GHz |
| Angle compensation | Horizontal and vertical angle automatic |
| Horizontal and vertical angle automatic compensation range | ±60° |
| Communication method | Bluetooth,USB |
| Storage size | 2000 measurement results |
| Maximum measuring distance | Within 100 meters |
| Protection level | IP65 |
|
Battery |
|
| Type of battery | Rechargeable lithium ion battery |
| Battery capacity | 3100mAh |
| Standby state (at 25 ℃) | More than 6 months |
| Continuously working | More than 10 hours |
FAQ
Q: What's the main characteristics of this Radar Flowrate sensor?
A: It is easy forusing and can measure the river Open channel flow flow rate and so on.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
It is rechargeable lithium ion battery
Q: How can I collect data?
A: You can send the data by bluetooth or download the data to your PC by USB port.
Q: Do you have the matched software?
A:Yes, we can supply the matahced software to set all kinds of measure parameters.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be deliveried in 3-5 working days after receiving your payment. But it depends on your quantity.
