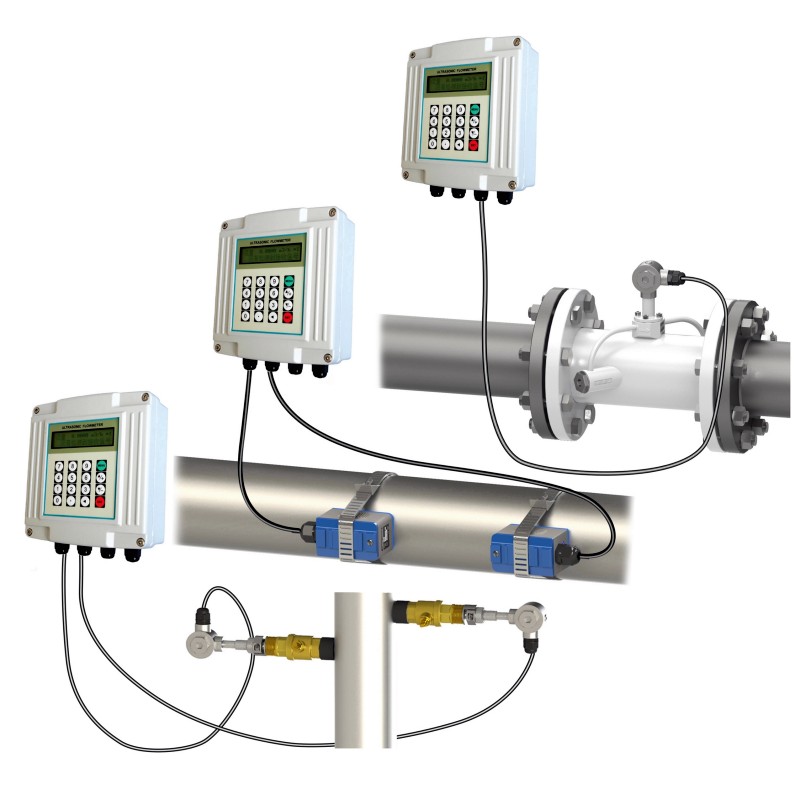

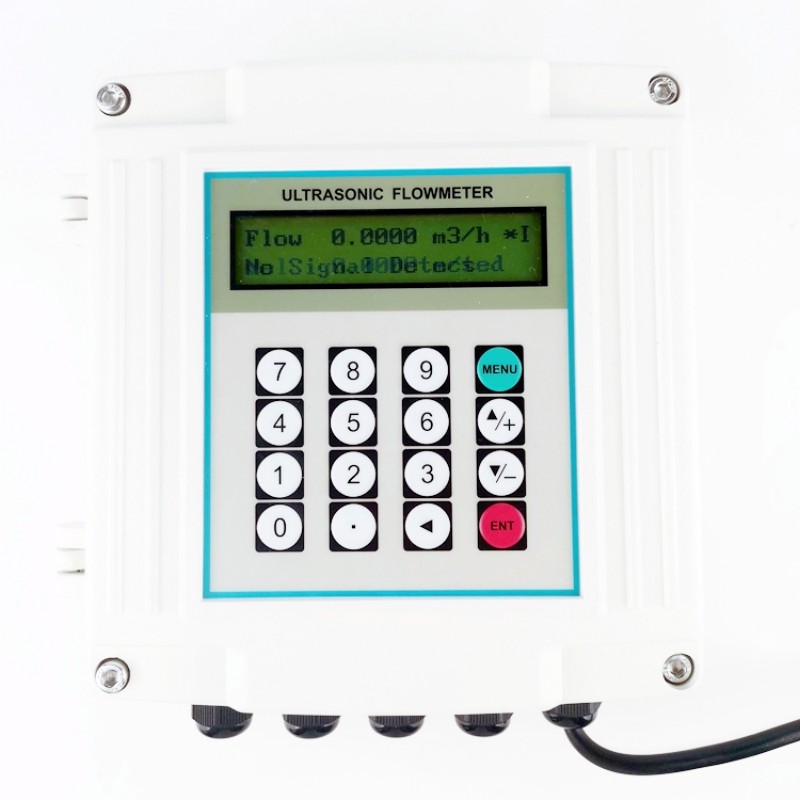

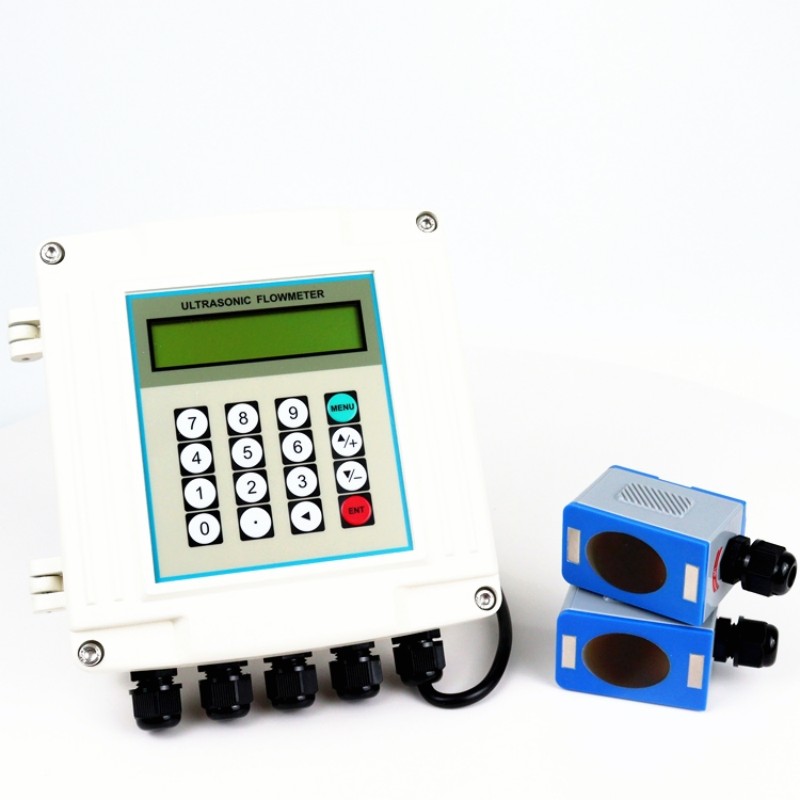

Clamp On Type Ultrasonic Water Flow Meter
Product Details
Product Application
It can be widely used in petroleum, chemical industry, metallurgy, electric power, water supply and drainage and other fields.
Product Parameters
| Product Name | Ultrasonic Flowmeter |
| Install method | Supply the install video |
| Output signal | 4-20mA analog/OTC pulse/Relay signal |
| Power supply | DC8v~36v ; AC85v~264v |
| Measuring Pipesize | DN15mm~DN6000mm |
| Interface&Protocol | RS485; MODBUS |
| Ingress Protection | Main unit:IP65; Transducers:IP68 |
| Accuracy | ±1% |
| Medium temperature | -30℃~160℃ |
| Medium | Single liquid like water,sewage,oil,etc. |

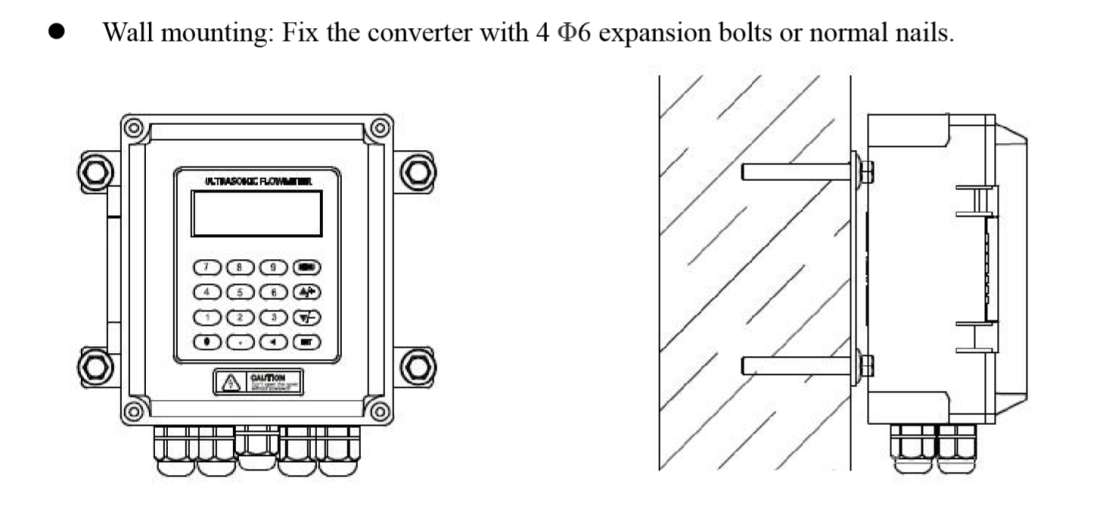

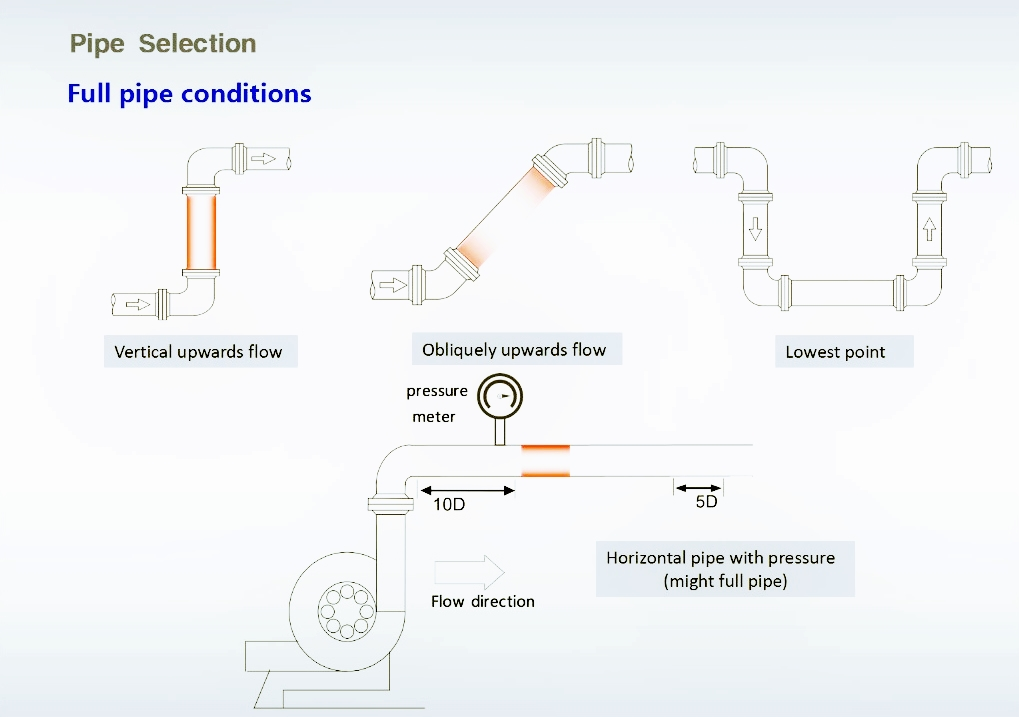

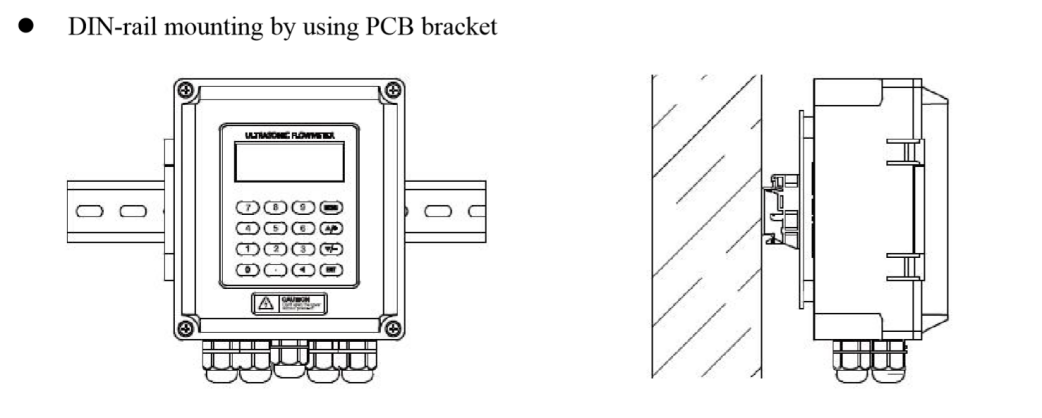

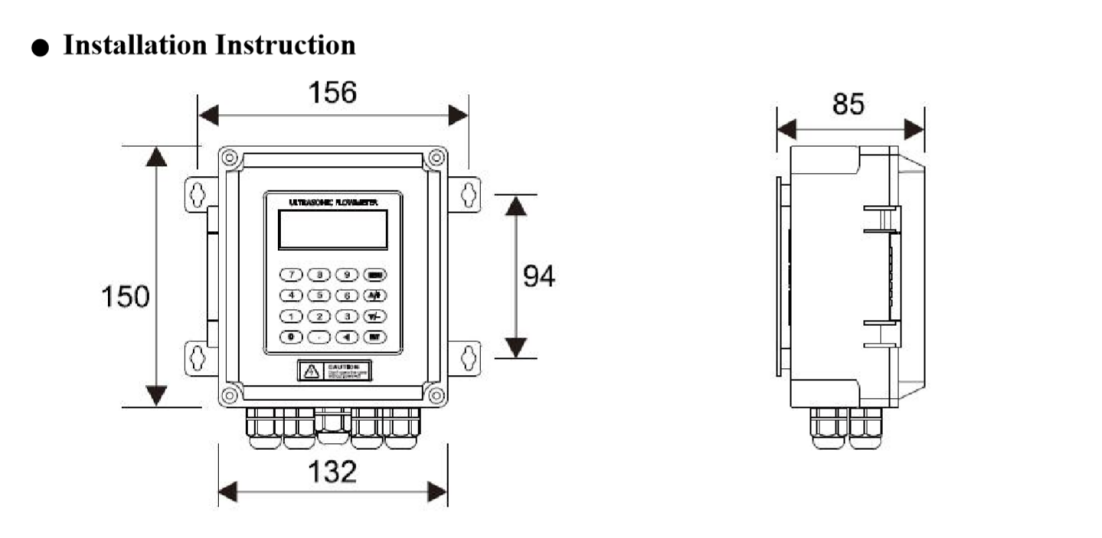

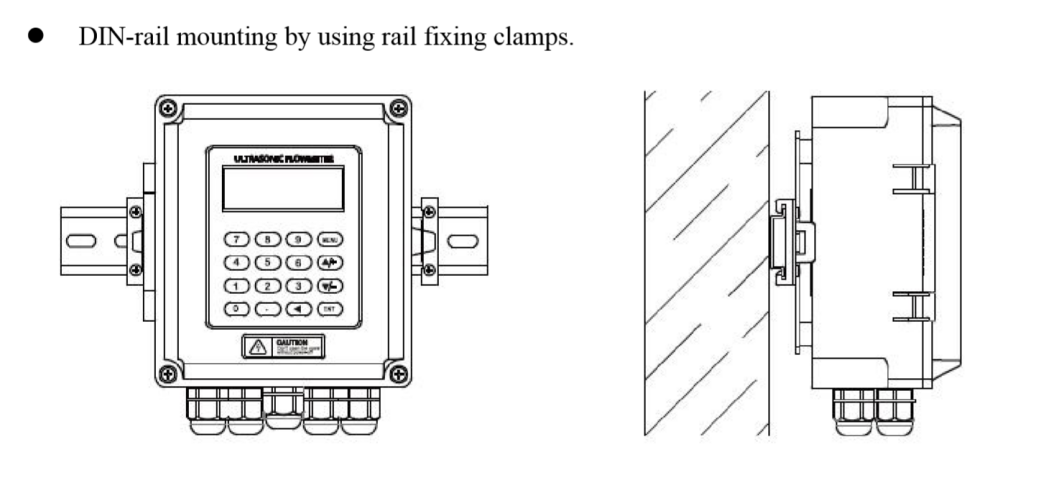

Product Installation
FAQ
Q: How to install this meter?
A: Do not worry, we can supply the video for you to install it to Avoid measurement errors caused by incorrect installation.
Q:What is the warranty?
A: Within one year, free replacement, one year later, responsible for maintenance.
Q:Can you add my logo in the product?
A: Yes, we can add your logo in the ADB Label, even 1 pc we can also supply this service.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol .We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.
Q: Do you have servers and software?
A:Yes, we can provide servers and software.
Q:Are you manufactures?
A: Yes, we are research and manufacture.
Q:What about the delivery time?
A: Normally it take 3-5 days after the stable testing, before delivery, we keep sure every PC quality.
