IOT Server Cloud Software Data Logger Seven Meteorological parameters Weather Station

Short Description:

7 in 1 compact weather station can integrate all kinds weather parameters including the air temperature humidity pressure ultrasonic wind speed direction radiation and the others can be custom made , like PM2.5 PM10 Noise and so on with small size and high accuracy.We can provide servers and software, and support various wireless modules, GPRS, 4G, WIFI, LORA, LORAWAN.

Send email to us Download

Product Detail

Product Tags

Video

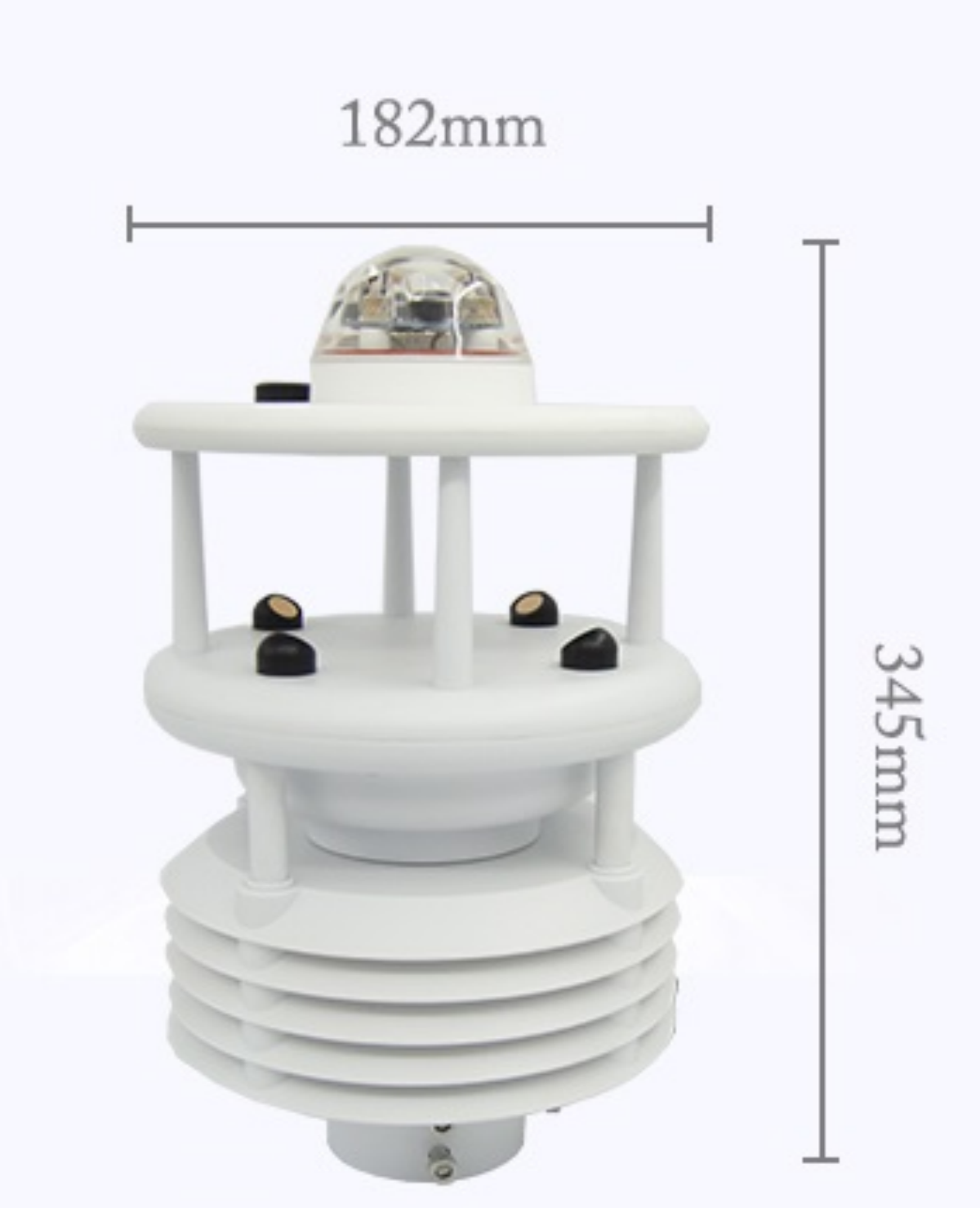

Product details

1.Infrared rain sensor

2.Total Radiation

3.North arrow

4. Wind direction,speed ultrasonic probe

5. Control circuit

6. Louver (temperature, humidity, air pressure PM2.5,PM10 monitoring position,

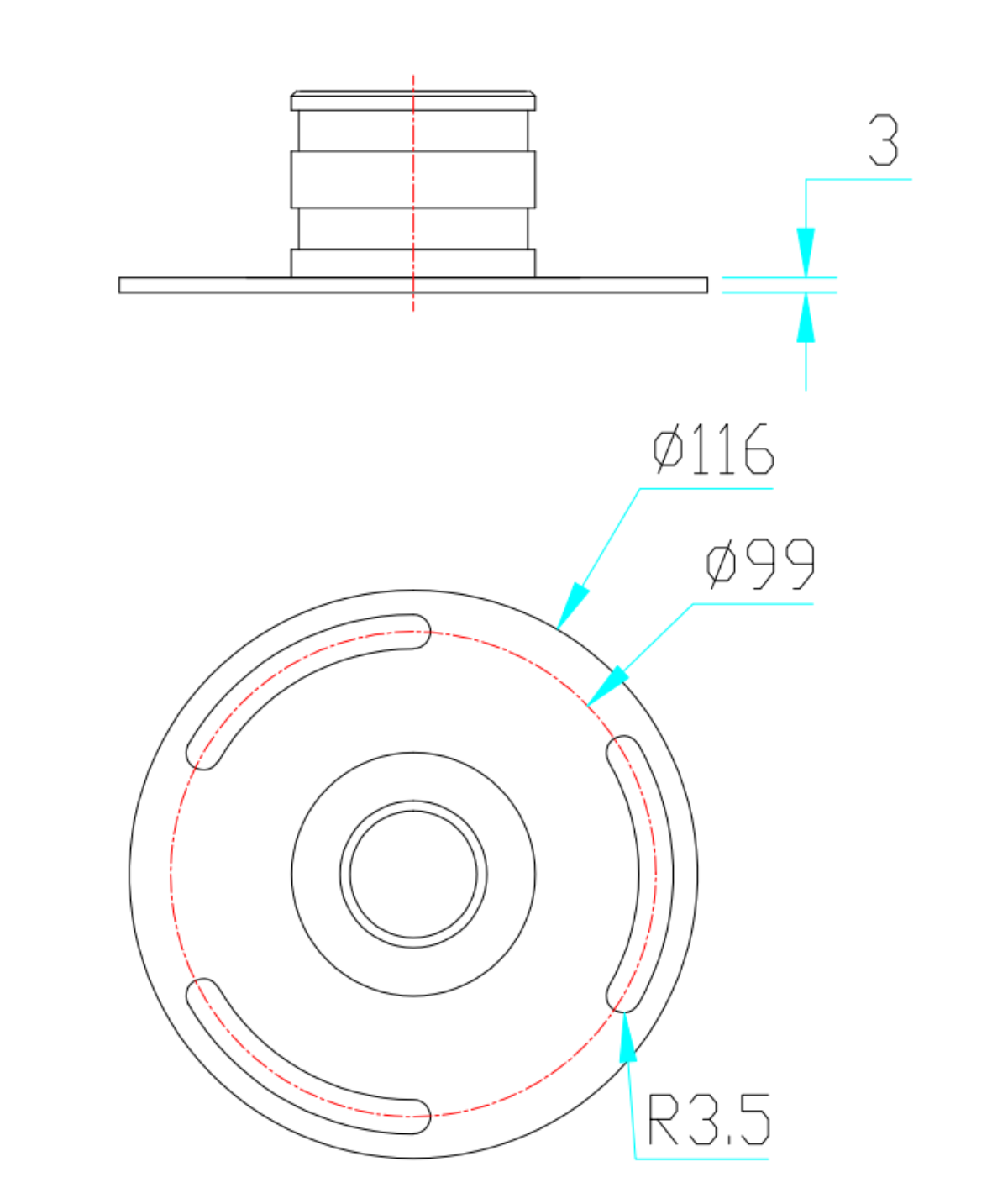

7. Bottom fixing flange
※ This product can be equipped with electronic compass, GPRS (built-in) / GPS (choose one)

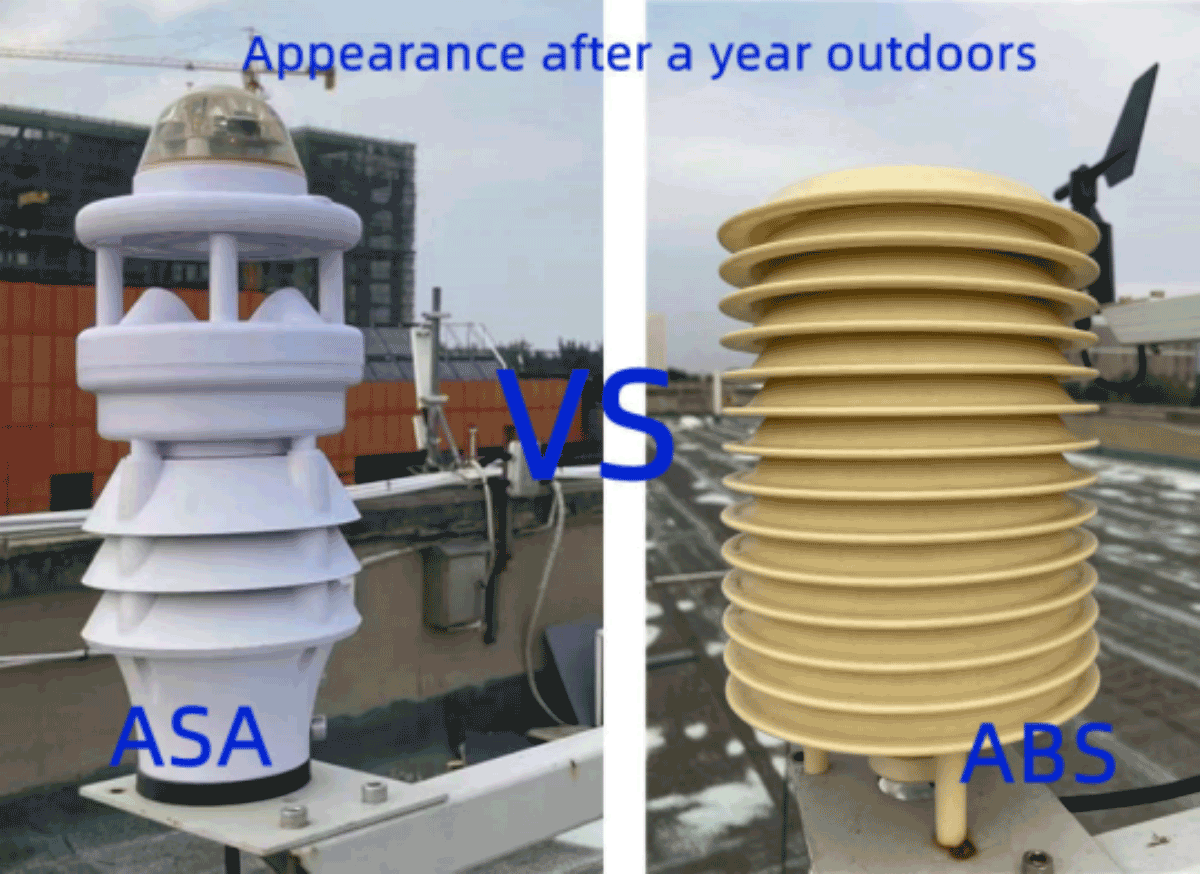

The outer shell of the weather station is made of ASA engineering plastic, which is not afraid of sunlight and oxidation, and can be used in the outdoors for up to 10 years. The rightmost weather station is not this type of weather station, but the same shell ASA material.

Features

Optical rain gauge

Built-in high-precision optical probes accurate measurement and high sensitivity, No maintenance required.

Total radiation

Measuring the total solar radiation with a range of 0-2000W/M2, weather stations can be used in more application scenarios, such as solar power stations.

Ultrasonic wind speed and direction

No rotating parts, will not occur due to the rotation of wear and aging problems, high sensitivity. It is not susceptible to rain, fog, sand and other environmental hazards, and the maintenance cost is lower.

Air temperature Tumidity Pressure

It adopts advanced sensing technology to measure in real time, with high measurement accuracy and stable performance. Compact and beautiful structure. According to the demand can also be customized PM2.5 PM10 noise and other parameters.

RS485 output, can integrate Lora Lorawan WIFI 4G GPRS,We have the matched server and software , real-time data, data curve, data download, data alarm can be viewed on the computer and mobile phone.

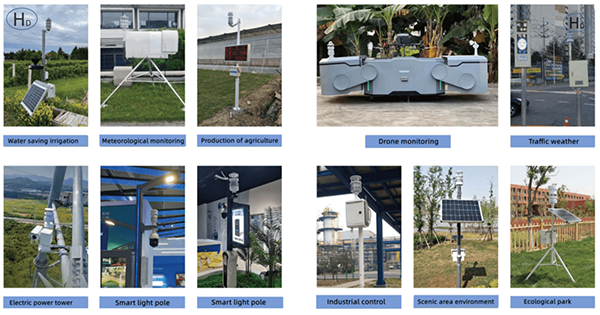

Product Application

It can be used in meteorology, industry, agriculture, hydrology and water conservancy, environmental protection, wind power generation, highways, airports and ports, military, storage, scientific research and other fields.

Product parameters

Measurement parameters
Parameters Name	7 in 1: Ultrasonic wind speed, wind direction, Air temperature, Air relative humidity, Atmospheric pressure,Rainfall,Total Radiation
Parameters	Measure range	Resolution	Accurancy
Wind speed	0-60m/s	0.01m/s	（0-30m/s）±0.3m/s or ±3%FS
Wind direction	0-360°	0.1°	±2°
Air temperature	-40-60℃	0.01℃	±0.3℃（25℃）
Air relative humidity	0-100%RH	0.01%	±3%RH
Atmospheric pressure	300-1100hpa	0.1hpa	±0.5hpa（0-30℃）
Total Radiation	0-2000W/M2	1W	±3%
Rainfall	0-200mm/h	0.1mm	±10%
* Other customizable parameters	Ultraviolet, CO,SO2, NO2, CO2, O3
Technical parameter
Stability	Less than 1% during the life of the sensor
Response time	Less than 10 seconds
Warm-up time	30S (SO2 \ NO2 \ CO \ O3 12 hours)
Working current	DC12V≤60ma (HCD6815) -DC12V≤180ma
Power consumption	DC12V≤0.72W (HCD6815); DC12V≤2.16W
Life time	In addition to SO2 \ NO2 \ CO \ O3 \ PM2.5 \ PM10 (normal environment for 1 year, high pollution environment is not guaranteed), life is not less than 3 years
Output	RS485, MODBUS communication protocol
Housing material	ASA engineering plastics
Working environment	Temperature -30 ～ 70 ℃, working humidity: 0-100%
Storage conditions	-40 ~ 60 ℃
Standard cable length	3 meters
The farthest lead length	RS485 1000 meters
Protection level	IP65
Electronic compass	Optional
GPS	Optional
Wireless transmission
Wireless transmission	LORA / LORAWAN(EU868MHZ,915MHZ), GPRS, 4G,WIFI
Mounting Accessories
Stand pole	1.5 meters, 2 meters ,3 meters higth, the other higth can be customize
Equiment case	Stainless steel waterproof
Ground cage	Can supply the matched ground cage to burried in the ground
Lightning rod	Optional(Used in thunderstorm places)
LED display screen	Optional
7 inch touch screen	Optional
Surveillance cameras	Optional
Solar power system
Solar panels	Power can be customized
Solar Controller	Can provide matched controller
Mounting brackets	Can provide the matched bracket

Product installation

FAQ

Q: What are the main features of this product?
A: It is a built-in heating device, which will automatically melt in case of ice and snow, without affecting the measurement of parameters.

Q: What’s the common power supply and signal output?
A: Common power supply is DC: 5-24 V/ 12 ~ 24V DC, It can be 0-5V,0-10V,4-20mA, RS485 output

Q: Where can this product be applied?
A:It can be widely used in meteorology, agriculture, environment, airports, ports, awnings, outdoor laboratories, marine and
transportation fields.

Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.

Q: Can you supply the data logger?
A:Yes, we can supply the matched data logger and screen to show the real time data and also store the data in excel format in the U disk.

Q: Can you supply the cloud server and the software?
A: Yes, if you buy our wireless modules, we can supply the matched server and software for you, in the software, you can see the real time data and also can download the history data in the excel format.

Q: Could I get samples or how to place the order?
A:Yes,we have materials in stock to help you to get the samples as soon as we can. If you want to place the order, just click the following banner and send us an inquiry.

Q: What's the delivery time?
A: Usually, the goods will be delivery in 1-3 working days after receiving your payment. But it depends on your quantity.
