RS485 LORA LORAWAN Wireless Weather Monitoring System 5 IN 1 Compact Weather Station
Video
Features
1. 5 in 1 weather station with high precise measurement
Air temperature humidity pressure ultrasonic wind speed and wind direction with data acquisition adopts 32-bit high-speed processing chip with high precision and reliable performance
2. Ultrasonic wind speed and direction sensor
High precise free maintenance wind speed and direction sensor.
3.Air temperature humidity pressure
It can measure the air temperature humidity ,atmospheric pressure at the same time.
4. Reserve an expandable interface
It can integrate the other weather sensors , soil sensors, water sensors and so on.
5.Multiple wireless output methods
RS485 modbus protocol and can use the LORA/ LORAWAN/ GPRS/ 4G/WIFI wireless data transmission, and the LORA LORAWAN frequence can be custom made.
6.Send matched cloud server and software
The matched cloud server and software can be supply if using our wireless module.
It has basic three functions:
1. See real time data in the PC end
2. Download the history data in excel type
3. Set alarm for each parameters which can send the alarm information to your email when the measured data are out range.
7.Multi-parameter integration
This weather station integrate the air temperature humidity pressure rainfall and also can integrate the wind speed , wind direction,soil temperature, soil moisture,soil EC and so on.
Product Application
Application field
● Weather monitoring
● Urban environmental monitoring
● Wind power
● Navigation ship
● Airport
● Bridge tunnel
Product parameters
|
Measurement parameters |
|||
| Parameters Name | 5 in 1: Air temperature, Air relative humidity, Atmospheric pressure, ultrasonic wind speed and direction | ||
| Parameters | Measure range | Resolution | Accurancy |
| Air temperature | -40-60℃ | 0.01℃ | ±0.3℃（25℃） |
| Air relative humidity | 0-100%RH | 0.01% | ±3%RH |
| Atmospheric pressure | 500-1100hPa | 0.1hPa | ±0.5hPa（25℃，950-1100hPa） |
| Wind speed | 0-40m/s | 0.01m/s | ±（0.5+0.05V）m/s |
| Wind direction | 0-360° | 0.1° | ±5° |
| * Other customizable parameters | Radiation, PM2.5,PM10,Ultraviolet, CO,SO2, NO2, CO2, O3 | ||
|
Monitoring principle |
Air temperature and humidity: Swiss digital temperature and humidity sensor | ||
| Wind speed and direction: Ultrasonic sensor | |||
| Technical parameter | |||
| Stability | Less than 1% during the life of the sensor | ||
| Response time | Less than 10 seconds | ||
| Warm-up time | 30S | ||
| Supply voltage | 9-24VDC | ||
| Working current | DC12V≤180ma | ||
| Power consumption | DC12V≤2.16W | ||
| Life time | In addition to SO2 \ NO2 \ CO \ O3 \ PM2.5 \ PM10 (normal environment for 1 year, high pollution environment is not guaranteed),
life is not less than 3 years |
||
| Output | RS485, MODBUS communication protocol | ||
| Housing material | ASA engineering plastics which can be used for 10 years outside | ||
| Working environment | Temperature -30 ～ 70 ℃, working humidity: 0-100% | ||
| Storage conditions | -40 ~ 60 ℃ | ||
| Standard cable length | 3 meters | ||
| The farthest lead length | RS485 1000 meters | ||
| Protection level | IP65 | ||
| Electronic compass | Optional | ||
| GPS | Optional | ||
| Wireless transmission | |||
| Wireless transmission | LORA / LORAWAN(eu868mhz,915mhz,434mhz), GPRS, 4G,WIFI | ||
| Cloud Server and Software introduce | |||
| Cloud server | Our cloud server is bind up with the wireless module | ||
| Software function | 1. See real time data in the PC end | ||
| 2. Download the history data in excel type | |||
| 3. Set alarm for each parameters which can send the alarm information to your email when the measured data are out range. | |||
| Mounting Accessories | |||
| Stand pole | 1.5 meters, 1.8 meters ,3 meters higth, the other higth can be customize | ||
| Equiment case | Stainless steel waterproof | ||
| Ground cage | Can supply the matched ground cage to buried in the ground | ||
| Lightning rod | Optional(Used in thunderstorm places) | ||
| LED display screen | Optional | ||
| 7 inch touch screen | Optional | ||
| Surveillance cameras | Optional | ||
| Solar power system | |||
| Solar panels | Power can be customized | ||
| Solar Controller | Can provide matched controller | ||
| Mounting brackets | Can provide the matched bracket | ||

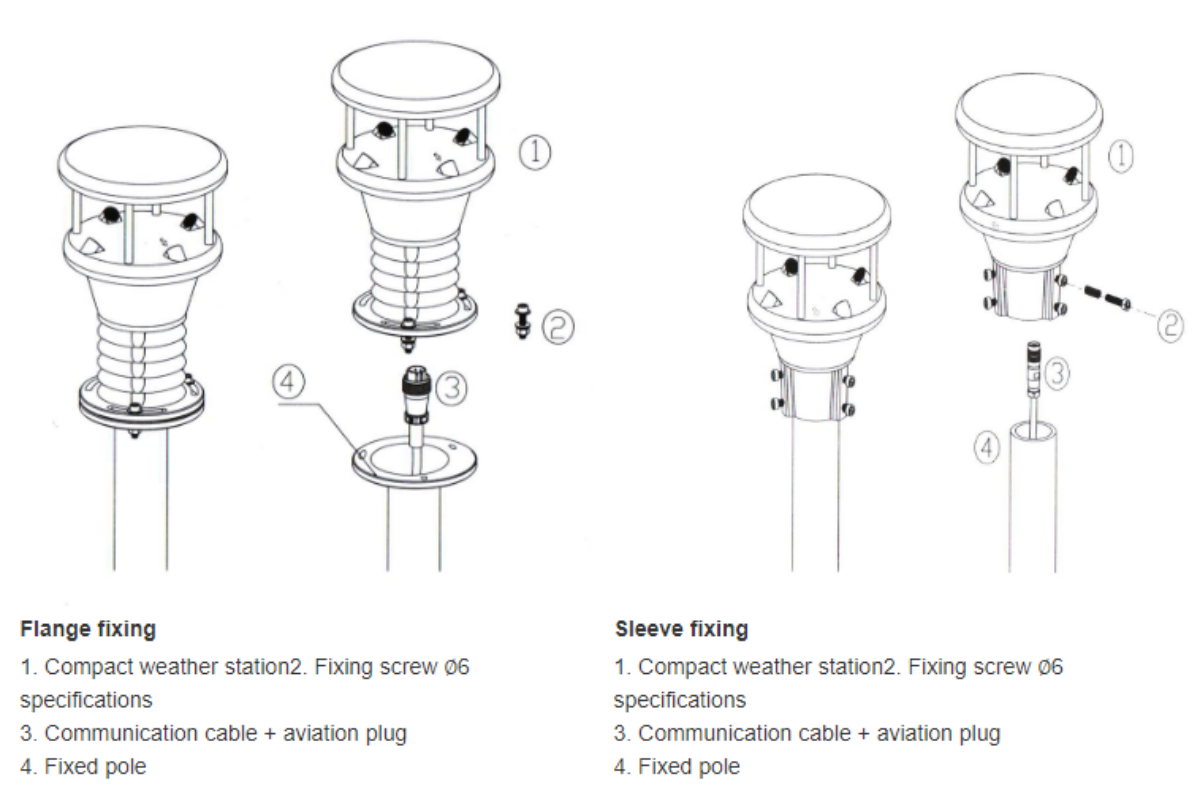

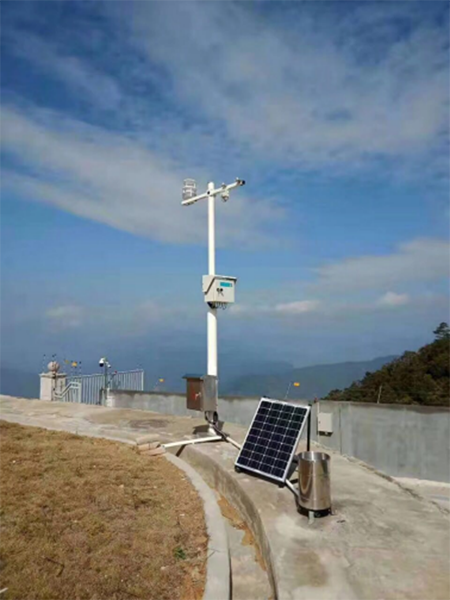

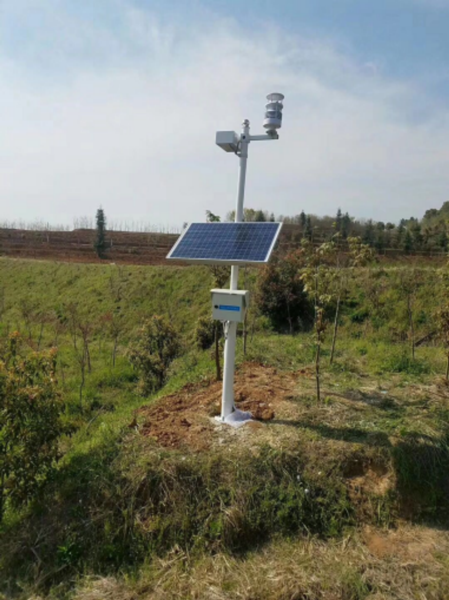

Product installation
FAQ
Q: What are the main features of this product?
A: It is a built-in heating device, which will automatically melt in case of ice and snow, without affecting the measurement of parameters.
Q: What’s the common power supply and signal output?
A: Common power supply is DC: 5-24 V/ 12 ~ 24V DC, It can be 0-5V,0-10V,4-20mA, RS485 output
Q: Where can this product be applied?
A:It can be widely used in meteorology, agriculture, environment, airports, ports, awnings, outdoor laboratories, marine and
transportation fields.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.
Q: Can you supply the data logger?
A:Yes, we can supply the matched data logger and screen to show the real time data and also store the data in excel format in the U disk.
Q: Can you supply the cloud server and the software?
A: Yes, if you buy our wireless modules, we can supply the matched server and software for you, in the software, you can see the real time data and also can download the history data in the excel format.
Q: Could I get samples or how to place the order?
A:Yes,we have materials in stock to help you to get the samples as soon as we can. If you want to place the order, just click the following banner and send us an inquiry.
Q: What's the delivery time?
A: Usually, the goods will be delivery in 1-3 working days after receiving your payment. But it depends on your quantity.
