RS485 4-20MA OUTPUT LORA LORAWAN Soil Water Potential Sensor

Short Description:

The soil water potential sensor can be easily inserted into the soil profile pit and wrapped with wet soil. Measuring and recording is very simple. Maintenance-free and calibration-free, it can measure a wide range of soil water potential; no irrigation is required, and its large range makes it an ideal sensor for measuring water potential in natural systems.We can provide servers and software, and support various wireless modules, GPRS, 4G, WIFI, LORA, LORAWAN.

Send email to us Download

Product Detail

Product Tags

Product Features

● The automatic calibration device is used to calibrate the sensor one by one, and the accuracy is greatly improved.

● There is no drift caused by degradation of ceramic materials.

● Just bury the sensor, set the clock and measurement interval, you can start to collect data without programming.

● Epoxy resin overlapping injection molding process ensures that it is suitable for long-term field monitoring research.

● Can provide servers and software, can integrate LORA LORAWAN WIFI 4G GPRS, can view data on mobile phones and PCS.

Product use

● First determine the installation depth and position of soil water potential;

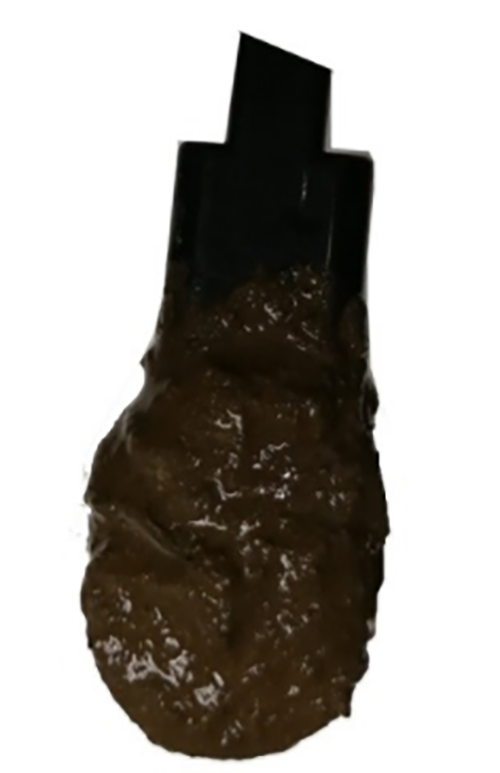

● Take a soil sample at the installation position, add water and mud to the soil sample, and fill the soil water potential sensor with mud;

● The sensor covered with mud is buried to the installation position, and the soil can be backfilled.

Product Applications

This product can be widely used in irrigation, drainage, to provide scientific basis for crop growth and dry areas, frozen soil, roadbed and other fields of soil water research.

Product Parameters

Product Name	Soil water potential sensor
Sensor type	Ceramic material
Measuring range	-100~-10kPa
Response time	200ms
Accuracy	±2kPa
Power consumption	3~5mA
Output signal	A:RS485 (standard Modbus-RTU protocol, device default address: 01)
Output signal	B:4 to 20 mA (current loop)
Output signal with wireless	A:LORA/LORAWAN
	B:GPRS
	C:WIFI
	D:NB-IOT
Supply voltage	5 ~ 24V DC (when the output signal is RS485) 12~24VDC (when the output signal is 4~20mA)
Working temperature range	-40～85°C
Operating humidity	0 ~ 100%RH
Response time	-40 ~ 125°C
Storage humidity	< 80% (no condensation)
Weight	200 (g)
Dimensions	L 90.5 x W 30.7 x H 11 (mm)
Waterproof grade	IP68
Cable specification	Standard 2 meters (can be customized for other cable lengths, upto 1200 meters)

FAQ

Q: What's the main characteristics of this soil moisture sensor?

A: It is ceramic materials material and measuring a wide range of soil water potential without maintenance and calibration,good sealing with IP68 waterproof, can totally buried in the soil for the 7/24 continuous monitoring.

Q:Could I get samples?

A:Yes,we have materials in stock to help you to get the samples as soon as we can.

Q: What’s the common power supply and signal output?

A: 5 ~ 24V DC (when the output signal is RS485)

12~24VDC (when the output signal is 4~20mA)

Q: How can I collect data?

A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module if you need.

Q: What's the standard cable length?

A: Its standard length is 2m. But it can be customized, MAX can be 1200 meters.

Q: What's the lifetime of this Sensor?

A: At least 3 years or more.

Q: May I know your warranty?

A: Yes, usually it’s 1 year.

Q:What's the delivery time?

A: Usually, the goods will be delivered in 1-3 working days after receiving your payment. But it depends on your quantity.
