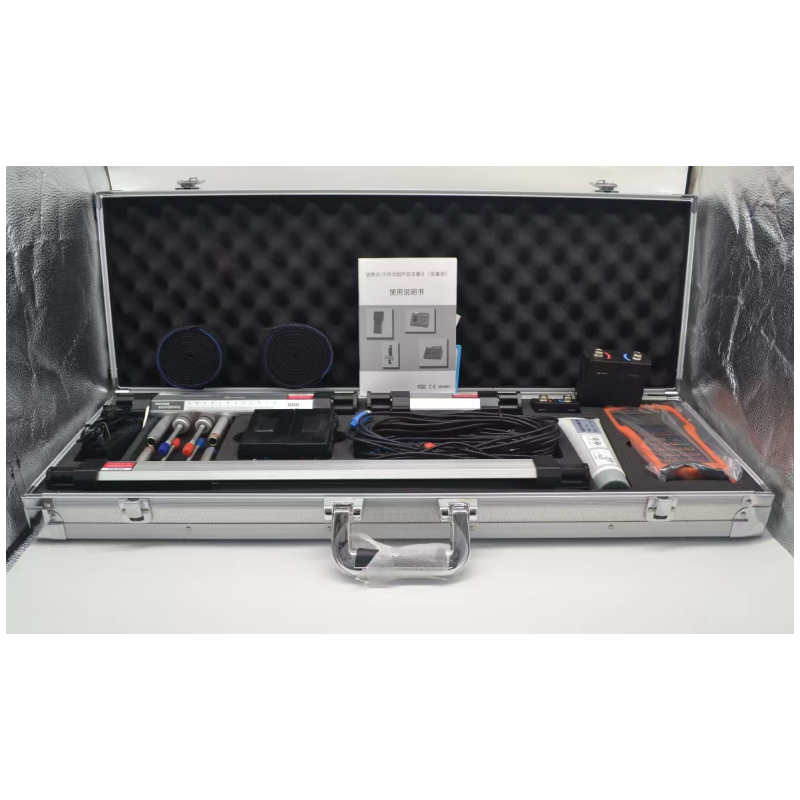

Handheld Ultrasonic Flowmeter
Product Features
*the signal receiving circuits feature self-adapting performance so as to ensure that the user can easily operate the instrument without any adjustment.
*the built-in rechargeable Ni-MH battery can work continuously for more than 12 hours without recharging.
* Large-screen LCD
* Non-contacting measuring
* Built-in data-logger
* Built-in rechargeable battery
* High accuracy measuring
* Wide measuring range
Product Applications
The flow meter can be virtually applied to a wide range of measurements. A variety of liquid applications can be accommodated: ultra-pure liquids, potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent, etc. Because the instrument and transducers are non-contacting and have no moving parts, the flow meter can not be affected by system pressure, fouling or wear. Standard transducers are rated to 110 ºC. Higher temperatures can be accommodated. For further information, please consult the manufacturer for assistance.
Product Parameters
|
Linearity |
0.5% |
|
Repeatability |
0.2% |
|
Output signal |
Pulse/4-20mA |
|
Water flow range |
It depends on the pipe size, please check the following |
|
Accuracy |
±1% of reading at rates>0.2 mps |
|
Response Time |
0-999 seconds, user-configurable |
|
Water velocity range |
0.03~10m/s |
|
Velocity |
±32 m/s |
|
Pipe Size |
DN13-DN1000mm |
|
Totalizer |
7-digit totals for net, positive and negative flow respectively |
|
Liquid Types |
Virtually all liquids |
|
Security |
Setup values Modification Lockout. Access code needs unlocking |
|
Display |
4x8 Chinese characters or 4x16 English letters 64 x 240 pixel graphic display |
|
Communication Interface |
RS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made by user requirements |
|
Transducer Cord Length |
Standard 5m x 2, optional 10m x 2 |
|
Power Supply |
3 AAA built-in Ni-H batteries. When fully recharged it will last over 14 hours of operation. 100V-240VAC for the charger |
|
Data Logger |
Built-in data logger can store over 2000 lines of data |
|
Manual Totalizer |
7-digit press-key-to-go totalizer for calibration |
|
Housing Material |
ABS |
|
Case Size |
210x90x30mm |
|
Main unit Weight |
500g with batteries |
FAQ

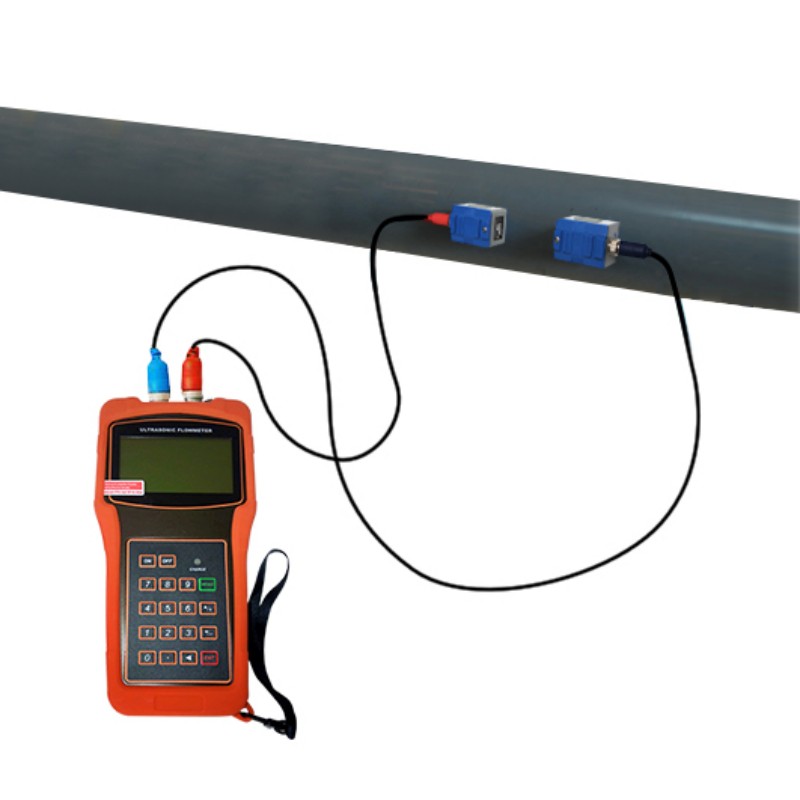

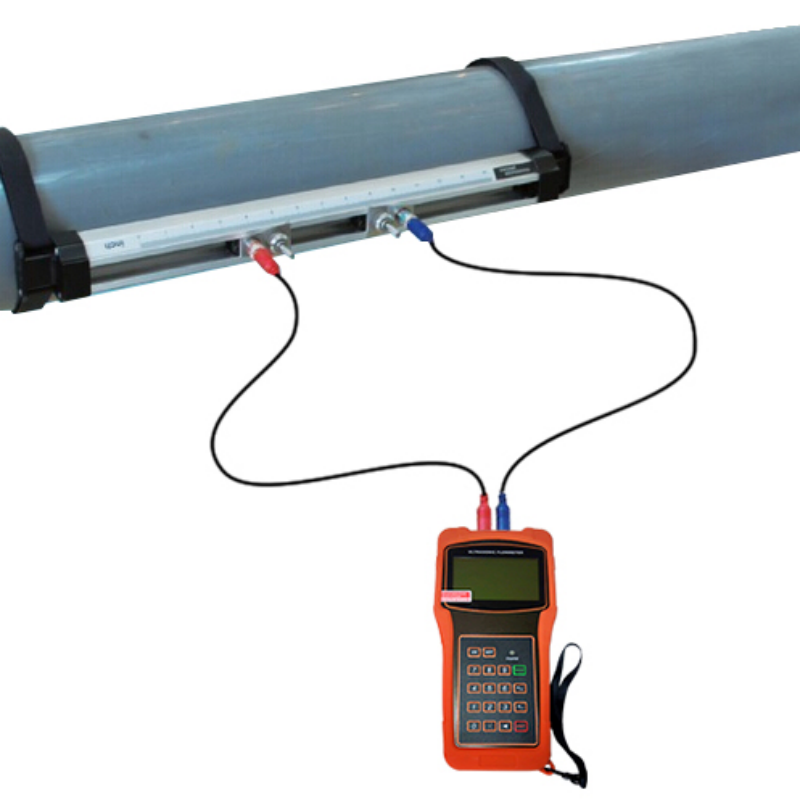

Q: How to install this meter?
A: Do not worry, we can supply the video for you to install it to Avoid measurement errors caused by incorrect installation.
Q:What is the warranty?
A: Within one year, free replacement, one year later, responsible for maintenance.
Q:Can you add my logo in the product?
A: Yes, we can add your logo in the ADB Label, even 1 pc we can also supply this service.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol .We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.
Q: Do you have servers and software?
A:Yes, we can provide servers and software.
Q:Are you manufactures?
A: Yes, we are research and manufacture.
Q:What about the delivery time?
A: Normally it take 3-5 days after the stable testing, before delivery, we keep sure every PC quality.
