RS485 Output Electronic Water Level Sensor

Short Description:

The electronic water gauge collects water depth information through a series of electrodes arranged at equal intervals. The electrodes of the collection circuit present different potentials in different conductivity. According to the potential status, it is judged whether the electrodes are submerged in the water, and the water depth is judged according to the number of electrodes submerged in the water. We can provide servers and software, and support various wireless modules, GPRS, 4G, WIFI, LORA, LORAWAN.


Download

Product Detail

Product Tags

Features

● Precision measurement of 1CM

● Chip lightning protection, anti-interference

● Protected from extreme weather

● Waterproof, rust proof, frost proof, heat resistant, aging resistant

● It is not affected by pollutants and precipitates such as mud, dirty liquid and corrosive liquid

● Multiple signal output: RS485

● Data without conversion, display data that water level data

● The measuring range of the water scale can be customized and expanded freely

● Equal precision measurement，Default accuracy: 1CM, customizable accuracy: 0.5CM

●Stainless steel protective shell，Advanced production technology, with high feasibility and anti-interference performance

●Aging resistance

●Heat resistance

●Freezing resistance

●Corrosion resistance

●Not affected by atmospheric temperature/pressure/temperature/sand content/freezing and other external factors

Product advantage

This product adopts advanced production technology, the use of stainless steel material as the shell protection material, the internal use of high sealing material for special treatment, so that the product is not affected by mud, corrosive liquid, pollutants, sediment and other external environment.

Send matched cloud server and software

Can use the LORA/ LORAWAN/ GPRS/ 4G/WIFI wireless data transmission.

It can be RS485 output with wireless module and matched server and software to see real time in PC end

Application

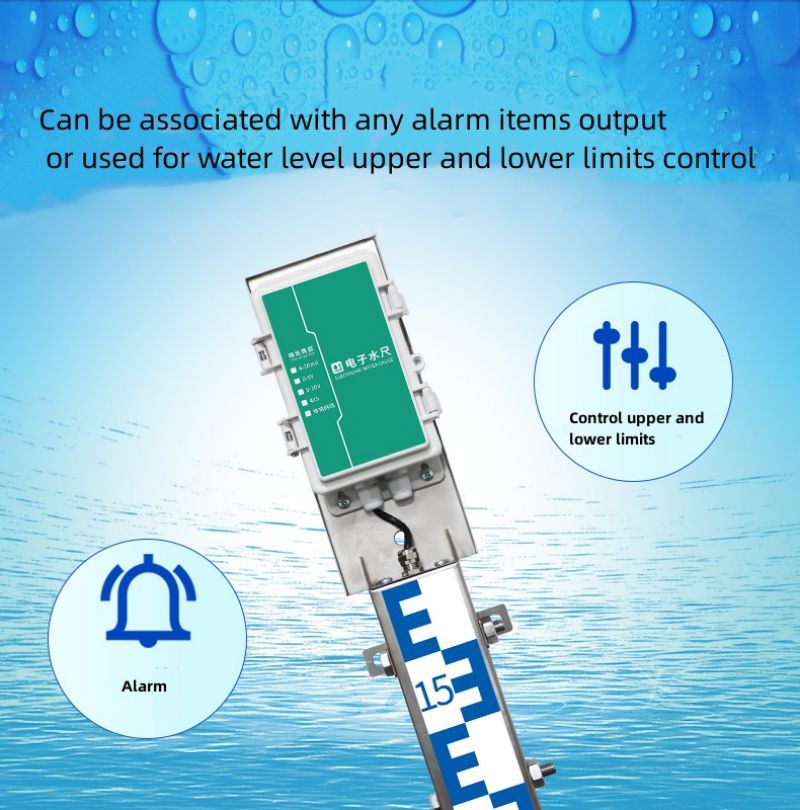

It can be used to monitor water level in rivers, lakes, reservoirs, hydropower stations, irrigation areas and water transmission projects. It can also be applied to water level monitoring in municipal engineering such as tap water, urban sewage treatment, urban road water. This product with one relay, can be used in underground garage, underground shopping mall, ship cabin, irrigation aquaculture industry and other civil engineering monitoring and regulation.

water level gauge 12
water level gauge 10

Product parameters

Product name Electronic water level sensor
Dc power supply (default) DC 10~30V
Accuracy of water level measurement 1cm (full range equal precision)
Resolution 1cm
Output mode RS485 (Modbus protocol)
Parameter setting Use the provided configuration software to perform configuration through port 485
Maximum power consumption of main engine 0.8w
Range 50cm, 100cm, 150cm, 200cm, 250cm, 300cm... 80cm, 160cm, 240cm, 320cm, 400cm, 480cm......980cm And the length of the 50cm and 80cm
electronic water gauge section in any combination
Maximum power consumption of a single water-saving ruler 0.05w
Installation mode Wall mounted
Hole size 86.2 mm
Punch size 10mm
Protection class Host IP54
Protection class Slave IP68

FAQ

Q:What is the warranty?

A:Within one year, free replacement, one year later, responsible for maintenance.

Q:Can you add my logo in the product?

A:Yes, we can add your logo in the laser printing, even 1 pc we can also supply this service.

Q:What is the maximum range of an electronic water gauge?

A:We can customize the range according to your requirements, up to 980cm.

Q:Does the product have a wireless module and an accompanying server and software?

A:Yes,It can be RS485 output and we can also supply the all kinds wireless module GPRS, 4G, WIFI , LORA , LORAWAN and also the matched server and software to see the real time data in the PC end.

Q:Are you manufactures?

A:Yes, we are research and manufacture.

Q:What about the delivery time?

A:Normally it take 3-5 days after the stable testing, before delivery, we keep sure every sensor quality.
