Server software LORA LORAWAN RS485 4-20MA MODBUS Water Turbidity Sensor
Video
Product Features
● High integration, small size, low power consumption, easy to carry.
● Realize low cost, low price and high performance.
● Long life, convenience and high reliability.

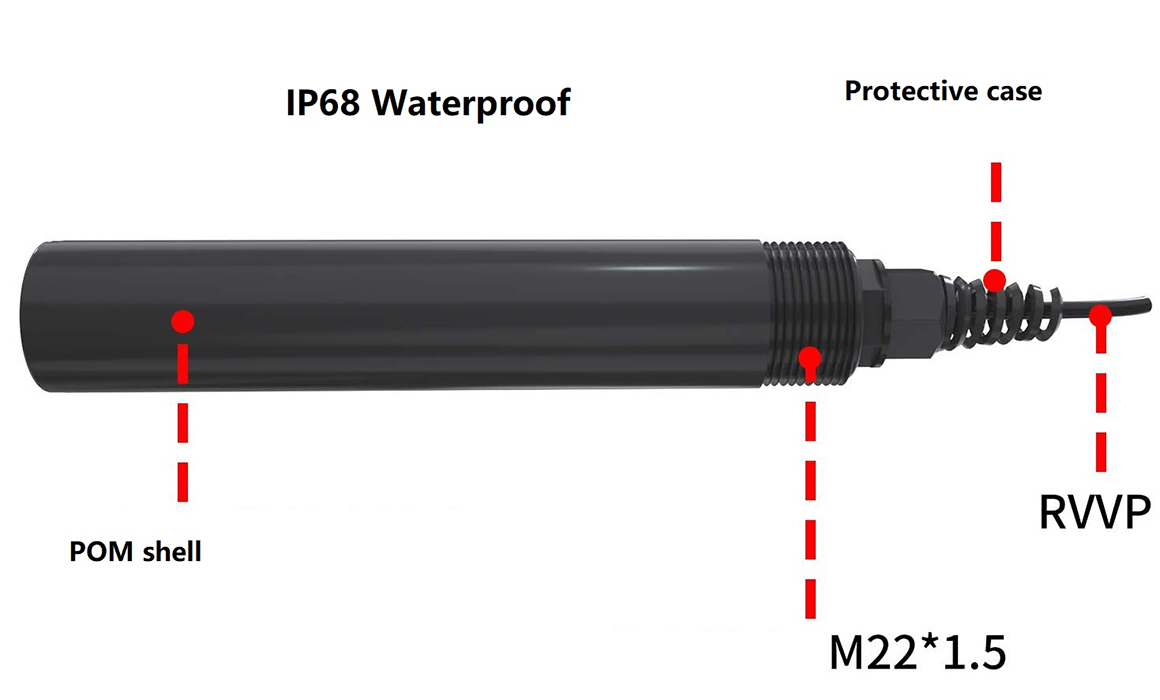

● Up to four is olations, able to resist complicated interference on site, waterproof grade IP68.
● The electrode adopts high-quality low-noise cable, which can make the signal output length reach more than 20 meters.
● Upgrade the lighting circuit, which can be used directly under the light.
● It can measure clean water to sewage, wide range and stable data.
● It can be RS485, 4-20mA, 0-5V, 0-10V output with wireless module and matched server and software to see real time in PC end.
Product Advantage

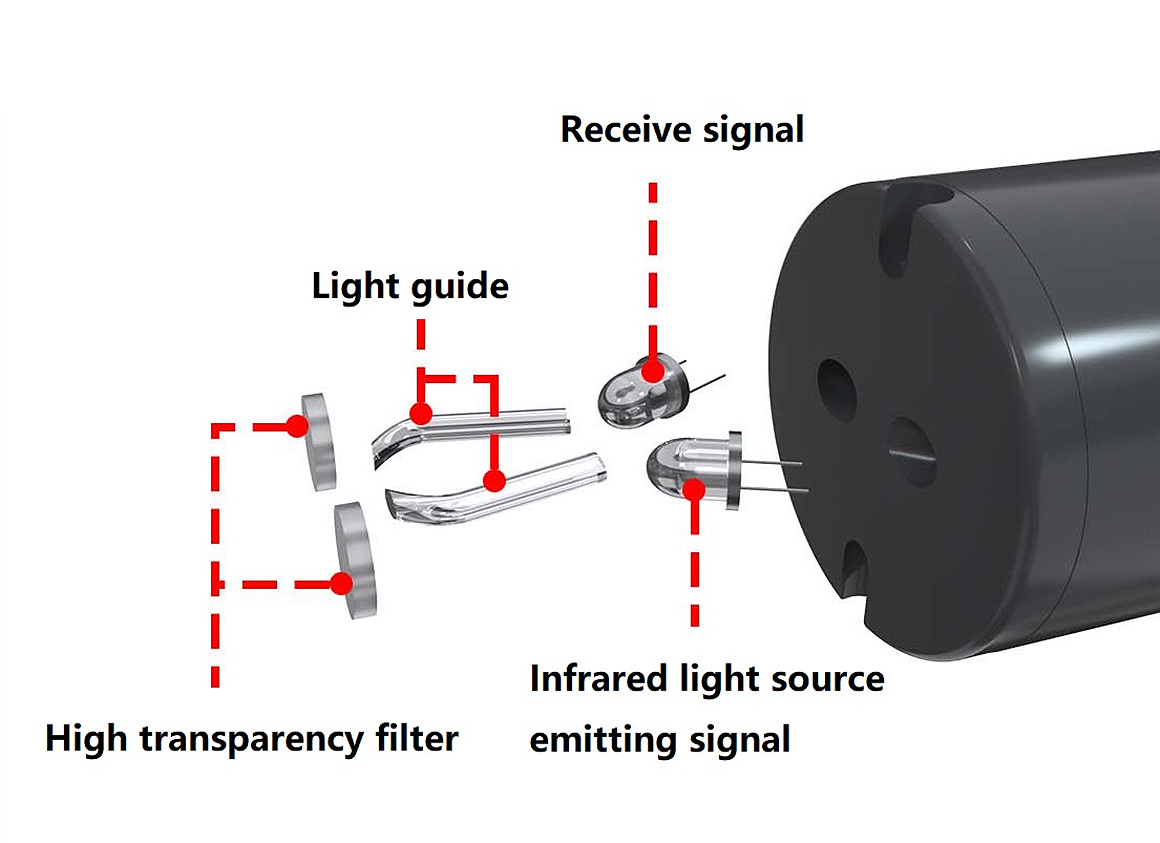

Our circuit board and internal optical path have been upgraded to avoid light, which can be completely shielded from light and can be used directly in the sun without affecting the measurement of the actual turbidity value.
Product Applications
It can be widely used in chemical fertilizer, metallurgy, environmental protection water treatment engineering, pharmaceutical, biochemical, food, aquaculture and tap water and other solutions for continuous monitoring of turbidity.
Product Parameters
|
Measurement parameters |
|||
| Parameters name | Water turbidity sensor | ||
| Parameters | Measure range | Resolution | Accurancy |
| Water turbidity | 0.1～1000.0 NTU | 0.1 NTU | ±3% FS |
|
Technical parameter |
|||
| Measuring principle | 90 degree light scattering method | ||
| Digital output | RS485, MODBUS communication protocol | ||
| Analog output | 0-5V, 0-10V,4-20mA | ||
| Housing material | POM | ||
| Working environment | Temperature 0 ～ 60 ℃ | ||
| Standard cable length | 2 meters | ||
| The farthest lead length | RS485 1000 meters | ||
| Protection level | IP68 | ||
|
Wireless transmission |
|||
| Wireless transmission | LORA / LORAWAN, GPRS, 4G,WIFI | ||
|
Mounting Accessories |
|||
| Mounting brackets | 1.5 meters, 2 meters the other higth can be customize | ||
| Measuring tank | Can be customize | ||
| Software | |||
| Server | Matched cloud server can be supplied if you use our wireless modules | ||
| Software | 1. See the real time data | ||
| 2. Download the history data in excel type | |||
FAQ
Q: What's the main characteristics of this water turbidity sensor?
A: No need for shading, can be used directly in the light. It is easy for installation and can measure the water quality online with the RS485 output, 7/24 continuous monitoring.
Q:Could I get samples?
A:Yes, we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 12-24V, RS485. The other demand can be custom made.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Modbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.
Q: Do you have the matched software?
A:Yes, we can supply the matched server and software , you can check the data in real time and download the data from the software, but it need use our data collector and host.
Q: What’s the standard cable length?
A: Its standard length is 2m. But it can be customized, MAX can be 1Km.
Q: What's the lifetime of this Sensor?
A: Normally 1-2 years long.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be delivered in 3-5 working days after receiving your payment. But it depends on your quantity.
