6 In 1 Air Temperature Humidity Pm2.5 Pm10 Noise Illumination Outdoor Weather Station
Video

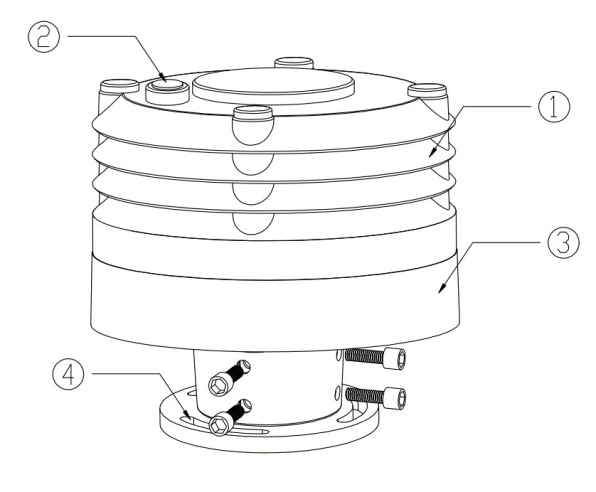

Product Description
1.Louver (temperature, humidity) monitoring
2.Illumination
3.PM2.5, PM10, noise monitoring
4. Bottom fixing flange
Features
●High-precision industrial grade chip
Data acquisition adopts 32-bit high-speed processing chipreal-time monitoring stable performanceanti-interference
●The shell is made of ASA engineering plastic
performance is stronger than ABS, it does not change color after 15 years of outdoor use and its appearance is beautiful.
●RS485 communication interface Can be connected to GPRS,4G,LORA,LORAWAN WIFl modules to achieve wireless transmission
●No wiring, no maintenance
Highly integrated, no wiring, no maintenance, no on- site calibration required
●Send matched cloud server and software
Product Functions
The matched cloud server and software can be supply if using our wireless module. It has basic three functions:
1.See real time data in the PC end
2.Download the history data in excel type
3.Set alarm for each parameters which can send the alarm information to your email when the measured data are out range.
Product Application
Agriculture, airports, parks, scenic spots, construction, highways, cities, wild environments, etc.
Product Parameters
|
Measurement parameters |
|||
| Parameters Name | 6 in 1: Air temperature, Air relative humidity, Illumination,Noise,PM2.5,PM10 | ||
| Parameters | Measure range | Resolution | Accuracy |
| Air temperature | -40-60℃ | 0.01℃ | ±0.3℃（25℃） |
| Air relative humidity | 0-100%RH | 0.01% | ±3%RH |
| Illumination | 0-100klux | 10lux | 3% |
| Noise | 30-130dB | 0.1dB | ±1.5dB |
| PM2.5 | 0-1000ug/m³ | 1ug/m³ | ±10% |
| PM10 | 0-1000ug/m³ | 1ug/m³ | ±10% |
| * Other customizable parameters | Wind speed, wind direction, Air pressure , Rainfall, Total radiation, Ultraviolet, CO,SO2, NO2, CO2, O3 | ||
|
Technical parameter |
|||
| Stability | Less than 1% during the life of the sensor | ||
| Response time | Less than 10 seconds | ||
| Warm-up time | 30S (SO2 \ NO2 \ CO \ O3 12 hours) | ||
| Working current | DC12V≤60ma (HCD6815) -DC12V≤180ma | ||
| Power consumption | DC12V≤0.72W (HCD6815); DC12V≤2.16W | ||
| Life time | In addition to SO2 \ NO2 \ CO \ O3 \ PM2.5 \ PM10 (normal environment for 1 year, high pollution environment is not guaranteed),
life is not less than 3 years |
||
| Output | RS485, MODBUS communication protocol | ||
| Housing material | ASA engineering plastics | ||
| Working environment | Temperature -30 ～ 70 ℃, working humidity: 0-100% | ||
| Storage conditions | -40 ~ 60 ℃ | ||
| Standard cable length | 3 meters | ||
| The farthest lead length | RS485 1000 meters | ||
| Protection level | IP65 | ||
| Electronic compass | Optional | ||
| GPS | Optional | ||
|
Wireless transmission |
|||
| Wireless transmission | LORA / LORAWAN, GPRS, 4G,WIFI | ||
|
Mounting Accessories |
|||
| Stand pole | 1.5 meters, 2 meters ,3 meters high, the other high can be customize | ||
| Equipment case | Stainless steel waterproof | ||
| Ground cage | Can supply the matched ground cage to burred in the ground | ||
| Lightning rod | Optional(Used in thunderstorm places) | ||
| LED display screen | Optional | ||
| 7 inch touch screen | Optional | ||
| Surveillance cameras | Optional | ||
|
Solar power system |
|||
| Solar panels | Power can be customized | ||
| Solar Controller | Can provide matched controller | ||
| Mounting brackets | Can provide the matched bracket | ||
FAQ
Q: What's the main characteristics of this compact weather station?
A: It is easy for installation and has robust & integrated structure , 7/24 continuous monitoring.
Q:Can we choose other desired sensors?
A: Yes, we can supply the ODM and OEM service, the other required sensors can be intergrated in our present weather station.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Do you supply tripod and solar panels?
A: Yes, we can supply the stand pole and the tripod and the other install accessories, also the solar panels, it is optional.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 12-24V, RS485. The other demand can be custom made.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.
Q: What’s the standard cable length?
A: Its standard length is 3m. But it can be customized, MAX can be 1KM.
Q: What's the lifetime of this Mini Ultrasonic Wind Speed Wind Direction Sensor?
A: At least 5 years long.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be delivered in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What industry can be applied to in addition to construction sites?
A:Urban roads,bridges,smart street light, smart city,industrial park and mines, etc.
